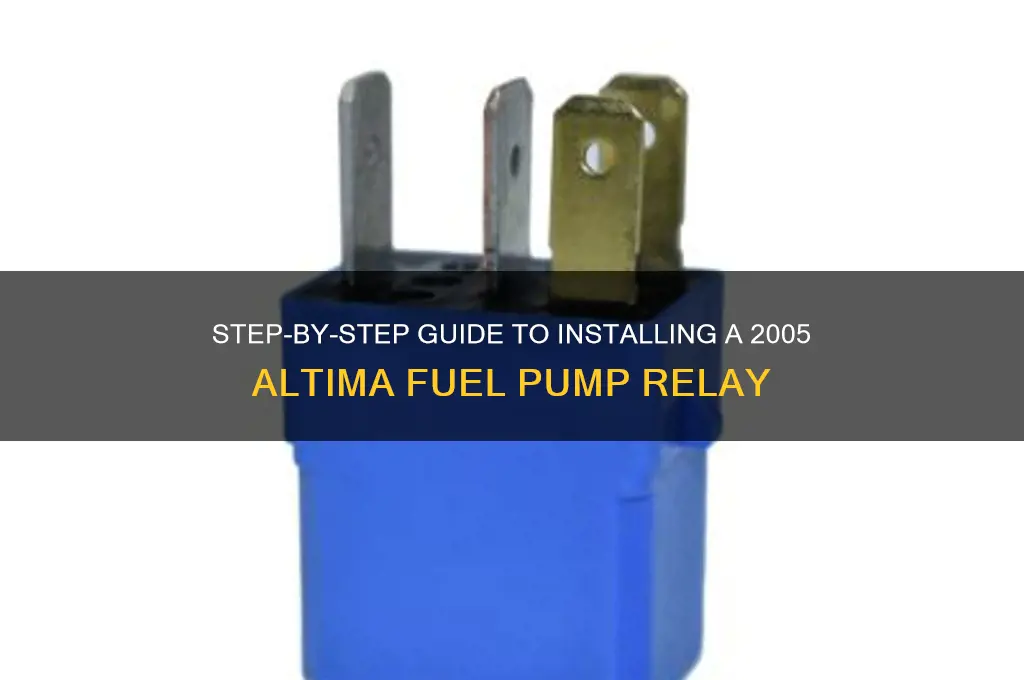

Installing the fuel pump relay in a 2005 Nissan Altima is a straightforward task that can help resolve issues related to fuel delivery or engine starting. The fuel pump relay is typically located in the fuse box under the hood, and its primary function is to control the power supply to the fuel pump. To begin the installation, ensure the vehicle is turned off and the ignition is in the Off position to prevent any electrical mishaps. Locate the fuse box, open the cover, and identify the fuel pump relay, which is usually labeled. Carefully remove the old relay by pulling it straight out of its slot, and insert the new relay in the same orientation, ensuring it clicks securely into place. After installation, test the vehicle to confirm the fuel pump is functioning correctly. This process requires minimal tools and can be completed in a few minutes, making it an accessible DIY repair for most car owners.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2005 Nissan Altima |
| Component | Fuel Pump Relay |
| Location | Typically found in the fuse box under the hood or near the battery |
| Tools Required | Screwdriver, Pliers, Multimeter (optional) |
| Steps to Install | 1. Locate the relay in the fuse box. 2. Identify the correct relay (consult manual). 3. Disconnect the battery. 4. Remove the old relay by pulling it straight out. 5. Insert the new relay in the same position. 6. Reconnect the battery. 7. Test the fuel pump operation. |
| Relay Part Number | Varies by model; check Nissan OEM part catalog (e.g., 25230-9E000) |
| Common Symptoms of Failure | Engine not starting, stalling, or difficulty starting |
| Precautions | Ensure the vehicle is off and the battery is disconnected before work |
| Diagnostic Tips | Use a multimeter to test relay continuity or swap with a known good relay |
| Estimated Time to Install | 15-30 minutes |
| Difficulty Level | Beginner to Intermediate |
| Cost of Relay | $10-$30 (varies by brand and retailer) |
| Additional Notes | Always refer to the vehicle’s service manual for specific instructions |
Explore related products
What You'll Learn
- Locate the Fuel Pump Relay: Identify relay position in fuse box under hood or near battery
- Remove the Old Relay: Disconnect battery, remove cover, and pull out faulty relay carefully
- Install the New Relay: Insert replacement relay, ensuring proper alignment and secure fit
- Test the Relay: Reconnect battery, start car, and check for proper fuel pump operation
- Verify Functionality: Listen for fuel pump hum and confirm engine runs smoothly post-installation
Locate the Fuel Pump Relay: Identify relay position in fuse box under hood or near battery
The fuel pump relay in a 2005 Nissan Altima is a critical component that ensures your vehicle’s fuel system operates efficiently. Locating it is the first step in any installation or troubleshooting process. Start by opening the hood and identifying the fuse box, typically situated near the battery or along the driver’s side firewall. This box houses multiple relays and fuses, so familiarity with its layout is essential. Nissan often labels the fuse box cover with a diagram indicating the position of each relay, including the fuel pump relay. If the cover is missing or the diagram is unclear, consult your Altima’s owner’s manual for precise guidance.
Analyzing the fuse box layout reveals a systematic organization designed for ease of access. Relays are usually grouped separately from fuses, with the fuel pump relay often positioned toward the center or side of the box. Its size and shape may differ slightly from other relays, but it typically features a rectangular or square design with four to five pins. If you’re unsure, compare it to the diagram or use a multimeter to test for continuity, ensuring you’ve identified the correct relay before proceeding.
Persuasively, taking the time to accurately locate the fuel pump relay can save you from unnecessary complications during installation. Misidentifying the relay may lead to incorrect connections, potentially damaging the vehicle’s electrical system. A systematic approach—inspecting the fuse box cover, consulting the manual, and verifying the relay’s position—ensures precision. This step is not just procedural; it’s foundational to a successful installation.
Descriptively, the fuse box under the hood of a 2005 Altima is a compact yet intricate hub of electrical activity. Its black plastic casing blends seamlessly with the engine bay, often secured by clips or screws that require a flathead screwdriver for removal. Inside, relays and fuses are arranged in a grid-like pattern, with the fuel pump relay standing out due to its function and placement. Its proximity to the battery or firewall makes it accessible, yet its integration with other components demands careful handling to avoid accidental disconnections.
Instructively, to locate the fuel pump relay, begin by propping open the hood and securing it with the support rod. Next, identify the fuse box by its rectangular shape and proximity to the battery. Remove the cover by pressing the release tabs or unscrewing it, depending on the design. Refer to the diagram on the cover or manual to pinpoint the fuel pump relay’s position. If the diagram is unclear, look for a relay labeled “Fuel Pump” or “FP.” Once identified, gently pull the relay straight out of its slot, ensuring it’s the correct one before proceeding with installation or replacement. This methodical approach guarantees accuracy and efficiency.
