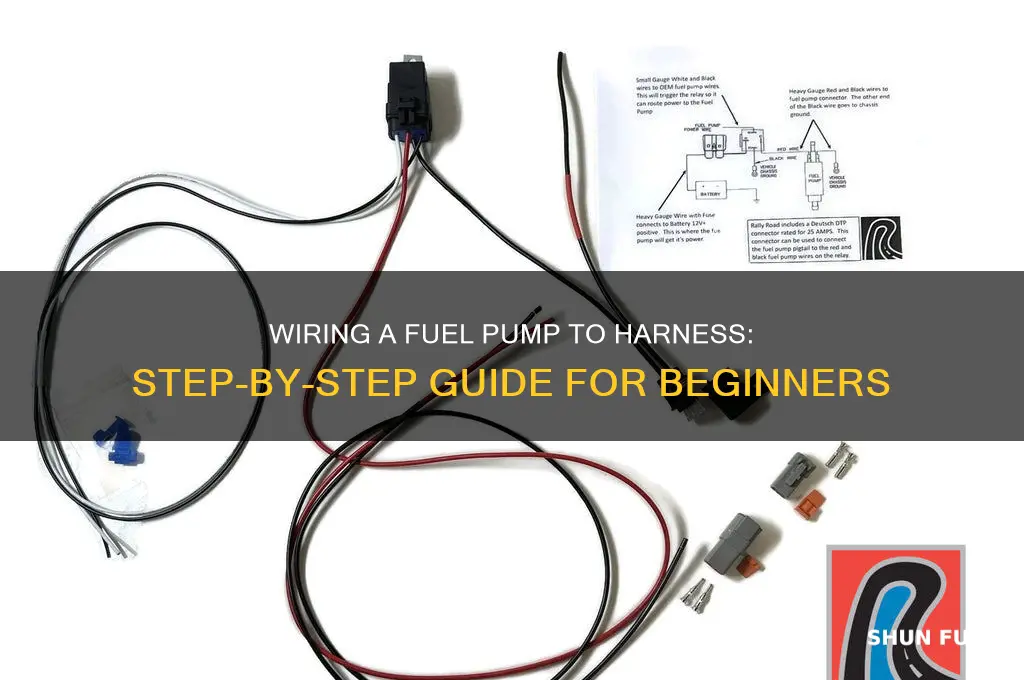

Wiring a fuel pump to a harness is a critical task that ensures proper fuel delivery and engine performance in vehicles. This process involves connecting the fuel pump’s electrical components to the vehicle’s wiring harness, which supplies power and control signals. Proper wiring is essential to prevent issues such as fuel pump failure, electrical shorts, or inconsistent fuel pressure. The steps typically include identifying the correct wires for power, ground, and signal, using appropriate connectors, and ensuring secure connections to avoid vibrations or disconnections. Additionally, understanding the specific requirements of your vehicle’s fuel pump and harness is crucial for a safe and efficient installation. Whether upgrading a fuel pump or replacing a faulty one, following a systematic approach and adhering to safety guidelines will guarantee a reliable and long-lasting setup.
| Characteristics | Values |
|---|---|
| Wiring Diagram | Typically involves connecting the fuel pump to the harness via a relay, fuse, and ground. Specific diagrams vary by vehicle make and model. |
| Tools Required | Wire strippers, crimping tool, soldering iron (optional), multimeter, electrical tape, heat shrink tubing, and a wiring diagram. |
| Wire Gauge | Usually 14-16 AWG for fuel pump power and ground wires, but check vehicle specifications. |
| Relay Usage | A relay is essential to handle the high current draw of the fuel pump and protect the circuit. |
| Fuse Protection | Install an inline fuse (typically 10-20 amps) near the battery to protect the circuit from overcurrent. |
| Ground Connection | Ensure a clean, secure ground connection to the vehicle chassis to prevent voltage drops and ensure proper operation. |
| Power Source | Connect the fuel pump to a switched 12V power source (e.g., ignition-switched wire) to ensure it only operates when the engine is running. |
| Wire Insulation | Use high-temperature, automotive-grade wire insulation to withstand engine bay conditions. |
| Connector Types | Use weatherproof connectors (e.g., Deutsch, Metri-Pack) for durability and reliability. |
| Testing | Use a multimeter to verify continuity, voltage, and proper operation before finalizing the installation. |
| Safety Precautions | Disconnect the battery before working on the electrical system to prevent short circuits or accidents. |
| Compatibility | Ensure the fuel pump and harness are compatible with the vehicle's electrical system and fuel delivery requirements. |
| Professional Help | If unsure, consult a professional mechanic or refer to vehicle-specific forums and manuals. |
Explore related products
What You'll Learn
- Identify Correct Wires: Locate power, ground, and signal wires in the harness for fuel pump connection
- Use Relay for Power: Install a relay to protect the circuit and handle high current demands
- Ground Properly: Ensure a clean, secure ground connection to prevent electrical issues or failures
- Connect to ECU/PCM: Link the fuel pump signal wire to the engine control unit for activation
- Test and Verify: Check connections, voltage, and pump operation before finalizing the installation
Identify Correct Wires: Locate power, ground, and signal wires in the harness for fuel pump connection
The fuel pump harness is a critical component in your vehicle's fuel delivery system, and identifying the correct wires is the first step to a successful installation. The harness typically contains three essential wires: power, ground, and signal. The power wire supplies the necessary voltage to the fuel pump, usually a 12-volt feed from the battery or a dedicated relay. The ground wire provides a return path for the electrical current, ensuring proper functionality and preventing damage to the pump. Lastly, the signal wire communicates with the engine control unit (ECU), allowing it to regulate fuel pressure and flow based on engine demands.
To locate these wires, start by consulting your vehicle's wiring diagram or service manual. This resource will provide valuable insights into the color-coding and pin configurations specific to your make and model. For instance, in many GM vehicles, the power wire is often pink or orange, while the ground wire is black or dark blue. However, it's essential to verify these details, as color-coding can vary between manufacturers and even across different model years. If you're working on a universal harness or an aftermarket fuel pump, the wiring colors might differ, so always cross-reference with the product's documentation.
A practical approach to identifying wires is to use a multimeter, a versatile tool for automotive diagnostics. Set the multimeter to the continuity or resistance mode and probe the harness connectors. By touching the probes to different wires, you can determine which ones are connected to the battery, ground, or ECU. For example, the power wire should show continuity to the positive battery terminal when the ignition is on. Similarly, the ground wire will have continuity to the vehicle's chassis or a known good ground point. The signal wire's resistance can be measured against the ECU's connector to ensure a valid connection.
When dealing with high-performance fuel pumps or systems with advanced features, such as variable speed control, additional wires may be present. These could include a tachometer signal wire for speed-density calculations or a diagnostic wire for error code communication. In such cases, it's crucial to understand the pump's specifications and the vehicle's requirements. Misidentifying these wires can lead to improper fuel delivery, engine performance issues, or even damage to the pump and associated components.
In summary, identifying the correct wires in a fuel pump harness requires a combination of research, visual inspection, and diagnostic testing. By understanding the roles of power, ground, and signal wires, and utilizing resources like wiring diagrams and multimeters, you can ensure a precise and safe connection. This attention to detail is vital for optimal fuel system performance and the overall reliability of your vehicle. Remember, each vehicle and fuel pump setup may have unique characteristics, so always adapt your approach to the specific application.
Signs Your Fuel Pump is Failing: How to Spot the Warning Signals
You may want to see also
Explore related products
Use Relay for Power: Install a relay to protect the circuit and handle high current demands
Directly powering a fuel pump from a switch or ECU can overload wiring and compromise safety. A relay acts as a high-current switch, isolating the control circuit from the pump’s power demands. This setup ensures the thin wires connected to your switch or ECU aren’t subjected to the pump’s 10–20 amp draw, reducing fire risk and voltage drop. Without a relay, prolonged use could melt wires or damage components, making this step non-negotiable for reliability.
To install a relay, select a unit rated for your pump’s current (e.g., a 30-amp relay for a 15-amp pump). Connect the relay’s 85 and 86 pins to a switched 12V source (like the ignition) and ground, respectively. Run a fused 10–12 gauge wire from the battery to the relay’s 30 pin. Attach the pump to the 87 pin, using the same gauge wire. This configuration ensures the relay energizes only when the ignition is on, preventing battery drain. Always use a fuse (rated 20–30% higher than the pump’s draw) near the battery to protect against shorts.
While wiring, avoid common pitfalls like using undersized wire or omitting the fuse. A 14-gauge wire, for instance, may work momentarily but will overheat under load. Secure all connections with heat-shrink tubing and zip-tie wires away from exhaust or moving parts. Test the setup by simulating a pump failure: disconnect the pump and check for relay engagement with a multimeter. If the relay doesn’t click, recheck power and ground connections.
Compared to direct wiring, a relay system offers redundancy and scalability. For example, if upgrading to a higher-flow pump later, the relay and wiring remain compatible, provided they’re initially sized correctly. This future-proofs your harness, saving time and money on reworks. It also simplifies troubleshooting, as issues are isolated to either the control or power side of the relay.
In practice, this method is standard in performance and racing applications, where fuel pump demands are extreme. Even in daily drivers, it’s a best practice to ensure longevity and safety. For DIYers, a relay kit (available for $10–$20) includes the relay, fuse holder, and wiring diagram, streamlining installation. Pair this with a wiring diagram specific to your vehicle for seamless integration. By prioritizing this step, you safeguard your vehicle’s electrical system while ensuring consistent fuel delivery under all conditions.
Step-by-Step Guide to Disassembling Your ATV Fuel Pump Assembly
You may want to see also
Explore related products
Ground Properly: Ensure a clean, secure ground connection to prevent electrical issues or failures
A weak ground connection is a silent saboteur in any electrical system, and your fuel pump wiring is no exception. Voltage drops, erratic pump operation, and even complete failure can result from a compromised ground. Think of it as a clogged artery – restricted flow leads to system-wide problems.
Diagnosing Ground Issues: Suspect a grounding problem if your fuel pump whines, hums inconsistently, or fails to prime. Use a multimeter to check voltage drop between the pump's ground terminal and the battery negative. A drop exceeding 0.2 volts under load indicates a grounding issue.
Best Practices for Secure Grounding:
- Location: Choose a bare metal surface on the vehicle chassis, free of paint, rust, or undercoating. Common spots include firewall mounting points or the trunk floor near the fuel tank.
- Preparation: Sand the chosen area until shiny metal is exposed. For added insurance, use a wire brush and clean with electrical contact cleaner.
- Connection: Secure the ground wire with a ring terminal and a stainless steel bolt. Tighten to manufacturer specifications – overtightening can damage threads, while undertightening leads to resistance.
- Wire Gauge: Match the ground wire gauge to the power wire. Undersized grounding wires become bottlenecks, negating the benefits of a high-capacity pump.
Advanced Tip: For high-performance applications, consider a dedicated ground wire running directly from the pump to the battery negative, bypassing the chassis entirely. This minimizes voltage drop and ensures maximum current flow.
Chevy Colorado Fuel Pump Lifespan: What to Expect and Maintenance Tips
You may want to see also
Explore related products
Connect to ECU/PCM: Link the fuel pump signal wire to the engine control unit for activation
The fuel pump signal wire is the lifeline between your vehicle's brain and its fuel delivery system. Without a proper connection to the Engine Control Unit (ECU) or Powertrain Control Module (PCM), your engine will starve for fuel, leaving you stranded. This critical link ensures the ECU can activate the fuel pump at the right moment, delivering the precise amount of fuel needed for combustion.
Understanding this connection is paramount for anyone attempting to wire a fuel pump to a harness, as it directly impacts engine performance and reliability.
Connecting the fuel pump signal wire to the ECU/PCM involves identifying the correct terminal on both the harness and the control unit. Most ECUs have a dedicated pin for the fuel pump relay, often labeled as "FP" or "Fuel Pump." Consult your vehicle's wiring diagram to pinpoint this location accurately. The signal wire, typically a thin gauge wire, carries the activation command from the ECU to the fuel pump relay, which then powers the pump. Ensure the wire is securely connected to prevent intermittent operation or complete failure.
Pro Tip: Use a multimeter to verify continuity between the ECU pin and the fuel pump relay before finalizing the connection.
While the process seems straightforward, compatibility is crucial. Modern ECUs often require specific signal protocols and voltage levels. Mismatched wiring can lead to erratic fuel pump behavior or even damage the ECU. If you're working with an aftermarket fuel pump or ECU, double-check the manufacturer's specifications to ensure the signal wire meets the required parameters. Caution: Never force a connection if the terminals don't align perfectly; this could damage both components.
For optimal performance, consider using a relay to handle the high current draw of the fuel pump. This protects the ECU's delicate circuitry and ensures a consistent power supply to the pump. The relay should be wired in series with the fuel pump, activated by the signal from the ECU. This setup allows the ECU to control the pump's operation while isolating itself from the high-power circuit. Takeaway: A relay acts as a buffer, safeguarding your ECU and ensuring reliable fuel pump operation.
Final Thought: Mastering the connection between the fuel pump signal wire and the ECU/PCM is a fundamental step in any fuel system wiring project. By understanding the principles, identifying the correct terminals, and ensuring compatibility, you can achieve a safe and efficient fuel delivery system for your vehicle.
Fixing a Fuel Pump: Is It a DIY-Friendly Repair?
You may want to see also
Explore related products
Test and Verify: Check connections, voltage, and pump operation before finalizing the installation
Before finalizing your fuel pump installation, thorough testing and verification are critical to ensure safety, reliability, and performance. Start by inspecting all connections for tightness and corrosion, as loose or damaged wires can lead to intermittent operation or failure. Use a multimeter to confirm the voltage at the pump’s terminals matches the vehicle’s specifications, typically 12 volts when the ignition is on. If voltage is insufficient, trace the wiring back to the fuse box or relay to identify the issue.
Next, test the pump’s operation by momentarily connecting the power and ground wires directly to the battery, bypassing the harness temporarily. Listen for the pump’s priming cycle, which should last 2–3 seconds and produce a faint humming sound. If the pump fails to activate, check for obstructions in the fuel line or a faulty pump motor. Ensure the fuel pressure regulator is functioning correctly by verifying the pressure reading with a gauge; it should align with the manufacturer’s specifications, usually 30–60 PSI for most vehicles.
A comparative analysis of the pump’s performance before and after installation can reveal underlying issues. For instance, if the pump runs but delivers insufficient fuel, inspect the fuel filter or tank for clogs. Conversely, if the pump operates flawlessly during testing but fails in the harness, recheck the relay and ground connections, as these are common culprits for intermittent failures. Always compare your findings to the vehicle’s service manual for accurate diagnostics.
Persuasively, skipping this testing phase risks engine damage, poor performance, or even safety hazards like fuel leaks. A descriptive example: imagine driving at highway speeds only to experience sudden power loss due to an untested fuel pump. By investing 30 minutes in verification, you not only safeguard your vehicle but also save potential repair costs down the line. Practical tip: label each wire during testing to avoid confusion when reconnecting to the harness.
In conclusion, testing and verifying your fuel pump installation is a non-negotiable step. From checking connections and voltage to confirming pump operation, each step ensures a seamless integration into your vehicle’s system. Treat this process as a diagnostic checklist, methodically addressing each component to guarantee long-term reliability. Remember, a properly tested fuel pump is the cornerstone of a well-functioning fuel system.
Locating the Fuel Pump in a Cessna 172: A Comprehensive Guide
You may want to see also
Frequently asked questions
Use a wire gauge that matches the fuel pump’s current draw, typically 12-14 AWG for most applications. Always refer to the pump’s specifications for the correct gauge to ensure safety and efficiency.
Yes, a relay is highly recommended to prevent overloading the wiring harness and switch. The relay allows the pump to draw power directly from the battery while being controlled by the harness.
Connect the ground wire to a clean, unpainted metal surface on the vehicle’s chassis or use a dedicated ground point in the harness. Ensure the connection is secure and free of corrosion for proper operation.
