Removing the fuel pump from a 1987 Ford Ranger requires careful preparation and attention to safety due to the flammable nature of gasoline. Start by relieving the fuel system pressure using the Schrader valve on the fuel rail, then disconnect the negative battery terminal to prevent electrical hazards. Locate the fuel tank, which is typically beneath the vehicle, and drain any remaining fuel to minimize spillage. Next, support the tank securely and remove the retaining straps or bolts holding it in place. Lower the tank slightly to access the fuel pump module, disconnect the electrical connector and fuel lines, and then carefully remove the pump assembly. Always work in a well-ventilated area and avoid open flames or sparks during the process.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1987 Ford Ranger |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Wrenches, screwdrivers, jack, jack stands, drain pan, new fuel pump |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Remove Fuel Pump | 1. Relieve fuel pressure 2. Disconnect battery 3. Drain fuel tank 4. Remove bed or access panel 5. Disconnect fuel lines and wiring 6. Remove fuel pump assembly 7. Install new pump and reassemble |
| Common Issues | Rusty fuel tank, stuck bolts, damaged wiring |
| Estimated Time | 2-4 hours depending on experience and condition of the vehicle |
| Difficulty Level | Moderate to Difficult |
| Recommended Replacement Parts | New fuel pump, fuel filter, gaskets, and seals |
| Additional Tips | Use a fuel line disconnect tool to avoid damage, clean the tank if necessary |
Explore related products
What You'll Learn
Disconnect Battery and Relieve Fuel Pressure
Before diving into the fuel pump removal process on your 1987 Ranger, prioritizing safety is paramount. Fuel systems operate under pressure, and neglecting to relieve this pressure can lead to dangerous fuel spray or even fire hazards.
Understanding the "Why" Behind the Steps
Analyzing the necessity of disconnecting the battery and relieving fuel pressure reveals a twofold purpose. Firstly, disconnecting the battery eliminates the risk of accidental sparks, a critical precaution when working around flammable fuel. Secondly, relieving fuel pressure minimizes the chance of fuel gushing out unexpectedly, protecting both you and your vehicle from potential harm.
Ignoring these steps could result in fuel spraying into your eyes, skin irritation, or even a fire if a spark occurs.
A Step-by-Step Guide to Safety
- Locate the Battery: The battery in your 1987 Ranger is typically located under the hood. Identify the negative terminal, usually marked with a "-" symbol.
- Disconnect the Battery: Using a wrench or socket, loosen the nut securing the negative battery cable. Carefully pull the cable away from the terminal, ensuring it doesn't come into contact with any metal surfaces.
- Relieve Fuel Pressure: Your Ranger likely has a Schrader valve, similar to a tire valve stem, located on the fuel rail. Wrap a rag around the valve to catch any fuel that may escape, then press the valve pin to release the pressure. You may hear a hissing sound as the pressure is relieved.
Practical Tips for a Smooth Process
- Safety First: Always wear safety goggles and gloves when working with fuel.
- Work in a Well-Ventilated Area: Fuel vapors are flammable, so ensure adequate ventilation to minimize risk.
- Use a Catch Pan: Place a drain pan under the Schrader valve to catch any fuel that may leak out during the pressure relief process.
- Double-Check Connections: After completing the fuel pump removal, carefully reconnect the negative battery cable, ensuring a tight and secure connection.
By diligently following these steps to disconnect the battery and relieve fuel pressure, you're laying the groundwork for a safe and successful fuel pump removal on your 1987 Ranger. Remember, prioritizing safety is not just a recommendation, it's a necessity when working with fuel systems.
Testing a Fuel Pump Diode: Step-by-Step Guide for Beginners
You may want to see also
Explore related products
Locate and Access Fuel Pump Assembly
The fuel pump assembly in a 1987 Ford Ranger is located inside the fuel tank, a design common in many vehicles of that era. This placement ensures the pump remains cooled by the fuel, but it also means accessing it requires removing the tank. Before diving into the process, ensure you’ve relieved the fuel system pressure and disconnected the battery to prevent accidents. Safety should always be your top priority when working with fuel systems.
To locate the fuel pump assembly, start by identifying the fuel tank. In the 87 Ranger, the tank is typically found beneath the vehicle, between the rear axle and the rear bumper. Use a jack to safely raise the vehicle and secure it on stands. Once the tank is visible, trace the fuel lines and electrical connections leading to it. These will guide you to the pump assembly, which is usually mounted on top of the tank. Familiarize yourself with the tank’s shape and the surrounding components to avoid damaging nearby parts during removal.
Accessing the fuel pump assembly requires removing the fuel tank, a task that demands both caution and precision. Begin by relieving the remaining fuel pressure through the Schrader valve on the fuel rail. Next, disconnect the fuel lines and electrical connectors attached to the tank. Use appropriate tools to avoid damaging the quick-disconnect fittings or wiring. Once all connections are detached, support the tank with a jack or a secure strap, then remove the retaining straps or bolts holding it in place. Lower the tank carefully to a stable surface, ensuring no fuel spills.
With the tank removed, the fuel pump assembly is now accessible. It’s typically secured to the tank with a locking ring or retainer plate. Use the appropriate tool, such as a fuel pump locking ring tool, to remove this securely without damaging the tank. Once the ring is off, carefully lift the assembly out of the tank. Inspect the pump, sender unit, and filter for wear or damage, as this is an ideal time to replace any failing components. Reinstallation follows the reverse process, ensuring all connections are tight and secure.
In summary, locating and accessing the fuel pump assembly in an 87 Ranger involves identifying the fuel tank, safely removing it, and then extracting the pump assembly. This process requires attention to detail, proper tools, and safety precautions to avoid fuel spills or electrical hazards. By following these steps, you can efficiently address fuel pump issues and ensure your Ranger’s fuel system operates reliably.
Fuel Pump Lifespan: How Often Do They Typically Fail?
You may want to see also
Explore related products
Remove Fuel Lines and Wiring
Before tackling the fuel pump itself, you’ll need to disconnect the fuel lines and wiring harness, a step often overlooked in its complexity. The 87 Ranger’s fuel system relies on a mechanical connection between the lines and the pump, secured by clamps or quick-disconnect fittings. Start by relieving fuel pressure in the system—locate the Schrader valve on the fuel rail and depress it with the ignition off to release residual pressure. Failure to do this can result in fuel spraying during disconnection, posing a fire hazard.
Analyzing the wiring harness reveals a straightforward but critical process. The harness connects to the fuel pump via a multi-pin connector, typically located near the top of the fuel tank. Gently pry the connector apart using a flathead screwdriver, being careful not to damage the terminals. Label the wires or take a photo beforehand if you’re unsure of their arrangement—this ensures a seamless reinstallation later. Corroded or brittle wiring is common in older vehicles like the 87 Ranger, so inspect the harness for signs of wear and replace it if necessary.
Removing the fuel lines requires precision and the right tools. If your Ranger has quick-disconnect fittings, use a fuel line disconnect tool to release the clips without damaging the lines. For clamped connections, loosen the hose clamps with a flathead screwdriver or pliers, then slide them away from the pump. Work slowly to avoid bending or kinking the lines, which can restrict fuel flow upon reassembly. Keep a rag handy to catch any fuel that drips during this process, and dispose of it safely.
A comparative look at fuel line materials shows that older Rangers often used rubber lines, which degrade over time. If the lines feel brittle or cracked, consider replacing them with modern ethanol-resistant alternatives. This upgrade not only ensures a secure fit but also prolongs the life of your fuel system. Similarly, inspect the wiring harness for compatibility with aftermarket fuel pumps, as some upgrades may require adapter harnesses.
In conclusion, removing fuel lines and wiring on an 87 Ranger demands attention to detail and safety precautions. By relieving fuel pressure, carefully disconnecting the wiring harness, and using the appropriate tools for the fuel lines, you minimize risks and set the stage for a successful fuel pump replacement. Treat this step as a diagnostic opportunity—inspecting the lines and wiring now can prevent future issues and ensure your Ranger runs smoothly for years to come.
Rebuilding Your Metropolitan Nash Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Detach Fuel Tank Straps and Lower Tank
Before attempting to remove the fuel pump on an '87 Ranger, it's essential to first detach the fuel tank straps and lower the tank to access the pump safely. This process requires careful attention to detail and adherence to safety precautions to avoid accidents or damage to the vehicle.
Steps to Detach Fuel Tank Straps
Begin by locating the fuel tank straps, typically found on either side of the tank, near the front and rear. Using a suitable wrench or socket, loosen the bolts securing the straps to the vehicle's frame. Be cautious not to overtighten or undertighten the bolts, as this can cause damage or compromise the tank's stability. Once the bolts are loosened, carefully lower the tank by supporting it with a jack or a secure stand. Ensure the tank is stable and will not shift or fall during the process.
Cautions and Safety Measures
When detaching the fuel tank straps, it's crucial to relieve the fuel system pressure to prevent fuel from spraying or leaking. To do this, locate the fuel pressure relief valve, typically found near the fuel rail or fuel pump. Press the valve to release any residual pressure in the system. Additionally, ensure the vehicle is parked on a level surface, and the emergency brake is engaged to prevent accidental movement. Wear safety goggles and gloves to protect against fuel spills or debris.
Lowering the Fuel Tank
With the straps detached, slowly lower the fuel tank using a jack or stand. Be mindful of the fuel lines and electrical connections still attached to the tank. Gently disconnect these lines, taking care not to damage or kink them. Label the lines and connections for easy reinstallation later. As the tank is lowered, inspect the straps and mounting points for signs of wear, corrosion, or damage. Replace any worn or damaged components to ensure a secure installation.
Practical Tips and Takeaways
When working on an '87 Ranger's fuel system, it's essential to prioritize safety and precision. Always refer to the vehicle's manual or a trusted repair guide for specific instructions and torque values. Keep a fire extinguisher nearby as a precaution, and avoid smoking or using open flames in the work area. By carefully detaching the fuel tank straps and lowering the tank, you'll gain the necessary access to remove the fuel pump safely and efficiently. Remember to reattach the straps securely and test the system for leaks before operating the vehicle.
Is Your Fuel Pump Getting Power? Here's How to Check
You may want to see also
Explore related products

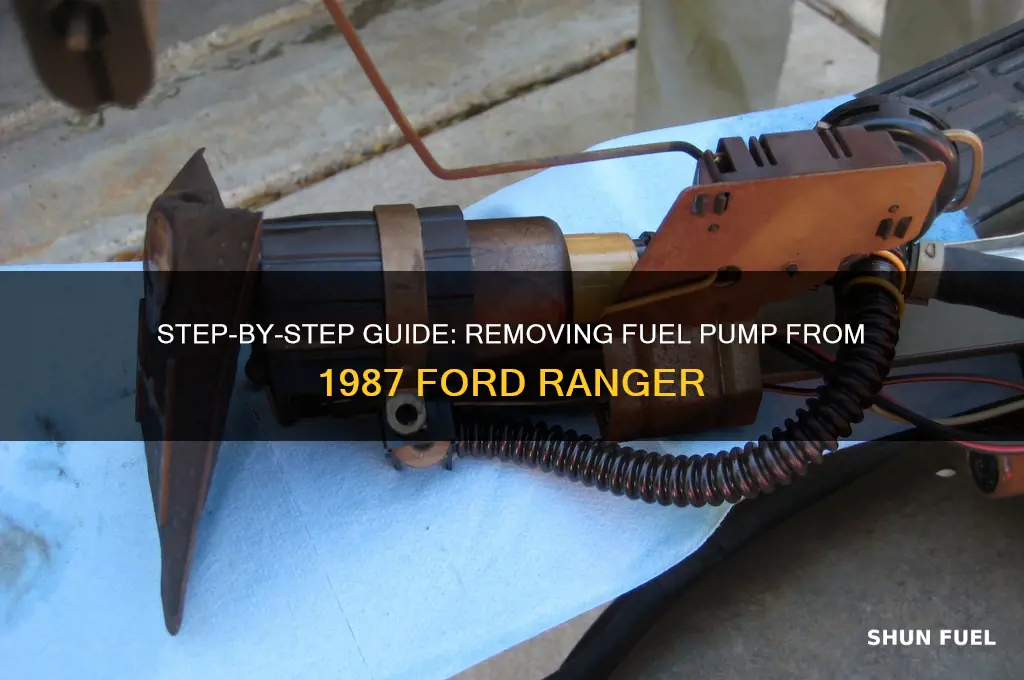

Extract Fuel Pump and Sender Unit
The fuel pump and sender unit in a 1987 Ford Ranger are housed within the fuel tank, necessitating its removal for extraction. Begin by relieving fuel system pressure to prevent accidental spills or injuries. Locate the pressure relief valve on the fuel injection system, typically near the engine bay, and depress it with a rag to release pressure. Once complete, disconnect the negative battery terminal to eliminate electrical hazards.
With safety measures in place, proceed to drain the fuel tank. Position a suitable container beneath the tank's drain valve and open it to collect residual fuel. If the valve is inaccessible or damaged, siphoning may be necessary, but exercise caution to avoid inhaling fumes or causing static electricity buildup. Ensure the tank is as empty as possible to minimize weight and spill risks during removal.
Next, raise the vehicle securely on jack stands to access the fuel tank. Locate the tank straps or mounting bolts, typically found along the tank's underside, and remove them using appropriate tools. Lower the tank carefully, supporting its weight to avoid damage to fuel lines or electrical connections. Once the tank is accessible, disconnect the fuel lines and electrical harness attached to the pump and sender unit. Use line disconnect tools to avoid damaging the quick-connect fittings.
To extract the fuel pump and sender unit, remove the tank's retaining ring or lock ring using a strap wrench or pliers. Lift the assembly out of the tank, taking care not to contaminate the internal components with debris. Inspect the unit for wear, such as a malfunctioning sender or worn pump motor, and replace as needed. Reinstallation follows the reverse process, ensuring all connections are secure and the tank is properly seated before refilling with fuel.
Practical tips include wearing safety goggles and gloves throughout the process, especially when handling fuel. Work in a well-ventilated area to disperse fumes, and keep a fire extinguisher nearby as a precaution. If the tank is rusted or difficult to remove, penetrating oil applied to mounting bolts can ease the process. Finally, test the new pump and sender unit by cycling the ignition before driving to confirm proper functionality.
Removing a Fuel Pump from a 1966 Corvette: Step-by-Step Guide
You may want to see also
Frequently asked questions
You’ll need basic hand tools like wrenches, sockets, a screwdriver, and possibly a fuel line disconnect tool. A jack and jack stands are also recommended to access the fuel tank.
Yes, it’s crucial to relieve fuel pressure by loosening the fuel filler cap and running the engine until it stalls to avoid fuel spraying during removal.
The fuel pump is located inside the fuel tank. You’ll need to safely lower the tank using a jack, disconnect the fuel lines and wiring, and then remove the tank to access the pump.
In most cases, the fuel pump and sending unit come as a single assembly, so you’ll need to replace the entire unit unless you find a pump-only replacement kit specific to your model.
