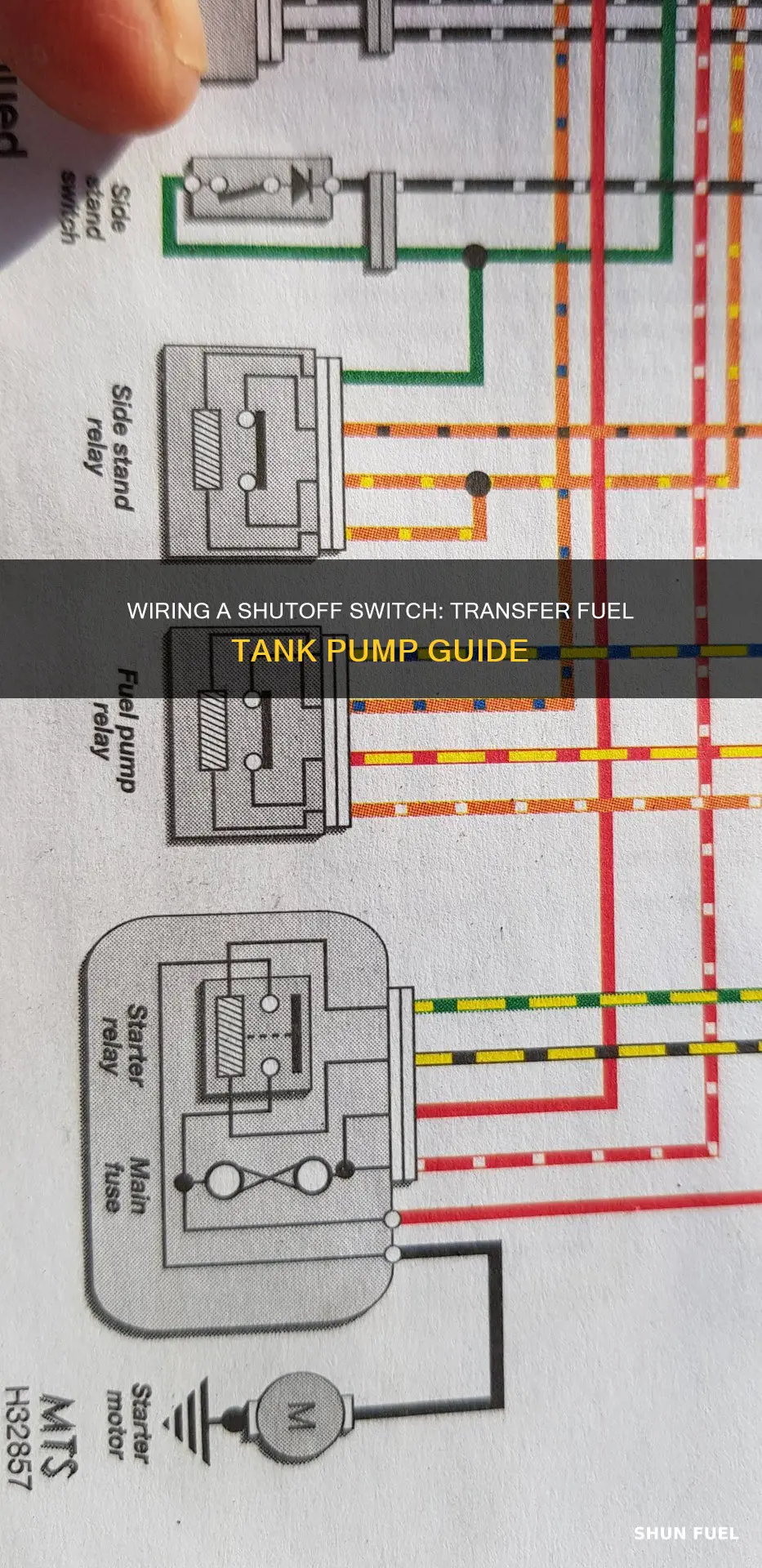

A fuel pump shut-off switch is a safety feature in vehicles that prevents the fuel pump from continuously pumping gas in the event of a collision, thereby reducing the chances of fire or explosion. The switch is wired from the battery to the ignition switch, the vehicle's computer, and the fuel pump. In this setup, the switch activates if it loses communication from any part of the vehicle. This article will guide you through the process of wiring a shut-off switch for a transfer fuel tank pump, including the necessary tools and precautions to ensure a safe and effective installation.
Explore related products
What You'll Learn
Faulty shutoff switch symptoms
A faulty shutoff switch may cause problems with the drivability of the vehicle. Here are some symptoms of a faulty fuel pump shut-off switch:
- The engine suddenly turns off while driving, or the engine won't start at all.
- The Check Engine Light comes on. There are several engine light codes associated with the fuel pump shut-off switch, including P0005, P0006, P0007, P0087, and P0230.
- The fuel pump shut-off switch trips for no apparent reason, even during normal driving conditions. This may be due to a faulty switch that has malfunctioned and needs to be replaced.
- The engine management system records a failure of the fuel pump shut-off switch, and a fuel pressure sensor detects a decrease of more than five psi (pounds per square inch).
- The gas cap cover or fuel door gets stuck closed and won't open, which could be due to a faulty internal spring or lever, lack of lubrication, or a bent fuel door.
- The vehicle has been in a collision, and the fuel pump shut-off switch has been activated to prevent fuel leaks and potential safety hazards. In this case, the switch will need to be manually reset or replaced if stuck.
If you suspect that your fuel pump shut-off switch is faulty, it is recommended to have your vehicle inspected by a professional technician to determine if the switch needs to be replaced.
Buc-ee's Fuel Tanks: Massive Storage, Efficient Refueling
You may want to see also
Explore related products
Resetting the switch
To reset the switch, first, locate the reset button. This is usually found either under the dashboard in the driver's compartment or under the driver or passenger seat. You may need to move the seat forward and pull back the carpet to access the switch. The switch may be behind a piece of plastic, like your glove box storage bin, or near the footrest area.
Once located, press and hold the reset button for about 20 seconds. The button may be red or yellow, and in some cases, it may be stuck. If so, try to loosen it by gently pushing it 20-30 times and then try to push it all the way down.
After resetting the switch, attempt to start the engine. If the switch is resetting itself, the engine will start and then shut off. If the switch is defective, the engine will not start.
It is important to note that incorrectly resetting the switch may cause issues with the engine, so caution should be exercised.
Fuel Tank Pressure Sensors: Necessary Safety Feature?
You may want to see also
Explore related products
Disconnecting the battery
Step 1: Open the Vehicle's Hood
Start by opening the hood of your vehicle to access the battery. This will provide you with a clear view and workspace to perform the disconnection.
Step 2: Disconnect the Ground Cable
Locate the negative terminal on your battery, which is usually marked with a "-" sign or black color. Disconnect the ground cable from this negative post. This step is essential as it disables the power to the fuel pump and sending unit, ensuring that no electrical current is flowing through the system.
Step 3: Secure the Cable
Once the ground cable is disconnected, make sure to secure it safely away from the battery terminal. You can use cable ties or any other appropriate method to ensure that the cable does not accidentally come into contact with the battery during the work process.
Step 4: Verify Power Disconnection
Before proceeding, it is crucial to verify that the power has been successfully disconnected. Check that the fuel pump and any related systems are inactive. This step ensures that you can work on the wiring safely without the risk of unexpected activation.
Step 5: Optional - Disconnect Positive Cable
In some cases, you may need to disconnect both the negative and positive cables from the battery. This is especially true if you are relocating the battery, such as moving it to the trunk or tire well, as mentioned in some fuel pump wiring discussions. Ensure both cables are securely disconnected and isolated.
Remember, disconnecting the battery is just one part of the process when wiring a shut-off switch for a transfer fuel tank pump. Always refer to manufacturer guidelines, safety protocols, and professional advice when performing any vehicle modifications or repairs.
Dual Fuel Tanks: One Pump, Many Benefits
You may want to see also
Explore related products
$43.51 $47.51
Locating the switch
The fuel pump shut-off switch is typically located under the dashboard in the driver's compartment, or beneath the driver or passenger seat. To access the switch, you will need to move the seat forward and pull back the carpet or remove the cover under the seat.
In some vehicles, the switch may be found behind a panel or cover under the dashboard. It is often located near the main airbag module, as it is designed to disengage the power to the fuel pump in the event of a sudden stop or collision.
If your vehicle has a fuel pressure sensor, the switch may also be wired to the vehicle's computer, which will record a decrease of more than five psi (pounds per square inch) if the switch fails. This information can be useful in diagnosing any issues with the fuel pump shut-off switch.
Additionally, some vehicles may have a reset button for the fuel pump shut-off switch, which can be pressed to resume power to the fuel pump after a minor collision or sudden stop. This reset button is typically located near the switch, either under the dashboard or under the driver or passenger seat.
It is important to consult your vehicle's manual or seek professional advice if you are unsure about the location of the fuel pump shut-off switch or reset button.
Draining Fuel from a 2003 Grand Caravan
You may want to see also
Explore related products
Installing a new switch
Firstly, you need to identify the location of your vehicle's battery and fuel pump shut-off switch. Disconnect the battery by removing the ground cable from the negative post, disabling power to the fuel pump. This is an important safety step to prevent any accidental electrical issues.
Next, locate the fuel pump shut-off switch, which is usually found under the dashboard or beneath the driver or passenger seat. You may need to move the seats and remove any carpet or panels obstructing access to the switch. Once you've located the switch, remove the harness attached to it, as well as any mounting hardware securing the switch to the firewall or bracket under the dash.
Now, it's time to install the new switch. Secure it in place using the appropriate mounting hardware. Ensure you clean the contacts on the harness with electrical cleaner before connecting it to the new switch.
Finally, reconnect the battery cable to the negative post and ensure that all components are securely connected. Test the new shut-off switch to ensure it is functioning properly.
It is important to note that the wiring process may vary depending on the vehicle's make and model. Some vehicles may have different wiring configurations, so it is always best to refer to the vehicle's manual or seek professional guidance if you are unsure. Additionally, some sources suggest using a relay to handle the power, which can add complexity to the installation process but may be necessary to protect the vehicle's computer system.
