Wiring a Faria fuel gauge to a fuel tank requires careful attention to the wiring plan. The back of the unit has terminal studs marked with letters, each of which needs to be wired correctly. The I stud, for ignition, needs to be wired to a 12v DC circuit activated by the ignition switch, typically using a purple wire. The G or GND stud, for ground, should be attached to a black ground wire. The S stud, for the sender, is wired to the fuel tank, typically using a pink wire. Finally, the L stud, for the light, requires wiring for the gauge light to function.
Explore related products
What You'll Learn
The wires and their respective posts: I, G, S, L
When wiring a Faria fuel gauge, the back of the unit will have terminal studs marked with letters. These letters are I, G, S, and L, and each one needs to be wired correctly.
I, for Ignition, should be wired to a 12v dc circuit that is activated by the ignition switch. The wire should be purple, and the circuit is powered by turning the key to the run position.
G, for Ground, should be attached to a black ground wire. This is the negative wire and is always hot.

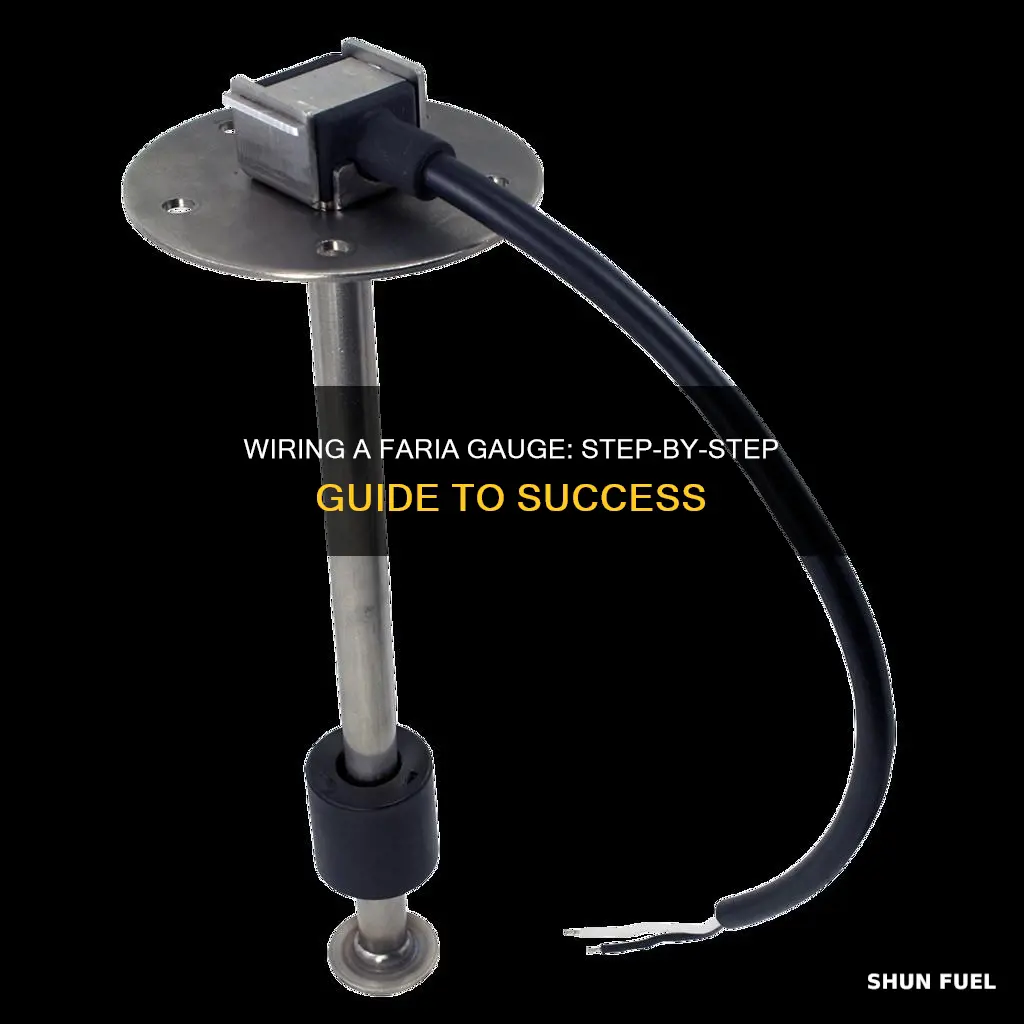

S, for Sender, is wired to the fuel sender. This wire should be pink and runs to the fuel tank, where it attaches to the centre post of the sending unit.
L, for Light, is where the power for the light attaches if the gauge light doesn't have a wire for the light.
It is important to note that the wiring colours mentioned above are standard, but there may be variations, so always check the wiring diagram or consult a professional if unsure.
