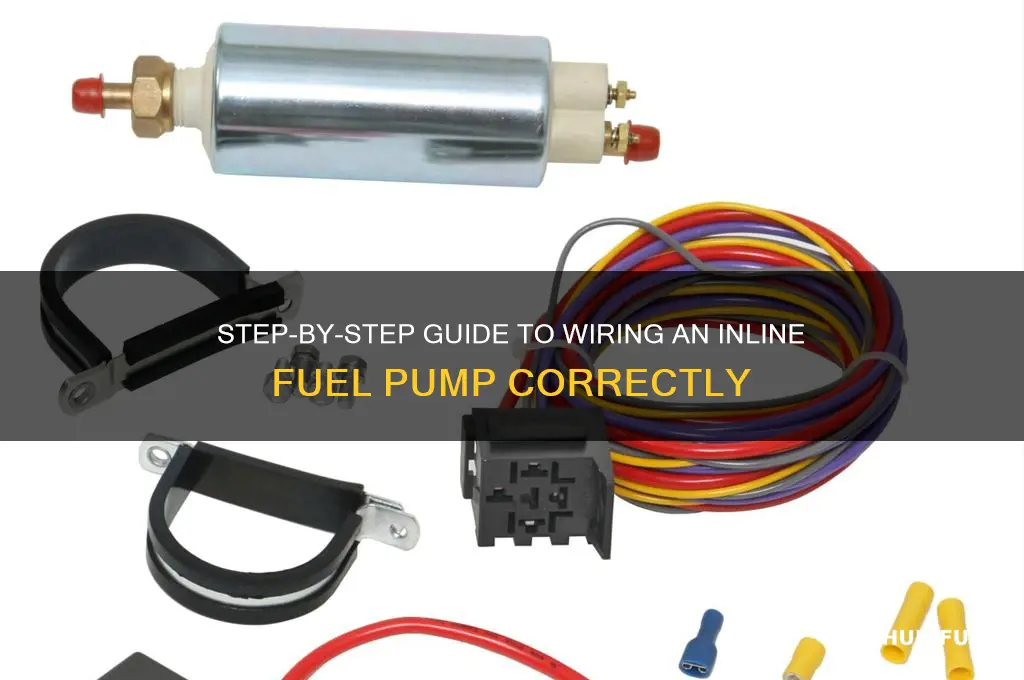

Wiring an inline fuel pump is a critical task for ensuring proper fuel delivery in a vehicle, and it requires careful attention to detail to avoid potential hazards. The process typically involves connecting the pump to the vehicle’s electrical system, often using a relay to manage power efficiently and protect the pump from overloading. Key steps include identifying the correct power and ground sources, installing a fuse for safety, and ensuring the pump is wired to activate only when the ignition is on. Properly securing connections and using heat-resistant materials are essential to prevent shorts or fires. Additionally, understanding the specific wiring diagram for your fuel pump model is crucial for a successful and safe installation.
| Characteristics | Values |
|---|---|
| Power Source | 12V DC (typically from vehicle battery) |
| Wiring Setup | Relay-controlled circuit for safety and efficiency |
| Fuse Requirement | Inline fuse (30A recommended) near power source |
| Wire Gauge | 10-14 AWG depending on pump current draw |
| Ground Connection | Securely grounded to vehicle chassis |
| Switch Type | Ignition-triggered or manual switch (optional) |
| Pump Placement | Between fuel tank and engine, ensuring proper fuel flow direction |
| Safety Features | Fuel-resistant wiring, heat shrink tubing, and proper insulation |
| Polarity | Positive to pump’s power terminal, negative to ground |
| Testing | Verify pump operation before securing connections |
| Compatibility | Ensure pump is compatible with fuel type (e.g., gasoline, diesel) |
| Regulations | Comply with local vehicle modification laws and safety standards |
Explore related products
$19.99 $21.99
What You'll Learn
- Gather Tools and Materials: Wire, connectors, pump, relay, fuse, terminals, crimpers, multimeter, wire strippers, electrical tape
- Locate Power Source: Identify 12V switched power source, such as the ignition or accessory wire
- Install Relay and Fuse: Connect relay to power, ground, and pump, ensuring fuse is in line
- Wire the Fuel Pump: Run power from relay to pump, ground pump securely to chassis
- Test and Secure Connections: Verify pump operation, check for shorts, and secure all wires with zip ties

Gather Tools and Materials: Wire, connectors, pump, relay, fuse, terminals, crimpers, multimeter, wire strippers, electrical tape
Before you begin wiring an inline fuel pump, it's crucial to assemble the right tools and materials. This ensures a safe, efficient, and reliable installation. Start with the core components: the inline fuel pump, which will be the heart of your system, and the relay, which acts as a switch to control power to the pump. The relay is essential because it prevents high-current draw from damaging your vehicle’s wiring and ensures the pump operates only when needed. Pair this with a fuse rated for the pump’s amperage to protect against short circuits. For example, a typical inline fuel pump might require a 20-amp fuse, but always check the manufacturer’s specifications.
Next, focus on the wiring and connections. Use high-quality wire rated for automotive use, typically 10-14 gauge, depending on the pump’s power requirements. Connectors and terminals are equally important—opt for weatherproof or heat-resistant types to ensure durability. A common mistake is using inadequate connectors, which can lead to poor connections or failures under load. To secure these connections, invest in a good pair of crimpers designed for automotive terminals. Proper crimping ensures a reliable, low-resistance connection, which is critical for high-current applications like fuel pumps.
Tools for preparation and testing are just as vital. Wire strippers allow you to cleanly remove insulation without damaging the wire, ensuring a professional finish. Once connections are made, use electrical tape to insulate and protect exposed wires, but avoid relying solely on tape for critical junctions—it’s a supplement, not a substitute for proper connectors. A multimeter is indispensable for testing continuity, voltage, and resistance. Use it to verify power at the pump, check for shorts, and ensure the relay is functioning correctly. For instance, test the relay’s coil terminals for 12V when the ignition is on, and the output terminal for continuity when activated.
Finally, consider the practicalities of your workspace. Lay out all materials before starting to avoid mid-project interruptions. Label wires and connectors as you work to prevent confusion, especially when dealing with multiple circuits. If you’re upgrading from a stock setup, compare the new pump’s specifications to the old one to ensure compatibility. For example, a high-flow pump may require thicker wire or a higher-rated relay than a stock system. By meticulously gathering and organizing these tools and materials, you’ll streamline the installation process and minimize the risk of errors.
Facet Electric Fuel Pump Amp Draw: Understanding Power Consumption
You may want to see also
Explore related products

Locate Power Source: Identify 12V switched power source, such as the ignition or accessory wire
Identifying a 12V switched power source is the linchpin of wiring an inline fuel pump correctly. Unlike a constant power source, which remains active even when the engine is off, a switched source activates only when the ignition is turned on. This prevents the fuel pump from running unnecessarily, conserving energy and reducing the risk of fuel system issues. Common candidates for this include the ignition wire, which powers the engine’s electrical components, or the accessory wire, which activates secondary systems like the radio or interior lights. Both are typically found in the fuse box or under the dashboard, labeled clearly in most vehicles.
To locate the appropriate wire, consult your vehicle’s wiring diagram, often found in the owner’s manual or online forums specific to your make and model. Use a multimeter to test potential wires for voltage when the ignition is on and off, ensuring the wire is indeed switched. For example, the ignition wire (often labeled "IGN" or "ECU") will show 12V when the key is in the "ON" position but drop to 0V when turned off. Avoid using wires that supply constant power, such as the battery’s positive terminal, as this can drain the battery and create safety hazards.
Once identified, tap into the switched wire using a T-tap connector or solder and heat-shrink tubing for a secure connection. Ensure the wire gauge matches the pump’s power requirements—typically 10-14 AWG for most inline fuel pumps. If the wire is too thin, it may overheat under load, while an overly thick wire can complicate installation. Always fuse the connection within 12 inches of the power source, using a fuse rated for the pump’s amperage (usually 10-20A). This protects the circuit from overcurrent and potential fires.
A practical tip: If your vehicle lacks a suitable switched power source, consider installing a relay. A relay allows you to use a low-current switched wire (like the ignition) to control a high-current circuit (the fuel pump). Connect the relay’s control terminal to the ignition wire, the power terminal to the battery, and the output terminal to the pump. This setup ensures the pump operates only when needed while handling the amperage safely.
In summary, locating a 12V switched power source is a critical step in wiring an inline fuel pump. By identifying the correct wire, verifying its function, and ensuring proper connections, you create a safe and efficient fuel delivery system. Always prioritize safety by fusing the circuit and using appropriate wire gauges, and consider a relay if necessary. This attention to detail ensures your fuel pump operates reliably without compromising your vehicle’s electrical system.
Locate Your 2004 Yukon XL Fuel Pump: A Quick Guide
You may want to see also
Explore related products

Install Relay and Fuse: Connect relay to power, ground, and pump, ensuring fuse is in line
A critical step in wiring an inline fuel pump is installing the relay and fuse correctly. The relay acts as a switch, allowing the pump to draw high current without overloading the vehicle’s wiring, while the fuse protects the circuit from shorts or overloads. Begin by selecting a relay rated for the pump’s amperage, typically 20–40 amps for most inline fuel pumps. Ensure the fuse is placed in line between the power source and the relay’s coil terminal (pin 87) to safeguard the circuit during initial connection.
To connect the relay, start by attaching the power wire from the battery’s positive terminal to pin 30 on the relay. This supplies constant 12V power to the relay. Next, connect the ground wire from the relay’s pin 85 to the vehicle’s chassis or a clean ground point. Pin 86 should be connected to a switched power source, such as the fuel pump’s trigger wire from the ECU or ignition switch, ensuring the pump operates only when the engine is running. Finally, run a wire from pin 87 to the fuel pump’s positive terminal, completing the circuit.
One common mistake is omitting the fuse or placing it incorrectly. The fuse must be installed between the battery and the relay’s pin 30 to protect the entire circuit. Use a fuse holder for easy replacement and ensure the fuse rating matches the pump’s current draw. For example, a 30-amp pump should use a 30-amp fuse, but consult the pump’s specifications for accuracy. Always double-check connections for tightness and insulation to prevent shorts.
Comparing this setup to a direct-wired pump highlights its advantages. Without a relay, the pump’s high current would strain the ECU or switch, potentially causing damage. The relay isolates the pump’s load, ensuring longevity and safety. Additionally, the fuse provides a fail-safe, preventing catastrophic failures in case of a short. This method is standard in professional installations and should not be overlooked in DIY projects.
In conclusion, installing the relay and fuse is a precise but essential task. By connecting the relay to power, ground, and the pump while ensuring the fuse is in line, you create a robust and safe circuit. This setup not only protects your vehicle’s electrical system but also ensures the fuel pump operates efficiently and reliably. Take the time to verify each connection and fuse placement—it’s a small step with a significant impact on performance and safety.
Diagnosing Fuel Pump Regulator Issues: A Step-by-Step Testing Guide
You may want to see also
Explore related products

Wire the Fuel Pump: Run power from relay to pump, ground pump securely to chassis
Powering an inline fuel pump correctly is critical for both performance and safety. The relay acts as the intermediary between your vehicle’s battery and the pump, ensuring the pump receives consistent, high-current power without overloading the switch or wiring. Start by connecting the relay’s power input (usually pin 30) directly to the battery’s positive terminal using a fused 10-12 gauge wire. This wire should be rated for high amperage to handle the pump’s load, typically 10-20 amps depending on the pump’s specifications. Always install an inline fuse within 12 inches of the battery to protect against short circuits.
From the relay’s output (pin 87), run another 10-12 gauge wire to the fuel pump’s power terminal. This wire carries the switched power to the pump, ensuring it operates only when the ignition is on. Use heat-resistant wire and loom to protect against fuel vapor and engine heat. Secure the wiring with zip ties or clamps to prevent chafing or interference with moving parts. Avoid running the wire near exhaust components or sharp edges, as this can lead to insulation damage and potential failure.
Grounding the fuel pump is equally vital. A poor ground can cause erratic pump operation or complete failure. Connect the pump’s ground wire (usually black or bare) directly to the vehicle’s chassis using a clean, metal-to-metal connection. Sand or grind the chassis surface to remove paint, rust, or dirt before attaching the ground lug. Use a star washer or locking nut to ensure the connection remains tight over time. If the chassis ground is inaccessible near the pump, run a dedicated ground wire back to the battery’s negative terminal, but this is less ideal due to increased resistance.
Consider the pump’s location when planning the wiring route. Inline fuel pumps are often mounted in the fuel line between the tank and engine, so the wiring must be long enough to reach without tension. If the pump is in the tank, ensure the wiring is sealed against moisture and fuel exposure. For aftermarket installations, use a wiring diagram specific to your pump and vehicle to avoid compatibility issues. Test the circuit before starting the engine by checking for power at the pump’s terminals with the ignition on.
Finally, double-check all connections for tightness and insulation integrity. A loose relay or ground can cause voltage drop, leading to pump failure or overheating. If you’re unsure about any step, consult a professional or refer to the pump manufacturer’s instructions. Proper wiring not only ensures reliable fuel delivery but also minimizes the risk of electrical fires or system damage. Treat this process with the same care as any high-current automotive installation, and your fuel pump will operate safely and efficiently.
Are Fuel Pump Fuses Still Essential in Modern Vehicles?
You may want to see also
Explore related products

Test and Secure Connections: Verify pump operation, check for shorts, and secure all wires with zip ties
Once the wiring is complete, the critical phase of testing and securing connections begins. Start by verifying pump operation. Connect the battery and turn the ignition to the "on" position, listening for the pump’s priming cycle—a brief whirring sound that confirms it’s functioning. If the pump doesn’t engage, check the power and ground connections for continuity using a multimeter. Ensure the pump is receiving 12 volts at the power wire; anything less suggests a poor connection or faulty wiring. This step is non-negotiable, as a non-operational pump can lead to engine failure or unsafe fuel delivery.
Next, check for shorts, a common issue that can cause fires or damage the pump. Inspect all wires for exposed conductors or contact with sharp edges, and use a multimeter to test for continuity between the power and ground wires. A short will show near-zero resistance, indicating immediate corrective action is needed. Insulate any exposed wires with heat-shrink tubing or electrical tape, and reroute wires away from hot surfaces like exhaust manifolds. This meticulous inspection is crucial, as even a small short can escalate quickly under the hood.
Securing wires with zip ties is more than just tidying up—it’s about safety and longevity. Bundle wires neatly, avoiding tight bends that could damage insulation, and secure them at least every 6–8 inches along their length. Use heat-resistant zip ties rated for engine bay temperatures, typically up to 257°F (125°C). Route wires away from moving components like fans or belts, and ensure they’re clear of the fuel pump’s vibration points to prevent chafing. Properly secured wires not only reduce the risk of disconnection but also make future inspections and maintenance easier.
A practical tip: label wires during the testing phase to avoid confusion later. Mark the power, ground, and signal wires with colored tape or tags, especially if working with multiple pumps or sensors. This small step saves time during troubleshooting and ensures consistency if the system is modified or serviced in the future. Testing and securing connections isn’t just a final step—it’s the safeguard that ensures your inline fuel pump operates reliably and safely for years to come.
Bypassing Fuel Pump Relay & Fuse: A Step-by-Step Guide for Emergencies
You may want to see also
Frequently asked questions
An inline fuel pump is a type of fuel pump installed outside the fuel tank, typically along the fuel line. It’s often used in performance or custom applications where the stock fuel pump is insufficient. Wiring one is necessary to ensure proper fuel delivery to the engine.
You’ll need wire cutters/strippers, crimp connectors, electrical tape, a relay, an inline fuse, and appropriate gauge wire (usually 10-14 AWG). Additionally, a wiring diagram specific to your pump and vehicle is essential.
Use a relay to control power to the pump. Connect the pump’s positive wire to the relay’s output, and the relay’s input to a switched 12V power source (e.g., ignition switch). Ground the pump securely to the chassis, and install an inline fuse for safety.
The pump should only run when the ignition is on to prevent unnecessary wear and fuel pressure. Use a relay wired to the ignition switch to ensure the pump activates only when the engine is running or being started.
