Scoping a fuel pump is a critical process in diagnosing and resolving fuel system issues in vehicles. It involves assessing the pump's functionality, performance, and condition to determine if it is operating within specifications or if it requires repair or replacement. Proper scoping includes checking for symptoms like engine sputtering, difficulty starting, or loss of power, as well as using diagnostic tools to measure fuel pressure, flow, and electrical signals. Understanding how to scope a fuel pump ensures accurate troubleshooting, prevents unnecessary part replacements, and maintains optimal vehicle performance and efficiency.
| Characteristics | Values |
|---|---|
| Purpose | Diagnose fuel pump issues by measuring voltage, pressure, and operation. |
| Tools Required | Multimeter, fuel pressure gauge, stethoscope, screwdriver, safety gear. |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel pressure. |
| Voltage Testing | Check for 12V at the fuel pump connector with the ignition on. |
| Pressure Testing | Connect a fuel pressure gauge to the fuel rail and compare to specifications. |
| Listening for Operation | Use a stethoscope to listen for the fuel pump humming sound during startup. |
| Resistance Testing | Measure fuel pump resistance (ohms) and compare to manufacturer specs. |
| Fuel Pump Relay Check | Test the relay for proper operation using a multimeter. |
| Fuel Filter Inspection | Ensure the fuel filter is not clogged, as it affects pump performance. |
| Fuel Line Inspection | Check for leaks, kinks, or blockages in the fuel lines. |
| Fuel Tank Level Check | Ensure the tank is at least 1/4 full for accurate testing. |
| Diagnostic Trouble Codes (DTCs) | Scan for DTCs related to the fuel pump using an OBD-II scanner. |
| Load Testing | Simulate load conditions to ensure the pump operates under stress. |
| Replacement Considerations | Replace the fuel pump if it fails voltage, pressure, or resistance tests. |
| Post-Installation Testing | Verify proper operation after replacement with pressure and voltage checks. |
| Frequency of Inspection | Inspect annually or if symptoms like sputtering or stalling occur. |
Explore related products
What You'll Learn
- Identify Symptoms: Recognize signs of a failing fuel pump, such as sputtering or stalling
- Tools Needed: Gather essential tools like a multimeter, pressure gauge, and safety gear
- Safety Precautions: Ensure vehicle is off, cooled down, and on a stable surface
- Testing Procedures: Check fuel pressure, voltage, and pump operation using diagnostic tools
- Replacement Steps: Locate the pump, disconnect lines, and install the new unit properly
Identify Symptoms: Recognize signs of a failing fuel pump, such as sputtering or stalling
A failing fuel pump often announces itself through subtle yet telling symptoms. One of the earliest signs is a noticeable sputtering or hesitation during acceleration. This occurs when the pump struggles to deliver a consistent flow of fuel to the engine, causing an uneven combustion process. Drivers might feel a momentary loss of power, as if the vehicle is choking, particularly when trying to overtake or climb a hill. This symptom is more pronounced in older vehicles or those with high mileage, where wear and tear on the pump’s internal components is more likely.
Another critical indicator is stalling, especially at low speeds or when idling. A failing fuel pump may not maintain the necessary fuel pressure to keep the engine running smoothly, leading to abrupt shutdowns. This can be particularly dangerous in traffic or at intersections, where sudden stalling poses a safety risk. If the vehicle restarts immediately but stalls again shortly after, it’s a strong sign the fuel pump is to blame. Modern vehicles with onboard diagnostics may also trigger a check engine light in such cases, though this alone isn’t definitive.
Less obvious but equally important is a whining noise from the fuel tank area, particularly during startup or when the fuel level is low. This sound indicates the pump’s motor is straining to operate, often due to internal damage or a clogged filter. While some pumps naturally produce a faint hum, a loud or high-pitched whine is abnormal. Ignoring this noise can lead to complete pump failure, leaving the vehicle stranded. Regularly checking for such sounds during routine maintenance can prevent unexpected breakdowns.
For those who notice these symptoms, a practical first step is to check the fuel pressure using a gauge. Normal operating pressure varies by vehicle but typically ranges between 30 and 60 psi. A reading below this range suggests the pump is underperforming. However, pressure alone doesn’t always tell the full story; the pump’s ability to maintain pressure under load (e.g., during acceleration) is equally critical. If pressure drops significantly under stress, the pump is likely failing.
Finally, drivers should be aware of situational factors that exacerbate these symptoms. For instance, a failing pump may perform worse in hot weather or when the fuel tank is nearly empty, as the pump relies on fuel for cooling. Keeping the tank at least a quarter full and avoiding prolonged operation in high temperatures can temporarily mitigate issues, but these are stopgap measures. Ultimately, recognizing these symptoms early and addressing them promptly is key to avoiding costly repairs or unsafe driving conditions.
Testing Your Ford Fuel Pump: Pre-Installation Checklist and Steps
You may want to see also
Explore related products
Tools Needed: Gather essential tools like a multimeter, pressure gauge, and safety gear
Before scoping a fuel pump, ensure you have the right tools to diagnose issues accurately and safely. A multimeter is indispensable for testing electrical continuity and voltage, allowing you to verify if the pump is receiving power. A pressure gauge is equally critical, as it measures fuel pressure to determine if the pump is delivering the correct amount of fuel to the engine. Without these tools, you’re essentially guessing, which can lead to misdiagnosis and unnecessary part replacements.
Safety gear is non-negotiable when working with fuel systems. Fuel is flammable and under pressure, so safety goggles and nitrile gloves protect against spills and splashes. A fire extinguisher should be nearby as a precaution, and ensure your workspace is well-ventilated to avoid inhaling fumes. Ignoring safety measures can turn a routine diagnostic task into a hazardous situation, so treat this step with the same importance as the technical tools.
While a multimeter and pressure gauge are the stars of the show, auxiliary tools like a fuel line disconnect tool and wrench set are often overlooked but essential. The disconnect tool prevents spills when detaching fuel lines, while a wrench set helps remove components securely. Skipping these tools can lead to stripped bolts or fuel leaks, complicating the process. Think of them as the supporting cast that ensures the main tools can do their job effectively.
Finally, consider the quality and calibration of your tools. A cheap multimeter may give inaccurate readings, leading to incorrect diagnoses, while an uncalibrated pressure gauge can misrepresent fuel system performance. Investing in reliable, calibrated tools pays off in the long run by saving time and preventing errors. Treat your tools as an investment in precision, not just a means to an end.
Exploring the UK's Fuel Pump Network: How Many Are There?
You may want to see also
Explore related products
Safety Precautions: Ensure vehicle is off, cooled down, and on a stable surface
Before attempting to scope a fuel pump, prioritize safety by ensuring the vehicle is completely turned off. This means not just shifting to park or neutral but shutting down the ignition entirely. The reason is straightforward: an active fuel pump can generate pressure and electrical currents that pose risks of fire, explosion, or electrical shock. Even a small spark from a running engine can ignite fuel vapors, turning a routine task into a hazardous situation. Always double-check that the key is removed or the start button is deactivated to eliminate any chance of accidental ignition.
A cooled-down engine is equally critical for safety. Fuel systems operate under high pressure and temperature, and working on a hot engine increases the risk of burns from hot components or fuel lines. Allow the vehicle to sit for at least 30 minutes after driving to ensure the fuel system has cooled sufficiently. This waiting period also reduces the volatility of fuel vapors, which are more likely to ignite when temperatures are elevated. Ignoring this step can lead to severe burns or fuel-related fires, especially when disconnecting fuel lines or accessing the pump.
Stability is another non-negotiable safety measure. Always position the vehicle on a flat, stable surface to prevent accidental movement during the scoping process. Engage the parking brake and, if possible, use wheel chocks to secure the tires. Working on an uneven surface or relying solely on the transmission’s parking mechanism can lead to the vehicle rolling, causing injury or damage. For added safety, consider using jack stands if you need to raise the vehicle, ensuring it’s securely supported before proceeding.
Combining these precautions—turning off the vehicle, allowing it to cool, and ensuring stability—creates a safe environment for scoping the fuel pump. Skipping any of these steps introduces unnecessary risks that can be easily avoided. Remember, safety isn’t just about protecting yourself; it’s about preventing damage to the vehicle and avoiding costly mistakes. Take the time to set up properly, and the task becomes significantly safer and more efficient.
Direct Power to Fuel Pump: A Step-by-Step Installation Guide
You may want to see also
Explore related products
Testing Procedures: Check fuel pressure, voltage, and pump operation using diagnostic tools
Fuel pump diagnostics begin with understanding the interplay between pressure, voltage, and mechanical operation. A fuel pump’s primary role is to deliver fuel at the correct pressure to the engine, but this process relies on stable electrical input and mechanical integrity. Diagnostic tools such as a fuel pressure gauge, multimeter, and a scan tool are essential for isolating issues. For instance, a fuel pressure gauge measures the pump’s output against manufacturer specifications, while a multimeter verifies voltage supply at the pump’s connector. These tools collectively reveal whether the problem stems from electrical failure, mechanical wear, or system incompatibility.
To test fuel pressure, connect a gauge to the fuel rail’s Schrader valve and compare the reading to the vehicle’s specified range, typically 30–60 psi for most fuel-injected systems. A pressure drop under load (e.g., during acceleration) indicates a weak pump or clogged filter. Voltage testing follows: use a multimeter to check for 12V at the pump’s connector with the key in the "on" position. If voltage is absent, inspect the fuse, relay, and wiring harness for faults. These steps ensure the pump receives adequate power before assuming mechanical failure.
Pump operation testing involves listening for the priming cycle—a brief hum when the key is turned to "on"—and verifying fuel delivery during cranking. A noisier-than-usual pump or lack of priming suggests internal damage or air infiltration. Advanced diagnostics, such as using a scan tool to monitor pump command signals, can confirm if the engine control module (ECM) is activating the pump correctly. This layered approach eliminates guesswork, ensuring the root cause is addressed rather than replacing parts unnecessarily.
Caution must be exercised when working with fuel systems due to flammability and high-pressure risks. Always relieve fuel pressure before disconnecting lines, and avoid sparks near the work area. Additionally, misinterpretation of diagnostic data can lead to misdiagnosis; for example, low pressure might indicate a faulty pressure regulator rather than a bad pump. Cross-referencing symptoms with service manuals or professional guidance ensures accuracy. By systematically checking pressure, voltage, and operation, technicians can pinpoint fuel pump issues efficiently and safely.
Are Fuel Pumps Heavy? Exploring Their Weight and Practical Implications
You may want to see also
Replacement Steps: Locate the pump, disconnect lines, and install the new unit properly
The fuel pump is the heart of your vehicle's fuel system, and its location varies depending on the make and model. In most modern cars, it's nestled inside the fuel tank, requiring you to drop the tank for access. Some older vehicles or certain designs may have an external pump, often found along the fuel line beneath the car. Identifying its exact position is crucial before proceeding with any replacement work. Consult your vehicle's manual or online resources specific to your car to pinpoint the pump's location accurately.
Skipping this step could lead to unnecessary disassembly or damage to surrounding components.
Once located, the next step is to disconnect the fuel lines and electrical connections. This process demands caution due to the flammable nature of fuel. Begin by relieving the fuel system pressure, typically done by locating the Schrader valve on the fuel rail and pressing the valve stem with a tool. After depressurizing, carefully disconnect the fuel lines, using appropriate tools to avoid damaging the fittings. Remember, fuel can be hazardous, so work in a well-ventilated area and have a fire extinguisher nearby as a safety precaution.
With the lines disconnected, it's time to remove the old pump and install the new unit. This procedure often involves removing the fuel tank, a task that requires proper support and careful handling to prevent spills or damage. When installing the new pump, ensure it is securely mounted and all connections are tight. Pay attention to the orientation of the pump, as incorrect installation can lead to improper fuel flow and potential damage.
The final step is reinstalling the fuel tank and reconnecting the lines. Double-check all connections for tightness and ensure there are no leaks. After reassembly, it's essential to prime the fuel system to remove any air pockets. This can be done by cycling the ignition key a few times without starting the engine. Finally, start the vehicle and inspect for any leaks, ensuring the new fuel pump operates smoothly.
In summary, replacing a fuel pump requires a systematic approach, starting with accurate location identification, followed by careful disconnection of lines, and precise installation of the new unit. Each step demands attention to detail and adherence to safety precautions. By following these steps, you can ensure a successful fuel pump replacement, restoring your vehicle's fuel system to optimal performance.
Mastering Pulse Fuel Pump Adjustment: A Step-by-Step Guide
You may want to see also
Frequently asked questions

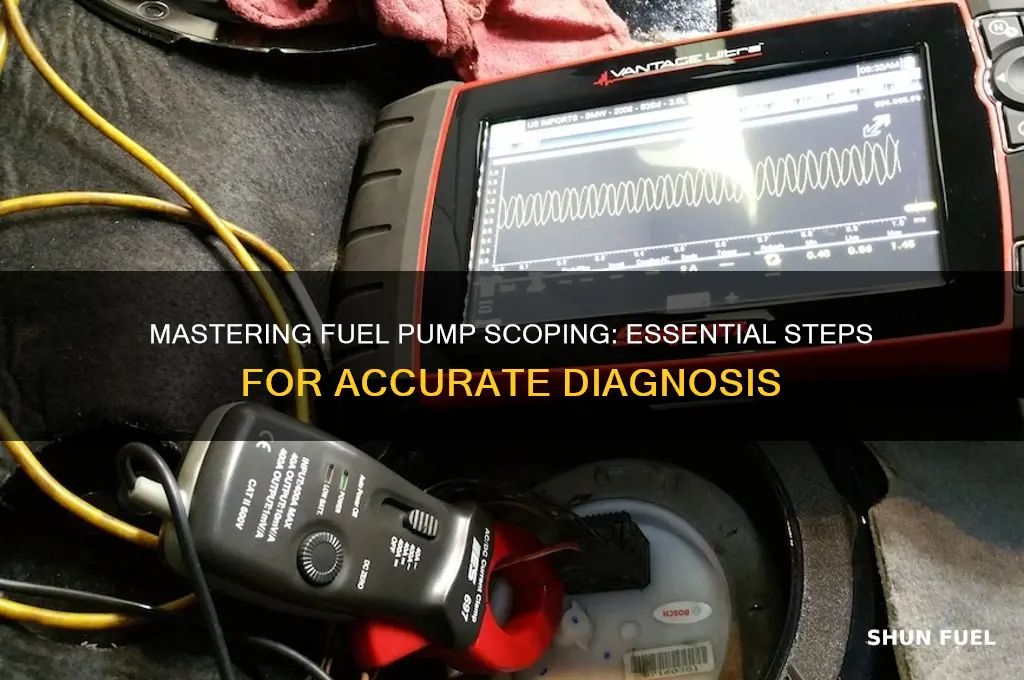

Scoping a fuel pump refers to the process of using an oscilloscope or a fuel pump tester to analyze the electrical signal and performance of the fuel pump. This helps diagnose issues such as weak pump operation, electrical faults, or improper fuel pressure.
To scope a fuel pump, you’ll need an oscilloscope or a dedicated fuel pump tester, a breakout box or test leads, and a fuel pressure gauge. Safety equipment like gloves and safety goggles is also recommended.
Connect the oscilloscope or tester to the fuel pump’s wiring harness using a breakout box or test leads. Ensure the positive and negative terminals are correctly attached, and ground the scope to the vehicle’s chassis for accurate readings.
Look for a consistent voltage signal, proper current draw, and a clean waveform without spikes or drops. Irregularities like voltage fluctuations, excessive current draw, or a distorted waveform indicate potential fuel pump or electrical system issues.
