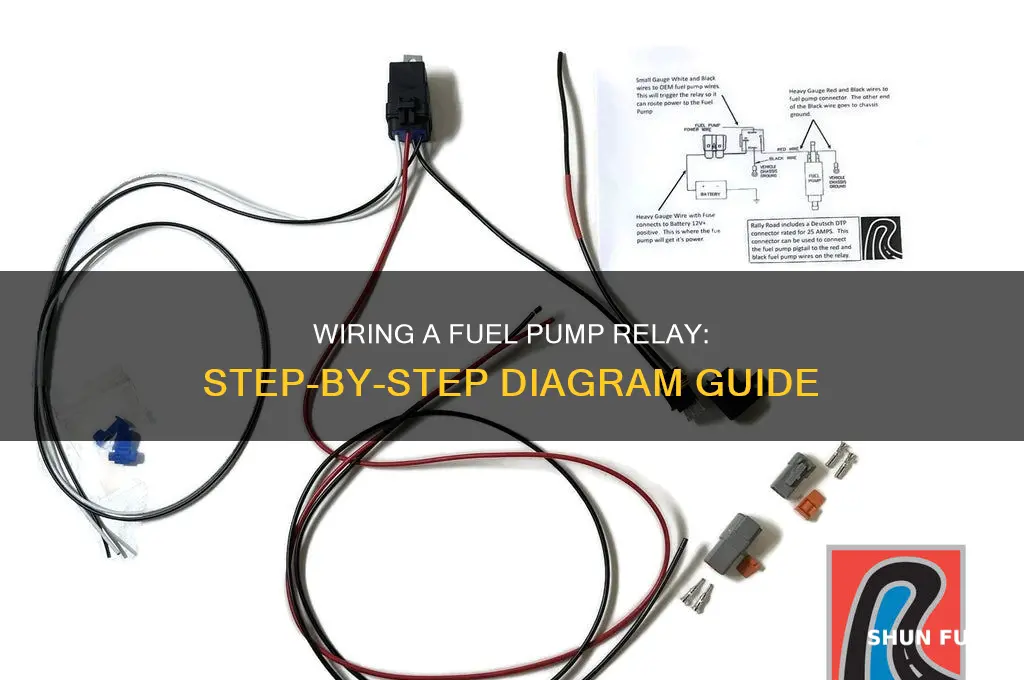

Wiring a fuel pump relay is a crucial task for ensuring the efficient and safe operation of a vehicle's fuel system. A fuel pump relay diagram serves as a visual guide, illustrating the connections between the relay, power source, fuel pump, and other components such as the ECU and fuse box. Understanding this diagram is essential for proper installation, as it helps prevent issues like electrical shorts, overheating, or fuel pump failure. The relay acts as a switch, allowing the ECU to control the fuel pump's operation while protecting the system from high current loads. By following a detailed diagram, enthusiasts and mechanics can accurately connect wires, ensuring the fuel pump receives power only when needed, optimizing performance and longevity.
| Characteristics | Values |
|---|---|
| Purpose | To control the fuel pump operation, ensuring it only runs when the engine is cranking or running, and to protect the fuel pump circuit from excessive current draw. |
| Components | Relay, fuse, fuel pump, ignition switch, ECU (Engine Control Unit), wiring harness, connectors, ground points. |
| Relay Type | Typically a 30/40 amp SPST (Single Pole Single Throw) or SPDT (Single Pole Double Throw) relay with a diode for reverse voltage protection. |
| Power Source | Battery positive (12V) through a fused line, usually via the ignition switch or a dedicated fuel pump fuse. |
| Ground | Chassis ground or a dedicated ground point for the fuel pump and relay. |
| Control Signal | Provided by the ECU or ignition switch, often through a low-current wire to the relay coil. |
| Diode | Installed across the relay coil to prevent voltage spikes when the relay turns off. |
| Fuse | Inline fuse (typically 10-20 amps) to protect the wiring harness and relay from short circuits. |
| Wiring Colors | Varies by vehicle make/model; consult the vehicle's wiring diagram for accurate color coding. |
| Safety Features | Inertia switch (in some vehicles) to cut power to the fuel pump in case of an accident. |
| Testing | Use a multimeter to check for continuity, voltage, and proper relay operation before and after installation. |
| Common Issues | Blown fuses, faulty relay, poor ground connections, or damaged wiring. |
| Diagram Variations | Diagrams may differ based on vehicle type (e.g., carbureted vs. fuel-injected), system complexity, and manufacturer specifications. |
| Tools Required | Wire strippers, crimping tool, multimeter, soldering iron (optional), and appropriate connectors. |
| Precautions | Disconnect the battery before working on the electrical system to avoid short circuits or accidental activation. |
Explore related products
What You'll Learn
- Relay Pin Identification: Locate and label the relay's pins for power, ground, trigger, and pump connections
- Power Source Connection: Connect the battery’s positive terminal to the relay’s power pin securely
- Grounding the Relay: Attach the relay’s ground pin to a clean chassis or engine block point
- Trigger Wire Setup: Link the ECU or ignition switch to the relay’s trigger pin for activation
- Fuel Pump Wiring: Connect the fuel pump’s positive wire to the relay’s output pin for power delivery
Relay Pin Identification: Locate and label the relay's pins for power, ground, trigger, and pump connections
Understanding the pin configuration of a fuel pump relay is crucial for a successful installation. Relays typically feature five pins, each serving a distinct purpose. Pin 87 is the power output, delivering current to the fuel pump. Pin 30 connects to a constant 12V power source, ensuring the relay is energized when the ignition is on. Pin 85 acts as the ground, completing the circuit and allowing current to flow. Pin 86 is the trigger, receiving a signal from the engine control unit (ECU) or ignition switch to activate the relay. Lastly, Pin 87a, if present, is often used for additional circuitry but is not always utilized in basic fuel pump setups.
Identifying these pins accurately requires careful examination. Most relays have a diagram or label indicating pin functions, often molded into the plastic housing or printed on the bottom. If markings are absent, consult the relay’s datasheet or manufacturer specifications. A multimeter can also be used to test continuity between pins, though this method is more advanced and requires understanding of electrical principles. For beginners, relying on visual identification and documentation is the safest approach.
Once pins are identified, labeling them clearly prevents wiring errors. Use a permanent marker or adhesive labels to mark each pin’s function directly on the relay or its housing. Alternatively, create a reference chart and keep it nearby during installation. Proper labeling not only streamlines the wiring process but also aids in troubleshooting if issues arise later.
A common mistake is confusing Pin 87 (power output) with Pin 30 (power input), which can lead to a short circuit or relay failure. To avoid this, double-check connections against the relay diagram before applying power. Additionally, ensure the ground (Pin 85) is securely connected to a clean, unpainted metal surface to prevent voltage drops that could affect pump performance.
In summary, relay pin identification is a foundational step in wiring a fuel pump relay. By understanding each pin’s role, using available resources for identification, and labeling connections clearly, you can ensure a safe and efficient installation. Attention to detail at this stage pays dividends in reliability and ease of maintenance down the road.
Enclave Fuel Pump Failure: Will It Suddenly Stop Working?
You may want to see also
Explore related products
Power Source Connection: Connect the battery’s positive terminal to the relay’s power pin securely
The power source connection is the lifeblood of your fuel pump relay system, and it begins with a secure link between your battery's positive terminal and the relay's power pin. This connection ensures a steady flow of electricity, vital for the relay to function and, in turn, activate the fuel pump. Think of it as the ignition spark for your fuel delivery system.
A common 12-volt automotive relay typically uses a pin labeled "30" for power input. This pin is your target when connecting the positive battery terminal. Use a fused wire, typically 10-14 gauge depending on your pump's amperage draw, to bridge this connection. A fuse is crucial here – it acts as a safeguard, preventing electrical fires in case of a short circuit.
Imagine a scenario where this connection is loose or corroded. The relay might receive insufficient power, leading to erratic fuel pump operation or even complete failure. This could leave you stranded, highlighting the critical nature of a secure and clean connection.
When making this connection, cleanliness is paramount. Ensure both the battery terminal and the relay pin are free of corrosion or debris. Use a wire brush or sandpaper to clean these surfaces if necessary. A secure connection minimizes resistance, ensuring maximum power transfer and preventing overheating.
Consider using a ring terminal on the wire end for a more robust connection to the battery terminal. This provides a larger contact area and reduces the risk of loosening over time due to vibrations.
Remember, this is a high-current circuit. Always disconnect the battery's negative terminal before working on any electrical connections to prevent accidental shorts. Double-check your wiring against a reliable diagram specific to your vehicle and relay model. A small oversight here can lead to big problems down the road.
Troubleshooting Silent Fuel Pump in 1996 Jeep Cherokee: Causes and Fixes
You may want to see also
Explore related products
Grounding the Relay: Attach the relay’s ground pin to a clean chassis or engine block point
A solid ground connection is the unsung hero of any electrical circuit, and your fuel pump relay is no exception. Attaching the relay's ground pin to a clean chassis or engine block point ensures a low-resistance path for current flow, preventing voltage drops that can starve your fuel pump of power. Think of it as laying a smooth, uninterrupted highway for electricity to travel, ensuring your engine gets the fuel it needs without hiccups.
Skipping this step or settling for a rusty, paint-covered connection can lead to erratic fuel pump operation, hard starts, or even complete failure.
Choosing the Right Ground Point: Not all metal surfaces are created equal. Avoid areas prone to corrosion, vibration, or paint buildup. Ideal locations include clean, unpainted bolts on the engine block, firewall, or chassis. Use a wire brush or sandpaper to remove any rust, dirt, or paint, ensuring bare metal contact. For added security, apply a thin layer of dielectric grease to prevent future corrosion.
Remember, a poor ground is just as detrimental as a broken wire.
Securing the Connection: A loose ground connection is a recipe for trouble. Use a ring terminal crimped securely to the relay's ground wire and tighten it firmly to the chosen ground point with a nut and bolt. Ensure the connection is tight enough to prevent movement but not so tight that it damages the terminal or wiring. Consider using a star washer or threadlocker for added vibration resistance, especially in high-vibration environments like off-road vehicles.
A little extra effort here pays dividends in reliability down the road.
Testing Your Ground: Don’t assume your ground is good just because it looks okay. Use a multimeter to check for continuity between the relay's ground pin and the vehicle's battery negative terminal. A reading of less than 0.1 ohms indicates a solid connection. If the reading is higher, recheck your ground point and connection, ensuring cleanliness and tightness. This simple test can save you hours of troubleshooting later.
The Takeaway: Grounding your fuel pump relay properly is a small but critical step in ensuring your vehicle's fuel system operates flawlessly. By choosing the right ground point, securing the connection, and verifying its integrity, you’re laying the foundation for reliable performance. Don’t let a shoddy ground connection turn a simple wiring project into a frustrating diagnostic nightmare.
Do Sport Quads Have Fuel Pumps? Exploring ATV Fuel Systems
You may want to see also
Explore related products
Trigger Wire Setup: Link the ECU or ignition switch to the relay’s trigger pin for activation
The trigger wire setup is the linchpin of your fuel pump relay system, dictating when the pump activates. This critical connection bridges the ECU (Engine Control Unit) or ignition switch to the relay's trigger pin, ensuring fuel delivery aligns with engine operation. Without this link, the relay remains dormant, leaving your engine starved for fuel.
Understanding the Trigger Wire’s Role
The trigger wire acts as a switch, sending a low-current signal to the relay’s trigger pin (typically pin 85 or 86, depending on the relay model). When energized, this signal closes the relay’s internal switch, allowing high-current power to flow from the battery to the fuel pump. The ECU or ignition switch provides this signal based on engine status—whether starting, idling, or running. For instance, the ECU may send a 12V signal during cranking, while the ignition switch might provide it in the "ON" position.
Connecting the ECU for Precision Control
If using the ECU as the trigger source, locate the dedicated fuel pump output wire (often labeled "FP" or "Fuel Pump"). Connect this wire to the relay’s trigger pin. Ensure the ECU’s output voltage matches the relay’s trigger requirement (typically 12V). Use a fused wire (e.g., 10–14 AWG) to protect against shorts. For aftermarket ECUs, consult the manual for specific wiring diagrams and trigger conditions.
Using the Ignition Switch for Simplicity
For systems without ECU control, the ignition switch offers a straightforward alternative. Tap into the ignition’s "Accessory" or "Run" circuit (post-ignition switch) to supply power to the relay’s trigger pin. This ensures the fuel pump activates only when the ignition is on. Use a relay diode (e.g., 1N4007) across the trigger coil to suppress voltage spikes, which can damage the ignition switch or ECU.
Practical Tips for Reliable Setup
Always use a relay with a trigger current rating compatible with your ECU or ignition switch output (typically 200–500 mA). Secure connections with soldering and heat shrink tubing to prevent corrosion or disconnection. Test the circuit with a multimeter before starting the engine to verify trigger signal presence. For added safety, incorporate a fuel pump inertia switch, which cuts power in collisions.
By mastering the trigger wire setup, you ensure seamless fuel pump operation, balancing simplicity and precision based on your system’s needs. Whether ECU-driven or ignition-controlled, this connection is the heartbeat of your fuel delivery system.
Upgrade Your GTR's Fuel Pump: Key Timing and Performance Indicators
You may want to see also
Explore related products
![HVAC BIBLE [10 in 1] The Ultimate Beginner's Guide: Mastering Residential & Commercial Systems, Setup to Advanced Troubleshooting, Practical Maintenance, Energy Efficiency, and Career Insights](https://m.media-amazon.com/images/I/71MeiuNyzoL._AC_UY218_.jpg)
Fuel Pump Wiring: Connect the fuel pump’s positive wire to the relay’s output pin for power delivery
Connecting the fuel pump's positive wire to the relay's output pin is a critical step in ensuring reliable power delivery to the fuel pump. This connection acts as the direct pathway for electricity to flow from the battery, through the relay, and into the fuel pump, enabling it to operate efficiently. The relay serves as a switch, activated by a low-current signal from the ignition or ECU, which then allows high-current power to reach the fuel pump without overloading the control circuit. This setup not only protects the wiring but also ensures the fuel pump receives consistent power, especially under high-demand conditions like acceleration or cold starts.
When wiring this connection, precision is key. Start by identifying the correct output pin on the relay, typically labeled as "87" or "30" depending on the relay type. Strip approximately 1/4 inch of insulation from both the fuel pump's positive wire and the relay's output wire, ensuring clean, undamaged copper. Use a high-quality crimp connector or solder the wires together for a secure joint, followed by heat shrink tubing to insulate the connection. Secure the wires with zip ties or electrical tape to prevent movement, which can cause wear or disconnection over time. Always double-check the polarity to avoid reverse connection, which can damage the fuel pump or relay.
One common mistake to avoid is using undersized wire for this connection. The fuel pump draws significant current, especially in high-performance or diesel applications, so the wire gauge must match the pump's amperage requirements. For most passenger vehicles, 12-gauge wire is sufficient, but high-output pumps may require 10-gauge or larger. Refer to the fuel pump's specifications or consult a wiring diagram to determine the appropriate gauge. Using the wrong size can lead to voltage drop, overheating, or even fire hazards.
Incorporating a fuse into this circuit is a best practice for safety. Install a fuse holder inline between the battery and the relay's power input pin, typically labeled as "30" or "85." The fuse rating should match the fuel pump's maximum current draw, usually found in the pump's documentation. This protects the wiring and pump from short circuits or overcurrent conditions. For added safety, consider using a relay with a built-in diode to prevent voltage spikes when the relay de-energizes, which can damage sensitive electronic components.
Finally, test the circuit thoroughly before finalizing the installation. With the ignition off, verify continuity between the battery and the relay's output pin using a multimeter. Turn the ignition on and check for power at the fuel pump's positive terminal. Listen for the pump's priming cycle, which should occur for a few seconds when the ignition is activated. If the pump fails to operate, recheck all connections, fuse integrity, and relay functionality. Properly executed, this wiring ensures the fuel pump operates reliably, contributing to the overall performance and safety of the vehicle.
The Evolution of Electric Fuel Pumps: A Historical Overview
You may want to see also
Frequently asked questions
A fuel pump relay is an electrical switch that controls power to the fuel pump. It ensures the pump only operates when the engine is running or being started, preventing unnecessary battery drain and reducing fire risks.
Refer to your vehicle’s wiring manual or diagram. Typically, the relay has four terminals: power (battery), ground, trigger (ECU or ignition), and output (to the fuel pump). Colors vary by make and model.
It’s not recommended. A diagram ensures proper connections, preventing damage to the fuel pump, relay, or electrical system. Always use a diagram specific to your vehicle.
Avoid reversing polarity, using incorrect gauge wires, or skipping the fuse. Ensure the relay is grounded properly and the trigger wire is connected to the ignition or ECU for safe operation.
