The fuel pump is a critical component of any vehicle as it delivers fuel to the engine. Wiring a fuel pump requires careful attention to the electrical connections on the pump itself. It is essential to label the positive and negative (ground) wires on the fuel pump to avoid electrical shocks, sparks, or damaged components. Ensuring the battery is disconnected and the fuse is removed, the positive wire from the fuel pump can be connected to the positive wire from the vehicle's wiring harness. A secure and tight connection is crucial to prevent heat generation and voltage disruption, which can lead to a poorly performing engine.
| Characteristics | Values |
|---|---|
| Function | Delivers fuel to the engine |
| Number of wires | Four |
| Wire functions | Two sense the fuel level; two provide fuel flow to the pump |
| Power source | Ignition switch |
| Issues | Rusted/loose connections, damaged wiring, ignition failure |
| Electrical connections | Label positive and negative wires to avoid issues |
| Connection type | Tight and secure to avoid heat generation and voltage disruption |
| Ground wire attachment | Connect to the nearest electrical ground surface, usually the car frame |
| Connector and attachment area | Clean and rust-free |
Explore related products
What You'll Learn
Ensure the battery is disconnected and the fuse is removed
It is essential to ensure that the battery is disconnected and the fuse is removed from the fuse box before beginning any wiring work on your in-tank fuel pump. This is a critical step to avoid electrical hazards and potential damage to the pump, or even your vehicle's entire electrical system.
By disconnecting the battery, you eliminate the risk of accidentally short-circuiting the system or causing unexpected power surges during the wiring process. This step also protects you from potential electrical shocks, which can be dangerous when working in tight spaces, such as around the fuel tank.
Removing the fuse is equally important. Fuses are designed to protect the electrical circuit in your vehicle. By taking out the fuse, you create a break in the circuit, ensuring that no power can accidentally flow through the system while you're working. This step is especially crucial when dealing with the fuel pump, as any sparks or electrical arcing could potentially ignite fuel vapors, leading to a dangerous situation.
Completing these steps may seem straightforward, but they are often overlooked. It is essential to develop a habit of performing these basic safety procedures whenever working on your vehicle's electrical system, especially when dealing with critical components such as the fuel pump. Taking these precautions will help ensure your safety and protect the sensitive electrical components of your vehicle.
Measuring Your Fuel Tank Capacity: A Quick Guide
You may want to see also
Explore related products
Label the positive and negative wires to avoid issues
It is important to label the positive and negative wires to avoid issues when wiring an in-tank fuel pump. Labelling the wires is a basic task that should always be done when working with electrical components in a car. This simple step, if missed, can instantly ruin the entire pump and possibly the entire electrical system once the car is started. Therefore, it is recommended to use a small piece of masking tape wrapped around the wire and labelled with a "+" and "-" to differentiate between the positive and negative wires.
After ensuring that the battery is disconnected and the fuse is removed from the fuse box, connect the wires to the appropriate places. The positive wire from the fuel pump should be connected to the positive wire from the vehicle's wiring harness. The fuel pump's ground wire, or negative wire, should be attached to the nearest electrical ground surface, typically the frame of the car.
When attaching the ground wire, it is important to ensure that both the connector on the end of the wire and the surface to which it is being attached are clean and free of rust. A loose connection, or one that is not secure, can generate heat at the connection point and disrupt the voltage supply to the pump, causing it to malfunction or not function at all.
Additionally, a loose connection can lead to a reduction in voltage supplied to the pump, causing it to turn more slowly. This can result in the vehicle not starting properly due to ignition failure, leading to a failure in the fuel pump and engine. Hence, it is crucial to label the wires correctly and ensure tight and secure connections to prevent issues with the fuel pump and overall vehicle performance.
Fuel Tank Capacity: How to Measure and Understand It
You may want to see also
Explore related products
Connect the wires to the correct places
It is important to label the positive and negative (ground) wires on the fuel pump to avoid being shocked, causing sparks, or frying components. A small piece of masking tape wrapped around the wire and labelled clearly will do the trick.
After making sure that the battery is disconnected and the fuse is removed from the fuse box, connect the wires to the appropriate places. The positive wire coming from the fuel pump should be connected to the positive wire from your vehicle's wiring harness.
Take the ground wire from the fuel pump and attach it to the nearest electrical ground surface, which is usually the frame of your car. Ensure that the connector on the end of the wire and the area where you are attaching it are clean and rust-free.
Make sure the connection is tight and secure. A loose connection will generate heat and not supply the proper voltage to the pump, likely burning the wire and damaging the pump. This will cause your engine to run poorly, if at all.
Removing the Fuel Tank from a 95 GTX: A Step-by-Step Guide
You may want to see also
Explore related products
Ensure a tight and secure connection
When wiring an in-tank fuel pump, ensuring a tight and secure connection is critical. A loose connection can lead to several issues, including heat generation at the connection point, disruption in voltage supply, and potential damage to the pump and engine. To prevent these problems, take the ground wire from the fuel pump and securely attach it to the nearest electrical ground surface, typically the frame of your car.
It is essential to focus on the cleanliness and condition of the connection point. Ensure that both the connector on the end of the wire and the attachment area are clean and free from rust. A rusted or dirty connection can hinder conductivity and contribute to voltage disruption. Take the necessary steps to clean and prepare the surfaces before establishing the connection.
When tightening the connection, be mindful of achieving the right balance. While a secure connection is crucial, over-tightening can strain the wire and lead to breakage. Apply firm and consistent pressure when tightening to ensure a solid connection without causing unnecessary stress on the wire or connector.
Additionally, consider using thread sealants or locking compounds to enhance the security of the connection. These products are designed to fill the small gaps and imperfections in the threads, creating a tighter and more robust connection. They also help prevent leaks and provide added protection against vibration and thermal expansion.
Finally, once the connection is made, verify that all wires are appropriately secured and routed. Ensure that there is no tension or strain on the wires, as this can lead to loosening over time. Proper wire management helps maintain the integrity of the connection and reduces the risk of accidental disconnection or damage.
Repairing Your 1993 Arctic Cat EXT 580 Fuel Tank
You may want to see also
Explore related products
Test the ignition switch, relay, and fuse
Testing the ignition switch, relay, and fuse of your in-tank fuel pump is a relatively simple process, but it's important to take the necessary precautions and follow the correct steps to ensure an accurate diagnosis. Here's a detailed guide to help you through the process:
Locate the Fuel Pump Relay:
Start by locating the fuel pump relay in your vehicle's fuse box. The main fuse box is usually found underneath the hood near the front of your vehicle, but there may also be a smaller fuse box under the steering column or dashboard. Refer to your vehicle's manual or the diagram printed on the fuse box cover to identify the specific location of the fuel pump relay. It is typically coloured green or grey and may resemble a small plastic box with four to five electrical terminals.
Prepare for Testing:
Before beginning any tests, ensure your vehicle is turned off and the key is removed from the ignition to avoid any accidental startups. Working on your vehicle with the ignition on can be dangerous as you risk the chance of electric shock. Additionally, ensure you have adequate lighting and space to work comfortably.

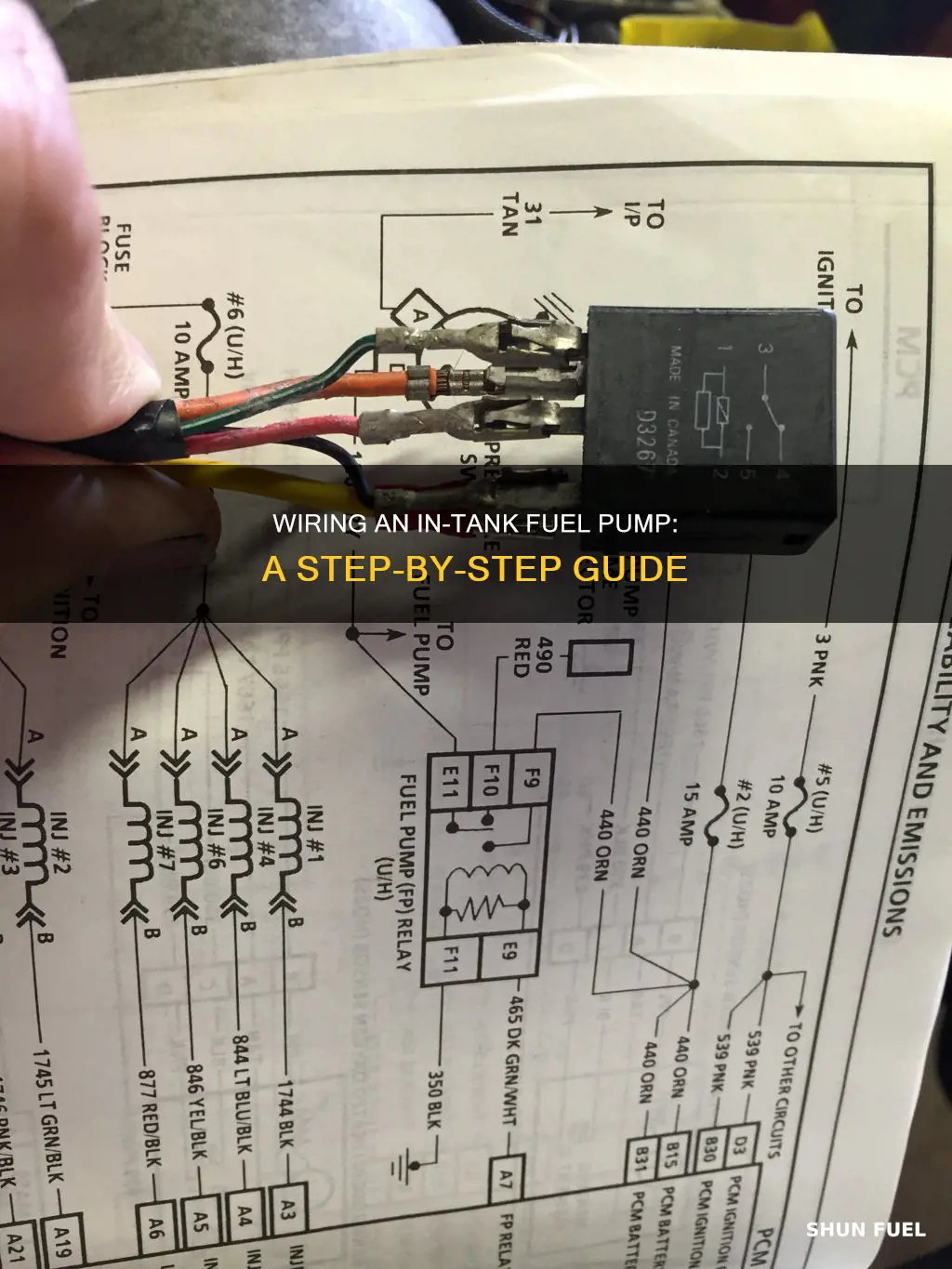

Testing the Ignition Switch and Relay:
The ignition switch and fuel pump relay are interconnected, as the ignition switch activates the relay when turned on, supplying electricity to the fuel pump. To test their functionality, start by turning on the ignition. Pay attention to any sounds coming from the fuel pump, which is typically located in the fuel tank near the rear of the vehicle. A healthy fuel pump and relay will often produce a low-volume hum or whine that can be heard from inside the vehicle or near the fuel tank. If you hear this sound, it indicates that the ignition switch and relay are functioning properly.
However, if there is no noise from the fuel pump, it may suggest a malfunctioning relay. In some cases, the fuel pump relay can stick closed, causing the fuel pump to run continuously even when the key is out of the ignition. This can result in ignition issues and startup problems. If you suspect this issue, consult a qualified mechanic for further diagnosis and repair.
Testing the Fuse:
To test the fuse, you will need to access the fuel pump relay in the fuse box. Unplug the relay carefully without breaking the cover or connecting tabs. Place it on a work surface and identify the pins (terminals) on the relay. Typically, there are four pins: one for input voltage, one ground pin, one load pin connected to the fuel pump, and one connected to the battery. Refer to the numbers on the bottom of the relay or locate a wiring diagram from the manufacturer for clarification.
Using a multimeter or ohmmeter set to resistance mode, connect the probes to the appropriate pins. Connect one probe to the pin going to the fuel pump and the other probe to the pin connected to the battery. Use a 12V battery or power supply to test the relay. If your meter shows continuity between the fuel pump pin and the battery pin, and you hear a clicking sound from the relay, the fuse is functioning correctly. However, if there is no continuity or clicking sound, it indicates a faulty fuse, and replacement is necessary.
Advanced Testing:
For a more comprehensive analysis, you can use an OBD-II scanner to check for diagnostic trouble codes (DTCs) related to the fuel system. This tool can provide valuable insights into potential issues affecting the fuel pump, relay, or other components. Additionally, regular maintenance, such as inspecting the fuse box for blown fuses and cleaning electrical connections, can help prevent future issues.
Draining Fuel Tank of 2009 Honda Shadow: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump delivers fuel to the engine, so it's critical that it works. Many fuel pumps have four wires, two of which sense the fuel level and the other two provide fuel flow. The ignition switch provides the initial power to the fuel pump. You'll want to test the ignition switch, the fuel pump relay, or the fuse that powers the pump.
Always label the positive and negative (ground) wires on the fuel pump. Wrap masking tape around the wire and label with a "+" and "-". Make sure the battery is disconnected and the fuse is removed before connecting the wires.
Connect the positive wire from the fuel pump to the positive wire from your vehicle's wiring harness.
Attach the ground wire from the fuel pump to the nearest electrical ground surface, usually the frame of your car. Ensure the connector and the area are clean and rust-free.
A loose connection will generate heat and not supply the proper voltage to the pump. This will likely burn the wire and damage the pump, causing the engine to run poorly or not at all.
