Testing TBI fuel injectors can be done at home with a few tools and some patience. The first step is to identify the type of fuel injector in your car, which is likely to be either a TBI (throttle body injection) or EFI (electronic fuel injection) system. TBI injectors are generally easier to access and test than EFI injectors. A visual inspection of the fuel spray pattern can reveal if a TBI injector is working as intended, whereas EFI injectors are less accessible and may require a mechanic's stethoscope or screwdriver to listen for a clicking sound that indicates proper function.

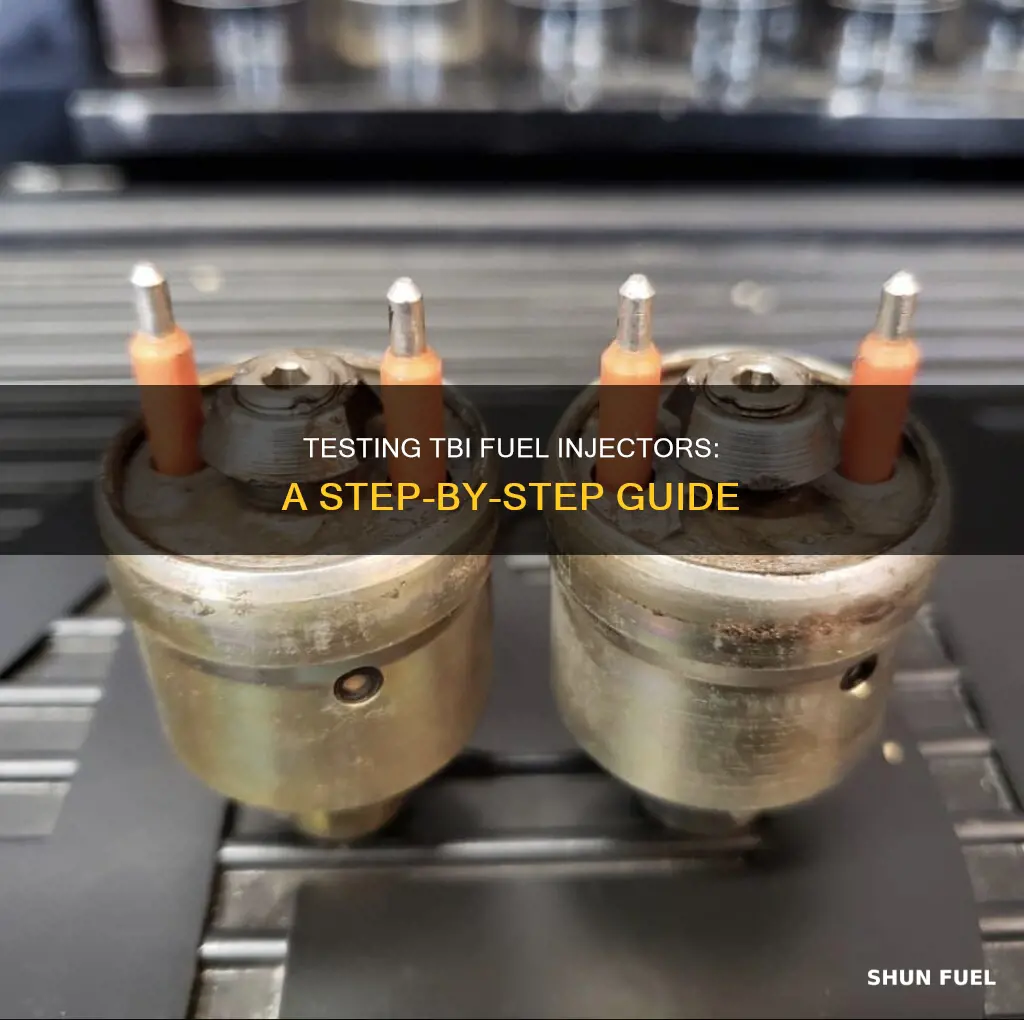

How to test TBI fuel injectors
| Characteristics | Values |
|---|---|
| Testing process | Visual inspection of the fuel spray pattern |
| Tools required | Mechanic's stethoscope, a piece of thin hose, or a long standard screwdriver |
| Common problems | Buildup from impurities in the fuel, injector system electrical or mechanical problems |
| Symptoms of bad injectors | Rough idle, misfires, harmful emissions, poor engine performance, and increased fuel consumption |
| Solutions | Use a high-quality cleaning fuel system additive or get the system cleaned at a garage |
Explore related products
What You'll Learn
Testing TBI injectors visually
The first step is to turn off the vehicle and remove the electrical connector of the injector you want to check. Then, use a digital multimeter to test for power and pulse signals coming from the computer. Set the multimeter to the right value on the Ohms scale according to the resistance specs for your fuel injector (usually at least 30 Ohms). Next, investigate the injector electrical terminals. If the resistance reading is other than what is specified in your service manual, you will need to replace the injector. For example, if the reading is jumping, the coil is partially opened. If the meter reads infinite resistance, the coil is opened, and if you read zero resistance, the coil is shorted.
Another way to test TBI injectors is to use a mechanic's stethoscope, a piece of thin hose of the appropriate length, or a long standard screwdriver to listen to the injector. If the injector is working well, you will hear a clicking sound inside. This sound is made by the solenoid inside the injector activating and deactivating the injector's valve. If there is no clicking sound, either the computer is not sending the pulse signal, or the solenoid is broken, indicating a dead injector.
Additionally, you can check for power by observing the wires. For example, if there is 12V at both of the inner injector wires when the ignition is on, but no fuel is coming out of the injectors, there may be an issue with the fuses or the ECM. In this case, try cleaning the plugs at the distributor and coil, as a lack of spark will prevent the injector from firing.
Cleaning Fuel Injectors: Is Methanol a Good Choice?
You may want to see also
Explore related products
Using a mechanic's stethoscope
Testing fuel injectors can sometimes be easier than you think. The simplest method is to use a mechanic's stethoscope to listen to the injector. This is a quick and easy way to check for any potential fuel system issues and fuel injectors.
To begin, let the engine idle, apply the parking brake, and open the hood. Next, place the mechanic's stethoscope on the side of the injector and listen for a clicking sound. This sound comes from the interior solenoid activating and deactivating the valve of the injector. If you don't hear the clicking sound, this is a sign that the injector may not be working correctly and you will need to test the fuel injector further to determine if it is functioning properly.
An alternative to using a mechanic's stethoscope is to use a long screwdriver. Place the tip of the screwdriver on top of each fuel injector and place your ear on the handle of the screwdriver to listen for the clicking sound.
If you are testing a TBI (throttle body injection) injector, you can also visually inspect the fuel spray. To do this, first, remove the cover off the air cleaner housing. Then, ask an assistant to start or crank the engine if it does not turn over. Finally, check the pattern of the spray to see if the fuel injector is working correctly. If the fuel comes out in an inverted V pattern, the injector is working properly. If there is an irregular pattern, an internal part is worn down or damaged. Additionally, if you do not see any fuel coming out of the injector, this is a clear sign that you have a problem to address.
Fuel Injectors: Aftermarket Options, Any Good?
You may want to see also
Explore related products
Testing EFI injectors
However, there are some simple tests you can use to check whether one or more injectors are working, and whether the fault is within the injector itself or the controlling circuit.
One way to test EFI injectors is to listen to each injector to determine whether they are working. As the car computer energizes or de-energizes the injector, the valve inside creates a clicking sound when it opens and closes. Use a mechanic's stethoscope, a piece of thin hose, or a long standard screwdriver to listen to the injector. Place the tip of the screwdriver on top of each fuel injector, and your ear on the handle of the screwdriver. If you hear a clicking sound, the injector is working. If not, either the computer is not sending the pulse signal or the solenoid has broken.
Another way to test EFI injectors is by using a multimeter to measure the resistance on each of the injectors.
Fuel Injectors: When to Replace and Why
You may want to see also
Explore related products
Checking for common problems
One common problem with TBI injectors is a blockage or restriction in the fuel spray, which can be visually inspected. To do this, remove the air filter housing to access the injector and have someone crank the engine while you observe the spray pattern. A properly functioning injector will produce an inverted V-shaped spray pattern. If you observe a solid, single spray or an irregular pattern, it indicates a dirty injector or a broken internal component. This can often be rectified by adding a high-quality cleaning fuel system additive to the fuel tank or by having the system professionally cleaned.
Another common issue is the absence of fuel spray, which can be caused by a lack of power to the injector. To test this, check for voltage at the injector's wires with the ignition on. If there is no power, the problem may lie with the fuses, the ECM (engine control module), or a faulty connection at the distributor or coil. Cleaning the plugs at these components may resolve the issue.
Additionally, TBI injectors can experience mechanical damage due to fuel impurities. Signs of this include starting issues, decreased performance, increased fuel consumption, rough idling, and misfires. To test for this, use a mechanic's stethoscope or a long screwdriver to listen for the clicking sound of the injector activating and deactivating. If no clicking sound is heard, it could indicate a faulty computer or a broken solenoid.
Fuel Injectors in Audi A4: How Many?
You may want to see also
Explore related products
Using a multimeter to measure resistance
Testing fuel injectors can be done at home with some simple tools and a lot of patience. There are two common types of fuel injectors: TBI (throttle body injection) and EFI (electronic fuel injection). The process of testing TBI injectors is much easier than checking EFI injectors as the fuel spray is easily checked visually.
A multimeter can be used to test both TBI and EFI injectors by measuring the resistance on each of the injectors. To do this, first remove the air filter housing to access the injector. You will need someone to crank the engine while you use the multimeter to measure resistance.
With the engine running, place the multimeter on the injector and measure the resistance. A good injector will have low resistance, typically between 2 and 12 ohms. If the resistance is higher than this range, the injector may be faulty and need to be cleaned or replaced.
It is important to be careful when using a multimeter, as incorrect use can result in electrical shorts or damage to the injector or multimeter. Always refer to the multimeter's user manual for specific instructions and safety precautions.
Additionally, when testing EFI injectors, it is important to be aware that the structure is more complicated, and it may be difficult to access the injectors without removing the complete assembly. In such cases, it may be necessary to consult a professional mechanic for further diagnosis and repair.
How to Test a Fuel Injector Using a 9V Battery
You may want to see also
Frequently asked questions
Testing TBI fuel injectors can be done by visually inspecting the fuel spray. If you observe fuel coming out partially atomized in an inverted V pattern, your injector is working fine. If you see a solid, single spray or an irregular pattern, your injector is likely dirty or broken.
You can either add a high-quality cleaning fuel system additive to the fuel tank or bring your vehicle to a garage and ask them to clean the system.
You can access the fuel flow spray by removing the air filter housing and making your way to the injector. You will need someone to crank the engine so you can visually inspect the spray pattern.
Yes, you can remove the sensor and watch its operation while out of the fuel rail. This method can give you clues about fuel flow and atomization. However, this may be harder to do in some models.
