Tuning a fuel map is a critical process in optimizing an engine's performance, efficiency, and drivability by adjusting the air-fuel mixture delivered under various operating conditions. This involves modifying the engine control unit (ECU) or engine management system to fine-tune fuel injection timing and quantity based on factors like RPM, throttle position, and load. Proper fuel map tuning ensures the engine runs at its ideal stoichiometric ratio, maximizing power output while minimizing emissions and fuel consumption. Whether for racing, daily driving, or addressing specific performance issues, understanding the principles of fuel mapping and using the right tools, such as dyno testing or data logging, is essential for achieving precise and reliable results.
| Characteristics | Values |
|---|---|
| Purpose of Fuel Map Tuning | Optimize air-fuel mixture for performance, efficiency, and drivability. |
| Tools Required | Wideband O2 sensor, tuning software, ECU interface, dyno (optional). |
| Key Parameters to Adjust | Fuel pressure, injector pulse width, air-fuel ratio (AFR), load, RPM. |
| Target AFR Range | Stoichiometric (14.7:1 for gasoline), richer for power, leaner for economy. |
| Load and RPM Mapping | Adjust fuel delivery across different load and RPM ranges. |
| Logging Data | Record AFR, RPM, throttle position, and load during tuning sessions. |
| Dyno Tuning | Preferred for precise adjustments under controlled conditions. |
| Real-World Testing | Validate changes on the road for drivability and consistency. |
| Safety Precautions | Avoid overly lean mixtures to prevent engine damage. |
| Software Compatibility | Ensure tuning software supports your vehicle’s ECU. |
| Professional Assistance | Recommended for beginners or complex setups. |
| Environmental Factors | Adjust for altitude, temperature, and humidity. |
| Fuel Type Considerations | Different fuels (e.g., E85) require specific AFR adjustments. |
| Post-Tuning Checks | Verify AFR, power output, and emissions compliance. |
| Legal Compliance | Ensure modifications meet local emissions and safety regulations. |
Explore related products
What You'll Learn
- Understanding Fuel Maps: Basics of fuel maps, their role in engine performance, and key parameters
- Data Logging Tools: Essential tools for logging engine data to analyze and adjust fuel maps
- A/F Ratio Optimization: Techniques to achieve the ideal air-fuel ratio for efficiency and power
- Load & RPM Adjustments: Tuning fuel delivery based on engine load and RPM ranges
- Testing & Validation: Methods to test and confirm fuel map changes for optimal performance
Understanding Fuel Maps: Basics of fuel maps, their role in engine performance, and key parameters

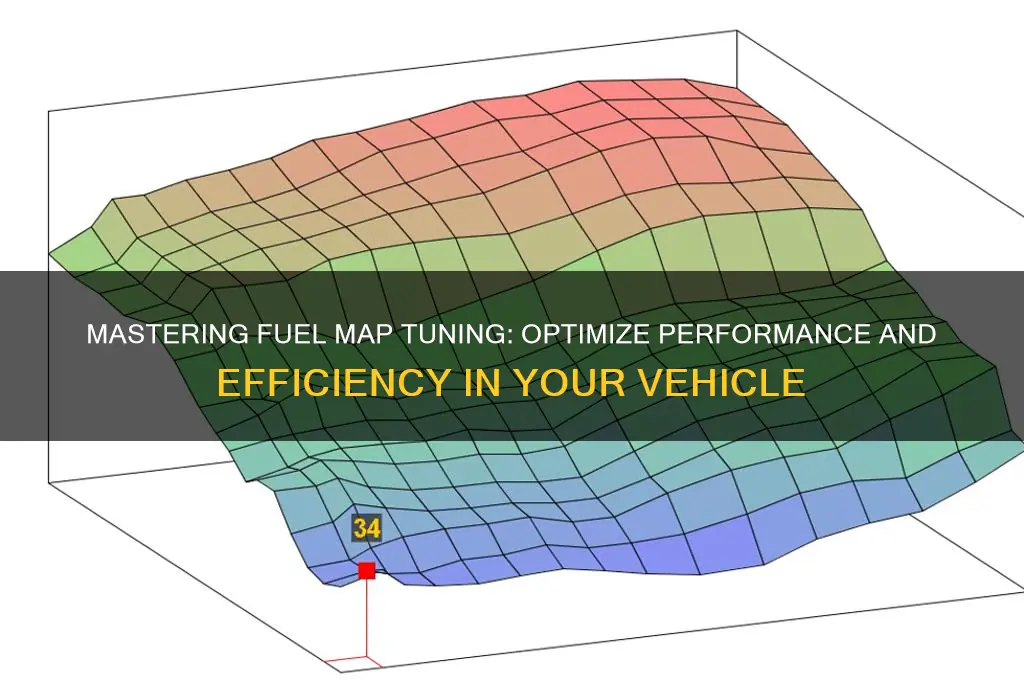

Fuel maps are the backbone of modern engine management systems, translating sensor data into precise fuel delivery for optimal combustion. At their core, fuel maps are 2D or 3D tables within an Engine Control Unit (ECU) that dictate fuel injector pulse width—essentially, how long injectors stay open—based on engine load and RPM. For instance, a naturally aspirated engine might require a 3.5 ms pulse width at 3,000 RPM under 50% load, while a turbocharged setup could demand 5.2 ms under the same conditions due to increased air density. Understanding these tables is the first step in tuning, as they directly influence power, efficiency, and emissions.
The role of fuel maps in engine performance cannot be overstated. A well-tuned map ensures the air-fuel ratio (AFR) remains within the ideal stoichiometric range (14.7:1 for gasoline engines) under varying conditions. Deviations can lead to detonation, lean misfires, or rich fuel waste. For example, a tuner might adjust the map to run slightly richer (12.5:1 AFR) during high-load scenarios to prevent knock, or leaner (16.0:1) at cruise for better fuel economy. Advanced ECUs even allow real-time adjustments, such as compensating for altitude changes by increasing fuel delivery by 10-15% above 5,000 feet.
Key parameters in fuel mapping include load (measured via manifold absolute pressure or throttle position), RPM, intake air temperature, and coolant temperature. Each parameter interacts dynamically; for instance, a cold engine requires a richer mixture (up to 13.0:1 AFR) until it reaches operating temperature. Tuning software often visualizes these interactions as color-coded graphs, where green indicates optimal AFR, yellow suggests richness, and red signals leanness. Practical tips include logging real-world data during test drives to identify inconsistencies, such as a sudden drop in AFR during hard acceleration, which could indicate a clogged fuel injector.
Comparing factory maps to custom tunes highlights the importance of adaptability. OEM maps prioritize longevity and emissions compliance, often sacrificing peak performance. A custom map, however, can unlock 10-15% more horsepower by optimizing AFR for specific driving conditions. For example, a track-focused tune might prioritize mid-range torque, while a daily driver tune emphasizes smooth low-end response. Caution is critical: aggressive tuning without proper monitoring can void warranties or cause catastrophic engine damage, such as pre-ignition in direct-injected engines running too lean.
In practice, tuning a fuel map requires a systematic approach. Start by logging baseline data to identify inefficiencies, such as a rich spike during shift points. Use incremental adjustments—no more than 2-3% per cell—and verify changes with wideband O2 sensors. Tools like HP Tuners or EcuTek simplify the process, offering pre-made maps for common setups. For instance, a Subaru WRX owner might start with a proven map, then fine-tune for their specific mods, such as a larger intercooler or exhaust. The takeaway? Fuel maps are both art and science, demanding precision, patience, and a deep understanding of engine dynamics.
Understanding Biodiesel: Key Ingredients and Sustainable Fuel Sources Explained
You may want to see also
Explore related products
Data Logging Tools: Essential tools for logging engine data to analyze and adjust fuel maps
Tuning a fuel map without data logging is like navigating a dark room blindfolded. You might stumble upon something, but precision and safety are compromised. Data logging tools are the flashlight in this scenario, illuminating the intricate relationship between fuel delivery, engine performance, and emissions. These tools capture critical parameters such as air-fuel ratio, throttle position, engine speed, and manifold pressure, providing a granular view of how your engine operates under various conditions. Without this data, adjustments to the fuel map are guesswork, risking inefficiency, damage, or failure to meet regulatory standards.
Consider the process of selecting a data logging tool. Entry-level options like the AEM UEGO gauge with logging capabilities offer affordability and simplicity, ideal for hobbyists tuning a single vehicle. For professionals or enthusiasts working across multiple platforms, advanced systems like the HP Tuners MPVI2 or Cobb Accessport provide broader compatibility and deeper analytics. These tools often integrate with software that visualizes data in real-time, allowing you to correlate engine behavior with specific driving conditions. For instance, logging a wideband O2 sensor’s readings during a dyno run can reveal lean spots at 4,500 RPM under load, guiding precise fuel map adjustments.
The effectiveness of data logging hinges on proper setup and interpretation. Start by configuring the logging tool to capture data at a frequency matching your tuning goals—10 Hz for general monitoring or 100 Hz for high-precision analysis. Ensure sensors are calibrated, and the logging session covers diverse driving scenarios: idle, cruising, acceleration, and deceleration. Post-logging, analyze trends rather than isolated data points. For example, consistent rich readings during deceleration might indicate a faulty fuel pressure regulator, while intermittent lean spikes under load could signal a clogged injector. Tools like LogWorks or MegaLogViewer simplify this analysis, enabling you to overlay data streams for clearer insights.
A common pitfall in data logging is over-reliance on raw numbers without contextual understanding. A fuel map adjustment based solely on air-fuel ratio data, without considering intake air temperature or throttle response, can lead to suboptimal results. Cross-referencing logged data with environmental factors—such as ambient temperature or altitude—ensures adjustments are holistic. For instance, a vehicle tuned at sea level may run lean at higher altitudes due to reduced air density, requiring richer fuel mapping. This integrative approach transforms data logging from a diagnostic tool into a strategic tuning asset.
Ultimately, data logging tools are not just for identifying problems but for optimizing performance within safe limits. By systematically logging, analyzing, and adjusting, you can fine-tune the fuel map to balance power, efficiency, and longevity. Whether you’re a weekend warrior or a professional tuner, investing in the right logging tools and mastering their use is indispensable. It’s the difference between a good tune and a great one.
Did Mustangs Have Fuel Injection? Unraveling the Classic Car Mystery
You may want to see also
Explore related products
A/F Ratio Optimization: Techniques to achieve the ideal air-fuel ratio for efficiency and power
Achieving the ideal air-fuel (A/F) ratio is a delicate balance between maximizing power and ensuring fuel efficiency. The stoichiometric ratio for gasoline engines is 14.7:1 (air to fuel), but this baseline shifts under load, RPM, and temperature variations. Performance tuning often targets richer mixtures (12.5:1 to 13.5:1) for power or leaner mixtures (15.5:1 to 16.5:1) for efficiency, depending on the driving conditions. Understanding these thresholds is the first step in optimizing your fuel map.
To begin tuning, invest in a wideband oxygen sensor and logging software to monitor real-time A/F ratios. Start by logging baseline data during steady-state driving, acceleration, and deceleration. Identify areas where the engine runs excessively rich or lean, such as under heavy throttle or at cruising speeds. For example, if the A/F ratio spikes to 16:1 during highway driving, adjust the fuel map to add 5–10% more fuel in that load and RPM range. Conversely, if the mixture is consistently rich (12:1) under light throttle, reduce fuel delivery by 3–7% to improve efficiency without sacrificing drivability.
Advanced techniques involve layering adjustments based on engine temperature and atmospheric conditions. Cold starts require richer mixtures (10:1 to 12:1) until the engine reaches operating temperature, while high altitudes demand leaner mixtures due to reduced air density. Use your tuning software to create temperature- and altitude-specific fuel tables. For instance, reduce fuel by 2–4% for every 1,000 feet above sea level. Similarly, implement a progressive enrichment strategy during hard acceleration, starting at 13:1 and tapering to 12:1 as RPM climbs, to prevent detonation and maximize power.
Caution must be exercised to avoid over-tuning, which can lead to engine damage or poor drivability. Always test changes incrementally, logging data after each adjustment. For example, if increasing fuel by 5% under load causes a smoother powerband, verify there’s no excessive exhaust temperature or unburned fuel. Similarly, leaning out the mixture for efficiency should never trigger a lean misfire or overheating. Use knock sensors and exhaust gas temperature (EGT) monitors as fail-safes to prevent catastrophic failures.
In conclusion, A/F ratio optimization is a blend of science and art, requiring data-driven decisions and iterative testing. By focusing on specific driving conditions, leveraging technology, and respecting engine limits, you can achieve a fuel map that balances power and efficiency. Remember, the goal isn’t perfection but a harmonious calibration that suits your vehicle’s intended use—whether it’s daily commuting or track performance.
DIY Fuel Pellets: A Step-by-Step Guide to Sustainable Energy Production
You may want to see also
Explore related products
Load & RPM Adjustments: Tuning fuel delivery based on engine load and RPM ranges
Engine load and RPM are the dynamic duo of fuel map tuning, dictating how much fuel your engine needs at any given moment. Imagine a sprinter: at the starting line (low RPM, low load), they need a precise burst of energy, but as they hit full stride (high RPM, high load), their fuel demands skyrocket. Similarly, your engine's fuel requirements aren't static; they fluctuate based on throttle position, vehicle speed, and manifold pressure. Tuning the fuel map for these variables ensures optimal performance, efficiency, and drivability across the entire RPM range.
Understanding Load & RPM Zones:
Think of your fuel map as a grid, with RPM on the horizontal axis and load on the vertical. Each cell represents a specific operating condition. Low RPM, low load zones (idling, cruising) require leaner mixtures for efficiency, while high RPM, high load zones (acceleration, towing) demand richer mixtures for power. Mid-range zones often need fine-tuning for smooth transitions and responsiveness.
A wideband oxygen sensor is your compass here, providing real-time feedback on air-fuel ratio (AFR) to guide your adjustments.
Tuning Strategies:
Start by logging data during various driving conditions using your tuning software. Analyze AFR readings across the RPM and load spectrum. If AFR is consistently lean in a particular zone, increase fuel delivery incrementally (typically in 1-2% increments) until you achieve the target AFR. Conversely, if AFR is rich, decrease fuel delivery. Remember, small adjustments have a significant impact, so proceed cautiously and log data after each change.
For example, if you notice a lean condition at 3000 RPM under moderate load, increase fuel by 1% in that specific cell and retest.
Advanced Considerations:
Don't forget about transient conditions – those moments when load and RPM change rapidly, like during gear shifts or sudden acceleration. These require separate tuning considerations, often involving fuel cut or enrichment tables to prevent hesitation or knocking. Additionally, consider environmental factors like altitude and temperature, which can affect air density and fuel requirements. Some tuning software allows for altitude and temperature compensation, automatically adjusting fuel delivery based on sensor data.
Pro Tip: Invest in a quality wideband O2 sensor and logging software. They're essential tools for accurate and data-driven fuel map tuning.
Hydrogen Fuel Cells: Debunking Explosion Myths and Safety Concerns
You may want to see also
Explore related products
Testing & Validation: Methods to test and confirm fuel map changes for optimal performance
Effective fuel map tuning hinges on rigorous testing and validation to ensure changes deliver measurable performance gains without compromising reliability. Begin with baseline testing to establish a performance benchmark before making any adjustments. Use a dynamometer or conduct on-road tests to record key metrics such as horsepower, torque, fuel efficiency, and exhaust gas temperatures. These baseline readings serve as a reference point for evaluating the impact of subsequent fuel map modifications. Without this step, it’s impossible to quantify improvements or identify regressions accurately.
Once baseline data is established, implement incremental changes to the fuel map, focusing on specific load and RPM ranges. For example, adjust the air-fuel ratio (AFR) in small increments, such as 0.1 lambda points, and retest after each modification. Use a wideband oxygen sensor to monitor AFR in real time, ensuring it stays within the optimal range for the engine’s design (typically 12.5–13.0 for cruising, 11.5–12.0 under load). Pair this with logging tools to capture data on throttle response, knock sensor activity, and fuel trim corrections. This methodical approach isolates the effects of each change, preventing compounding variables from obscuring results.
Load testing is critical for validating fuel map changes under real-world conditions. Simulate varying loads by performing wide-open throttle (WOT) pulls, steady-state cruising, and stop-and-go driving. For turbocharged engines, monitor boost pressure and ensure it remains consistent with target values. Pay attention to transient response—how quickly the engine adapts to throttle inputs—as this is a key indicator of fuel map effectiveness. Tools like data loggers or ECU tuning software can overlay pre- and post-tune data, highlighting areas where adjustments have improved or degraded performance.
Finally, long-term durability testing ensures fuel map changes don’t introduce reliability issues. Run the vehicle for extended periods, monitoring for signs of detonation, overheating, or excessive wear. For example, sustained knock sensor activity or a rising coolant temperature under load may indicate an overly lean AFR. Conversely, a rich mixture can lead to carbon buildup and reduced efficiency over time. If issues arise, revert to the baseline map and re-evaluate adjustments, focusing on areas where the engine operates outside safe parameters. This iterative process balances performance gains with long-term engine health.
In conclusion, testing and validation require a blend of precision, patience, and analytical rigor. By establishing baselines, making incremental changes, conducting load tests, and ensuring durability, tuners can confidently confirm that fuel map modifications deliver optimal performance without sacrificing reliability. Each step builds on the last, creating a systematic approach that transforms guesswork into data-driven decision-making.
Understanding Lean Fuel Code: Causes, Effects, and Solutions for Efficiency
You may want to see also
Frequently asked questions
A fuel map is a set of data within an engine's ECU (Engine Control Unit) that determines the optimal fuel delivery for various engine conditions (RPM, throttle position, load, etc.). Tuning the fuel map ensures the engine runs efficiently, maximizes power, and avoids issues like knocking or poor fuel economy.
To tune a fuel map, you’ll need a laptop, tuning software specific to your vehicle’s ECU, a wideband oxygen sensor for accurate air-fuel ratio readings, and possibly a dynamometer or data logging tools to monitor engine performance during tuning.
Signs that your fuel map may need tuning include poor throttle response, rough idling, misfires, reduced power, or inconsistent fuel economy. A wideband oxygen sensor can also reveal deviations from the ideal air-fuel ratio, indicating the need for adjustments.
Yes, you can tune your fuel map yourself if you have the necessary tools, knowledge, and patience. However, it’s a complex process that requires understanding of engine dynamics and tuning software. Beginners should start with small adjustments and consider consulting a professional to avoid damaging the engine.
