Tuning fuel tables is a critical aspect of optimizing engine performance, especially in aftermarket or modified vehicles, as it ensures the correct air-fuel mixture is delivered under various driving conditions. Fuel tables, typically found in an engine's Electronic Control Unit (ECU), map out the amount of fuel required based on factors like RPM, load, and throttle position. Proper tuning involves adjusting these tables to account for modifications such as larger turbochargers, intake systems, or exhaust upgrades, which alter the engine's airflow and fuel demands. The process requires precision, often using data logging tools to monitor parameters like air-fuel ratios, knock sensors, and exhaust gas temperatures, ensuring the engine runs efficiently without risking damage. Whether using standalone ECUs or factory software, understanding the principles of fuel tuning is essential for achieving peak performance, improved drivability, and longevity in any high-performance or modified vehicle.
| Characteristics | Values |
|---|---|
| Purpose of Fuel Table Tuning | Optimize air-fuel mixture for performance, efficiency, and emissions. |
| Tools Required | Wideband O2 sensor, tuning software, logging tools, dyno (optional). |
| Key Parameters to Adjust | Fuel load, RPM, throttle position, injector pulse width, fuel pressure. |
| Base Fuel Table | Start with manufacturer or baseline tune for initial adjustments. |
| Target AFR (Air-Fuel Ratio) | Varies by engine type (e.g., 12.5:1 for cruising, 11.5:1 for performance). |
| Load Axis | Represents engine load (e.g., manifold pressure or throttle position). |
| RPM Axis | Represents engine speed in RPM. |
| Logging Data | Log AFR, RPM, load, and other parameters during driving/testing. |
| Adjustments | Increase/decrease fuel values in cells based on logged AFR deviations. |
| Incremental Changes | Make small adjustments (e.g., ±2-5%) to avoid over-tuning. |
| Testing Conditions | Test under various conditions (idle, cruising, WOT) for consistency. |
| Safety Margins | Avoid running too lean (risk of detonation) or too rich (inefficiency). |
| Advanced Techniques | Use 3D fuel maps, flex fuel tuning, and closed-loop O2 feedback. |
| Software Compatibility | Ensure tuning software supports your ECU and vehicle. |
| Professional Assistance | Recommended for beginners or complex setups. |
| Legal Compliance | Ensure modifications comply with local emissions and safety regulations. |
Explore related products
What You'll Learn
- Understanding Fuel Maps: Learn the structure and purpose of fuel maps in engine tuning
- Logging Data: Use data logging tools to monitor AFR and engine performance
- Adjusting Cells: Modify specific cells in the fuel table based on logged data
- Load vs. RPM: Tune fuel delivery across different load and RPM ranges
- Testing and Validation: Verify changes with dyno or road tests for optimal results
Understanding Fuel Maps: Learn the structure and purpose of fuel maps in engine tuning

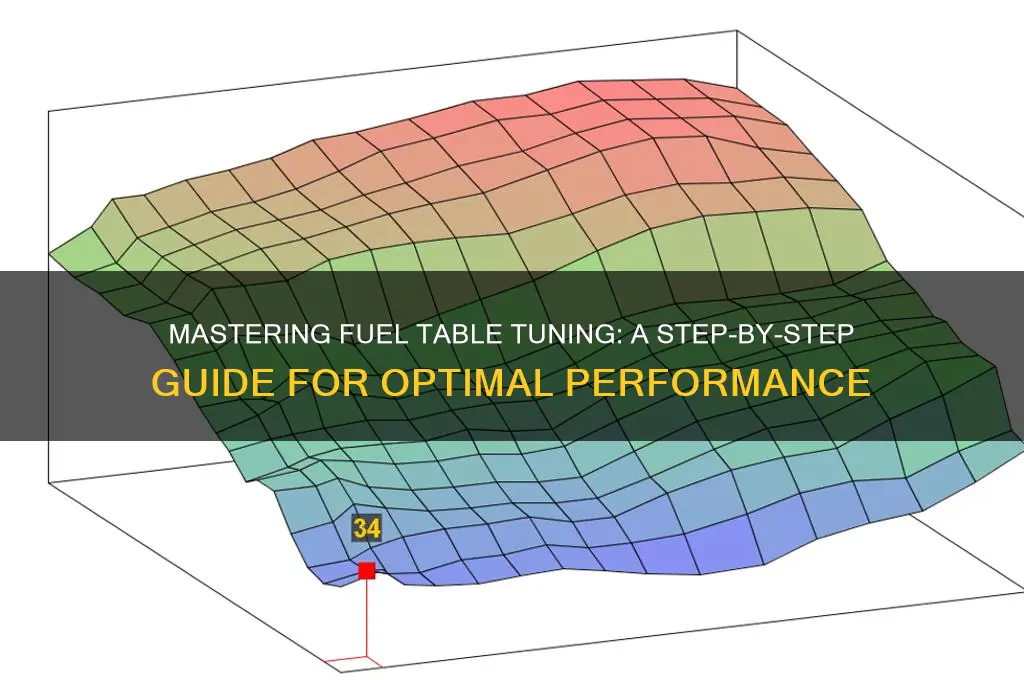

Fuel maps are the backbone of engine tuning, serving as a 3D matrix that dictates how much fuel is delivered under specific conditions. These maps are structured around two primary axes: engine load (often represented by manifold absolute pressure, or MAP) and engine speed (RPM). Each cell within this grid contains a fuel value, typically measured in milliseconds of injector opening time or as a percentage of duty cycle. Understanding this structure is crucial because it directly influences how an engine performs across its entire operating range. For instance, a well-tuned fuel map ensures optimal air-fuel ratios at idle, under acceleration, and at high speeds, maximizing power, efficiency, and drivability.
The purpose of fuel maps extends beyond mere fuel delivery; they are a tool for balancing performance and reliability. In naturally aspirated engines, fuel maps often focus on maintaining a stoichiometric air-fuel ratio (14.7:1 for gasoline) under most conditions, with slight adjustments for load and speed. Turbocharged or supercharged engines, however, require richer mixtures under boost to prevent detonation and leaner mixtures at low load to improve efficiency. For example, a turbocharged engine might run a 12.5:1 ratio under full load to handle the increased heat and pressure, while a naturally aspirated engine might stay closer to 14.0:1 for the same conditions. This adaptability is why fuel maps are indispensable in modern tuning.
To effectively tune a fuel map, start by logging real-world data using a wideband oxygen sensor and tuning software. Focus on areas where the engine spends the most time, such as cruising RPMs or common load points. For instance, if you’re tuning a daily driver, prioritize smooth transitions between 2,000–3,000 RPM under light to moderate throttle. Use incremental adjustments—no more than 2–3% changes at a time—to avoid over-tuning. Always verify changes with live data logging to ensure the engine isn’t running too rich (which wastes fuel and fouls spark plugs) or too lean (which risks overheating and detonation).
One common mistake in fuel map tuning is neglecting the interplay between fuel and ignition timing. Fuel maps and ignition tables are interdependent; richer mixtures may require retarded timing to prevent knock, while leaner mixtures might allow for more advance. For example, if you enrich the fuel map by 5% in a high-load area, check the knock sensor data and consider retarding the ignition timing by 1–2 degrees to maintain safety. This holistic approach ensures that adjustments to one system complement, rather than contradict, changes in another.
Finally, the structure of fuel maps varies across tuning platforms, but the principles remain consistent. Some systems use a 2D map with fixed load and RPM axes, while others incorporate a 3D map that includes additional variables like coolant temperature or throttle position. Regardless of the format, the goal is to create a map that responds predictably to real-world conditions. For beginners, start with small, targeted changes in high-impact areas, such as mid-range RPMs under moderate load. Over time, expand your focus to fine-tune edge cases, like idle stability or wide-open throttle performance. With patience and data-driven adjustments, fuel map tuning transforms a generic engine calibration into a bespoke setup tailored to your vehicle’s unique characteristics.
Exploring LM4 Flex Fuel Compatibility: Myths, Facts, and Performance Insights
You may want to see also
Explore related products
Logging Data: Use data logging tools to monitor AFR and engine performance
Data logging is the backbone of precision tuning, transforming guesswork into science. By capturing real-time Air/Fuel Ratio (AFR) and engine performance metrics, loggers provide a granular view of how your engine behaves under various conditions. This isn’t about gut feelings or generic advice—it’s about hard data. For instance, a wideband O2 sensor paired with a logging tool like an ECU-linked system or standalone device (e.g., AEM or HP Tuners) can reveal AFR fluctuations during acceleration, cruising, or load changes. Without this data, tuning fuel tables becomes a shot in the dark, risking inefficiency, detonation, or even engine damage.
Consider a scenario where a tuner notices AFR leaning out (rising above 14.7:1) under heavy throttle. This could indicate a fuel delivery issue or an overly conservative fuel table. Conversely, a rich condition (below 12.5:1) might suggest over-fueling or a faulty injector. Logging tools don’t just flag these anomalies—they timestamp and contextualize them, allowing you to correlate AFR with RPM, throttle position, and manifold pressure. For example, if AFR spikes at 4,000 RPM during a pull, you’d adjust the fuel table’s load and RPM cells to add 5–10% more fuel in that zone. This iterative process, backed by logged data, ensures changes are targeted and effective.
However, logging isn’t set-it-and-forget-it. Proper setup is critical. Ensure your logger samples data at a high frequency (e.g., 10–20 Hz) to capture transient events like gear shifts or throttle blips. Calibrate sensors regularly—a drifting MAP sensor or faulty O2 sensor can skew data, leading to incorrect adjustments. For instance, a miscalibrated wideband might report 13.0:1 AFR when the actual value is 12.5:1, causing you to over-tune and risk a rich mixture. Always cross-reference data with known benchmarks: stoichiometric AFR for gasoline is 14.7:1, while power-rich tuning might target 12.5:1 under boost.
The true power of logging lies in its ability to reveal trends over time. For example, consistent AFR deviations during cold starts could indicate a faulty cold-start fuel map, while gradual leaning under sustained load might signal fuel pump fatigue. Advanced loggers can overlay data with GPS or knock sensors, providing a holistic view of performance. A tuner might notice knock events at 5,500 RPM under 10 lbs of boost, paired with a lean AFR of 15.0:1—a clear sign to enrich the fuel table and reduce timing in that cell. This layered analysis turns raw data into actionable insights.
Finally, logging isn’t just for professional tuners. DIY enthusiasts can leverage affordable tools like the TunerStudio software or Bluetooth-enabled wideband kits to monitor AFR in real-time. Start by logging a baseline run, then incrementally adjust fuel tables in 2–5% steps, re-logging after each change. Compare before-and-after data to quantify improvements. For example, if a baseline log shows AFR spiking to 16.0:1 at wide-open throttle, and post-adjustment logs stabilize it at 13.5:1, you’ve not only improved performance but also safeguarded the engine. Logging transforms tuning from an art into a repeatable, data-driven process.
Step-by-Step Guide to Repairing a Faulty Fuel Float Easily
You may want to see also
Explore related products
Adjusting Cells: Modify specific cells in the fuel table based on logged data
Fine-tuning fuel tables isn't about broad strokes; it's about precision adjustments. Logged data acts as your microscope, revealing exactly which cells in the table need attention. For instance, if your wide-open throttle (WOT) pulls show a rich condition at 4,000 RPM and 30% throttle, that specific cell in the fuel table is your target. Don't adjust neighboring cells unless data confirms their involvement.
Think of each cell as a micro-adjustment for a specific operating condition. Start by identifying the exact RPM, load, and throttle position from your logs where the issue occurs. Use your tuning software to isolate that cell and make incremental changes—typically in 0.5% to 2% steps for fuel trim. For example, if the lambda reading is 0.85 (rich), reduce fuel by 1% in that cell and retest. Over-adjusting can lead to lean conditions, so patience is key.
Comparing before-and-after logs is critical. After modifying a cell, log the same driving conditions to verify the change. If the lambda reading moves closer to your target (e.g., 1.0 for stoichiometric), you’re on the right track. If not, revert to the original value and try a smaller adjustment. Remember, fuel tables are interconnected, so monitor adjacent cells for unintended consequences.
A practical tip: use a spreadsheet to track changes. Note the original value, adjustment, and post-adjustment lambda reading for each cell. This documentation helps you spot trends and avoid overwriting successful tweaks. For example, if multiple cells at 3,000–4,000 RPM and 20–40% load show richness, you might have a pattern indicating a broader issue in that load range.
Finally, don’t underestimate the power of real-world testing. Dyno tuning provides controlled conditions, but street driving reveals how adjustments perform under varying temperatures, altitudes, and driving styles. Log a mix of highway cruising, stop-and-go traffic, and WOT pulls to ensure your cell modifications hold up across all scenarios. Tuning is iterative—each adjustment brings you closer to an optimized fuel table.
Carbs and Muscle Fuel: Unlocking Optimal Energy for Strength Gains
You may want to see also
Explore related products
Load vs. RPM: Tune fuel delivery across different load and RPM ranges
Fuel delivery optimization is a delicate dance between load and RPM, where the engine's appetite for fuel varies dramatically. At low RPMs, even under high load, the engine demands less fuel due to reduced air intake velocity and shorter combustion durations. Conversely, at high RPMs, especially under heavy load, fuel requirements spike to meet the increased air volume and rapid cylinder firing rates. This dynamic relationship underscores the need for precise fuel table adjustments across the load and RPM spectrum.
Consider a turbocharged engine operating at 2,000 RPM under 50% load. Here, a fuel delivery setting of 8.5 ms (injector pulse width) might suffice. However, at 6,000 RPM and 80% load, the same engine could require 12.0 ms to maintain optimal air-fuel ratios. This example illustrates the exponential increase in fuel demand as RPM and load escalate. Tuning software like HP Tuners or EcuFlash allows you to map these values cell by cell, ensuring the engine receives the right amount of fuel under every operating condition.
A common pitfall in load-RPM tuning is neglecting part-throttle conditions. While wide-open throttle (WOT) tuning often takes center stage, part-throttle scenarios (e.g., 20% load at 3,000 RPM) are equally critical for drivability and efficiency. For instance, a fuel trim value of -5% at 3,000 RPM and 20% load indicates a lean condition, necessitating an increase in the corresponding fuel table cell. Ignoring these areas can lead to hesitation, poor throttle response, or even engine damage over time.
To effectively tune across load and RPM ranges, start by logging real-world driving data. Focus on parameters like short-term fuel trim (STFT), long-term fuel trim (LTFT), and air-fuel ratio (AFR). For example, if STFT shows +10% at 4,500 RPM and 60% load, reduce the fuel delivery in that cell by 5-10%. Gradually refine the tables, making small adjustments (0.1-0.2 ms per iteration) and retesting until the AFR stabilizes near the target (e.g., 12.5:1 for gasoline engines). Always prioritize safety by avoiding overly lean mixtures, which can cause detonation and catastrophic engine failure.
Advanced tuners often employ 3D fuel maps to visualize and adjust load-RPM interactions. These maps reveal trends, such as a consistent rich condition at high RPMs under light load, which may indicate a faulty sensor or incorrect VE (volumetric efficiency) table. By cross-referencing fuel maps with other data logs, such as intake air temperature (IAT) and manifold absolute pressure (MAP), you can pinpoint anomalies and fine-tune the tables with surgical precision. This methodical approach transforms a complex tuning task into a systematic, data-driven process.
Is G Fuel Too Acidic? Uncovering Its pH Level and Impact
You may want to see also
Explore related products
$161.99
Testing and Validation: Verify changes with dyno or road tests for optimal results
After making adjustments to your fuel tables, the critical next step is verifying their effectiveness through rigorous testing. Dyno testing offers a controlled environment to measure power output, torque, and air-fuel ratios across the entire RPM range. This method provides precise data, allowing you to identify areas where the fuel map may still be lean or rich. For instance, a dyno pull might reveal a sudden drop in power at 4,500 RPM, indicating an overly lean condition that requires further tuning. Road testing, on the other hand, evaluates real-world performance, including drivability, throttle response, and fuel efficiency. Combining both methods ensures a comprehensive validation of your changes.
A common mistake is relying solely on dyno results without road testing. While dynos provide accurate performance metrics, they don’t account for variables like ambient temperature, elevation, or driving style. For example, a fuel map optimized for a dyno’s controlled conditions might cause hesitation during hard acceleration on the road. Conversely, road testing alone lacks the precision to pinpoint specific RPM ranges or load conditions where the fuel map is suboptimal. A balanced approach—starting with dyno testing to fine-tune the map and following up with road testing to validate drivability—yields the best results.
When conducting road tests, focus on specific scenarios that stress the engine, such as full-throttle acceleration, cruising at highway speeds, and low-RPM driving. Pay attention to symptoms like knocking, surging, or poor idle quality, as these indicate areas where the fuel map needs further adjustment. For instance, if you notice a slight hesitation during mid-range acceleration, it could signal an air-fuel ratio that’s too lean. Use a wideband oxygen sensor to monitor A/F ratios in real time, ensuring they stay within the target range (typically 12.5:1 to 13.5:1 for gasoline engines under load).
Dyno testing requires careful planning to maximize its effectiveness. Start with baseline pulls to establish a reference point, then make incremental changes to the fuel table and retest. For example, if you increase fuel by 5% in a specific cell, compare the before-and-after dyno graphs to assess the impact on power and torque. Avoid making large adjustments at once, as this can lead to unpredictable results. Instead, use a methodical approach, focusing on one RPM or load range at a time. Tools like logging software can help you analyze data and make informed decisions.
Ultimately, testing and validation are iterative processes that require patience and attention to detail. Neither dyno nor road testing alone provides a complete picture, but together they ensure your fuel tables are optimized for both performance and reliability. For example, a tuner might discover through dyno testing that a particular cell in the fuel table is too rich, causing a loss of power. After adjusting and retesting on the dyno, a road test confirms smoother throttle response and improved fuel economy. This dual approach not only validates your changes but also builds confidence in the tuning process, ensuring your engine performs at its best in all conditions.
Efficient Fuel Filtration: A Comprehensive Guide to Filtering Fuel Properly
You may want to see also
Frequently asked questions
Fuel tables are maps within an engine's ECU that control the amount of fuel delivered based on factors like RPM and load. Tuning them ensures optimal fuel-air mixture for performance, efficiency, and drivability.
Symptoms like rough idle, poor acceleration, misfires, or high fuel consumption indicate improper fuel-air mixture. A wideband oxygen sensor and logging software can confirm the need for tuning.
You’ll need a wideband O2 sensor, tuning software (e.g., ECU editors), a laptop, and data logging tools. Some ECUs may require specific interfaces or licenses.
Start with a baseline tune, log data under various driving conditions, analyze the air-fuel ratio (AFR), and adjust the fuel tables incrementally. Test and repeat until optimal AFR is achieved.
Yes, but it requires knowledge of engine dynamics, tuning software, and safety precautions. Beginners should start with small adjustments and consider guidance from experienced tuners.
