Troubleshooting the fuel pump on a 1989 Porsche 911 requires a systematic approach to identify and resolve potential issues. Start by checking the fuel pump fuse and relay for signs of damage or corrosion, as these are common culprits for pump failure. Next, verify that the fuel pump is receiving power by testing the wiring harness and connections for continuity. If power is present but the pump isn’t operating, the pump itself may be faulty and need replacement. Additionally, inspect the fuel filter and lines for clogs or leaks, as these can mimic pump-related symptoms. Using a fuel pressure gauge to test system pressure can further pinpoint whether the issue lies with the pump or another component. Always consult the vehicle’s manual or a specialized guide for model-specific details to ensure accurate diagnosis and repair.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Underneath the rear seat, near the fuel tank. |
| Fuel Pump Type | Mechanical (driven by eccentric wheel on camshaft) or electric (if upgraded). |
| Common Symptoms of Failure | Engine cranks but won’t start, loss of power, stalling, whining noise from fuel pump area. |
| Diagnostic Tools Needed | Multimeter, fuel pressure gauge, stethoscope (or long screwdriver for noise detection). |
| Fuel Pressure Specification | 2.5 to 3.5 bar (36 to 51 psi) for mechanical pump; verify with Porsche manual. |
| Power Supply Check | Ensure 12V power at fuel pump connector (if electric) when ignition is on. |
| Ground Check | Verify proper grounding of fuel pump circuit using a multimeter. |
| Fuel Filter Inspection | Check for clogging or debris; replace if necessary (located in the fuel line). |
| Fuel Line Inspection | Inspect for cracks, leaks, or blockages in the fuel lines. |
| Eccentric Wheel Inspection | For mechanical pumps, inspect the eccentric wheel for wear or damage (requires engine disassembly). |
| Fuel Tank Ventilation | Ensure the fuel tank vent is not clogged, as it can cause fuel delivery issues. |
| Relay and Fuse Check | Inspect fuel pump relay and fuse (if electric) for continuity and proper operation. |
| Noise Testing | Use a stethoscope or long screwdriver to listen for abnormal noises near the fuel pump. |
| Pressure Regulator Check | Test the fuel pressure regulator for proper operation and leaks. |
| Fuel Pump Replacement | Replace the fuel pump if diagnosed as faulty; consider upgrading to an electric pump for reliability. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, and relieve fuel system pressure before servicing. |
| Professional Assistance | Consult a Porsche specialist if troubleshooting steps are unclear or issues persist. |
Explore related products
What You'll Learn
- Check Fuel Pump Relay: Locate relay, test for power, replace if faulty
- Inspect Fuel Pump Fuse: Verify fuse integrity, replace if blown or damaged
- Test Fuel Pressure: Use gauge to check pressure, compare with specs, diagnose issues
- Listen for Pump Operation: Turn key, listen for hum, silence indicates failure
- Inspect Fuel Lines: Check for leaks, clogs, or damage in fuel delivery system

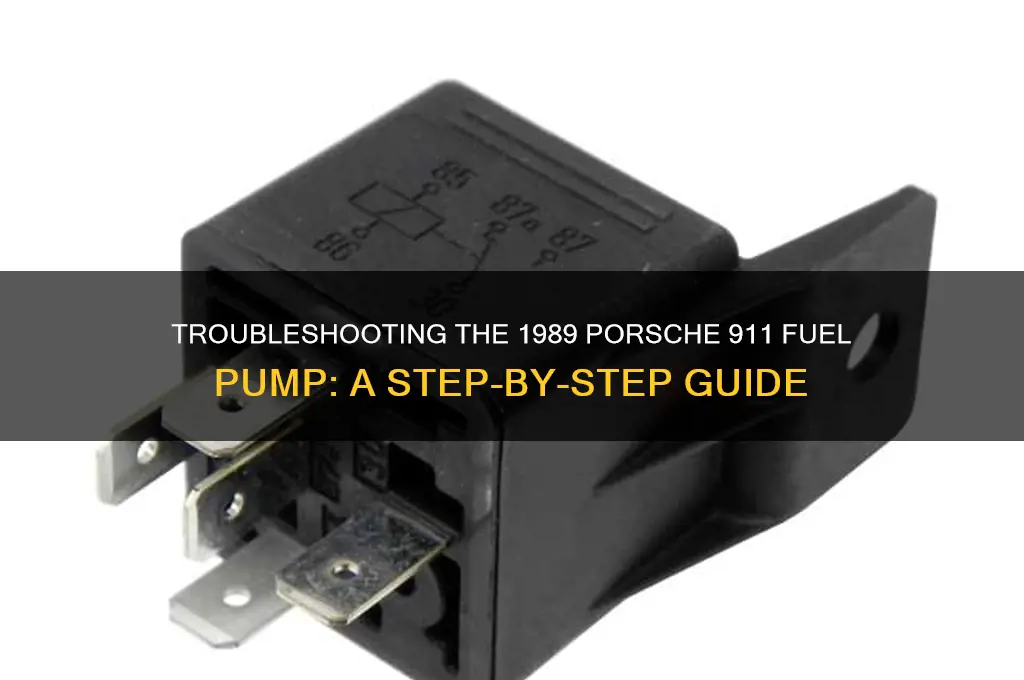

Check Fuel Pump Relay: Locate relay, test for power, replace if faulty
The fuel pump relay in a 1989 Porsche 911 is a critical component that bridges the electrical system and the fuel pump, ensuring the engine receives the necessary fuel for operation. A faulty relay can mimic symptoms of a failed fuel pump, such as engine stalling or failure to start, making it a prime candidate for inspection during troubleshooting. Located in the fuse box, typically in the front trunk or under the dashboard, the relay is designed to handle high current loads but can degrade over time due to heat, corrosion, or mechanical wear. Identifying its location is the first step in diagnosing potential issues.
Testing the fuel pump relay for power involves a multimeter and a basic understanding of electrical circuits. With the ignition turned on, measure the voltage at the relay’s power input terminal (usually pin 87) and the ground terminal. A reading of 12 volts indicates the relay is receiving power. Next, activate the relay by bridging the control circuit (pins 85 and 86) with a jumper wire or test light. If the fuel pump engages, the relay is functioning correctly. If not, the relay may be faulty or there could be an issue with the control circuit. This methodical approach isolates the relay’s performance from other potential causes of fuel pump failure.
Replacing a faulty fuel pump relay is a straightforward task that requires minimal tools. After purchasing a compatible relay (ensure it matches the original part number), disconnect the battery to prevent accidental short circuits. Locate the relay in the fuse box, typically labeled as "Fuel Pump" or "FP," and carefully pull it out. Insert the new relay, ensuring it clicks into place securely. Reattach the battery and test the system by starting the engine. A successful replacement should restore fuel delivery, confirming the relay was the root cause of the issue.
While checking the fuel pump relay is a critical step, it’s important to approach troubleshooting holistically. A faulty relay is just one of several potential culprits, including a failed fuel pump, clogged fuel filter, or issues with the fuel pressure regulator. Always verify the relay’s condition before proceeding to more complex or costly repairs. Additionally, consult the Porsche 911 service manual for model-specific details, as relay configurations and locations can vary slightly between sub-models or production years. This systematic approach ensures accuracy and efficiency in diagnosing fuel system issues.
In practice, the fuel pump relay check is a time-saving measure that can prevent unnecessary replacement of the fuel pump itself. For instance, if the relay fails the power test, replacing it costs significantly less than a new fuel pump and can be completed in under 30 minutes. However, if the relay tests fine, further investigation into the fuel pump or wiring harness is warranted. This step-by-step process not only saves money but also builds diagnostic confidence, making it an essential skill for any Porsche 911 owner or enthusiast.
DIY Guide: Replacing Fuel Pump in 1999 Chevy Blazer A1 Auto
You may want to see also
Explore related products
Inspect Fuel Pump Fuse: Verify fuse integrity, replace if blown or damaged
A blown fuse is often the culprit behind a non-functional fuel pump in a 1989 Porsche 911. This small component acts as a safeguard, interrupting the electrical circuit if a surge occurs, preventing potential damage to the pump itself. Before diving into complex diagnostics, inspecting the fuel pump fuse is a simple yet crucial first step in troubleshooting.
Locating the fuse box in your 1989 Porsche 911 is the initial task. Consult your owner's manual for the exact location, typically found in the engine compartment or interior fuse panel. Once located, identify the fuse corresponding to the fuel pump. It's usually labeled clearly, but referring to the fuse box diagram is essential for accuracy.
Upon locating the fuel pump fuse, a visual inspection is key. Look for any signs of damage, such as a broken filament within the fuse or discoloration. A blown fuse will often appear charred or have a visibly broken wire inside. If the fuse appears intact, a multimeter can be used to test its continuity. This tool measures the flow of electricity, confirming if the fuse is functioning correctly.
A blown fuse is a relatively inexpensive and easy fix. Ensure you replace it with a fuse of the same amperage rating, typically found on the fuse itself or in the owner's manual. Using a fuse with a higher rating can be dangerous, as it may not provide adequate protection in case of an electrical surge.
Remember, a blown fuse is often a symptom of an underlying issue. While replacing the fuse may restore fuel pump operation temporarily, it's crucial to investigate the root cause. Common culprits include a faulty fuel pump relay, wiring issues, or even a failing fuel pump itself. If the fuse blows repeatedly, further diagnosis is necessary to prevent potential damage and ensure the long-term reliability of your Porsche 911.
DIY Guide: Replacing the Fuel Pump on a 2002 Buick LeSabre
You may want to see also
Explore related products
Test Fuel Pressure: Use gauge to check pressure, compare with specs, diagnose issues
Testing fuel pressure is a critical step in diagnosing issues with a 1989 Porsche 911's fuel pump. The process begins with connecting a fuel pressure gauge to the fuel rail, typically located near the engine's intake manifold. Ensure the gauge is compatible with the fuel system's pressure range, which for this model, should be between 30 and 60 psi (pounds per square inch) at idle. Before proceeding, relieve the fuel system pressure by locating the relief valve or disconnecting the fuel line, following proper safety protocols to avoid fuel spills or fires.
Once the gauge is securely attached, start the engine and allow it to reach operating temperature. Observe the pressure reading, noting any fluctuations or deviations from the specified range. A reading below 30 psi may indicate a weak fuel pump, clogged fuel filter, or faulty pressure regulator, while a reading above 60 psi could suggest a malfunctioning regulator or restricted return line. Compare these findings with the manufacturer's specifications, which can be found in the Porsche 911 service manual or online resources specific to the 1989 model.
Analyzing the pressure data requires a systematic approach. If the pressure is low, inspect the fuel pump's electrical connections, relay, and fuse for corrosion or damage. A failing fuel pump may also exhibit unusual noises, such as whining or grinding, during operation. In contrast, high pressure readings warrant an examination of the fuel pressure regulator, which may be stuck or malfunctioning. Consider testing the regulator's vacuum hose for leaks or disconnections, as this can also impact fuel pressure.
To further diagnose the issue, perform a static pressure test by turning the ignition to the "on" position without starting the engine. The pressure should rise to the specified range and hold steady for several minutes. A rapid pressure drop indicates a leak in the fuel system, possibly from a damaged fuel line or injector. Additionally, testing the fuel pump's output volume can provide valuable insights; a healthy pump should deliver approximately 1.5 to 2.0 gallons per hour at the specified pressure.
In conclusion, testing fuel pressure is a vital diagnostic tool for identifying fuel pump issues in a 1989 Porsche 911. By comparing gauge readings with manufacturer specifications, enthusiasts can pinpoint problems related to fuel delivery, pressure regulation, or system leaks. Remember to prioritize safety, follow proper procedures, and consult reliable resources when working on fuel systems. With accurate pressure data and a methodical approach, even complex fuel pump issues can be resolved, ensuring the iconic Porsche 911 continues to perform at its best.
Locating the Fuel Pump in a 2002 Montana: A Guide
You may want to see also
Explore related products
$19.99
Listen for Pump Operation: Turn key, listen for hum, silence indicates failure
One of the simplest yet most effective ways to diagnose a fuel pump issue in a 1989 Porsche 911 is to listen for its operation. When you turn the key to the "on" position, the fuel pump should activate, producing a distinct humming sound for 2-3 seconds as it pressurizes the fuel system. This sound is your first clue that the pump is functioning correctly. If you hear nothing, it’s a strong indicator of a potential failure, whether due to a faulty pump, relay, or wiring issue. This method requires no tools beyond your ears, making it an accessible starting point for troubleshooting.
The absence of the hum doesn’t always mean the pump is dead, but it narrows down the possibilities. For instance, a blown fuse, a failed fuel pump relay, or a disconnected wiring harness could also cause silence. To isolate the problem, check the fuel pump fuse (typically located in the fuse box under the dashboard or in the engine compartment) and ensure it’s intact. If the fuse is fine, the next step is to test the relay, which can be swapped with a similar one in the fuse box to see if the pump activates. These steps help determine whether the issue lies with the pump itself or the supporting components.
If you’re confident the electrical system is functioning, the problem may indeed be the fuel pump. In a 1989 Porsche 911, the fuel pump is located inside the fuel tank, which complicates direct testing. However, you can use a multimeter to check for power at the pump’s connector. With the key in the "on" position, there should be 12 volts present. If voltage is confirmed but the pump still doesn’t hum, it’s likely time to drop the tank and inspect or replace the pump. This process, while more involved, is a logical next step after ruling out simpler issues.
A practical tip for this diagnostic process is to have a helper in the car while you listen near the fuel tank. This allows you to clearly hear the pump’s operation (or lack thereof) without confusion. Additionally, if the car has been sitting for a while, the pump may run longer than usual to build pressure, so be patient and listen carefully. This method, while basic, is a cornerstone of fuel system troubleshooting and can save you from unnecessary part replacements or costly misdiagnoses.
Testing Your 2002 Ford Focus Wagon's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Inspect Fuel Lines: Check for leaks, clogs, or damage in fuel delivery system
Fuel lines are the lifelines of your Porsche 911's fuel delivery system, and any compromise in their integrity can lead to poor performance or even a complete shutdown. A visual inspection is the first step in identifying potential issues. Look for signs of wear, such as cracks, corrosion, or brittle rubber, which can indicate the need for replacement. Pay close attention to the connections and fittings, as these are common areas for leaks to develop. Even a small leak can lead to fuel loss and potential safety hazards, so it's essential to address these issues promptly.
In addition to leaks, clogs can also disrupt fuel flow and cause engine performance problems. Debris, rust, or sediment can accumulate in the fuel lines over time, particularly if the fuel filter is not regularly replaced. To check for clogs, you can use a fuel pressure gauge to measure the pressure at different points in the fuel delivery system. A significant drop in pressure between the fuel pump and the engine can indicate a clog in the lines. If you suspect a clog, it's recommended to remove and inspect the fuel lines, flushing them with a suitable solvent if necessary.
When inspecting the fuel lines, it's crucial to consider the age and condition of the components. The Porsche 911's fuel system is over 30 years old, and the original fuel lines may have deteriorated due to age, heat, and exposure to fuel. As a general guideline, rubber fuel lines should be replaced every 10-15 years, depending on their condition. Stainless steel or nylon-reinforced rubber lines can offer improved durability and resistance to fuel degradation. Upgrading to these materials can provide added peace of mind and reduce the risk of future fuel delivery issues.
To perform a thorough inspection, start by relieving the fuel system pressure and disconnecting the battery to prevent accidental ignition. Then, carefully trace the fuel lines from the tank to the engine, checking for any signs of damage or wear. Use a bright light and a mirror to inspect hard-to-reach areas. If you find any issues, make a note of their location and severity. In some cases, it may be necessary to remove components such as the fuel tank or intake manifold to access the fuel lines fully. Always refer to the Porsche 911's service manual for specific instructions and torque values when reinstalling components.
A systematic approach to inspecting the fuel lines can help identify potential issues before they escalate. By combining visual inspection, pressure testing, and consideration of the components' age, you can develop a comprehensive understanding of your Porsche 911's fuel delivery system. Remember that preventative maintenance is key to avoiding costly repairs and ensuring the longevity of your vehicle. Regularly inspecting and replacing fuel lines as needed can help maintain optimal performance and preserve the driving experience that makes the Porsche 911 a timeless classic.
The 1937 Fuel Pump's Glass Bowl: A Design Mystery Explained
You may want to see also
Frequently asked questions
Common signs of a failing fuel pump include difficulty starting the engine, stalling, loss of power during acceleration, or a whining noise from the fuel tank. You can also test the fuel pressure using a gauge to confirm if it’s operating within the specified range (typically 30-40 psi for this model).
You’ll need a fuel pressure gauge, multimeter, screwdriver, and possibly a wrench or socket set. Additionally, a service manual or wiring diagram for the 911 will be helpful for accurate troubleshooting.
Locate the fuel pump relay (usually in the fuse box), swap it with a relay of the same type (e.g., the A/C relay), and try starting the engine. If the fuel pump now works, the relay is faulty. You can also use a multimeter to check for continuity in the relay.
Yes, you can test the fuel pump by checking for power and ground at the pump’s electrical connector. Turn the ignition to the "on" position and use a multimeter to verify 12V at the power wire and a good ground. If both are present, the pump itself may be faulty.
Check the fuse for the fuel pump (usually located in the fuse box) and replace it if blown. If the fuse is intact, inspect the wiring harness for damage or corrosion. If the issue persists, test the fuel pump relay and ensure the inertia switch (if equipped) is not tripped.
