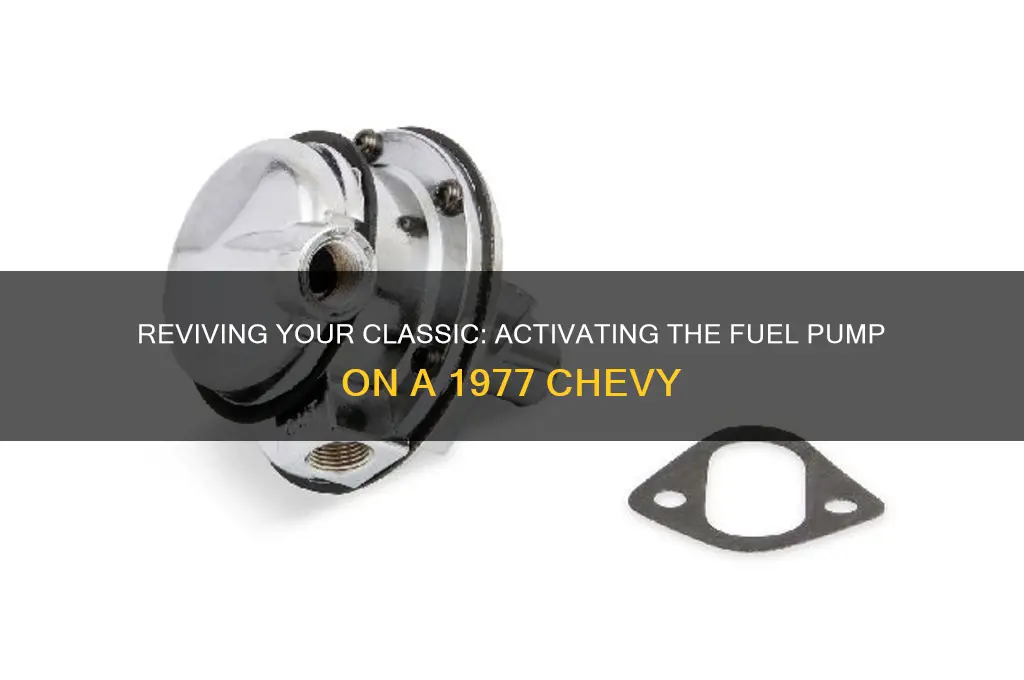

Turning on the fuel pump in a 1977 Chevrolet can be a straightforward process, but it requires understanding the vehicle's specific system. Unlike modern vehicles with electronic fuel injection, the '77 Chevy likely uses a mechanical or carbureted system, often featuring an electric fuel pump. To activate it, locate the fuel pump relay or switch, typically found under the hood or near the fuse box. Ensure the ignition is in the on position, then check for power at the pump's wiring harness. If the pump doesn't engage automatically, you may need to manually activate it by grounding the pump wire or using a jumper wire. Always consult the vehicle's manual or a trusted repair guide for model-specific instructions to avoid damage or safety risks.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Mechanical fuel pump (driven by the engine camshaft) |
| Location | Mounted on the engine block, typically near the carburetor |
| Activation Method | Activated by engine operation (no separate switch) |
| Power Source | Engine-driven, no electrical power required |
| Priming Method | Manual priming may be required if the fuel system is dry |
| Priming Tool | Use a hand pump or gravity feed to fill the fuel lines |
| Fuel Line Connection | Connect fuel lines from the tank to the pump and carburetor |
| Carburetor Compatibility | Compatible with Rochester Quadrajet or similar carburetors |
| Fuel Pressure | Typically 4-6 PSI (pounds per square inch) |
| Troubleshooting | Check for leaks, clogged fuel lines, or pump diaphragm failure |
| Replacement Parts | Available at auto parts stores or classic car suppliers |
| Safety Precautions | Ensure engine is off and cool before working on fuel system |
| Year/Model Specifics | 1977 Chevrolet models with carbureted engines (e.g., V8) |
| **Alternative Method (if electric) | If converted to electric fuel pump, use an inertia switch or manual switch |
Explore related products
What You'll Learn
Locate fuel pump fuse and relay under hood near firewall
The fuel pump fuse and relay in a 1977 Chevy are typically located under the hood near the firewall, a design choice that balances accessibility with protection from the elements. This placement is crucial for troubleshooting fuel delivery issues, as a faulty fuse or relay can prevent the pump from activating. To locate these components, start by propping open the hood and familiarizing yourself with the layout of the engine bay. Look for a rectangular or square-shaped fuse box, often mounted on the inner fender or directly on the firewall. The fuse and relay for the fuel pump are usually labeled, but if not, consult the vehicle’s manual or a wiring diagram for precise identification.
Once you’ve identified the fuse box, carefully remove its cover to access the fuses and relays inside. The fuel pump fuse is typically a standard blade-type fuse, rated for the pump’s amperage, often between 15 and 20 amps. Inspect it for signs of burning or breakage, which indicate a blown fuse. The relay, on the other hand, is a small, cube-shaped component with four or five pins. It acts as a switch, allowing the high-current fuel pump circuit to be controlled by a low-current signal from the ignition. If the relay is faulty, the pump may not engage even with a good fuse.
To test the fuel pump fuse and relay, use a multimeter to check for continuity in the fuse or swap the relay with a known-good one from another circuit (e.g., the horn relay). If the pump activates after swapping, the relay is likely the culprit. Always ensure the ignition is off when handling these components to avoid electrical hazards. For added safety, disconnect the battery before removing or replacing fuses and relays.
A practical tip for 1977 Chevy owners is to keep spare fuses and relays in the glove compartment, as these components are prone to failure over time. Additionally, if the fuse or relay is difficult to access due to corrosion or tight spacing, consider using a fuse puller tool or needle-nose pliers for removal. Regularly inspecting these components during routine maintenance can prevent unexpected breakdowns and ensure your fuel system operates reliably.
In conclusion, locating and troubleshooting the fuel pump fuse and relay under the hood near the firewall is a straightforward task that requires minimal tools and knowledge. By understanding their function and location, you can quickly diagnose and resolve fuel pump issues, keeping your classic Chevy running smoothly. Always refer to the vehicle’s manual or a trusted diagram for specific details, as minor variations may exist depending on the model or aftermarket modifications.
Locating the Fuel Pump in a 1997 Dodge Ram 1500 Laramie
You may want to see also
Explore related products
Check fuel pump wiring for damage or loose connections
Frayed wires, corroded terminals, and loose connections are silent saboteurs of fuel pump operation in any vehicle, including your 77 Chevy. Before assuming the pump itself is faulty, a thorough inspection of the wiring harness is crucial. This often-overlooked step can save you time, money, and frustration.
Imagine this: you've replaced the fuel pump, but the engine still sputters. The culprit? A cracked wire hidden beneath a layer of grime, interrupting the electrical flow.
Diagnosis: Begin by locating the fuel pump wiring harness. Consult your Chevy's manual for its exact location, typically near the fuel tank. Visually inspect the entire length of the wiring for any signs of wear and tear: cracks, exposed copper, or frayed insulation. Pay close attention to areas where the wiring bends or rubs against other components.
Look for corrosion at the connectors. Green or white deposits indicate oxidation, which hinders conductivity. Gently wiggle the connectors to check for looseness. Even a slight movement can disrupt the electrical connection.
Remedy: Addressing wiring issues is often straightforward. For minor cracks or exposed wires, carefully strip the damaged insulation and solder the wires together, ensuring a secure connection. Wrap the repaired area with electrical tape or heat shrink tubing for added protection. In cases of severe damage, replacing the entire wiring harness section might be necessary.
Corroded terminals require cleaning. Use a wire brush or fine-grit sandpaper to remove the oxidation. Apply a thin layer of dielectric grease to prevent future corrosion. Tighten loose connections firmly, but avoid over-tightening, which can damage the terminals.
Prevention: Regularly inspecting your fuel pump wiring during routine maintenance can prevent unexpected breakdowns. Keep the wiring clean and free from debris, especially in areas prone to moisture accumulation. Consider using zip ties to secure loose wiring and prevent chafing against other components.
By diligently checking for damage or loose connections in your 77 Chevy's fuel pump wiring, you can ensure a reliable fuel supply and keep your classic cruising smoothly. Remember, a little preventative care goes a long way in preserving the performance and longevity of your cherished vehicle.
1993 Cadillac DeVille Fuel Pump Fuse Location Guide
You may want to see also
Explore related products
Test fuel pump power directly at the pump connector
Testing fuel pump power directly at the pump connector is a critical step in diagnosing a no-start condition on a 1977 Chevy. This method bypasses the vehicle’s wiring harness and relay system, isolating the pump itself to determine if the issue lies with power delivery or the pump’s functionality. By connecting a test light or multimeter directly to the pump’s connector, you can verify if voltage is reaching the pump when the ignition is turned on. This approach eliminates guesswork and ensures you’re not chasing phantom electrical issues elsewhere in the system.
To perform this test, locate the fuel pump connector, typically found near the pump itself, often on the driver’s side frame rail or under the rear seat. Disconnect the connector and inspect it for corrosion or damage, as these can disrupt power flow. Using a test light or multimeter set to DC voltage, connect one lead to the positive terminal of the pump connector and the other to a good ground. Turn the ignition to the "on" position (not start) and observe if the test light illuminates or the multimeter reads 12 volts. If voltage is present, the pump should engage, confirming power delivery is not the issue.
A common mistake is assuming the fuel pump relay or fuse is the culprit without verifying power at the pump. This test bypasses those components, providing a clear indication of whether the problem is upstream or at the pump itself. If no voltage is detected, trace the wiring back to the relay or fuse box to identify the break or fault. Conversely, if voltage is present but the pump doesn’t run, the pump itself is likely faulty and requires replacement.
Practical tips include ensuring the ignition is off when disconnecting the pump connector to avoid arcing or damage. If using a test light, a bright illumination indicates sufficient voltage, while a dim light may suggest a voltage drop due to poor connections or high resistance in the circuit. For multimeter users, a reading of 11.5 to 12.5 volts is normal, with anything below 10 volts indicating a potential issue. Always double-check your connections and ground points to ensure accurate results.
In conclusion, testing fuel pump power directly at the connector is a straightforward yet powerful diagnostic technique. It saves time by pinpointing whether the issue is electrical or mechanical, guiding you to the next step in troubleshooting. By mastering this method, you’ll approach fuel system issues with confidence, ensuring your 1977 Chevy runs reliably.
Fuel Pump Repair Guide: Skipping Removal for Efficient Maintenance
You may want to see also
Explore related products
Use a jumper wire to bypass the oil pressure switch
Bypassing the oil pressure switch with a jumper wire is a common troubleshooting technique to determine if the switch is causing fuel pump issues in a '77 Chevy. This method isolates the switch from the circuit, allowing the fuel pump to operate regardless of oil pressure. It’s a diagnostic step, not a permanent fix, and should only be used temporarily to identify the root of the problem. Always exercise caution when working with electrical systems to avoid shorts or damage.
To execute this bypass, locate the oil pressure switch, typically found near the oil filter or on the engine block. Identify the two wires connected to it—one is the power feed from the ignition, and the other leads to the fuel pump. Disconnect these wires and strip a short length of insulation from each end. Take a jumper wire (a piece of 14-16 gauge wire works well) and connect the two wires together, effectively bypassing the switch. Start the engine and observe if the fuel pump engages. If it does, the oil pressure switch is likely faulty and needs replacement.
While this method is straightforward, it’s crucial to understand the risks. Bypassing the oil pressure switch disables a safety feature designed to prevent the engine from running without adequate oil pressure. Running the engine in this state can lead to severe damage if oil pressure drops. Use this technique only for brief diagnostic purposes and never as a long-term solution. Always reconnect the switch or replace it promptly after testing.
Comparing this approach to other troubleshooting methods, bypassing the oil pressure switch is quicker and more direct than testing the switch with a multimeter or checking for ground continuity. However, it lacks the precision of a proper electrical test and should be followed up with further diagnostics. For instance, if the fuel pump operates after the bypass, verify the switch’s functionality by testing its resistance with a multimeter or applying manual pressure to its port.
In practice, this technique is particularly useful when dealing with intermittent fuel pump issues or when other components have already been ruled out. Keep a spare oil pressure switch on hand, as this test often leads to its replacement. Additionally, ensure the jumper wire is securely connected and insulated to prevent accidental grounding or disconnection during testing. By using this method judiciously, you can efficiently narrow down the cause of fuel pump problems in your '77 Chevy.
Bleeding a Lucas Fuel Pump: Step-by-Step Guide for Smooth Operation
You may want to see also
Explore related products
Verify fuel pump ground connection for proper operation
A faulty ground connection is a common culprit behind fuel pump malfunctions in classic vehicles like the 77 Chevy. The ground provides a return path for the electrical current, completing the circuit that powers the pump. If this connection is compromised, the pump may not receive sufficient power, leading to poor performance or complete failure. To ensure your fuel pump operates correctly, verifying the integrity of its ground connection is a critical step.
Inspection and Cleaning: Begin by locating the fuel pump’s ground wire, typically connected to the chassis or engine block. Use a wire brush or sandpaper to clean both the wire terminal and the grounding surface, removing any corrosion, rust, or paint that could impede conductivity. Even a small amount of buildup can significantly reduce the efficiency of the ground connection. After cleaning, reattach the ground wire securely, ensuring a tight fit.
Continuity Testing: To confirm the ground connection is functional, perform a continuity test using a multimeter. Set the multimeter to the continuity or resistance setting and touch one probe to the ground wire terminal and the other to a known good ground point, such as the negative battery terminal. A reading of zero or near zero indicates a solid ground connection. If the multimeter shows infinite resistance or no continuity, the ground is faulty and requires further attention.
Practical Tips: If the ground connection appears intact but the fuel pump still fails to operate, consider running a temporary ground wire directly from the pump to the battery’s negative terminal. This bypasses the existing ground path and helps determine if the issue lies with the original grounding point. If the pump functions correctly with the temporary ground, focus on repairing or replacing the original ground connection. Additionally, inspect the wiring harness for damage or fraying, as compromised wires can mimic ground connection issues.
Preventive Maintenance: Regularly checking the fuel pump ground connection can prevent unexpected breakdowns. Incorporate this inspection into your routine maintenance schedule, especially before long trips or after exposure to harsh weather conditions. Keeping the ground connection clean and secure not only ensures reliable fuel pump operation but also contributes to the overall electrical health of your 77 Chevy. By addressing this often-overlooked component, you can avoid common fuel delivery problems and keep your classic vehicle running smoothly.
How Fuel Pumps Impact Your Vehicle's Fuel Efficiency and Mileage
You may want to see also
Frequently asked questions
The fuel pump on a 1977 Chevy is typically located on the driver's side of the engine, near the front. It is usually mounted on the side of the engine block or on a bracket near the cylinder head.
To turn on the fuel pump on a 1977 Chevy with a carburetor, you need to first ensure the ignition is in the "On" position. Then, locate the fuel pump relay or switch, which is often found in the fuse box or under the dashboard. Turn the relay or switch to the "On" position to activate the fuel pump.
Yes, you can manually prime the fuel pump on a 1977 Chevy by locating the fuel pump and manually pumping it. To do this, disconnect the fuel line from the carburetor, place a container to catch fuel, and then pump the fuel pump lever (if equipped) or use a manual pump to force fuel through the system. This will help ensure fuel reaches the carburetor before starting the engine.
