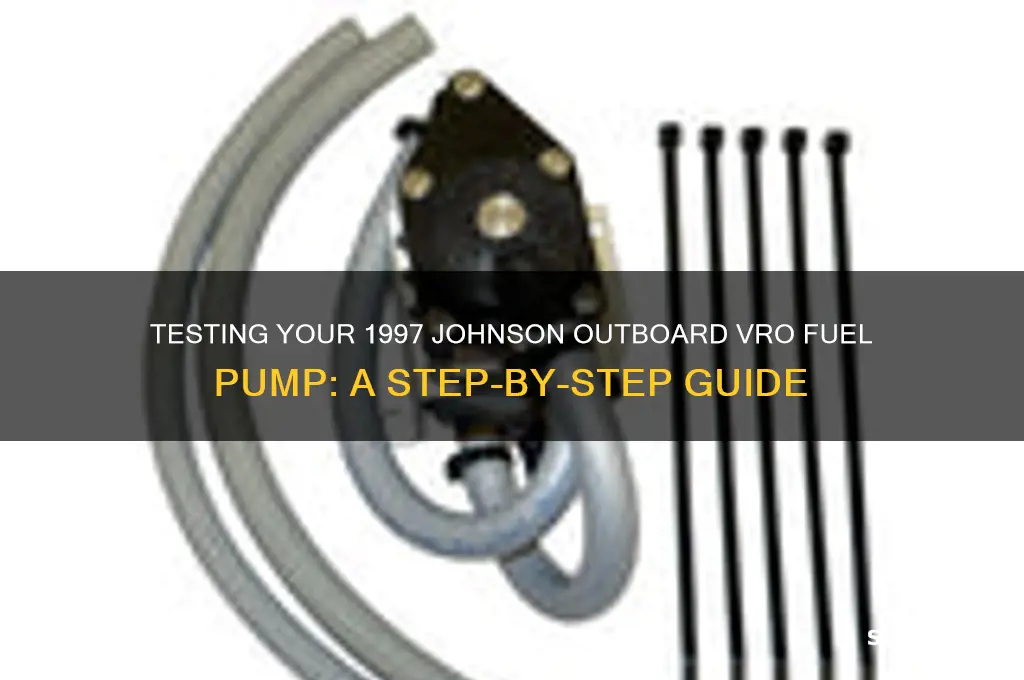

Testing the VRO (Variable Ratio Oil) fuel pump on a 1997 Johnson outboard motor is essential for ensuring proper fuel and oil mixture delivery, which is critical for engine performance and longevity. To begin, disconnect the fuel line from the carburetor and place it into a container to collect fuel. With the engine off, turn the ignition on and crank the engine briefly to activate the pump; you should observe a steady stream of fuel. Next, check the oil flow by disconnecting the oil line and cranking the engine again, ensuring oil is being pumped consistently. If either fuel or oil flow is weak or absent, inspect the pump for clogs, leaks, or worn components. Additionally, verify the pump’s diaphragm and check valve for proper operation. If issues persist, consider replacing the VRO pump to maintain optimal engine function. Always consult the Johnson outboard manual for specific troubleshooting steps and safety precautions.
| Characteristics | Values |
|---|---|
| Outboard Model | 1997 Johnson Outboard |
| Fuel System Type | VRO (Variable Ratio Oiling) |
| Fuel Pump Location | Typically mounted on the engine near the carburetor or fuel line |
| Testing Tools Required | Multimeter, 12V power source, fuel pressure gauge (optional) |
| Safety Precautions | Ensure engine is off, disconnect spark plugs, work in well-ventilated area |
| Testing Procedure | 1. Disconnect fuel lines and pump wiring 2. Apply 12V power to pump 3. Check for fuel flow or pressure 4. Verify electrical continuity with multimeter |
| Expected Fuel Pressure | Typically 2-5 PSI (check specific model requirements) |
| Common Failure Symptoms | Engine hesitation, hard starting, no fuel delivery |
| Replacement Considerations | Ensure compatibility with 1997 Johnson VRO system |
| Maintenance Tips | Regularly inspect fuel lines and filters for clogs or leaks |
| Diagnostic Codes | Not applicable (mechanical/electrical testing required) |
| Reference Manual | Johnson Outboard Service Manual (1997 model-specific) |
Explore related products
What You'll Learn
Gather Tools and Materials
Before testing the VRO (Variable Ratio Oil) fuel pump on your 1997 Johnson outboard, assembling the right tools and materials is critical to ensure accuracy and safety. Start by gathering a multimeter, which will be your primary diagnostic tool for checking electrical continuity and voltage. Ensure it’s set to the appropriate range for DC voltage (typically 0-20V) to measure the pump’s output. Additionally, you’ll need a fuel pressure gauge compatible with your outboard’s system, as this will help verify if the pump is delivering fuel at the correct pressure. A set of wrenches or sockets, specifically those fitting the pump’s connections, is essential for accessing and testing the unit without damaging components.
Beyond tools, prepare materials that facilitate a clean and efficient test. Fresh fuel is a must—use a clean, dry container to hold a small amount of gasoline, as contaminated fuel can skew results. If your outboard uses a specific oil-to-fuel ratio, have the correct oil on hand to mix with the fuel. A spray bottle with water or a mild detergent solution can be useful for cleaning connections or removing residue before testing. Lastly, keep a notebook and pen nearby to record readings and observations, as this data will help diagnose issues or confirm proper function.
Consider the environment where you’ll perform the test. Work in a well-ventilated area to avoid inhaling fuel vapors, and ensure the outboard is securely mounted or clamped to prevent movement during testing. Lay out a clean rag or absorbent mat to catch any spills, and have a fire extinguisher nearby as a safety precaution. If testing outdoors, choose a shaded area to prevent fuel from vaporizing excessively under direct sunlight, which could affect pressure readings.
For those new to outboard maintenance, investing in a service manual specific to your 1997 Johnson model is highly recommended. While not a tool in the traditional sense, it provides detailed diagrams and troubleshooting steps tailored to your engine. This resource can clarify the exact location of the VRO pump, its connections, and the expected pressure or voltage values, reducing the risk of errors during testing.
Finally, approach this task with patience and organization. Lay out all tools and materials within easy reach before starting, as fumbling for items mid-test can lead to mistakes or accidents. Label containers clearly to avoid mixing substances, and double-check that all electrical tools are functioning properly before beginning. By preparing meticulously, you’ll streamline the testing process and increase the likelihood of an accurate diagnosis.
