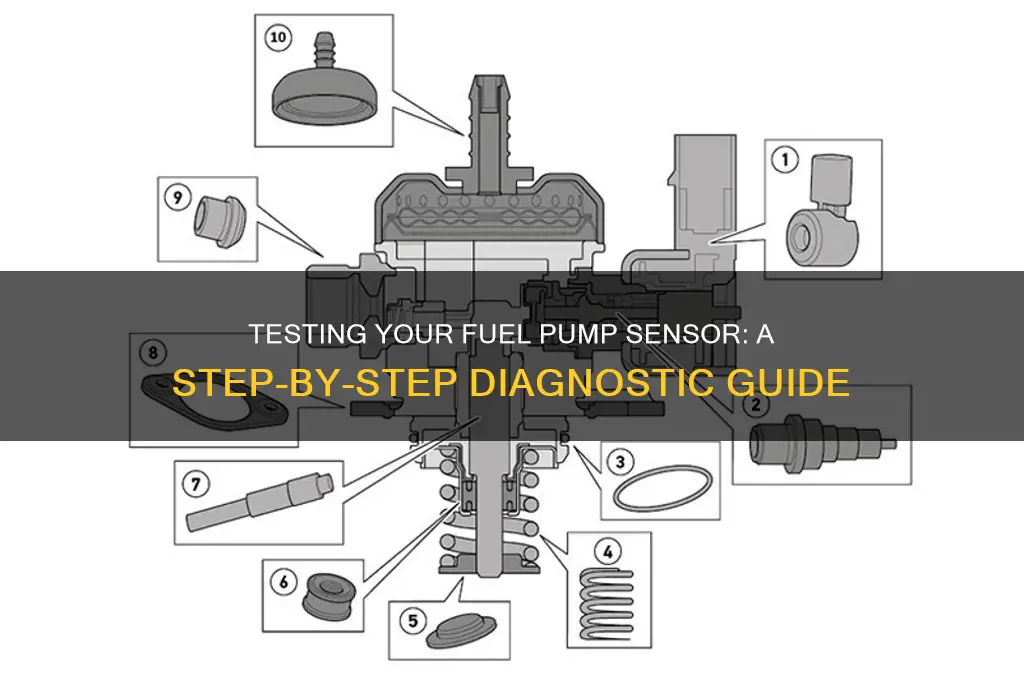

Testing the fuel pump sensor is a critical step in diagnosing fuel system issues in a vehicle. The fuel pump sensor, often integrated into the fuel pump assembly, monitors fuel pressure and sends data to the engine control unit (ECU) to ensure optimal engine performance. To test it, start by locating the sensor, typically found near the fuel tank or along the fuel rail. Use a multimeter to check for continuity or resistance, comparing the readings to the manufacturer’s specifications. Additionally, monitor the sensor’s voltage output while the engine is running to ensure it operates within the expected range. If the sensor fails these tests, it may need replacement to restore proper fuel system functionality. Always consult the vehicle’s service manual for specific testing procedures and safety precautions.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Fuel Pressure Gauge, Screwdriver, Safety Gloves, Safety Goggles |
| Safety Precautions | Disconnect battery, work in well-ventilated area, avoid sparks near fuel |
| Testing Method 1: Electrical Test | Measure voltage at fuel pump connector (typically 12V when key is on) |
| Testing Method 2: Resistance Test | Check resistance of fuel pump sensor (refer to vehicle manual for range) |
| Testing Method 3: Fuel Pressure Test | Use fuel pressure gauge to verify pump output (should match OEM specs) |
| Symptoms of Faulty Sensor | Engine stalling, hard starting, poor acceleration, no fuel pressure |
| Location of Sensor | Typically near fuel tank or fuel rail (varies by vehicle) |
| Replacement Cost | $100-$500 (parts and labor, depending on vehicle) |
| DIY Difficulty Level | Intermediate to Advanced (requires mechanical and electrical knowledge) |
| Frequency of Testing | Test if fuel-related issues arise or during routine maintenance |
| Common Mistakes | Misinterpreting readings, not disconnecting battery, using wrong tools |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, safety gear, and ensure vehicle is off and cooled down
- Voltage Check: Use a multimeter to test sensor voltage at the connector
- Resistance Test: Measure sensor resistance with a multimeter to verify functionality
- Pressure Test: Connect a gauge to check fuel pressure during operation
- Symptoms Diagnosis: Identify common issues like engine sputtering or stalling linked to sensor failure
Pre-Test Preparation: Gather tools, safety gear, and ensure vehicle is off and cooled down
Before testing a fuel pump sensor, proper preparation is critical to ensure accuracy, safety, and efficiency. Begin by gathering the necessary tools: a multimeter for electrical readings, a fuel pressure gauge if applicable, and a wrench or socket set to access the sensor. These tools are essential for diagnosing the sensor’s functionality without causing damage to the vehicle or yourself. Skipping this step could lead to incomplete diagnostics or unnecessary risks during the testing process.
Safety gear is equally important and often overlooked. Fuel systems operate under pressure and involve flammable materials, so wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from potential splashes. In confined spaces, ensure proper ventilation to avoid inhaling fuel vapors. These precautions may seem minor, but they significantly reduce the risk of accidents, especially when working with a system as volatile as a vehicle’s fuel delivery.
Once equipped, ensure the vehicle is completely off and has cooled down. Testing a fuel pump sensor on a hot engine can lead to inaccurate readings or burns. Allow the engine to sit for at least 30 minutes after operation to dissipate heat. Additionally, disconnect the battery to prevent accidental starts or electrical shorts during testing. This step is non-negotiable, as it safeguards both the tester and the vehicle’s electrical system from potential hazards.
Finally, familiarize yourself with the sensor’s location and the vehicle’s specific requirements. Consult the service manual for your car’s make and model to identify the sensor’s position and any unique testing procedures. For example, some vehicles may require resetting the fuel pump relay before testing. This preparation ensures you approach the task with confidence and precision, avoiding guesswork that could lead to errors or damage. Proper pre-test preparation is the foundation of a successful and safe diagnostic process.
