Testing the fuel pump on a Chevy Silverado is a critical diagnostic step to ensure the vehicle’s fuel system is functioning properly. The fuel pump is responsible for delivering fuel from the tank to the engine, and a malfunctioning pump can lead to poor performance, stalling, or even complete engine failure. To test the fuel pump, start by checking for power at the pump’s electrical connector using a multimeter, ensuring the ignition is on. If power is present but the pump isn’t running, it may be faulty. Additionally, you can listen for the pump’s hum by placing your ear near the fuel tank or using a mechanic’s stethoscope when the ignition is turned to the on position. If no sound is heard, the pump may need to be replaced. Always consult the vehicle’s manual or a professional mechanic for specific instructions tailored to your Silverado model.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Fuel Pressure Gauge, Safety Gloves, Safety Goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Testing Method 1: Power Check | Measure voltage at the fuel pump connector (typically 12V with key on) |
| Testing Method 2: Fuel Pressure Test | Connect a fuel pressure gauge to the test port and check pressure (40-60 PSI) |
| Testing Method 3: Listen for Operation | Have an assistant crank the engine while you listen near the fuel tank for the pump humming |
| Common Symptoms of Failure | Engine cranks but doesn’t start, stalling, loss of power, whining noise |
| Fuel Pump Relay Location | Typically under the hood in the fuse/relay box (consult manual for exact location) |
| Fuel Pump Fuse Rating | Usually 15-20 amps (check owner’s manual for specific model) |
| Fuel Pump Access | Located inside the fuel tank (requires tank removal for direct access) |
| Diagnostic Trouble Codes (DTCs) | P0087, P0088, P0089 (low fuel pressure codes) |
| Replacement Cost | $200-$800 (parts and labor, depending on model and location) |
| Frequency of Testing | Test if symptoms occur or during routine maintenance every 100,000 miles |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
- Electrical Testing: Check pump relay, fuse, and wiring for continuity and power
- Pressure Testing: Use gauge to verify pump output meets OEM specifications
- In-Tank Inspection: Access and examine pump for damage or debris
- Post-Test Diagnosis: Analyze results, replace faulty components, and confirm repair
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, relieve fuel pressure
Before testing the fuel pump on your Chevy Silverado, proper pre-test preparation is critical to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a fuel pressure gauge, a wrench or socket set, safety gloves, safety goggles, and a container for fuel spillage. These tools are essential for both the testing process and maintaining a safe working environment. Without them, you risk incomplete diagnostics or personal injury, which could turn a straightforward task into a hazardous ordeal.
Safety should always be your top priority when working on a vehicle’s fuel system. Fuel is highly flammable, and even a small spark can lead to a dangerous situation. Ensure the vehicle is parked on a level surface, away from open flames, sparks, or hot surfaces. Wear safety goggles to protect your eyes from fuel splashes and gloves to prevent skin contact with gasoline, which can cause irritation or absorb harmful chemicals. A single oversight in safety measures can have severe consequences, so treat this step with the seriousness it deserves.
Disconnecting the battery is a non-negotiable step before working on the fuel system. This prevents accidental electrical sparks that could ignite fuel vapors. Locate the negative battery terminal, typically marked with a minus (-) sign, and use a wrench to loosen the nut securing the cable. Once disconnected, tuck the cable aside to ensure it doesn’t accidentally reconnect. This simple action significantly reduces the risk of fire or electrical damage, making it a cornerstone of safe vehicle maintenance.

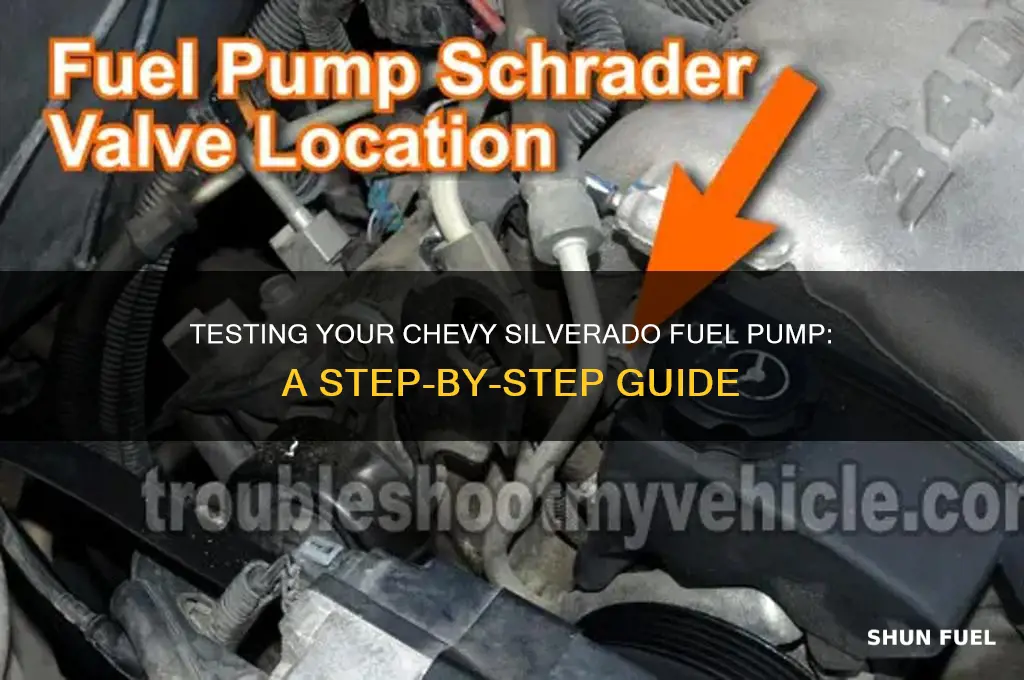

Relieving fuel pressure is equally crucial to avoid unexpected fuel spray during the testing process. Modern vehicles, including the Chevy Silverado, often have a Schrader valve on the fuel rail, similar to a tire valve stem. Attach the fuel pressure gauge to this valve and depress it to release pressure. If your model lacks this feature, consult the owner’s manual for specific instructions. Failure to relieve pressure can result in fuel spraying forcefully, creating a messy and dangerous situation. This step ensures a controlled environment for accurate testing and minimizes the risk of fuel-related accidents.
By meticulously following these pre-test preparation steps—gathering tools, ensuring safety, disconnecting the battery, and relieving fuel pressure—you set the stage for a successful fuel pump test. Each step serves a distinct purpose, from safeguarding your well-being to ensuring the integrity of the diagnostic process. Skipping or rushing through any of these measures can compromise both the test results and your safety. Approach this preparation with care, and you’ll be well-equipped to tackle the fuel pump test with confidence and precision.
Testing a 5-Prong Fuel Pump Relay: Step-by-Step Guide
You may want to see also
Explore related products
Electrical Testing: Check pump relay, fuse, and wiring for continuity and power
A faulty fuel pump can leave your Chevy Silverado stranded, but before condemning the pump itself, it's crucial to verify the electrical system supplying it. Think of it as checking the power cord before blaming the appliance. This diagnostic step involves testing the fuel pump relay, fuse, and wiring for continuity and power, ensuring the pump is receiving the necessary electrical signal to operate.
A multimeter becomes your trusty sidekick here. Set it to the ohms (resistance) setting to check continuity, and the volts (DC) setting to measure power.
Relay Check: Locate the fuel pump relay, often found in the underhood fuse box. With the ignition off, pull the relay out and inspect the terminals. Consult your Silverado's manual for the specific pinout diagram. Using your multimeter, check for continuity between the designated power input and output pins. A reading close to zero indicates a good relay. If there's no continuity, the relay is likely faulty.
Fuse Inspection: A blown fuse is a common culprit. Locate the fuel pump fuse, typically in the same fuse box as the relay. Visually inspect it for any signs of burning or breakage. If it appears intact, use your multimeter to check for continuity across the fuse. A broken circuit will show infinite resistance.
Wiring Woes: Damaged wiring can disrupt power flow. Trace the wiring harness from the fuse box to the fuel pump, looking for any signs of chafing, cracks, or loose connections. Use your multimeter to check for continuity along the wires. If you encounter a break in continuity, you've pinpointed the problem area.
Power Verification: With the ignition on, use your multimeter to check for voltage at the fuel pump connector. The specific voltage will vary depending on your Silverado's model year, but it should be within the range of 12-14 volts. No voltage indicates a problem upstream, potentially with the relay, fuse, or wiring.
By systematically checking the relay, fuse, and wiring for continuity and power, you can narrow down the cause of a fuel pump issue in your Chevy Silverado. This electrical testing saves time and money by preventing unnecessary pump replacement and ensures you're addressing the root of the problem. Remember, safety first: always disconnect the battery before working on any electrical components.
Does an Inline Fuel Pump Create Vacuum? Exploring the Mechanics
You may want to see also
Explore related products
Pressure Testing: Use gauge to verify pump output meets OEM specifications
Pressure testing a Chevy Silverado’s fuel pump is a critical diagnostic step to ensure it delivers the correct fuel volume and pressure required for optimal engine performance. Using a gauge to verify pump output against OEM specifications is both precise and reliable, eliminating guesswork in troubleshooting. This method directly measures the pump’s capability under load, identifying issues like weak performance, clogs, or electrical faults that might not surface during visual inspections or basic voltage checks.
To perform this test, start by locating the fuel test port, typically found on the fuel rail or near the fuel filter. Connect a fuel pressure gauge to this port, ensuring a secure, leak-free connection. With the ignition in the "ON" position but the engine off, observe the gauge reading to confirm the pump’s initial pressure. Then, start the engine and monitor the pressure under operating conditions. Compare these values to the OEM specifications for your Silverado’s model year—for example, a 2019 Silverado 1500 with a 5.3L engine typically requires 58–64 PSI at idle. Deviations from these ranges indicate a failing pump or related system issue.
One common mistake during pressure testing is neglecting to check for pressure drop during engine load. After recording idle pressure, rev the engine to 2,000 RPM and hold for 10–15 seconds. The pressure should remain stable within OEM tolerances. A significant drop suggests a restriction in the fuel lines, a faulty pressure regulator, or a pump struggling to maintain output. Always release fuel system pressure before disconnecting the gauge to prevent fuel spray or injury.
While pressure testing is straightforward, it requires attention to safety and detail. Work in a well-ventilated area, avoid open flames, and wear safety goggles. If the pump fails the pressure test, inspect the fuel filter and lines for clogs before replacing the pump. This diagnostic approach not only saves time but also ensures you address the root cause rather than replacing parts unnecessarily. By adhering to OEM specifications, you maintain the Silverado’s efficiency, power, and longevity.
Fuel Pump Location Guide for 4000 Oman Generator Models
You may want to see also
Explore related products
In-Tank Inspection: Access and examine pump for damage or debris
The fuel pump in a Chevy Silverado is a critical component, often tucked away in the fuel tank, making it less accessible but no less important to inspect. To begin an in-tank inspection, you’ll need to relieve the fuel system pressure, disconnect the battery, and safely raise the vehicle to access the fuel tank. This process requires caution, as working with fuel systems carries risks of fire or explosion if not handled properly. Always ensure the area is well-ventilated and free of ignition sources before proceeding.
Once the tank is accessible, carefully remove the retaining ring and fuel pump module assembly. This step demands precision to avoid damaging the tank or the pump. With the module out, visually inspect the pump for signs of wear, corrosion, or debris buildup. Common issues include cracked lines, clogged filters, or damaged electrical connections. A thorough examination can reveal problems that affect fuel delivery, such as reduced pressure or inconsistent flow, which are often symptoms of a failing pump.
Debris in the fuel tank is a silent culprit that can wreak havoc on the pump’s performance. Small particles from contaminated fuel or tank corrosion can accumulate on the pump’s intake, restricting flow and causing premature failure. To address this, flush the tank and replace the fuel filter as part of the inspection process. If debris is found on the pump, clean it using a suitable solvent and a soft brush, ensuring no residue remains. This preventive measure can extend the pump’s lifespan and maintain optimal engine performance.
While inspecting the pump, pay close attention to the armature and brushes for signs of excessive wear. These components are critical for electrical conductivity and mechanical operation. If the brushes are less than ½ inch long or the armature shows grooves, replacement is necessary. Additionally, test the pump’s electrical connections for continuity using a multimeter. A reading outside the manufacturer’s specifications (typically 0.5 to 2 ohms) indicates a faulty pump that requires immediate attention.
In conclusion, an in-tank inspection is a meticulous but essential task for diagnosing fuel pump issues in a Chevy Silverado. By systematically accessing the pump, examining it for damage or debris, and addressing any issues found, you can ensure the fuel system operates efficiently. This hands-on approach not only saves on potential repair costs but also prevents unexpected breakdowns, keeping your vehicle reliable for the long haul.
Disconnected Fuel Pump Shut Off Switch: Risks and Consequences Explained
You may want to see also
Explore related products
Post-Test Diagnosis: Analyze results, replace faulty components, and confirm repair
After testing your Chevy Silverado's fuel pump, the real work begins: interpreting the results and taking corrective action. A fuel pressure gauge reading significantly below the manufacturer's specifications (typically 55-65 PSI for Silverados) is a red flag. This could indicate a weak pump, clogged fuel filter, or faulty pressure regulator. Conversely, no pressure at all suggests a complete pump failure or electrical issue. Don't jump to conclusions based solely on pressure readings. Consider the symptoms that led you to test the pump in the first place: hard starting, stalling, or loss of power under load. These clues, combined with pressure data, paint a clearer picture of the problem.
For instance, low pressure coupled with difficulty starting, especially in cold weather, might point to a failing pump struggling to deliver sufficient fuel.
Replacing a faulty fuel pump is a job best left to experienced DIYers or professionals. The pump is typically located in the fuel tank, requiring tank removal and specialized tools. Always disconnect the battery before working on the fuel system to prevent sparks. Refer to your Silverado's service manual for specific instructions on pump removal and installation. When replacing the pump, consider also replacing the fuel filter, as a clogged filter can prematurely wear out a new pump.
Use high-quality replacement parts from reputable brands to ensure longevity and performance.
Once the new pump is installed, it's crucial to confirm the repair. Reconnect the battery and turn the ignition to the "on" position (without starting the engine). Listen for the fuel pump's priming cycle, a brief humming sound indicating the pump is pressurizing the system. Start the engine and check for smooth operation. Take the truck for a test drive, paying attention to any lingering symptoms. If the problem persists, recheck fuel pressure and inspect for leaks. A post-repair diagnostic scan with a code reader can also reveal any underlying issues that might have contributed to the pump failure.
What Does a Fuel Pump Sound Like When It's Running?
You may want to see also
Frequently asked questions
To test the fuel pump, first check for power at the fuel pump connector using a multimeter. With the key in the "ON" position, you should see battery voltage at the pump’s power wire (usually a pink or orange wire). If there’s no power, check the fuel pump relay and fuse. If power is present, listen for the pump’s hum by placing your ear near the fuel tank or using a mechanic’s stethoscope when the key is turned to "ON." If no sound is heard, the pump may be faulty.
Common symptoms include difficulty starting the engine, sputtering or stalling at high speeds, loss of power during acceleration, and a whining noise from the fuel tank. If the vehicle cranks but won’t start, check the fuel pressure using a gauge to determine if the pump is delivering adequate fuel.
Yes, you can perform basic tests without removing the tank. Use a multimeter to check for power and ground at the fuel pump connector. Additionally, listen for the pump’s priming cycle when the key is turned to "ON" (you should hear a faint hum for 2-3 seconds). If the pump doesn’t prime or there’s no power, further diagnosis is needed. For a more accurate test, use a fuel pressure gauge to measure pressure at the fuel rail.
