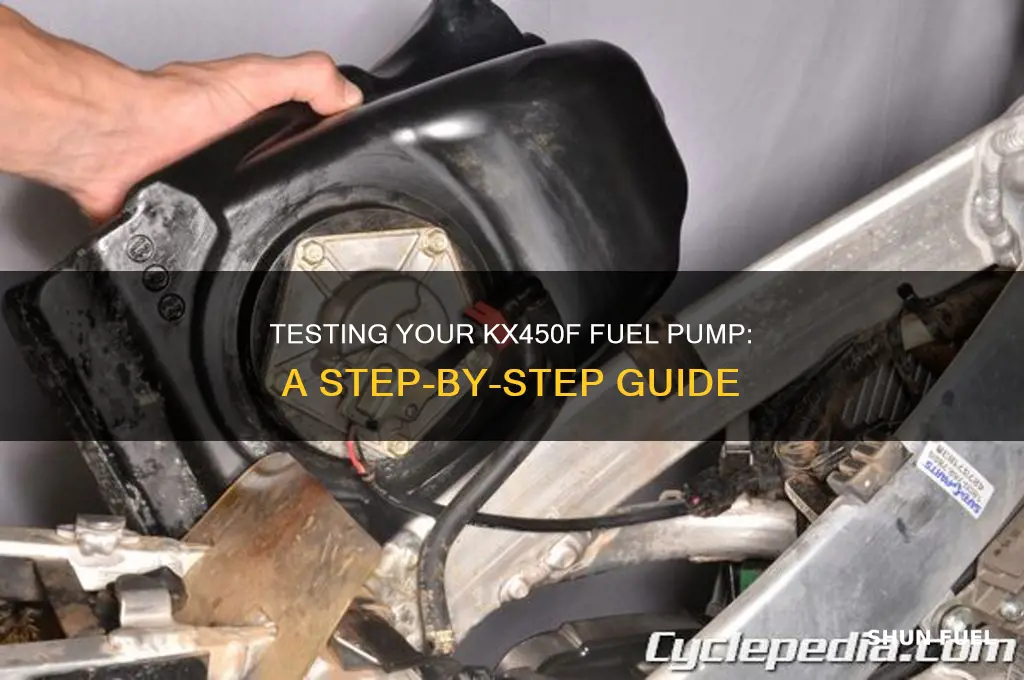

Testing the fuel pump on a KX450F is a critical step in diagnosing fuel delivery issues and ensuring optimal engine performance. The process typically involves checking for proper operation, fuel pressure, and electrical connectivity. Start by disconnecting the fuel line and placing a container to catch fuel, then activate the pump to verify it delivers fuel. Use a fuel pressure gauge to measure the pressure against the manufacturer's specifications. Additionally, inspect the pump's electrical connections for corrosion or damage, and test the continuity of the wiring harness. If the pump fails to operate or delivers insufficient pressure, it may need to be replaced or further inspected for internal faults. Always consult the service manual for specific procedures and safety precautions.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Typically located near the fuel tank or within the fuel tank assembly. |
| Tools Required | Multimeter, screwdriver, wrench, and a 12V power source. |
| Testing Procedure | 1. Disconnect the fuel pump connector. 2. Connect the multimeter to the pump’s power and ground wires. 3. Apply 12V power directly to the pump. 4. Listen for the pump to prime (humming sound). 5. Check for fuel flow at the fuel line. |
| Expected Voltage | 12V when power is applied. |
| Expected Current Draw | Typically 2-5 amps (check the pump’s specifications). |
| Fuel Pressure Check | Use a fuel pressure gauge to verify pressure (refer to the KX450F manual for specs). |
| Common Failure Symptoms | No fuel delivery, weak fuel flow, or no humming sound when power is applied. |
| Replacement Considerations | Ensure the new pump matches OEM specifications. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, and avoid sparks. |
| Diagnostic Codes | Check for error codes related to fuel system issues using a diagnostic tool. |
| Frequency of Testing | Test if fuel delivery issues are suspected or during routine maintenance. |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump, and prepare motorcycle
- Visual Inspection: Check fuel pump for damage, leaks, or loose connections before testing
- Electrical Testing: Use multimeter to verify power supply and ground at fuel pump connector
- Pressure Testing: Connect gauge to fuel line, start engine, and check pump pressure output
- Post-Test Analysis: Interpret results, diagnose issues, and decide on repair or replacement steps
Pre-Test Preparation: Gather tools, ensure safety, disconnect battery, locate fuel pump, and prepare motorcycle
Before testing the fuel pump on your KX450F, proper pre-test preparation is critical to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a multimeter, wrench set, screwdriver, and safety gloves. These tools will enable you to diagnose electrical issues, remove components, and protect yourself during the process. A multimeter, in particular, is indispensable for testing voltage and continuity, which are key indicators of fuel pump functionality. Without these tools, you risk incomplete diagnostics or accidental damage to the motorcycle.
Safety should never be an afterthought. Park the motorcycle on a flat, stable surface and engage the parking brake to prevent movement. Wear safety gloves and eye protection to guard against sharp edges or fuel spills. Ensure the engine is cool to avoid burns, and work in a well-ventilated area to minimize fume inhalation. Fuel systems can be hazardous, so treating this step as optional could lead to serious injury or damage.
Next, disconnect the battery to eliminate the risk of electrical shorts or accidental activation of the fuel pump during testing. Locate the battery, typically under the seat or in the side panel, and use a wrench to remove the negative terminal first, followed by the positive. This step is often overlooked but is essential for safe electrical work. Failure to disconnect the battery can result in blown fuses or damage to the motorcycle’s electronic system.
Locating the fuel pump is the next critical step. On the KX450F, the fuel pump is usually mounted inside the fuel tank. To access it, remove the seat and fuel tank carefully, ensuring no debris enters the tank. Refer to the motorcycle’s service manual for specific instructions, as improper removal can damage seals or connectors. Once exposed, inspect the pump for visible damage or loose connections before proceeding with testing.
Finally, prepare the motorcycle for the test by ensuring the fuel tank is at least half full. An empty tank can lead to inaccurate readings, as the pump requires fuel to operate correctly. If the tank is low, add fuel to the recommended level. Additionally, clean the area around the fuel pump and connectors to prevent dirt from interfering with the test. This preparation ensures that any issues identified during testing are related to the pump itself, not external factors. By following these steps, you set the stage for a thorough and reliable fuel pump test.
