Testing a fuel sending unit is important to ensure the safety of the vehicle and its passengers. Inaccurate fuel readings can compromise safety, so it is critical to identify and fix any issues promptly. Testing a fuel sending unit involves checking for electrical or mechanical faults, inspecting the unit for damage, and testing the resistance output. The procedure for testing a fuel sending unit will vary depending on the vehicle and can be found in the owner's manual or online. This may include initiating a self-test, checking the voltage, and inspecting the wiring for any signs of damage.

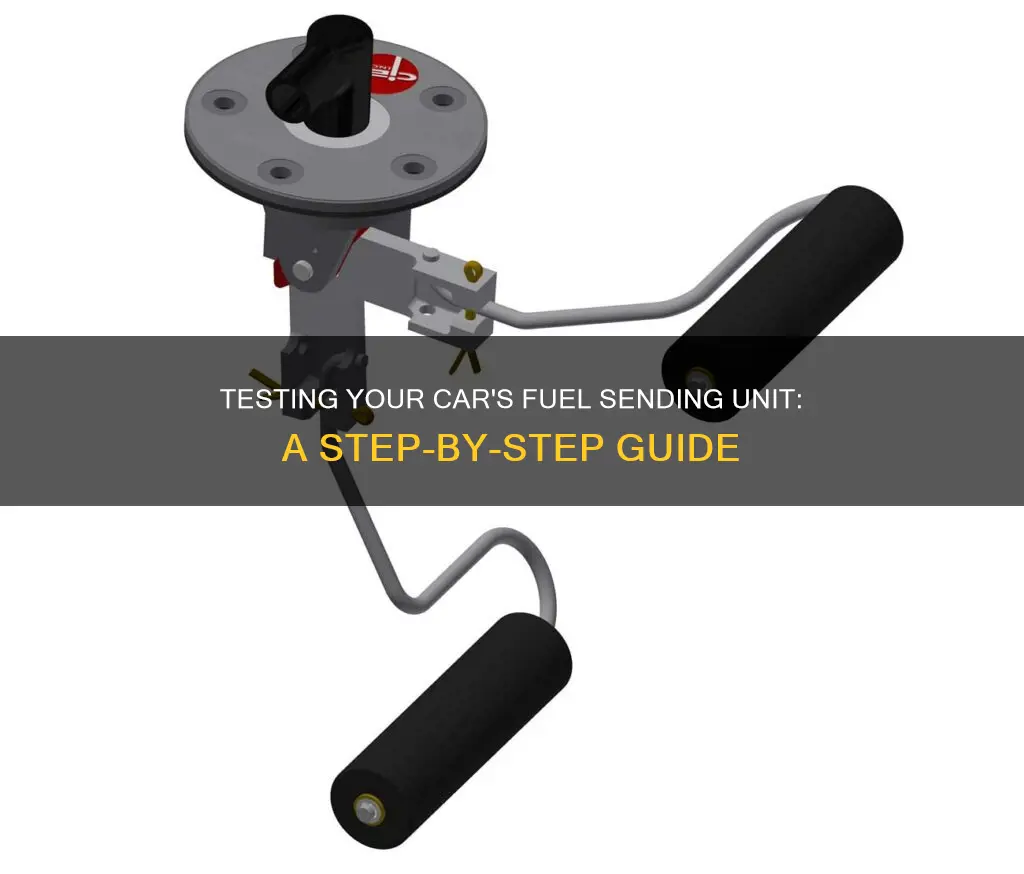

Testing a Fuel Sending Unit in a Car
| Characteristics | Values |
|---|---|
| Testing procedure | Refer to the owner's manual or online sources for the procedure |
| Self-test | Test all instrument panel lights and displays, run the gauges through their ranges |
| Fuel gauge behaviour | If the fuel gauge does not complete a run from full to empty, the issue is with the gauge itself |
| Fuel gauge wire voltage | Should be 12 volts |
| Cause of inaccurate readings | Poor connection with the signal wire from the fuel sending unit or poor grounding wire |
| Earthing the wire | Disconnect the fuel-gauge wire from the sender unit and scratch its bare end against the tank or any other bare metal on the chassis or bodywork |
| Behaviour of the needle | If the needle swings to "full" when the tank is half-full, there is no electrical fault but there may be a mechanical fault in the sender unit; if the needle stays still, try earthing the wire by touching it to an unpainted point on the car body |
| Cause of a faulty fuel gauge | A corroded wire or loose connection |
| Testing for continuity | Use a battery-powered probe |
| Testing resistance output | Use a multimeter to measure ohms |
| Resistance values | On 1983 sending units, it should read 73 ohms empty and 10 ohms full |
| Cause of a faulty sender unit | Metal corrosion, residue buildup, or foreign object debris intrusion |
Explore related products
What You'll Learn
Check for electrical faults with an OBD-II scanner
To check for electrical faults with an OBD-II scanner, you will need to plug it into your car's OBD port. This port is usually located under the dashboard on the driver's side. Once the scanner is connected, it will communicate with your vehicle's onboard computer and provide you with error codes or live data that can help identify electrical issues.
Basic OBD-II scanners can read and clear fault codes, while more advanced models can monitor vehicle systems in real time and predict future problems. They can also record freeze-frame data, which captures the engine's state when a fault occurs, helping to identify intermittent issues.
When using an OBD-II scanner, pay attention to live data parameters such as voltage outputs, current draws, and other vital signals. Compare these values against the normal ranges specified in your vehicle's maintenance manual, as deviations from the norm could indicate electrical problems.
Additionally, consider using a scanner with graphing capabilities to plot data over time. This helps to identify fluctuations and patterns that may not be apparent from static data alone. Modern scanners may also offer circuit testing to verify the integrity of circuits and parts directly through the scanner interface.
Some OBD-II scanners are designed to work with specific vehicle brands, such as Lexus, and may require a subscription to access certain features. When choosing a scanner, consider factors such as connectivity options (Bluetooth or handheld), screen size, durability, and additional features like an electrical multimeter or the ability to export data as PDFs.
The Evolution of Car Fuel: From Past to Present
You may want to see also
Explore related products
Check for mechanical faults by earthing the wire
To check for mechanical faults by earthing the wire, you will need a helper to watch the fuel gauge while you switch on the ignition. Next, disconnect the fuel-gauge wire from the sender unit and scratch its bare end against the tank or any other bare metal on the chassis or bodywork to earth it.
If the gauge needle swings to 'full' when the tank is only half-full, there is no electrical fault, but there may be a mechanical fault in the sender unit, such as a detached float. If the needle remains still, try earthing the wire by touching it to an unpainted point on the car body. If the needle moves now, the tank is not properly earthed. Remove and clean some of its mounting bolts or screws.
If the needle does not move at all, there may be a break in the wiring. Check the wiring to the gauge with a circuit tester. Connect one lead to the wire detached from the sender and the other to the terminal on the gauge. If the tester shows continuity in the wire, the gauge is faulty.
If you need to remove the sender unit, take care not to bend the float arm, as this will cause the gauge to give false readings. Before removing the sender unit, take precautions against spilling fuel. Disconnect the fuel pipe if necessary, blocking it with a plug or an old pencil. If there are two pipes, be sure to mark them. Disconnect the electric wires. The sender may be fixed by screws or by studs and nuts around the edge. Unscrew these carefully; snapping a stud could mean replacing the entire tank.
If the tank is old and leaky, it will need to be replaced. This is not only because of the needless loss of fuel but also because of the risk of fire.
Fuel Cell Cars: Are They Worth the Hype?
You may want to see also
Explore related products
Inspect the fuel sender for damage
Inspecting the fuel sender for damage is a crucial step in ensuring the accurate measurement of fuel levels in your vehicle. Here are some detailed instructions to guide you through the process:
Firstly, it is important to understand the function of the fuel sender unit. This component, also known as the fuel sending unit or fuel level sender unit, is responsible for measuring the amount of fuel in the fuel tank and transmitting this information to the fuel gauge on the vehicle's dashboard. By monitoring the fuel level, the fuel sender unit helps you stay informed about the need to refuel your vehicle.
Now, let's get into the inspection process:
- Initial Checks: Before proceeding, ensure that you have addressed any issues with the fuel gauge itself. Refer to your vehicle's manual for specific instructions on initiating a self-test of the instrument panel lights and gauges. If the fuel gauge does not complete a run from full to empty, the issue is likely with the gauge and not the fuel sender unit. Also, check for any warning signs, such as erratic readings on the gauge or sudden drops in gas mileage, which could indicate a problem with the fuel sender unit.
- Visual Inspection: Start by locating the fuel sender unit in your vehicle, typically mounted through the tank wall. Remove the unit from the tank, being cautious of any fuel gushing out if the fuel level is high. Ensure that the area around the unit is clean, dry, and free of debris or fuel spillage. Visually inspect the unit for any signs of physical damage, corrosion, or residue buildup. Look for issues such as metal corrosion, residue buildup, or foreign object debris (FOD) intrusion, as these can affect the unit's performance.
- Electrical Checks: Check the wiring connected to the fuel sender unit for any damage, corrosion, or loose connections. Ensure that the unit is properly seated in the tank and has a good ground connection. Refer to your vehicle's manual for the correct voltage values. Use a multimeter to check the voltage of the fuel gauge wire and the input voltage to the sending unit. The voltage should be consistent along the wires, and any discrepancies could indicate corrosion or poor wiring.
- Resistance Measurement: If you suspect an issue with the fuel sender unit, you can measure its resistance output. Follow the specific instructions provided in your vehicle's manual for this step. Typically, you would connect test leads to the unit's terminals and adjust the multimeter to measure ohms. Slowly move the float arm from its lowest to highest position and observe the resistance value. It should change consistently, and any inconsistent Ohm values may indicate the need for cleaning or refurbishing the sender unit.
Remember, safety should be a top priority when working on your vehicle. If you are unsure about any steps or do not have the proper experience and tools, it is best to consult a professional for assistance.
Fuel Oil Mix in Car Engines: Safe or Not?
You may want to see also
Explore related products
$44.2 $48.98
Check the voltage of the fuel gauge wire
To check the voltage of the fuel gauge wire, you will need to use a multimeter. The multimeter should be set to 20V DC, and you should check that the fuel gauge is receiving 12 volts. If the voltage is different on either end of the wire, this indicates corrosion or poor wiring between the sending unit and the gas gauge.
If the voltage is inconsistent, you may need to clean or refurbish the sender due to issues like metal corrosion, residue buildup, or foreign object debris (FOD) intrusion. If there is no change in resistance, this usually suggests a problem with the resistance wiper, such as a bent wiper or one that has worn through the resistance card.
If you don't have access to a multimeter, you can use a 5-ohm and 80-ohm resistor to simulate high and low sending unit readings. If the gauge doesn't respond appropriately when the resistance in the sending unit circuit is changed, check the hot terminal at the gauge to see if it's receiving voltage. If it is, but the needle doesn't move, then the gauge is faulty and should be replaced.
If the voltage is consistent, but the fuel gauge is not reflecting the correct fuel level, then there is likely a wiring issue between the fuel sending unit and the fuel gauge.
Fuel Cell Cars: Why Are They Still Rare?
You may want to see also
Explore related products
$27.04
Check for continuity to ground
When testing a fuel sending unit, checking for continuity to ground is an important step. This is because a poor ground wire connection can cause inaccurate readings on the fuel gauge.
To check for continuity to ground, you will need to use a multimeter. First, set the multimeter to measure resistance, which is measured in ohms. Next, locate the wiring connector to the sender unit. This should have two wires. One of these wires is for the sending unit and the other is for the low fuel warning. The sending unit wire should be yellow with a white tracer. Now, connect the black test lead of the multimeter to the common (ground) terminal and the red test lead to the reference terminal, which is marked with a "V".
If you are testing a car with a fuel pump on the engine, like a 1983 Mustang, you will need to use a battery-powered probe to test for continuity. If you are testing an aircraft fuel sending unit, the unit must be removed from the aircraft and placed on a test bench. It should then be cleaned of any debris or excess fuel. Attach the black lead to the sender's flange or ground terminal and the red lead to the centre stud of the sender.
Once the leads are connected, check the multimeter for a resistance reading. If no value is displayed, adjust the lead positions until you get a reading. Ensure the multimeter is set correctly. Slowly move the float arm from its lowest to highest position and observe the resistance value. It should change consistently. Check your vehicle's maintenance manual for the expected values and directions of change. If the resistance value does not change as expected, there may be an issue with the sender unit or the wiring.
High Octane Fuel: Clean Engine, Clean Car
You may want to see also
Frequently asked questions
If your fuel gauge reads empty when you know there is fuel in the tank, or constantly reads 'full' when you have travelled a distance, this may be a sign of a faulty sender unit.
You can test the fuel sending unit by checking the fuel gauge. Ask a helper to watch the fuel gauge, then switch on the ignition. Disconnect the fuel-gauge wire from the sender unit and scratch its bare end against the tank, or any other bare metal on the chassis or bodywork, to earth it. If the gauge needle swings to 'full' when the tank is half-full, there may be a mechanical fault in the sender unit. If the needle stays still, try earthing the wire by touching it to an unpainted point on the car body.
If your fuel sending unit is faulty, you will need to replace it. Make sure to install the new part into a clean gas tank to protect it from damage caused by old debris and contaminants.
If the fuel gauge does not complete a run from full to empty, this is an indicator that the issue is with the gauge itself and not the fuel sending unit. A poor connection with the signal wire from the fuel sending unit or a poor grounding wire can cause inaccurate readings.
