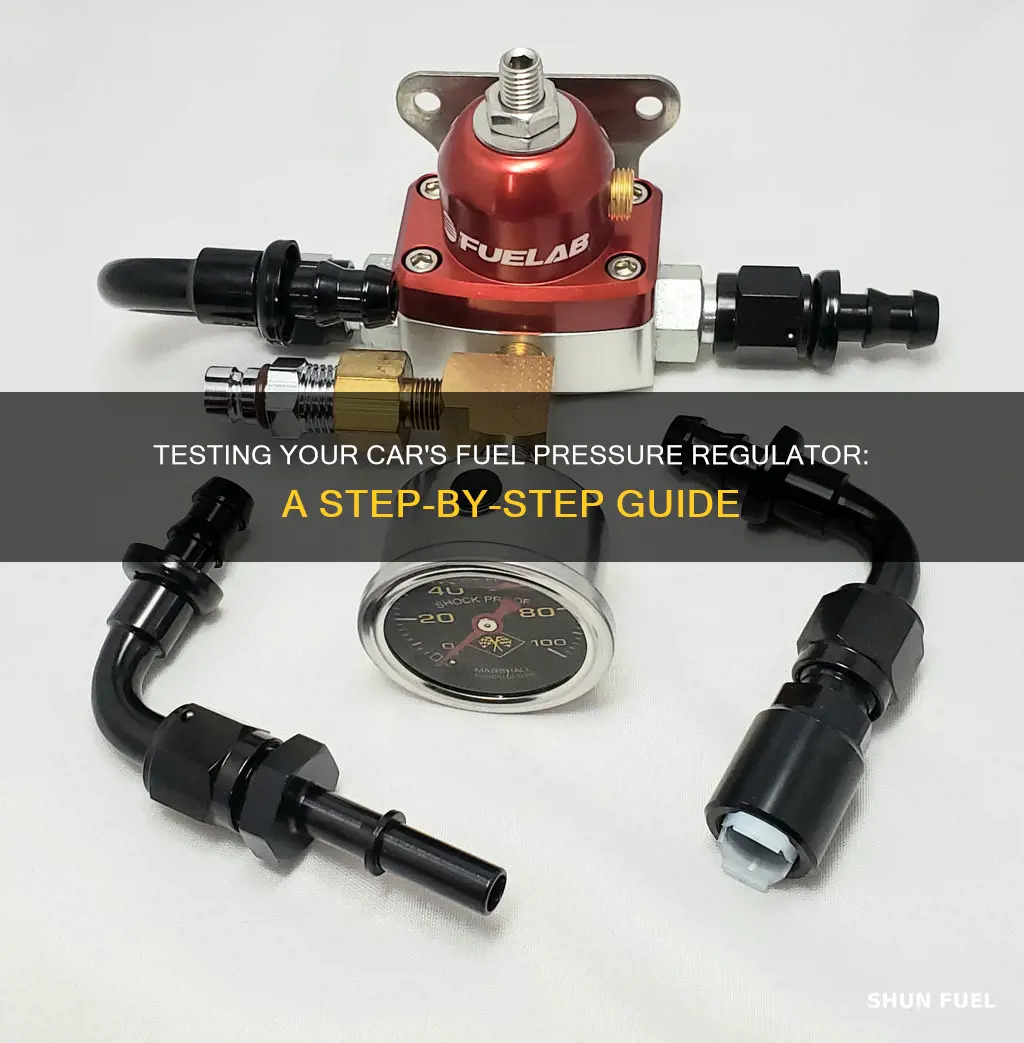

Testing your car's fuel pressure regulator can help you identify whether it's faulty and in need of replacement. A fuel pressure regulator can fail in two ways: by failing to hold pressure, causing a lean mixture (low pressure) condition; or by getting stuck and building up too much pressure, resulting in a rich mixture (high pressure) condition. This can be caused by a worn-out spring, valve, or leaking diaphragm. Testing the fuel pressure regulator can be done using a fuel pressure gauge, which is a fairly inexpensive tool. This can be done by checking the fuel pressure at idle and pulling the vacuum line to check the pressure again. If there is a change in pressure, the regulator is working correctly.
Characteristics and Values of Testing Car Fuel Pressure Regulator
| Characteristics | Values |
|---|---|
| Testing tools | Fuel pressure gauge, HP fuel gauge, vacuum gauge, vacuum pump, fuel pump test kit |
| Testing process | Check fuel pressure at idle, check vacuum line, check for fuel coming out of the vacuum port, check for ruptured diaphragm, check for a leaking diaphragm, check for a worn-out spring or valve, check for a clogged fuel filter, check the vacuum supply, check the gap on plugs |
| Symptoms of a faulty fuel pressure regulator | Misfires, acceleration issues, low pressure, high pressure, too little or too much fuel to the engine |
Explore related products
What You'll Learn
Check for a ruptured diaphragm
A ruptured diaphragm in a fuel pressure regulator can cause fuel to enter the vacuum system instead of the engine. This will cause the vacuum hoses and the intake manifold to become filled with fuel. To check for a ruptured diaphragm, you can remove the vacuum hose connection to the fuel pressure regulator and inspect the line for fuel. If there is fuel in the line, it is likely that the fuel pressure regulator diaphragm is faulty.
Another symptom of a ruptured diaphragm is fuel leakage, which can cause performance problems and lead to bad smells. Fuel leaks are dangerous as they can cause your car to catch fire. If you suspect a fuel leak, it is important to address it immediately.
A ruptured diaphragm can also cause the engine to run rich, which means there is too much fuel in the air-fuel mixture. This can result in unburned fuel flowing into the oil pan and filling it with fuel. In extreme cases, a rich air-fuel mixture can cause the vehicle to emit black smoke from the tailpipe.
Additionally, a faulty fuel pressure regulator can prevent the engine from getting the proper fuel pressure, resulting in a vehicle that cranks but does not start. This can be another indication of a ruptured diaphragm.
Fuel Consumption of Stock Cars: Burning Questions Answered
You may want to see also
Explore related products
$29.44 $30.99
Test the vacuum supply
To test the vacuum supply of your car's fuel pressure regulator, you can perform the following steps:
Firstly, locate the fuel pressure regulator by following the fuel line to the throttle body or carburettor. The regulator is typically attached near the throttle body assembly. Once you've found it, you'll need to test the vacuum line leading into the regulator.
Remove the existing vacuum hose and replace it with a clear plastic or vacuum hose. Ensure that the clear tubing is of the same diameter as your vacuum line. If it is a standard small-diameter line, you can use a piece of airline tubing from an aquarium supply store.
With the clear tubing in place, start the vehicle and manually open the butterfly valve on the carburettor or have an assistant press the gas pedal. Rev the engine up and down repeatedly. If there is a leak in the regulator, you will see fuel escaping into the vacuum line through the clear tubing. This indicates that there is a lack of a good vacuum signal at the fuel pressure regulator, and it will need to be replaced.
If the vacuum system appears to be functioning correctly, replace the clear tubing with the original vacuum hose and continue troubleshooting. If your vehicle's fuel pressure regulator has a port for a regulator gauge, you can screw the gauge into the regulator and perform further tests.
Turn the key to the "on" position and observe the gauge reading. It should indicate the correct fuel system pressure for your vehicle. Have someone start the car while you watch the gauge. The indicator should increase by approximately 5 psi. If the fuel pressure does not increase, the fuel pressure regulator is faulty and requires replacement.
The Future of Fuel Cell Cars: How Far Can They Go?
You may want to see also
Explore related products
Check the fuel pressure gauge
Checking your fuel pressure gauge is a simple process and a good first step when diagnosing a fuel-system issue. It can help you find out if you need to replace the regulator or concentrate on other components or systems.
Firstly, ensure your vehicle is on flat ground and in park with the emergency brake set and the engine off. No smoking or open flames should be present. This test is for in-tank fuel pumps only.
Some cars are designed with a pressure port on the engine fuel rail. If so, remove the cap and attach the gauge. If your car does not have a pressure port, you will need an adapter from a test kit. This can be attached at the fuel filter or fuel pressure feed line headed to the engine's fuel rail.
With the gauge connected, check the fuel pressure at idle. Ensure you have the proper pressure. A good fuel pressure regulator commonly fails in one of two ways: when it fails to hold pressure, it provides too little fuel to the engine, causing a lean mixture (low-pressure) condition. When the regulator gets stuck and builds up too much pressure, it'll cause the injectors to deliver too much fuel, causing a rich mixture (high-pressure) condition).
Then, pull the vacuum line and check the pressure again. It should have changed and gone up by 5-7 psi. If there is no change, or the pressure drops, the regulator has failed. While the diaphragm is the most common failure, you could also have a valve or spring failure.
If you detect low pressure, and you have not changed the fuel filter in more than a year (or at the interval suggested in your car owner's manual), it is a good idea to replace the filter and repeat the test. A clogged or partially clogged filter may be the problem.
Fuel-Injected Car Priming: DIY Guide and Tips
You may want to see also
Explore related products
Inspect the regulator vacuum feed line
Inspecting the regulator vacuum feed line of a fuel pressure regulator (FPR) is a crucial step in ensuring the proper functioning of your car's fuel system. Here's a detailed guide on how to perform this inspection:
Firstly, it's important to understand the role of the regulator vacuum feed line. This line provides a vacuum signal to the FPR, which is necessary for its operation. The FPR relies on this vacuum signal to regulate the fuel pressure in the fuel rail, ensuring it stays within the specified range.
To inspect the regulator vacuum feed line, start by locating the vacuum line connected to the FPR. In some cars, there may be multiple vacuum lines, so it's important to identify the correct one. Once located, you can perform the following steps:
- Replace the vacuum line with clear tubing: Obtain a clear tubing with the same diameter as your vacuum line. Standard small-diameter vacuum lines can be replaced with aquarium tubing, while hardware stores typically offer a wider range of tubing sizes. By using clear tubing, you can visually inspect the pressure regulation and easily identify any leaks.
- Rev the engine: With the clear vacuum hose in place, have an assistant rev the engine up and down repeatedly. With two people, one can observe the clear tube for any signs of fuel seepage or spray.
- Observe for fuel leakage: If you notice fuel seeping or spraying into the vacuum line, it indicates a failure at the vacuum port of the FPR. This blowback signifies a loss of vacuum signal at the regulator, necessitating its replacement.
By following these steps, you can effectively inspect the regulator vacuum feed line and identify any issues related to fuel pressure regulation in your vehicle. Troubleshooting fuel problems can be a challenging task, but with careful inspection and the right tools, you can ensure the optimal performance of your car's fuel system.
Car Fuel Types: Understanding Your Vehicle's Appetite
You may want to see also
Explore related products
$52.99
$39.78 $45.89
Test the individual components
To test the individual components of a car's fuel pressure regulator, you will need to perform a series of tests and checks. Here is a step-by-step guide:
Firstly, it is important to understand the common failure modes of a fuel pressure regulator. It can fail in one of two ways: by failing to hold pressure, resulting in insufficient fuel reaching the engine and causing a lean mixture (low-pressure condition); or by getting stuck and building up excessive pressure, leading to the injectors delivering too much fuel and causing a rich mixture (high-pressure condition). A worn-out spring, valve, or diaphragm, or insufficient vacuum to the pressure regulator, could be the root causes of these issues.
Before proceeding with the tests, ensure that you relieve the fuel system pressure to avoid any potential injury from sudden fuel discharge. Consult your vehicle's service manual for specific instructions on safely bleeding off system pressure.
Now, let's begin with the tests:
- Check the fuel filter: A clogged fuel filter can lead to a drop in fuel pressure and damage to the fuel pump. Replace the fuel filter if it hasn't been changed in a long time or as per the manufacturer's recommended interval. After installing a new filter, retest the fuel pressure. If the pressure is still low or the system loses pressure after shutting off the engine, proceed to the next test.
- Test for maximum pressure: If your gauge reading exceeds the specified pressure and you are confident that the vacuum line is in good condition, properly connected, and clog-free, then the fuel pressure regulator is likely faulty.
- Check system volume: If your fuel pressure regulator passes the previous tests but you still suspect an issue with the fuel delivery system, examine the system volume. A restriction in the system or a worn-out pump will impact volume delivery and pressure.
- Use a fuel pressure gauge: Connect a fuel pressure gauge to the fuel system. Cover the fuel incoming line and the fuel return line with rags. This test will help you locate the likely source of low fuel system pressure.
- On-vehicle test: This method is considered the easiest way to check for issues. Put a fuel pressure gauge on the engine's Schraeder valve and check the fuel pressure at idle. Ensure you have the correct pressure. Then, pull the vacuum line and check the pressure again; it should increase by 5-7 psi. Additionally, check for fuel coming out of the vacuum port. If there is fuel present, it indicates a faulty regulator.
- Vacuum test: If you suspect a diaphragm failure, you can use a handheld vacuum pump to see if the diaphragm can hold a vacuum.
- Individual component bench testing: In some cases, you may need to perform bench testing of individual components before installing them to build a functioning system. This can be done using a HP Fuel Gauge. Test the Fuel Pressure (FP) and Fuel Pressure Regulator (FPR) to gather specific data points, such as OE FP output pressure and FPR return opening pressure. Ensure the OEM FP filter screen is clean before testing.
- Check coil packs and spark plugs: If your car has individual coil packs, swap them around and erase the faults. If the faults reappear on different cylinders, it confirms faulty coil packs. If not, inspect the spark plugs for any issues.
- Examine the air-fuel ratio: An imbalance in the air-fuel ratio, with too much air and very little unburnt fuel, could indicate a faulty fuel pressure regulator.
Cars of the 1920s: Fuel Efficiency and Emissions
You may want to see also
Frequently asked questions
A fuel pressure regulator commonly fails in one of two ways: either it fails to hold pressure, providing too little fuel to the engine, or it gets stuck and builds up too much pressure, causing the injectors to deliver too much fuel. A leaking diaphragm is the most common cause of these issues, but a worn-out spring or valve or a lack of vacuum to the pressure regulator may also be the culprit.
You can test your car's fuel pressure regulator by using a fuel pressure gauge. First, check the fuel pressure at idle and ensure you have the proper pressure. Then, pull the vacuum line and check the pressure again, which should have increased by 5-7 psi. If there is no change in pressure, or you notice fuel coming out of the vacuum port, your fuel pressure regulator has likely failed.
If you are experiencing issues with your fuel delivery system, such as low pressure or frequent misfires, it is a good idea to test your car's fuel pressure regulator.
If your fuel pressure regulator operates through a vacuum line, you can use a vacuum gauge to check for any restrictions in the line.
If your car's fuel pressure regulator has failed, you will need to replace it. Before disconnecting any part of the fuel system, be sure to relieve the fuel system pressure to avoid injury from sudden fuel discharge.
