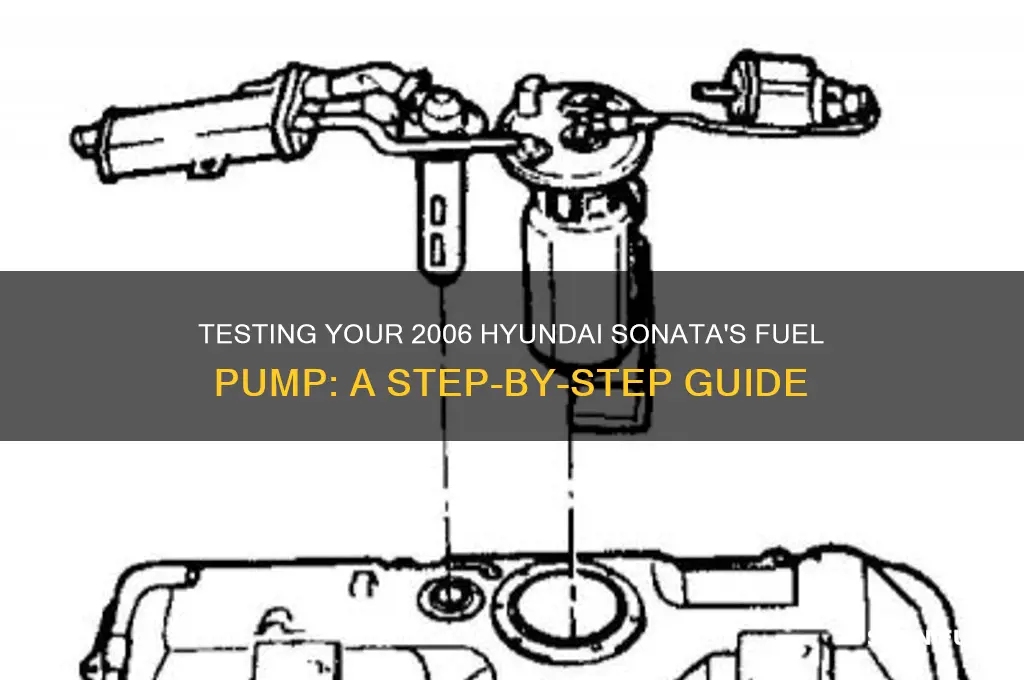

Testing the fuel pump on a 2006 Hyundai Sonata is a crucial diagnostic step if you suspect issues with fuel delivery, such as hard starting, stalling, or poor engine performance. The process involves checking the fuel pump’s operation, pressure, and electrical connections to ensure it’s functioning correctly. Start by listening for the fuel pump’s hum when turning the ignition to the ON position, as it should activate for a few seconds to pressurize the fuel system. If no sound is heard, use a multimeter to test the fuel pump relay and fuse for continuity. For a more precise diagnosis, measure the fuel pressure using a gauge connected to the fuel rail, comparing the reading to the manufacturer’s specifications. Additionally, inspect the fuel pump wiring harness for damage or corrosion. If all else fails, accessing and testing the fuel pump itself may require dropping the fuel tank, making it a more advanced task best suited for those with mechanical experience or professional assistance.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2006 Hyundai Sonata |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Multimeter, fuel pressure gauge, screwdriver, safety gloves, safety goggles |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Testing Method 1: Listen for Operation | Turn ignition to ON (do not start), listen for fuel pump hum (2-3 seconds) |
| Testing Method 2: Measure Voltage | Check voltage at fuel pump connector (should be 12V with ignition ON) |
| Testing Method 3: Fuel Pressure Test | Connect fuel pressure gauge to fuel rail, check pressure (should be 40-60 PSI) |
| Testing Method 4: Resistance Check | Measure fuel pump resistance (typically 1-3 ohms, consult manual for exact specs) |
| Common Symptoms of Failure | Engine cranks but won’t start, stalling, loss of power, whining noise from fuel tank |
| Replacement Recommendation | Replace fuel pump if it fails any of the tests |
| Estimated Repair Time | 2-4 hours (professional), 4-6 hours (DIY) |
| Estimated Cost | $200-$500 (parts and labor, varies by location and mechanic) |
| Reference Manual | 2006 Hyundai Sonata Service Manual (for specific details and diagrams) |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, ensure safety, park on level ground, disconnect battery
- Fuel Pressure Testing: Attach gauge to rail, check pressure, compare to specs, note readings
- Listening for Operation: Turn key to On, listen for pump hum, note duration
- Voltage and Ground Check: Test pump connector for power and ground using multimeter
- Resistance and Continuity: Measure pump resistance, check continuity, compare to service manual values
Pre-Test Preparation: Gather tools, ensure safety, park on level ground, disconnect battery
Before diving into testing the fuel pump on your 2006 Hyundai Sonata, proper preparation is key to ensuring accuracy, safety, and efficiency. Start by gathering the necessary tools: a multimeter, a fuel pressure gauge (if available), a wrench or socket set, and safety gear such as gloves and safety goggles. These tools will allow you to measure electrical current, assess fuel pressure, and handle components safely. Having everything within reach minimizes interruptions and keeps the process streamlined.
Safety should never be an afterthought. Fuel systems operate under pressure and involve flammable materials, so take precautions seriously. Work in a well-ventilated area, away from open flames or sparks. Ensure the engine is cool to avoid burns, and wear protective gear to shield against accidental fuel spills or debris. A single oversight in safety preparation can turn a routine test into a hazardous situation, so prioritize caution at every step.
Parking on level ground is a small but critical detail often overlooked. It ensures the fuel system operates under normal conditions, preventing inaccurate readings caused by uneven fuel distribution. Engage the parking brake to secure the vehicle and eliminate any risk of movement during testing. This simple step stabilizes the car and provides a consistent environment for diagnosing fuel pump issues.
Finally, disconnect the battery to eliminate electrical hazards and prevent accidental starts. Locate the negative terminal, typically marked with a minus sign, and use a wrench or socket to loosen the nut. Once removed, tuck the cable aside to prevent accidental reconnection. This step not only protects you from electrical shocks but also isolates the fuel pump circuit, making it easier to test without interference from other systems. With these preparations complete, you’re ready to proceed with confidence and precision.
