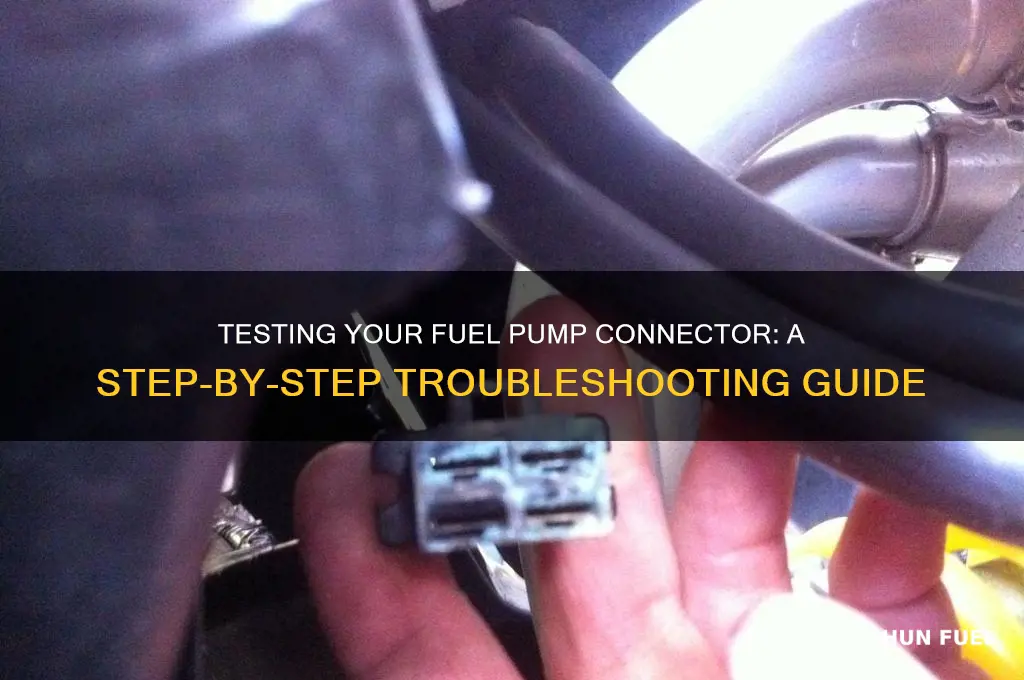

Testing a fuel pump connector is a critical step in diagnosing fuel system issues, ensuring proper electrical continuity and preventing potential vehicle breakdowns. The process involves inspecting the connector for physical damage, such as corrosion, loose pins, or melted plastic, followed by using a multimeter to check for voltage and ground signals. By verifying these electrical connections, you can determine if the issue lies with the connector, wiring, or the fuel pump itself, allowing for targeted repairs and maintaining the vehicle’s performance and reliability.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, test light, battery jumper wires, safety gloves, safety goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, avoid sparks |
| Connector Location | Typically near the fuel tank or in the engine bay |
| Voltage Check | Set multimeter to DC voltage, connect to battery, check for 12V at connector |
| Continuity Test | Use multimeter to test for continuity between connector pins |
| Resistance Test | Measure resistance across connector pins (refer to vehicle manual for specs) |
| Power Supply Test | Apply power directly to the connector using battery jumper wires |
| Ground Test | Ensure connector ground is properly connected to the vehicle chassis |
| Visual Inspection | Check for corrosion, damage, or loose wires at the connector |
| Test Light Verification | Use a test light to confirm power and ground at the connector |
| Symptoms of Faulty Connector | No fuel pressure, engine stalling, hard starting, or no-start condition |
| Replacement | Replace connector if damaged, corroded, or failing tests |
| Professional Assistance | Consult a mechanic if unsure or if advanced diagnostics are needed |
Explore related products
What You'll Learn
- Visual Inspection: Check for corrosion, damage, or loose wires on the connector and its terminals
- Continuity Test: Use a multimeter to verify electrical continuity between the connector pins
- Voltage Check: Test for proper voltage supply at the connector using a voltmeter
- Resistance Measurement: Measure resistance across the connector to ensure it’s within specifications
- Wiggle Test: Gently move the connector to detect intermittent connections or loose wiring
Visual Inspection: Check for corrosion, damage, or loose wires on the connector and its terminals
Corroded or damaged connectors are a silent culprit behind fuel pump issues, often overlooked until symptoms escalate. A visual inspection is your first line of defense, requiring no tools beyond your eyes and a flashlight. Begin by locating the fuel pump connector, typically found near the fuel tank or along the fuel line. Look for green or white deposits on the terminals—tell-tale signs of corrosion. Even minor discoloration can impede electrical flow, leading to erratic fuel pump performance. Similarly, inspect for cracked housings, frayed wires, or loose connections that could disrupt the circuit. This simple yet critical step can save hours of diagnostic trouble and prevent costly misdiagnoses.
The process is straightforward but demands attention to detail. Start by disconnecting the connector, ensuring the ignition is off to avoid electrical hazards. Hold the connector under bright light, tilting it to catch shadows that might hide defects. Use a magnifying glass if available to scrutinize terminals for pitting or uneven surfaces. Gently wiggle the wires near the connector to check for looseness, but avoid excessive force to prevent further damage. If corrosion is present, its severity dictates your next move—light buildup can often be cleaned, while extensive damage may require replacement. This hands-off inspection is a diagnostic cornerstone, offering immediate insights without specialized equipment.
Persuasive arguments aside, the practicality of this step cannot be overstated. Consider the alternative: bypassing visual inspection and proceeding to electrical tests risks inaccurate results if the connector is compromised. For instance, a multimeter might show continuity, but corroded terminals could still cause intermittent issues under load. By addressing physical defects first, you ensure subsequent tests reflect the fuel pump’s true condition, not external interference. This approach aligns with the principle of isolating variables, a fundamental tenet of troubleshooting.
Comparatively, while tools like multimeters and pressure gauges provide quantitative data, visual inspection offers qualitative context. It bridges the gap between theory and practice, revealing issues that numbers alone cannot. For example, a loose wire might not affect resistance readings at rest but could disconnect under vibration. This method also serves as a benchmark for future inspections, allowing you to track degradation over time. In essence, it transforms a static test into a dynamic monitoring process, enhancing long-term reliability.
Descriptively, imagine the connector as a gateway between the fuel pump and the vehicle’s electrical system. Its condition mirrors the health of this critical interface. Clean, intact terminals symbolize efficient energy transfer, while corrosion or damage represent barriers to performance. By treating this inspection as an art as much as a science, you cultivate a diagnostic mindset that values observation as highly as measurement. This dual perspective ensures no issue escapes scrutiny, making visual inspection an indispensable skill in any technician’s toolkit.
Does PCM Control Fuel Pump? Understanding the Role of PCM
You may want to see also
Explore related products
Continuity Test: Use a multimeter to verify electrical continuity between the connector pins
A broken fuel pump connector can leave you stranded, often mimicking symptoms of a faulty pump itself. Before replacing expensive components, a continuity test with a multimeter is a crucial diagnostic step. This test verifies if electricity can flow uninterrupted through the connector's pins, ensuring the pump receives the necessary power.
A multimeter, set to the continuity or resistance setting (often denoted by a diode symbol or the Greek letter omega), becomes your detective tool. Touch the probes to the corresponding pins on the connector. A beep or a reading close to zero ohms indicates continuity, meaning the circuit is complete. No beep or a high resistance reading suggests a break in the connection, pointing to a faulty connector.
This test is particularly valuable because it isolates the connector as the potential culprit. Fuel pump issues often stem from wiring problems, and a faulty connector is a common offender. By confirming continuity, you eliminate the connector as the cause and can focus your diagnosis elsewhere if needed.
Remember, safety first. Always disconnect the battery before working on any electrical components. Additionally, consult your vehicle's manual for the specific pinout of your fuel pump connector, ensuring you test the correct pins.
While a continuity test is a powerful diagnostic tool, it's not foolproof. A connector might show continuity but still have internal damage affecting performance. If symptoms persist despite a successful continuity test, further investigation into the wiring harness or the pump itself may be necessary.
Understanding Fuel Pump Cycling: Operation, Timing, and Maintenance Tips
You may want to see also
Explore related products
$79.84 $84.24
Voltage Check: Test for proper voltage supply at the connector using a voltmeter
A faulty fuel pump connector can mimic symptoms of a failing fuel pump, leading to misdiagnosis and unnecessary repairs. Before replacing expensive components, a voltage check at the connector is a critical diagnostic step. This test verifies whether the fuel pump is receiving the necessary electrical power to operate.
Using a voltmeter, you can pinpoint the source of the issue: is it the pump itself, the wiring, or the connector?
Understanding the Voltage Check
A voltmeter measures the electrical potential difference between two points. In this case, you'll be measuring the voltage supplied to the fuel pump connector. Most fuel pumps require 12 volts to function properly. A reading significantly lower than 12 volts indicates a problem with the power supply, while no reading at all suggests a complete lack of power reaching the pump.
This simple test can save you time and money by eliminating the fuel pump as the culprit if voltage is present.
Performing the Voltage Check: A Step-by-Step Guide
- Safety First: Ensure your vehicle is parked on a level surface, the engine is off, and the ignition is in the "off" position. Disconnect the negative battery terminal to prevent accidental starting.
- Locate the Connector: Consult your vehicle's manual to identify the fuel pump connector's location. It's typically found near the fuel tank, often requiring access from underneath the vehicle.
- Prepare the Voltmeter: Set your voltmeter to the DC voltage setting, usually denoted by a "V" with a straight line above it. Select a range that includes 12 volts.
- Connect the Voltmeter: Connect the voltmeter's positive (red) lead to the power wire at the fuel pump connector. Connect the negative (black) lead to a good ground point, such as the engine block or a clean, unpainted metal surface.
- Activate the Pump: Turn the ignition to the "on" position (without starting the engine). This should energize the fuel pump, causing the voltmeter to display a reading.
- Interpret the Results:
- 12 Volts: This indicates proper voltage supply to the connector. The issue likely lies with the fuel pump itself or a restriction in the fuel system.
- Less than 12 Volts: A lower voltage reading suggests a problem with the wiring, fuse, relay, or connector. Further investigation is needed to pinpoint the exact cause.
- No Voltage: No reading indicates a complete lack of power reaching the pump. Check fuses, relays, and wiring for breaks or corrosion.
Beyond the Voltage Check
While a voltage check is a crucial first step, it doesn't definitively diagnose a faulty fuel pump. If voltage is present, further tests, such as a fuel pressure test, may be necessary to confirm the pump's operation. Remember, always consult a qualified mechanic if you're unsure about any aspect of the diagnostic process.
Does the King Air Use a Vane-Type Fuel Pump?
You may want to see also
Explore related products
Resistance Measurement: Measure resistance across the connector to ensure it’s within specifications
A faulty fuel pump connector can lead to poor engine performance or even a no-start condition. One of the most effective ways to diagnose issues with the connector is by measuring its resistance. This method allows you to determine if the connector is functioning within the manufacturer’s specifications, ensuring proper electrical flow to the fuel pump. Resistance measurement is a precise and reliable diagnostic technique that can save time and prevent misdiagnosis.
To begin, locate the fuel pump connector, typically found near the fuel tank or along the fuel line. Disconnect the connector and ensure the ignition is off to avoid any electrical hazards. Using a digital multimeter set to the resistance (ohms) setting, place one probe on each terminal of the connector. The multimeter will display the resistance value, which should be compared against the vehicle’s service manual for the correct range. For example, a typical fuel pump connector might have a resistance specification of 0.5 to 2.0 ohms. If the measured value falls outside this range, the connector may be damaged or corroded, necessitating further inspection or replacement.
It’s crucial to understand that resistance values can vary depending on temperature, so testing should be conducted under consistent conditions. Additionally, always ensure the connector is clean and free of debris before testing, as contamination can skew results. If the resistance is too high, it indicates an open circuit or poor connection, while a reading of zero ohms suggests a short circuit. Both scenarios can disrupt fuel delivery and require immediate attention.
For DIY enthusiasts, investing in a quality multimeter with an auto-ranging feature can simplify the process, as it automatically adjusts to the correct measurement scale. Professionals may opt for more advanced tools with data logging capabilities to track resistance changes over time. Regardless of the tool, accuracy is key, as even minor deviations from specifications can lead to significant performance issues.
In conclusion, resistance measurement is a straightforward yet powerful method for testing a fuel pump connector. By adhering to proper procedures and comparing results against manufacturer guidelines, you can accurately diagnose connector issues and ensure your vehicle’s fuel system operates efficiently. This approach not only saves time but also prevents unnecessary part replacements, making it an essential skill for both mechanics and car owners alike.
Testing Your Ferris Fuel Pump: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Wiggle Test: Gently move the connector to detect intermittent connections or loose wiring
A loose or intermittently faulty fuel pump connector can mimic symptoms of a failing pump, leading to misdiagnosis and unnecessary repairs. The wiggle test is a simple yet effective diagnostic technique to isolate connector issues before replacing expensive components. By gently manipulating the connector, you can detect subtle faults that static testing might miss.
Begin with the ignition off and the fuel pump relay removed to prevent accidental activation. Locate the fuel pump connector, typically found near the tank or along the chassis. Grasp the connector firmly but gently—avoid tugging on wires directly to prevent damage. Apply a controlled, back-and-forth motion, mimicking the natural vibrations experienced during driving. Simultaneously, have an assistant monitor the vehicle’s behavior or use a multimeter to observe voltage fluctuations at the connector. A drop in voltage or an engine stall during the wiggle test indicates a compromised connection.
The effectiveness of this test lies in its ability to simulate real-world conditions. Intermittent faults often arise from corrosion, heat expansion, or vibration, which static tests fail to replicate. For example, a connector with corroded pins may maintain contact under pressure but lose it when agitated. Similarly, a cracked wire strand might break contact only when flexed. This dynamic approach bridges the gap between bench testing and road performance, providing actionable insights.
While the wiggle test is straightforward, it requires caution. Excessive force can exacerbate existing damage or create new issues. Always inspect the connector for visible wear, such as melted plastic or frayed wires, before testing. If the test reveals a fault, disassemble the connector and clean the terminals with electrical contact cleaner. For severe corrosion or physical damage, replacement is often the safest option. Pairing this test with a continuity check using a multimeter can further confirm the diagnosis.
Incorporating the wiggle test into your diagnostic routine can save time and money by pinpointing connector issues early. It’s a low-tech solution with high diagnostic value, particularly for older vehicles prone to wiring degradation. Remember, a faulty connector doesn’t just affect fuel delivery—it can trigger false error codes, leading to unnecessary part replacements. Master this technique, and you’ll approach fuel system diagnostics with greater precision and confidence.
Testing Suzuki LT250 Quad Fuel Pump: Step-by-Step Guide
You may want to see also
Frequently asked questions
Check for signs like a no-start condition, engine sputtering, or a fuel pump that doesn’t prime when the key is turned to the "on" position. Use a multimeter to test for power and ground at the connector.
You’ll need a multimeter, a wiring diagram for your vehicle, and possibly a fuel pressure gauge to diagnose the fuel pump system.
Turn the ignition to the "on" position, disconnect the fuel pump connector, and use a multimeter to check for voltage at the power pin. Compare the reading to your vehicle’s specifications.
Trace the wiring back to the fuse box and relay. Check the fuse and relay for continuity, and inspect the wiring for damage or corrosion.
Yes, a faulty connector can disrupt the fuel pump’s operation, triggering a check engine light. Use an OBD-II scanner to read error codes for further diagnosis.
