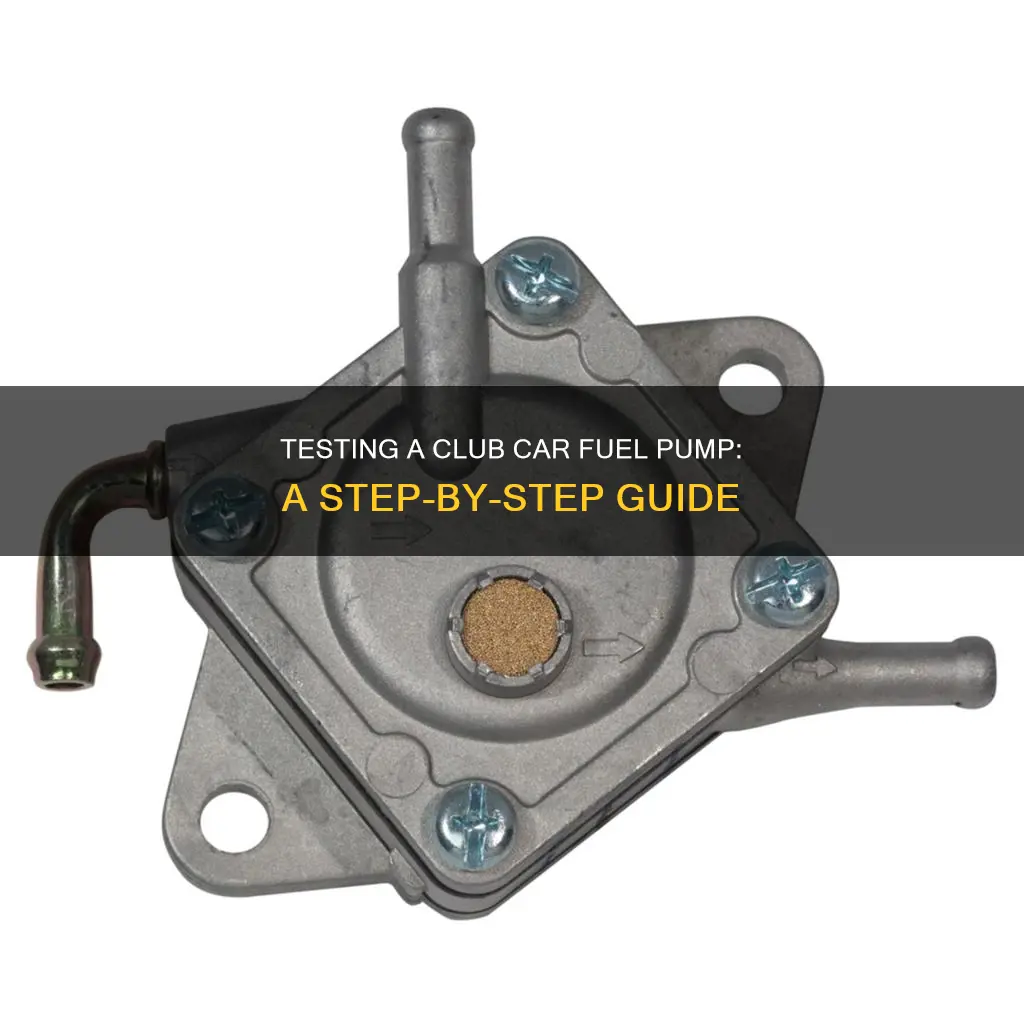

Golf cart fuel pumps are vacuum-powered and use pressure from the crankcase. This pressure is called a pulse and is generated at the bottom of a piston in the cart when the crankcase turns. The pump has an inlet and an outlet, with two diaphragms separating the inlet, outlet, and pulse from one another. When the diaphragms start pulsing, the fuel is moved from the gas tank to the inlet chamber, and then to the outlet chamber and other engine parts. To test your golf cart's fuel pump, you can check for signs of an oil leak, a bad crankshaft seal, or issues with the case gasket. You should also check for debris buildup, which can be removed by disassembling the pump. Additionally, ensure that the fuel lines are not clogged or cracked, and that the clamps on all connections are intact. If you're having trouble getting fuel to the carburetor, check the lines closely for deterioration, as this is a common issue in older golf carts.
| Characteristics | Values |
|---|---|
| Fuel pump type | Vacuum-powered |
| Fuel pump operation | Uses pressure from the crankcase |
| Pressure type | Pulse |
| Pulse origin | Generated at the bottom of a piston in the cart when the crankcase turns |
| Inlet and outlet | Present |
| Diaphragms | Two |
| Diaphragm function | Separate the inlet, outlet, and pulse from one another |
| Diaphragm material | Thin plastic sheets |
| Diaphragm issues | May break or develop tears with use or lack of maintenance |
| Fuel filter | Inline fuel filter between the pump and tank |
| Fuel filter function | Keeps debris, dirt, or other contaminants at bay |
| Fuel pump testing | Check for oil leaks in the lower part of the engine or crankcase |
| Fuel pump testing | Inspect diaphragms for tears or damage |
| Fuel pump testing | Check for debris buildup |
| Fuel pump testing | Pull the gas line off the carburetor and crank the engine over to check for gas flow |
Explore related products
What You'll Learn
Check for fuel leaks
To check for fuel leaks in your Club Car fuel pump, you should first inspect the fuel lines for cracks or signs of deterioration. Rubber vacuum and fuel lines can deteriorate over time, especially in older vehicles or those that haven't been regularly serviced. Even if there are no visible signs of damage, a strong gasoline smell may indicate that the lines are starting to break down.
Another potential source of a fuel leak is the crankcase. If the crankcase is leaky, it can limit power production and cause issues with the fuel pump. Check the vacuum hose connected to the crankcase and ensure it is open. If the hose is blocked, it could be the reason your fuel pump is not working.
Additionally, pay attention to the oil levels in your engine. If you notice an oil leak, it is recommended to take your cart to a service technician for assistance, as this can be a complex issue to resolve. A leaky crankcase or damaged engine can result in reduced power output.
Finally, consider using a scanner or code reader to check for diagnostic trouble codes (DTCs). These codes can indicate fuel-related problems, such as a faulty pump or issues with the air/fuel ratio. By reviewing these codes and monitoring fuel pressure during heavy acceleration, you can gain valuable insights into the performance of your fuel pump and identify potential leaks or other issues.
Fuel Efficiency: Choosing Cars with Good Economy
You may want to see also
Explore related products
Inspect diaphragms for tears
The diaphragms within your fuel pump are fragile, and they may break or develop tears with use or lack of maintenance. Over time, the fuel pump’s ability to function will fade and eventually it will stop working entirely. To fix this issue, you will need to remove the pump, take it apart, and then replace the diaphragms with a rebuild kit. The diaphragms are the thin sheet of plastic that separates the pieces of the fuel pump.
Before taking your fuel pump apart, either draw or scratch a line across each section so that everything can be put back together quickly after cleaning. The pumps usually come apart in three distinct sections, with two diaphragms between them. When the diaphragms start pulsing, the fuel is moved from the gas tank to the inlet chamber. From here, the fuel gets transferred to the outlet chamber and then to the other parts of the engine.
If you’ve found tears, leaks, or deteriorating diaphragms, you may need to consult a technician for repairs. They will be able to help you pick out the parts you need to get your golf cart or ATV working again.
Rec Fuel and Your Car: Friend or Foe?
You may want to see also
Explore related products
Check for debris buildup
To check for debris buildup in your Club Car fuel pump, you will first need to remove the pump from the golf cart. This is because, to properly inspect and clean the pump, you will need to take it apart, and it is much easier to do this once it has been removed from the cart.
The pump usually comes apart in three distinct sections, with two diaphragms between them. Before taking your fuel pump apart, either draw or scratch a line across each section, so that everything can be put back together quickly after cleaning. Once you have taken the pump apart, you can clean any corrosion or debris from within the pump, using either gas or a specialist pump cleaner.
When reassembling the pump, use the lines you drew or scratched as a guide. The diaphragms within your fuel pump are fragile, and may break or develop tears with use or lack of maintenance. Inspect the diaphragms for any signs of damage, and if you find any issues, replace the diaphragms with a rebuild kit. The diaphragms are the thin sheets of plastic that separate the pieces of the fuel pump.
If your fuel pump is clogged with debris, this can interfere with the diaphragm's pulse, and will keep your golf cart fuel pump from pushing gasoline to the engine at peak efficiency. This can cause engine problems, and affect your golf cart's performance over time.
Exploring Reserve Fuel Tanks: Are They Standard in Cars?
You may want to see also
Explore related products
Identify engine problems
Engine problems can be caused by a variety of issues, and it is important to identify the root cause to ensure effective repairs. Here are some steps to help identify engine problems related to the fuel pump in a golf cart:
Firstly, check for any signs of oil leaks, a bad crankshaft seal, or issues with the case gasket. These issues often indicate a defective gasket or seal, which can cause oil leaks in the lower part of the engine or crankcase. If you suspect a leak, it is recommended to seek assistance from experienced technicians as repairs can be tricky.
Next, inspect the fuel pump for debris buildup. Over time, debris, dirt, or contaminants can accumulate in the fuel pump, even with the presence of an inline fuel filter. To resolve this, remove the pump, disassemble it, and clean the individual sections. The pump usually consists of three sections separated by two diaphragms, which are fragile and prone to tears or damage. After cleaning, ensure proper reassembly by drawing lines across each section before disassembly.
Another potential issue is deterioration of the rubber vacuum and fuel lines, which is more common in older or pre-owned golf carts without regular tune-ups. If you suspect fuel is not reaching the carburetor, inspect the lines closely for any signs of damage, including small pin holes. A telltale gasoline smell will also indicate deterioration.
Additionally, if your golf cart is not starting or running properly, there could be an issue with the vacuum or pulse line. Ensure that all clamps on the connections are intact and that there are no cracks or damage to the tubes connected to the fuel pump.
If you have addressed the above issues and the problem persists, it may be necessary to check the compression on the engine. A lack of compression could indicate worn rings or pistons, or a sticking valve.
Fuel-Efficient Cars: Smart Choices for Economical Driving
You may want to see also
Explore related products
Test for oil leaks
Testing a Club Car fuel pump for oil leaks is important as leaks can cause performance issues in your golf cart or ATV. To test for oil leaks, you should:
Check for Outward Signs of a Leak
Look for any spots or dampness in your garage, or on the components of your vehicle. Before hunting for an oil leak, make sure that it is indeed oil that you are looking for, as other fluids such as fuel, antifreeze, brake fluid, and washer fluid are also used in your vehicle. To identify an oil leak, lay down newspaper or a white plastic plate under your vehicle. Leave it overnight and check for droplets in the morning. Engine oil will appear as amber-colored drops with a thin and slippery consistency and a strong chemical odour. Older engine oil will be dark brown to black with a gunky or gritty texture.
Check Common Leak Areas
The most common areas for oil leaks are the valve cover and oil pan gaskets, timing chain cover, and the front and rear crankshaft seals. On older engines, the heat may have caused the cork gaskets to harden and shrink, or the rubber neoprene gaskets and seals to harden and lose elasticity, making them more prone to leaks.
Check the Fuel Pump
If you suspect a leak in the fuel pump, it is recommended to seek assistance from service personnel as it requires expertise to resolve the problem. However, you can check the fuel pump for an accumulation of debris, dirt, or other contaminants. Remove the pump from the cart and disassemble it. Inspect the diaphragms for tears or damage; these are generally fragile, thin plastic sheets. If you find any problems, replace them with a rebuild kit.
Check the Crankcase and Engine
If there is a leak in the crankcase or lower end of your engine, it may affect the fuel pump's effectiveness. Check for any signs of a leak and isolate and repair it to help your fuel pump work effectively. Leaks in this area could be due to a bad crankshaft seal or case gasket.
The Evolution of Hydrogen Fuel: Powering Cars of Tomorrow
You may want to see also
Frequently asked questions
To test a fuel pump on a Club Car, you must first pull the gas line off the carburetor and crank the engine over. If gas comes out of the line, the fuel pump is working. If not, check the gas lines for cracks.
If your Club Car fuel pump is not working, it could be due to a number of reasons. Firstly, check for an oil leak, a bad crankshaft seal, or issues with the case gasket. Secondly, check for debris buildup in the fuel pump. Lastly, check the diaphragms within the fuel pump for any tears or damage as they are fragile and may break with use or lack of maintenance.
If you find debris in the Club Car fuel pump, you will need to remove the pump from the cart, disassemble it, and clean it. Before taking the pump apart, draw a line across each section to make reassembly easier.
