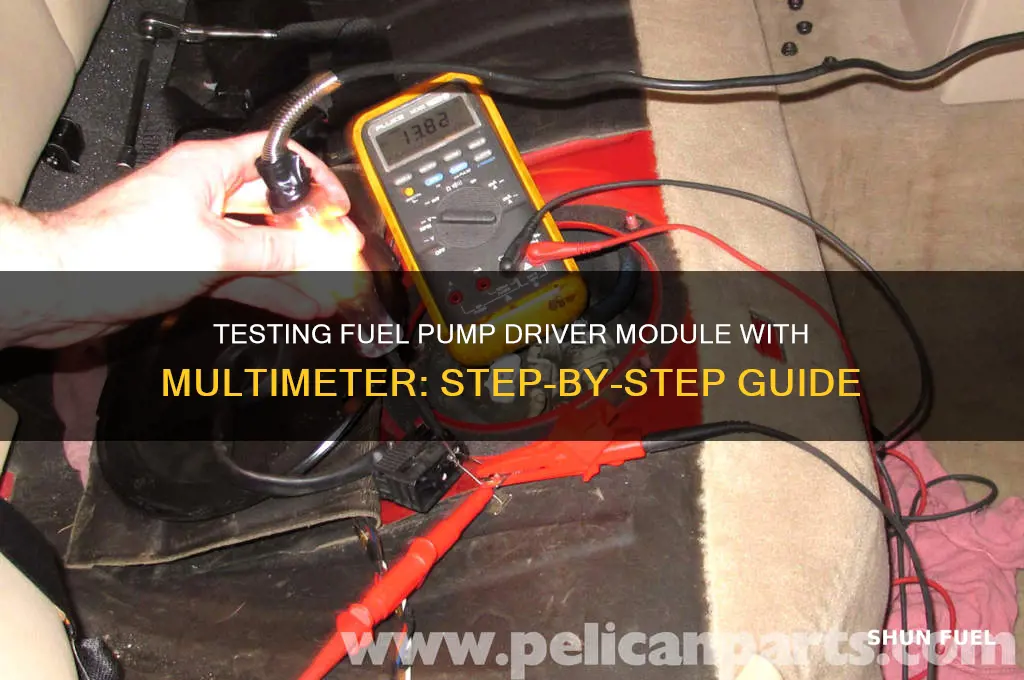

Testing a fuel pump driver module with a multimeter is a straightforward process that can help diagnose issues with your vehicle's fuel system. Begin by ensuring the vehicle is turned off and the ignition is in the off position to avoid any electrical hazards. Locate the fuel pump driver module, typically found near the fuel tank or under the rear seat, and disconnect the wiring harness. Set your multimeter to the appropriate voltage or resistance range, depending on the specific test you're conducting. For a voltage test, connect the multimeter probes to the module's power and ground terminals while activating the fuel pump relay; the reading should match the vehicle's battery voltage. For a resistance test, measure the continuity between the module's control and ground pins, ensuring it falls within the manufacturer's specified range. If the readings are out of spec, the module may be faulty and require replacement. Always refer to your vehicle's service manual for precise testing procedures and safety guidelines.
| Characteristics | Values |
|---|---|
| Required Tools | Multimeter, Wiring diagram, Safety gloves, Safety goggles |
| Safety Precautions | Disconnect battery, Work in well-ventilated area, Avoid sparks |
| Locate the Module | Consult vehicle manual or wiring diagram |
| Power Supply Check | Set multimeter to DC voltage, Check voltage at module's power input pin |
| Ground Connection Check | Set multimeter to continuity mode, Test ground pin to vehicle chassis |
| Control Signal Check | Set multimeter to DC voltage, Monitor control signal pin during ignition |
| Output Signal Check | Set multimeter to DC voltage, Test output pin for voltage to fuel pump |
| Resistance Testing | Set multimeter to ohms, Check resistance across specified pins (if applicable) |
| Expected Voltage Range | Typically 10-14V (power), 0-5V (control signal), 0-12V (output signal) |
| Common Fault Symptoms | No fuel pump operation, Intermittent fuel pump, Engine stalling |
| Diagnostic Codes | Scan for error codes related to fuel pump or driver module |
| Replacement Consideration | Replace module if tests show no power, ground, or control signal |
| Post-Test Verification | Reconnect battery, Test fuel pump operation after repairs |
Explore related products
What You'll Learn
- Check Power Supply: Verify voltage at module’s power input terminals using multimeter
- Test Ground Connection: Ensure ground wire continuity with multimeter’s continuity mode
- Measure Control Signal: Check voltage at control wire for proper signal output
- Inspect Relay Function: Test relay coil resistance and switching with multimeter
- Verify Output Voltage: Confirm correct voltage at fuel pump output terminal
Check Power Supply: Verify voltage at module’s power input terminals using multimeter
A faulty fuel pump driver module can cripple your vehicle, leaving you stranded. Before condemning the module itself, a crucial first step is verifying the power supply reaching it. This diagnostic step, achievable with a multimeter, isolates the problem to either the module or the electrical system feeding it.
Imagine your car's electrical system as a highway. The fuel pump driver module is a toll booth, and voltage is the currency needed to pass through. If the toll booth isn't receiving the correct amount of currency, it can't function properly.
Understanding Voltage Requirements:
Different fuel pump driver modules have specific voltage requirements, typically ranging from 12 to 14 volts. Consult your vehicle's service manual for the exact specification. A multimeter, set to the DC voltage setting, becomes your voltmeter, allowing you to measure the electrical potential difference at the module's power input terminals.
Think of the multimeter as a detective, gathering evidence to determine if the power supply is the culprit.
Testing Procedure:
- Safety First: Ensure your vehicle is turned off and the ignition is in the "off" position. Disconnect the negative battery terminal to prevent accidental short circuits.
- Locate the Module: Refer to your vehicle's manual or online resources to identify the fuel pump driver module's location. It's often found near the fuel tank or within the engine bay.
- Access the Power Input Terminals: Carefully disconnect the wiring harness from the module, exposing the power input terminals. These are typically marked with symbols like "+" for positive and "-" for negative.
- Set Up the Multimeter: Turn on your multimeter and set it to the DC voltage range that encompasses the expected voltage (usually 20V DC).
- Measure Voltage: Touch the red (positive) multimeter probe to the positive power input terminal and the black (negative) probe to the negative terminal. Observe the reading on the multimeter display.
Interpreting Results:
- Correct Voltage: If the multimeter reads within the specified range (e.g., 12-14 volts), the power supply to the module is likely adequate. The issue may lie within the module itself or elsewhere in the fuel delivery system.
- Low Voltage: A reading significantly below the specified range indicates a problem with the power supply. This could be due to a faulty fuse, a loose connection, a damaged wire, or a weak battery.
- No Voltage: A reading of 0 volts suggests a complete lack of power reaching the module. This points towards a broken wire, a blown fuse, or a disconnected harness.
Troubleshooting Tips:
- Check Fuses: Inspect the fuse associated with the fuel pump circuit. A blown fuse will prevent power from reaching the module.
- Inspect Wiring: Visually inspect the wiring harness for damage, corrosion, or loose connections.
- Battery Health: Ensure your battery is fully charged and in good condition. A weak battery can lead to insufficient voltage reaching the module.
Remember: Verifying the power supply is a fundamental step in diagnosing fuel pump driver module issues. By systematically checking the voltage at the module's input terminals with a multimeter, you can narrow down the root cause of the problem and avoid unnecessary replacements.
Weak Fuel Pump: A Hidden Culprit Behind Lean Engine Conditions?
You may want to see also
Explore related products
Test Ground Connection: Ensure ground wire continuity with multimeter’s continuity mode
A faulty ground connection can cripple your fuel pump driver module, leading to erratic performance or complete failure. Before condemning the module itself, verifying ground integrity is crucial. Multimeters, with their continuity mode, offer a simple yet effective way to diagnose this common issue.
A solid ground connection acts as the return path for electrical current, completing the circuit and allowing the module to function. Even slight corrosion, loose connections, or damaged wires can disrupt this flow, mimicking symptoms of a faulty module.
To test ground continuity, set your multimeter to the continuity setting (often represented by a diode symbol or a speaker icon). This mode sends a small current through the circuit and alerts you with a beep or visual indicator if the circuit is complete.
Begin by locating the ground wire connected to the fuel pump driver module. Consult your vehicle's service manual for the exact location. With the ignition off, disconnect the ground wire from the module. Touch one multimeter probe to the exposed end of the ground wire and the other probe to a known good ground point on the vehicle's chassis, such as an unpainted metal surface.
If the multimeter beeps or shows continuity, the ground wire itself is likely intact. However, this doesn't guarantee a solid connection at the module. Reconnect the ground wire to the module and repeat the test, touching one probe to the module's ground terminal and the other to the chassis. A lack of continuity at this point suggests a problem with the module's ground connection, possibly due to corrosion, a loose terminal, or a damaged wire near the module.
Inconclusive results or a lack of continuity at any point in the test warrant further investigation. Inspect the ground wire for visible damage, clean the connection points thoroughly, and ensure the wire is securely fastened. If the issue persists, consider consulting a qualified mechanic to diagnose and repair the underlying problem. Remember, a reliable ground connection is fundamental to the proper functioning of your fuel pump driver module and, ultimately, your vehicle's performance.
Signs Your Mechanical Fuel Pump is Failing: Diagnosis and Solutions
You may want to see also
Explore related products
Measure Control Signal: Check voltage at control wire for proper signal output
The control signal is the lifeblood of your fuel pump driver module, dictating when and how it operates. To ensure your vehicle's fuel system functions optimally, verifying this signal's integrity is crucial. This involves measuring the voltage at the control wire, a task achievable with a multimeter and a systematic approach.
Understanding the control signal's voltage range is paramount. Typically, this signal operates within a specific window, often between 0 and 12 volts, depending on the vehicle's make and model. Refer to your vehicle's service manual for precise specifications. Deviations from this range can indicate a malfunctioning module or wiring issues.
To measure the control signal, locate the control wire connected to the fuel pump driver module. This wire is usually identifiable by its color coding, often a distinct shade like orange or green. With the ignition on, set your multimeter to the DC voltage setting and connect the probes to the control wire. Ensure a secure connection to obtain accurate readings.
A healthy control signal should exhibit a stable voltage within the specified range. Fluctuations or readings outside this range warrant further investigation. Potential causes include a faulty module, damaged wiring, or issues with the vehicle's computer system. In such cases, consulting a professional mechanic is advisable for a comprehensive diagnosis and repair.
This simple yet effective test empowers you to pinpoint potential issues with your fuel pump driver module. By understanding the control signal's voltage characteristics and employing a multimeter, you can take a proactive approach to vehicle maintenance, ensuring your fuel system operates reliably and efficiently. Remember, accurate diagnosis is key to effective repairs, and this test serves as a valuable tool in your automotive troubleshooting arsenal.
Understanding the Functionality of an Impulse Fuel Pump: A Comprehensive Guide
You may want to see also
Explore related products
Inspect Relay Function: Test relay coil resistance and switching with multimeter
A faulty relay within a fuel pump driver module can mimic symptoms of a failed pump, leading to misdiagnosis and unnecessary part replacement. Testing the relay's coil resistance and switching function with a multimeter is a critical step in isolating the problem. This process requires a digital multimeter (DMM) capable of measuring resistance (ohms) and voltage, along with a basic understanding of relay operation.
Relays act as electrical switches, using a low-power coil to control a high-power circuit. The coil's resistance, typically ranging from 40 to 120 ohms depending on the relay, is a key indicator of its health. A reading outside this range suggests a damaged coil, necessitating relay replacement. To measure resistance, disconnect the relay from the module, set the DMM to the ohms setting, and touch the probes to the coil terminals. Compare the reading to the manufacturer's specifications or a known good relay.
Beyond resistance, testing the relay's switching function is equally vital. This involves verifying that the relay contacts close and open as intended when voltage is applied to the coil. With the relay still disconnected, set the DMM to the voltage setting and connect the probes across the relay's input terminals (where the control signal from the module would normally connect). Apply power to the coil using a fused jumper wire from the battery positive terminal to one coil terminal and a ground connection to the other. The DMM should register battery voltage (typically 12V) if the relay switches correctly.
Caution is essential during this test. Ensure the ignition is off to prevent accidental fuel pump activation. Use a fused jumper wire to protect against short circuits. If the relay fails to switch, inspect the coil for damage, check for loose connections, and verify that the control signal from the module is present. A faulty relay can prevent the fuel pump from receiving power, leading to engine no-start conditions.
In conclusion, testing the relay coil resistance and switching function is a straightforward yet powerful diagnostic technique. It allows you to pinpoint relay failures within the fuel pump driver module, saving time and money by avoiding unnecessary part replacements. By combining resistance measurements with switching tests, you can confidently diagnose relay issues and restore proper fuel system operation. Remember to consult the vehicle's service manual for specific relay specifications and testing procedures.
DIY Guide: Replacing the Fuel Pump on a 2001 Ford F150
You may want to see also
Explore related products
Verify Output Voltage: Confirm correct voltage at fuel pump output terminal
The fuel pump driver module is a critical component in your vehicle's fuel system, responsible for delivering the necessary voltage to the fuel pump. To ensure it's functioning correctly, verifying the output voltage at the fuel pump terminal is a crucial step in your diagnostic process. This measurement will indicate whether the module is supplying the required power to the pump, which typically operates between 12 and 14 volts in most vehicles.
To begin this test, locate the fuel pump output terminal on the driver module, often labeled as "FP" or "Fuel Pump." With the ignition in the "ON" position, but the engine not running, connect your multimeter's positive lead to the output terminal and the negative lead to a good ground, such as the battery negative terminal. A steady reading within the specified voltage range confirms the module is functioning correctly. If the voltage is significantly lower or non-existent, it may indicate a faulty driver module or a wiring issue.
In some cases, the voltage might fluctuate or show an intermittent reading. This could be a sign of a failing module or a poor connection. To further diagnose, wiggle the wiring harness and observe the multimeter for any changes. If the voltage drops or becomes unstable, inspect the harness for damage or corrosion. Cleaning or repairing the connection might resolve the issue, but if the problem persists, consider replacing the driver module.
When testing, it's essential to compare your findings with the vehicle's specifications. Consult the repair manual or online resources specific to your car's make and model to determine the expected voltage range. Some vehicles may have unique requirements, and understanding these nuances is vital for an accurate diagnosis. For instance, high-performance engines might demand a higher voltage output to support increased fuel demands.
A practical tip for this test is to use a multimeter with a min-max recording function, which captures voltage fluctuations. This feature can help identify intermittent issues that might otherwise be missed. Additionally, if you're working on a vehicle with a returnless fuel system, ensure you're testing the correct terminal, as these systems often have multiple outputs. Accurate voltage verification is a powerful diagnostic tool, providing valuable insights into the fuel pump driver module's health and its ability to deliver the necessary power for optimal engine performance.
Are Walbro Fuel Pumps Universal? Compatibility and Installation Guide
You may want to see also
Frequently asked questions
To test a fuel pump driver module with a multimeter, first disconnect the module’s electrical connector. Check for power at the module’s input terminals using the multimeter’s voltage setting. Then, verify the ground connection by testing continuity between the ground terminal and the vehicle’s chassis. Finally, check the output signal to the fuel pump for voltage or continuity as specified in the vehicle’s manual.
The expected voltage varies by vehicle, but typically, you should see battery voltage (e.g., 12V) at the input terminal when the ignition is on. The output terminal should also show voltage when the module is activated, usually matching the input voltage or a specific signal voltage as per the manufacturer’s specifications.
Set your multimeter to the continuity or resistance mode. Connect one probe to the ground terminal of the module and the other probe to a known good ground point on the vehicle’s chassis. A reading of 0 ohms or a beep indicates a good ground connection.
Yes, you can test the module in-vehicle by checking voltage and ground connections at the module’s electrical connector. However, for a more accurate diagnosis, removing the module may be necessary to inspect for physical damage or corrosion.
No voltage at the output terminal could indicate a faulty module, a broken wire, or an issue with the module’s activation signal. Double-check the input voltage and ground connections. If they are good, the module itself may be defective and require replacement.
