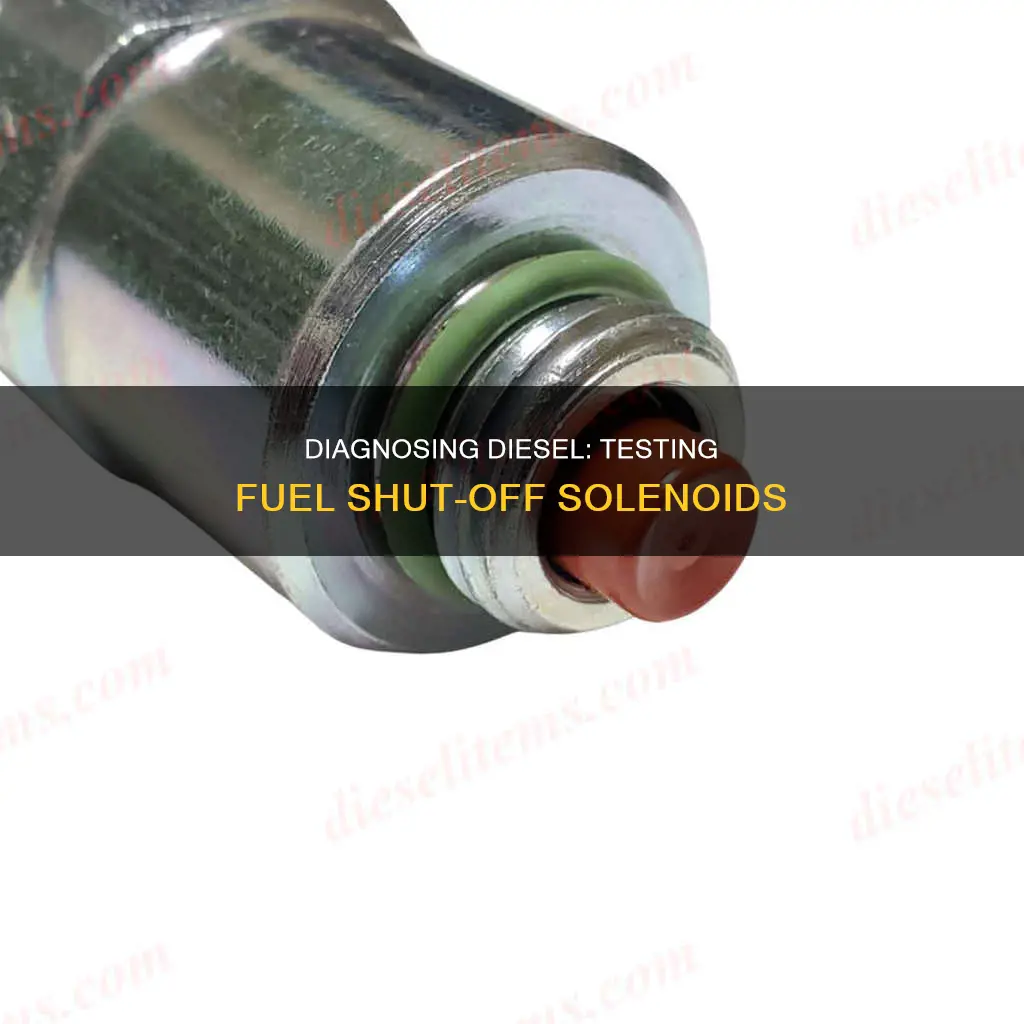

A diesel fuel shut-off solenoid is a crucial component in diesel engines, controlling the flow of fuel to ensure the engine can start and stop. When this solenoid malfunctions, it can cause issues with engine performance, such as stalling or failure to start. To test a diesel fuel shut-off solenoid, it is important to first prioritise safety by turning off the engine and disconnecting the power, fuel supply, and battery. Then, one must check the wiring connections and identify the wires by colour to ensure proper connection with the test equipment, such as a multimeter or test lamp. The next steps involve testing the solenoid valve's suction and release functions by connecting the test device to the wires and observing the response, which will indicate whether the valve is functioning correctly.
Testing a diesel fuel shut-off solenoid
| Characteristics | Values |
|---|---|
| Engine performance anomalies | Stalling, trouble starting, or failure to start |
| Testing equipment | Multimeter, test lamp, test light, voltmeter |
| Preparation | Turn off the engine, disconnect power, fuel supply, and battery |
| Wire colours | Red, black, and white |
| Testing procedure | Connect positive terminal to red wire, negative terminal to black wire, listen for solenoid valve suction, disconnect negative connection, connect to white wire, ensure no sound of fuel solenoid shut-off suctioning |
| Faulty solenoid indication | Abnormalities in test results, malfunctioning engage or release function |
| Troubleshooting | Check power connection, test suction and release functions, check wiring connections |
| Manual activation | Locate solenoid, apply 12V power directly to solenoid terminals, listen for a click |
| Fuel flow verification | Disconnect fuel line from solenoid valve, re-energize solenoid valve, observe fuel flow |
| Resistance test | Unplug wiring at both ends, test resistance (continuity) from one wire end to another, repeat for each wire, test from one wire to each other wire, to ground, and to battery power |
Explore related products
What You'll Learn
Testing a 3-wire fuel shut-off solenoid
A 3-wire fuel shut-off solenoid is an electromagnetic device that controls the flow of fuel and ensures that the engine starts and stops. The three wires are usually coloured red, black, and white.
Before testing, ensure that you have correctly identified the colour of each wire. This will help you to properly connect the test equipment.
Testing the Suction Function
- Connect the positive terminal of the test device to the red wire and the negative terminal to the black wire.
- You should be able to hear the solenoid valve sucking closed, and the test device should show that current is passing through it.
- This indicates that the solenoid valve is able to close properly when it receives a signal.
Testing the Release Function
- Disconnect the negative connection from the test device and connect it to the white wire.
- During this step, you should not hear any sound of the fuel solenoid shut-off suctioning, and the test device should not show any current passing.
- This indicates that the solenoid valve is able to release properly when it receives the appropriate signal.
Additional Testing
- Use a multimeter or test light to test the solenoid's suction and release functions.
- Check the resistance between the wires using an ohm meter. A low resistance between the ground wire and the pull-in wire, and a higher resistance between the ground and hold-in wire, is expected.
- Verify that the power connection to the solenoid is secure and that there are no loose or broken wires.
By following these steps, you can verify that the 3-wire fuel shut-off solenoid is functioning correctly. If the test results show abnormalities, the solenoid may need to be repaired or replaced.
Priming 2004 Duramax Diesel: The Right Way
You may want to see also
Explore related products
Identifying symptoms of a faulty solenoid
A faulty diesel fuel shut-off solenoid can cause various issues with the engine's performance. One of the most common signs of a faulty solenoid is an engine that stalls or is completely impossible to start. This may be due to the solenoid failing to open, preventing fuel from reaching the engine. As a result, the engine may stall or fail to start at all, especially in cold conditions.
Another symptom of a faulty solenoid is erratic engine performance, including rough idling, uneven acceleration, or a lack of power. This is often due to an inadequate or inconsistent fuel supply reaching the engine. For example, the engine may struggle to perform when the vehicle is heavily loaded or travelling at high speeds.
Fuel leakage around the solenoid area is another indication of a problem. This can occur when the solenoid is damaged or develops a crack, causing fuel to leak out. This issue poses a fire hazard and requires immediate attention to ensure safety.
Additionally, when the engine is turned off, you may notice that the solenoid remains energised, leading to a rapid battery discharge. This could be due to rust or a faulty return spring.
It is important to regularly diagnose and test the diesel fuel shut-off solenoid to prevent unexpected incidents and ensure the stable operation of the engine. By identifying these symptoms, you can take appropriate action, such as repairing or replacing the solenoid, to maintain the optimal performance of your diesel engine.
Cleaning a Plastic Diesel Fuel Tank: DIY Guide
You may want to see also
Explore related products
Using a multimeter or test lamp
To test a diesel fuel shut-off solenoid using a multimeter or test lamp, you must first ensure the engine is turned off and the power and fuel supply are disconnected for safety.
A multimeter can be used to test the circuit continuity of the solenoid. Set the multimeter to continuity test mode and connect one lead to one electrode of the solenoid and the other lead to the other electrode. If the multimeter shows a short circuit or zero ohms reading, the continuity is normal. If there is no connectivity or an infinite resistance value is displayed, the solenoid may be faulty.
Alternatively, you can set the multimeter to resistance mode (ohms) and connect the measurement leads to the two electrodes of the solenoid. You should then be able to read a certain resistance value, which can be checked against the owner's manual of the machinery.
A test lamp can also be used to test the solenoid valve's suction and release functions. With the key off, you should get no reading on the test lamp. When the key is turned on, you should get a reading, and when the key is turned off again, the wire should be powered for about five seconds.
A 3-wire fuel shut-off solenoid valve will usually have wires coloured red, black, and white. The positive terminal of the test device should be connected to the red wire, and the negative terminal to the black wire. The solenoid valve should then suck closed, and the test device should show that current is passing through it. The negative connection can then be disconnected from the test device and connected to the white wire.
Adjusting the Fuel Plate on a Diesel Pusher P7100: A Guide
You may want to see also
Explore related products
$8.54 $10.99
Testing the solenoid's suction and release functions
To test the solenoid's suction and release functions, you must first ensure that the power connection to the solenoid is properly connected. Check that the wires are securely connected to the appropriate pins and that there are no loose or broken wires.
Then, turn off the engine, disconnect the power and fuel supply, and prepare the test equipment. You can test the solenoid with a multimeter or a test lamp.
Next, connect the positive terminal of the test device to the red wire and the negative terminal to the black wire. You should be able to hear the solenoid valve sucking closed, and the test device should show that current is passing through it. This indicates that the solenoid valve is able to close properly when it receives a signal.
After that, disconnect the negative connection from the test device and connect it to the white wire. During this step, you should not hear any sound of the fuel solenoid shut off suctioning, and the test device should not show any current passing. This indicates that the solenoid valve is able to release properly when it receives the appropriate signal.
By performing these steps, you can verify that the solenoid valve is able to engage and release when it receives the appropriate signal. If the test results show abnormalities, it may mean that the solenoid valve is faulty and needs to be repaired or replaced.
Fixing Diesel Knock: Tuning and Maintenance Tips
You may want to see also
Explore related products
Ensuring safe operation
The next step is to disconnect the power and fuel supply. This step is essential for safety and should not be overlooked. It is also important to check the wiring connections leading to the diesel shut-down solenoid to ensure no loose or broken wires are present.
When testing a three-wire fuel shut-off solenoid, correctly identifying the colours of each wire is vital. Typically, the wires are red, black, and white, and they must be properly connected to the test equipment. For instance, connect the positive terminal to the red wire and the negative terminal to the black wire.
It is also important to use the correct tools for testing. A multimeter or test lamp is typically used to test the solenoid valve's suction and release functions. A voltmeter can also be used to check for the correct voltage when turning off the ignition.
Additionally, when manually activating the solenoid, it is important to follow the correct procedure. Apply 12 volts of power directly to the solenoid's terminals by connecting a separate power source, such as a battery. This should result in a distinct click, indicating proper engagement.
