Mercedes Mullins

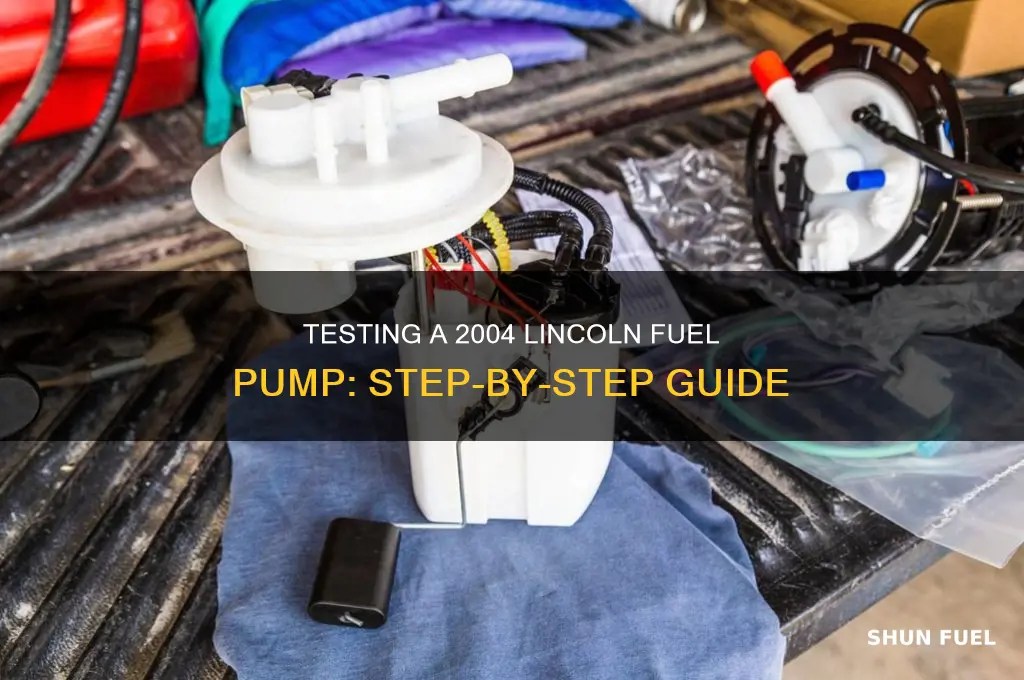

Testing the fuel pump on a 2004 Lincoln involves several steps to ensure accurate diagnosis and safety. Begin by relieving the fuel system pressure and disconnecting the battery to prevent accidents. Next, locate the fuel pump, typically found in the fuel tank, and access it by removing the rear seat or trunk panel. Use a multimeter to check for power and ground at the fuel pump connector while activating the pump relay or cycling the ignition. If power and ground are present but the pump doesn’t run, it may be faulty. Alternatively, listen for the pump’s hum by placing your ear near the fuel tank or using a mechanic’s stethoscope when the ignition is turned on. If no sound is heard, the pump may need replacement. Always consult the vehicle’s manual or a repair guide for model-specific details.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Inside the fuel tank (access through the rear seat or trunk). |
| Tools Required | Multimeter, screwdriver, wrench, rubber mallet, safety goggles. |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in a well-ventilated area. |
| Test 1: Listen for Operation | Turn ignition to ON (not start); listen for a humming sound (2-3 seconds). |
| Test 2: Check Fuel Pressure | Use a fuel pressure gauge; connect to Schrader valve; compare to specs (40-60 PSI). |
| Test 3: Power Supply Check | Check voltage at fuel pump connector (12V with key ON). |
| Test 4: Ground Check | Ensure proper ground connection at fuel pump (low resistance). |
| Test 5: Resistance Check | Measure fuel pump resistance (typically 10-20 ohms). |
| Symptoms of Failure | No start, sputtering, loss of power, whining noise. |
| Replacement Recommendation | Replace if tests fail or pressure is inconsistent. |
| Professional Assistance | Consult a mechanic if unsure or for fuel tank removal. |
Explore related products
What You'll Learn
- Pre-Test Checks: Verify fuel pump relay, fuse, and battery condition before testing
- Pressure Testing: Use a gauge to check fuel pressure at the rail
- Electrical Testing: Test pump’s power and ground connections with a multimeter
- Noise Diagnosis: Listen for pump whine during ignition key-on
- Resistance Check: Measure pump’s resistance to ensure it’s within specs
Pre-Test Checks: Verify fuel pump relay, fuse, and battery condition before testing
Before diving into testing the fuel pump on a 2004 Lincoln, it’s critical to ensure the supporting systems are functioning correctly. The fuel pump relay, fuse, and battery are the backbone of the fuel delivery system. A faulty relay or blown fuse can mimic fuel pump failure, leading to unnecessary replacements. Similarly, a weak battery may not provide sufficient power to operate the pump, skewing test results. These pre-test checks are not just procedural steps—they’re diagnostic safeguards that save time, money, and frustration.
Analytical Perspective: The fuel pump relay acts as a switch, controlling power to the pump based on signals from the engine control module (ECM). If the relay is stuck open or closed, the pump won’t operate correctly. The fuse, typically located in the under-hood fuse box, protects the circuit from overcurrent. A blown fuse is a common issue, often caused by short circuits or age. The battery, meanwhile, must maintain a voltage of at least 10.5 volts under load to ensure the pump receives adequate power. Without verifying these components, any fuel pump test becomes unreliable, as the issue could lie elsewhere in the circuit.
Instructive Steps: Start by locating the fuel pump relay, usually found in the under-hood fuse/relay box. Consult the owner’s manual for the exact position. Swap the fuel pump relay with a similar one (e.g., the horn relay) to test for functionality. If the pump engages after the swap, the relay is faulty. Next, inspect the fuel pump fuse using a multimeter or visual check for a broken filament. Replace it if necessary, ensuring the new fuse matches the amperage rating (typically 15–20 amps). Finally, test the battery with a voltmeter under load; a reading below 10.5 volts indicates a weak battery that needs charging or replacement.
Comparative Insight: Think of these pre-test checks as a triage process in diagnostics. Just as a doctor wouldn’t prescribe surgery without ruling out simpler causes, a mechanic shouldn’t assume the fuel pump is defective without verifying these components. For instance, a blown fuse is far cheaper and easier to fix than replacing a fuel pump, which requires dropping the gas tank. Similarly, a weak battery can cause symptoms like a failing pump, such as slow cranking or no-start conditions. By ruling out these variables first, you ensure the fuel pump test is accurate and targeted.
Practical Tips: Keep a spare relay and fuse in your toolkit for quick swaps during diagnostics. If the battery is more than 3–5 years old, consider testing it with a load tester, as age can degrade performance even if it holds a charge. When inspecting the fuse, look for corrosion or discoloration around the socket, which can indicate an underlying electrical issue. Lastly, if the relay or fuse fails repeatedly, investigate the wiring harness for shorts or damage, as this could be the root cause. These small precautions can prevent misdiagnosis and unnecessary repairs.
Should You Add a Fuel Pump Enhancer to Your LB7 Duramax?
You may want to see also
Explore related products
Pressure Testing: Use a gauge to check fuel pressure at the rail
Fuel pressure testing is a critical diagnostic step when troubleshooting a 2004 Lincoln’s fuel pump issues. The fuel rail, a central distribution point for fuel, provides direct access to measure pressure, revealing whether the pump is delivering adequate fuel to the engine. This test isolates the pump’s performance from other system components, ensuring accurate diagnosis.
To perform this test, locate the fuel rail’s Schrader valve, typically near the engine’s intake manifold. Attach a fuel pressure gauge designed for your vehicle’s fuel system (ensure compatibility with gasoline or diesel, if applicable). With the engine off, relieve fuel system pressure by depressing the Schrader valve. Start the engine and observe the gauge reading. Compare the pressure to the manufacturer’s specifications for your 2004 Lincoln model, typically found in the service manual or online resources.
Pressure readings outside the specified range indicate potential issues. Low pressure may suggest a failing fuel pump, clogged fuel filter, or faulty pressure regulator. High pressure could point to a malfunctioning regulator or restricted return line. Note that pressure should stabilize within a few seconds of starting the engine and remain consistent under varying RPMs.
While this test is straightforward, safety precautions are essential. Work in a well-ventilated area, avoid open flames, and relieve fuel pressure before disconnecting any lines. If you’re unsure about interpreting results or lack the necessary tools, consulting a professional mechanic is advisable. Accurate pressure testing not only diagnoses the fuel pump but also prevents unnecessary part replacements, saving time and money.
Do Two-Stroke Engines Require a Fuel Pump? Explained Simply
You may want to see also
Explore related products
Electrical Testing: Test pump’s power and ground connections with a multimeter
A faulty fuel pump can leave your 2004 Lincoln stranded, but before replacing it, verify the electrical connections are sound. A multimeter is your diagnostic ally here, allowing you to test the power and ground circuits that feed the pump. This process isolates whether the issue lies with the pump itself or the electrical supply, saving time and money.
With the ignition in the "on" position, locate the fuel pump relay and connector. Consult your Lincoln's manual for the exact location, typically in the engine bay or under the rear seat. Using a multimeter set to the voltage setting, backprobe the connector to measure voltage at the pump's power wire. You should see battery voltage (around 12 volts) when the key is on. If voltage is absent, suspect a blown fuse, faulty relay, or wiring issue upstream.
Ground is equally crucial. A poor ground connection will starve the pump of the return path it needs to operate. Set your multimeter to the continuity setting and check for a solid connection between the pump's ground wire and a known good chassis ground. A beep indicates a good ground; no beep suggests a broken wire, corroded connection, or faulty ground strap.
How Square Body TBI Fuel Pumps Receive Power Explained
You may want to see also
Explore related products
Noise Diagnosis: Listen for pump whine during ignition key-on
A fuel pump's whine during ignition key-on is a critical diagnostic sound, often revealing the pump's operational health. This noise, though subtle, can indicate whether the pump is functioning correctly or if it's on the brink of failure. When you turn the ignition key to the 'on' position, the fuel pump should activate, producing a distinct hum or whine that lasts for a few seconds. This sound is the pump priming the fuel system, ensuring adequate pressure for the engine to start. If this noise is absent or irregular, it could be a red flag, signaling a potential issue with the fuel pump or the associated electrical system.
The Art of Listening: A Diagnostic Technique
Diagnosing fuel pump issues through sound is an art honed by many mechanics. The key is to listen attentively during the ignition key-on phase, a crucial moment in the fuel system's operation. As the pump engages, a healthy whine should be audible, lasting approximately 2-3 seconds. This sound is a symphony of mechanical precision, indicating the pump's impeller spinning and fuel flowing through the lines. If the whine is weak, intermittent, or non-existent, it may suggest a pump that's struggling or failing. For instance, a high-pitched, grinding noise could point to a worn-out pump, while a complete absence of sound might indicate an electrical issue preventing the pump from activating.
Practical Steps for Noise Diagnosis
- Prepare the Vehicle: Ensure the fuel tank is at least half full, as a near-empty tank can affect the pump's noise level. Turn off all accessories, including the radio and air conditioning, to minimize background noise.
- Key-On Position: Insert the ignition key and turn it to the 'on' position without starting the engine. This activates the fuel pump, and you should hear the characteristic whine.
- Listen and Compare: Pay close attention to the sound's quality and duration. A healthy pump will produce a consistent, moderate-pitched whine. Compare this to known good examples or consult a mechanic's guide for reference sounds.
- Repeat and Analyze: Perform this test multiple times to ensure consistency. If the noise varies significantly or disappears, it's a strong indicator of a potential fuel pump problem.
Cautions and Considerations
While noise diagnosis is a valuable tool, it's essential to approach it with caution. Environmental factors like ambient temperature and fuel quality can influence the pump's sound. For instance, colder temperatures may cause the fuel to be thicker, affecting the pump's operation and noise level. Additionally, some vehicles may have sound-dampening features, making the pump's whine less audible. In such cases, using a mechanic's stethoscope can amplify the sound, aiding in diagnosis.
Listening for the fuel pump's whine during ignition key-on is a simple yet powerful diagnostic technique. It provides a quick insight into the pump's condition, helping to identify potential issues before they escalate. By understanding the nuances of this sound, vehicle owners and mechanics can make informed decisions, ensuring the fuel system's reliability and the vehicle's overall performance. This method, combined with other tests, forms a comprehensive approach to fuel pump diagnosis, keeping your 2004 Lincoln running smoothly.
Nest Gen 3 Compatibility with Dual Fuel Heat Pump Systems
You may want to see also
Explore related products
Resistance Check: Measure pump’s resistance to ensure it’s within specs
A fuel pump's resistance is a critical indicator of its health, and measuring it can help diagnose issues before they escalate. The 2004 Lincoln's fuel pump, like many others, has a specified resistance range that ensures optimal performance. To begin the resistance check, locate the fuel pump's electrical connector, typically found near the fuel tank. This connector houses the wires that supply power to the pump and allow for resistance measurement.
Steps to Measure Resistance:
- Disconnect the fuel pump connector: Ensure the vehicle is turned off and the fuel system is depressurized before disconnecting the connector to avoid any accidents.
- Set your multimeter to ohms (Ω): This setting allows you to measure resistance accurately.
- Touch the multimeter probes to the connector pins: Connect one probe to the positive terminal and the other to the negative terminal of the fuel pump connector.
- Record the resistance value: A healthy 2004 Lincoln fuel pump typically has a resistance of around 10-20 ohms, but consult your vehicle's manual or a trusted repair guide for the exact specifications.
Cautions and Considerations:
When performing a resistance check, it's essential to consider the fuel pump's temperature. A cold pump may exhibit slightly different resistance values than a warm one. To ensure accurate results, allow the pump to reach operating temperature or consult the manufacturer's guidelines for temperature-specific resistance ranges. Additionally, be mindful of the multimeter's accuracy and ensure it's calibrated correctly to provide precise readings.
Analyzing Results and Takeaway:
If the measured resistance falls outside the specified range, it may indicate a problem with the fuel pump. High resistance could suggest a weak or failing pump, while low resistance might point to a short circuit. However, keep in mind that resistance is just one aspect of fuel pump diagnostics. Other tests, such as checking fuel pressure and flow, should also be conducted to confirm the pump's condition. By incorporating resistance checks into your diagnostic routine, you can make informed decisions about repairs or replacements, potentially saving time and money.
Practical Tips for Accurate Resistance Checks:
To ensure consistent and reliable results, perform resistance checks in a controlled environment, away from extreme temperatures or electromagnetic interference. Use a high-quality multimeter with a suitable measurement range and accuracy. If you're unsure about the results or the pump's condition, consult a professional mechanic or refer to manufacturer-specific diagnostic procedures. Remember, a thorough understanding of the fuel pump's resistance characteristics can help you pinpoint issues and maintain your 2004 Lincoln's fuel system in top condition.
Heat Strips and Heat Pumps: Understanding Dual Fuel Systems
You may want to see also
Frequently asked questions
Common signs of a failing fuel pump include difficulty starting the engine, stalling, sputtering at high speeds, or a whining noise from the fuel tank. You can also check for low fuel pressure using a gauge.
You’ll need a fuel pressure gauge, a multimeter to test electrical connections, and a wrench or socket set to access the fuel pump and related components.
Yes, you can test the fuel pump’s electrical connections at the fuel pump relay or fuse box using a multimeter. However, for a definitive test, you may need to measure fuel pressure directly at the fuel rail.
First, check the fuel pump fuse and relay for power. Then, use a multimeter to test for voltage at the fuel pump connector. Finally, connect a fuel pressure gauge to the fuel rail and check if the pressure matches the manufacturer’s specifications.
