The P0401 code in a Ford F150 is a common OBDII trouble code that indicates an issue with the Exhaust Gas Recirculation (EGR) system, specifically insufficient flow. This can be caused by a variety of factors, including a faulty EGR valve, clogged passages, electrical issues, or a faulty EGR temperature sensor. While it may be tempting to jump to conclusions and assume that bad fuel injectors are the culprit, there are numerous potential causes that should be investigated and addressed by a certified mechanic to ensure the issue is properly diagnosed and resolved.
| Characteristics | Values |
|---|---|
| Code | P0401 |
| Vehicle | Ford F150 |
| Meaning | Exhaust Gas Recirculation Flow Insufficient Detected |
| Causes | Blocked/clogged EGR tube, faulty EGR valve, faulty EGR vacuum modulator valve, faulty EGR solenoid valve, poor electrical connection, dead/weak battery, faulty EGR temperature sensor, exhaust gas leaks, faulty DPFE sensor, clogged ports, vacuum issues, sensor issues |
| Symptoms | Rough idling, decreased fuel efficiency, engine hesitation, illumination of Check Engine Light, slight ping or knocking sound |
| Fixes | Clean or replace EGR valve, clean or replace EGR passages, check for electrical issues, replace faulty components, replace EGR temperature sensor, perform full diagnostic test, take to a certified mechanic |
Explore related products
What You'll Learn
Blocked EGR tube
The P0401 code on a Ford F-150 indicates an issue with the EGR system, specifically "Exhaust Gas Recirculation Flow Insufficient Detected". This can be caused by a faulty EGR valve, clogged passages, electrical issues, or a faulty EGR temperature sensor. A blocked EGR tube can be a potential cause of this issue.
The EGR (Exhaust Gas Recirculation) system in the Ford F-150 is designed to reduce the car's exhaust emissions by recirculating a portion of the gases coming out of the engine. The EGR tube is a vital part of this system, connecting the exhaust manifold to the EGR valve and facilitating the recirculation of exhaust gases.
A blocked EGR tube can be caused by various factors, including rust, debris, carbon buildup, or physical damage. In some cases, the tube may break off from the manifold due to rust or other forms of degradation. This can result in an active exhaust leak, potentially leading to carbon monoxide leaking into the cabin, which is a serious safety hazard. Therefore, it is crucial to address a blocked or damaged EGR tube as soon as possible.
To resolve a blocked EGR tube issue, you may need to replace or repair the tube. In some cases, you may need to replace the manifold along with the tube to ensure a proper fit and function. It is also important to inspect the vacuum hoses connected to the EGR valve, as leaks in these hoses can impact the system's performance.
Additionally, it is worth noting that blocking off the EGR system to address the issue may seem like a cost-effective solution, but it can have drawbacks. While it can keep the intake cleaner and prevent exhaust gases from flowing back, it may not be a long-lasting solution and can affect the vehicle's performance and emissions compliance. Therefore, consulting a certified mechanic to diagnose and repair the issue is highly recommended.
Fuel Injector Cleaner: Pump or Pour?
You may want to see also
Explore related products
Faulty EGR valve
A faulty EGR valve can cause a P0401 trouble code on a Ford F150. The EGR valve, or exhaust gas recirculation valve, is an important component of the EGR system, which recirculates exhaust gases back into the combustion chambers to help cool the engine. When the PCM (powertrain control module) detects that the EGR flow rate is not within the predetermined range, it generates the P0401 code, indicating insufficient flow in the EGR system.
A faulty EGR valve can cause a variety of problems with the Ford F150's performance and drivability. One common symptom is a loss of power or a misfire, as the engine may not be getting the necessary amount of exhaust gas to cool the combustion chambers. The truck may also experience stalling or sputtering when accelerating, especially after being stopped at a light. In some cases, the engine light may come on, indicating a problem with the EGR system.
To diagnose a faulty EGR valve, there are a few tests that can be performed. One method is to crank the truck and leave it in park, then place a piece of aquarium tubing or a gas hose on the EGR valve where the green vacuum hose is plugged. By sucking on the end of the tubing, you can determine if the EGR valve is functioning properly. If the truck stumbles as if it is going to die, the EGR valve is likely working correctly. However, if the EGR ports are clogged, the truck will not stumble, indicating a potential issue with the EGR valve.
Another test is to remove the vacuum line from the EGR valve, start the engine, and let it idle. Then, place a hose on the EGR valve end and suck on it. If the engine dies or there is a significant drop in RPM, the EGR valve and ports are likely functioning correctly, and the issue may lie with the DPFE (Differential Pressure Feedback EGR) sensor. It is important to note that the engine should not be too hot when performing this test, as the EGR valve can become extremely hot from the exhaust gases.
In addition to a faulty EGR valve, there are other potential causes of the P0401 code. Clogged EGR passages, electrical issues, or a faulty EGR temperature sensor can also trigger the code. Therefore, it is important to perform a thorough diagnosis, including checking for vacuum hose issues and inspecting any vacuum hoses, to identify the exact cause of the problem.
AutoZone Fuel Injector Testing: Is It Possible?
You may want to see also
Explore related products
Vacuum issues
The P0401 trouble code on your Ford F150 indicates an issue with the EGR system, specifically "Exhaust Gas Recirculation Flow Insufficient Detected". This can be caused by a variety of issues, including a faulty EGR valve, clogged passages, electrical issues, or a faulty EGR temperature sensor.
Now, let's focus on the vacuum issues that could be causing the P0401 code:
Vacuum leaks are a common issue with the Ford F150 and can cause the P0401 code to appear. The EGR system relies on a vacuum to function properly, so if there is a leak, it can disrupt the EGR flow and trigger the code. To fix this, you should inspect the vacuum hoses for any cracks, holes, or loose connections. You may need to replace the hoses if they are damaged.
Another potential vacuum-related issue is a faulty EGR vacuum regulator (EVR) or EGR vacuum solenoid. The EVR controls the vacuum supplied to the EGR system, so if it malfunctions, it can affect the EGR flow. Similarly, the EGR vacuum solenoid controls the vacuum to the EGR valve, so a faulty solenoid can disrupt the EGR flow and trigger the P0401 code. Replacing the EVR or the solenoid may fix the issue.
In some cases, the DPFE (Differential Pressure Feedback EGR) sensor pressure hoses may be the source of the problem. These hoses can become disconnected, plugged, or reversed, leading to vacuum leaks or improper EGR system functioning. Inspect the DPFE sensor pressure hoses and ensure they are properly connected and free of debris or clogs.
Additionally, the downstream pressure hose, which is part of the vacuum system, can be a culprit. If this hose is plugged or disconnected, it can affect the EGR system's performance and trigger the P0401 code. Checking and clearing any blockages in this hose may resolve the issue.
Finally, an orifice tube assembly issue could be the root cause. The orifice tube assembly is crucial for maintaining the correct vacuum levels in the EGR system. If it is damaged, it can disrupt the vacuum and EGR flow, resulting in the P0401 code. Replacing the orifice tube assembly may be necessary to rectify the problem.
Fuel Injectors: Signs of Malfunction and Testing Methods
You may want to see also
Explore related products
Sensor issues
The P0401 code in a Ford F150 indicates an issue with the EGR system, specifically "Exhaust Gas Recirculation Flow Insufficient Detected". This can be caused by a range of issues, including a faulty EGR valve, clogged passages, electrical issues, or a faulty EGR temperature sensor.

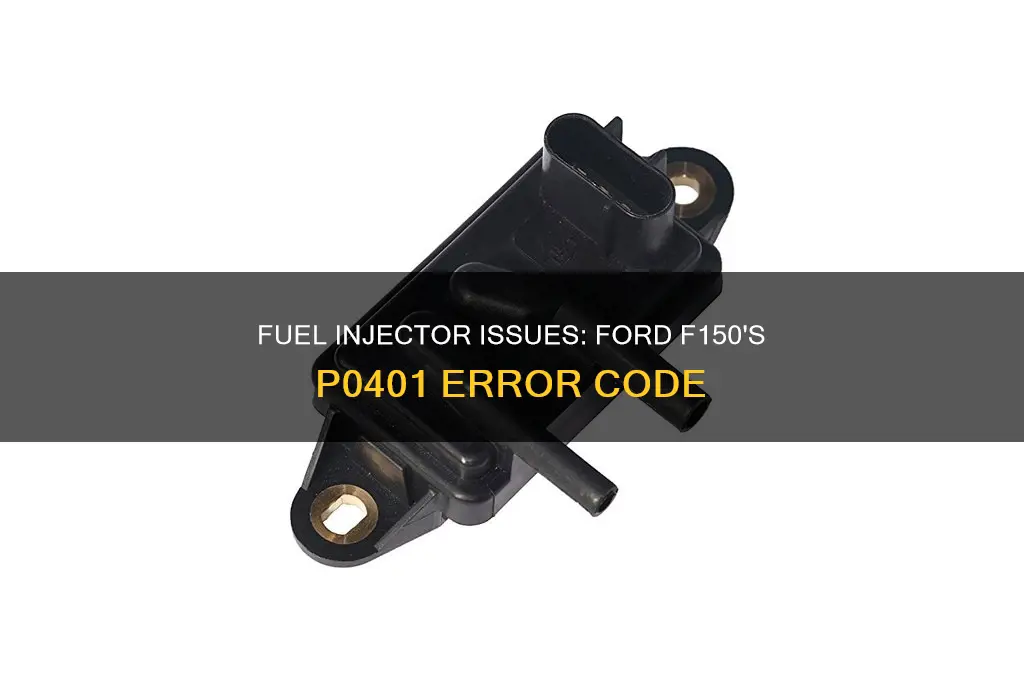

To diagnose a faulty DPFE sensor, you should carefully inspect the rubber hose at the bottom of the sensor for any dry-rot cracks, holes, or loose connections. You should also inspect the wire harness and connector for any loose, broken, or melted wires. If you are comfortable with a voltage meter, you can test the sensor voltage. If the DPFE sensor is faulty, it will need to be replaced.
In some cases, the EGR system may be functioning properly, but the sensor may be sending incorrect information to the PCM, resulting in the P0401 code. This can be caused by a poor electrical connection or a faulty circuit. In these cases, it is important to consult a certified mechanic to diagnose and repair the issue properly.
It is important to note that the P0401 code can also be caused by a combination of factors, and it is always recommended to have a certified mechanic diagnose and repair any issues with your vehicle to avoid potential damage to other components.
Fuel Injector Functionality in Small Engines Explained
You may want to see also
Faulty EGR temperature sensor
The P0401 code on a Ford F-150 indicates an issue with the EGR system, specifically "Exhaust Gas Recirculation Flow Insufficient Detected". This can be caused by a variety of factors, including a faulty EGR valve, clogged passages, electrical issues, or a faulty EGR temperature sensor.
Now, let's focus on the EGR temperature sensor and provide a detailed explanation:
The EGR temperature sensor plays a crucial role in monitoring the temperature of the exhaust gases in the EGR system. It is responsible for sending temperature data to the Powertrain Control Module (PCM) or the engine control unit. This sensor ensures that the EGR system can regulate the temperature and flow of exhaust gases effectively. When the EGR temperature sensor fails or malfunctions, it can lead to inaccurate temperature readings, causing the PCM to make incorrect adjustments to the EGR system. As a result, the EGR system may not function optimally, leading to reduced engine performance, increased emissions, or, in some cases, the activation of the check engine light.
A faulty EGR temperature sensor can exhibit several symptoms, including:
- Rough idle: The engine may idle roughly, especially when it is fully warmed up. This is a common issue with the Ford F-150, and it can be challenging to correct even after replacing various parts.
- Check engine light: In some cases, a faulty EGR temperature sensor may trigger the check engine light, indicating that there is an issue with the vehicle that needs attention.
- Reduced engine performance: A faulty sensor can lead to incorrect EGR system adjustments, resulting in decreased engine performance, such as lack of power or sluggish response.
- Increased emissions: Without accurate temperature data, the EGR system may not effectively control the exhaust gas flow, leading to increased emissions from the vehicle.
To diagnose a faulty EGR temperature sensor, it is recommended to use a scan tool or a multimeter to check for any electrical issues. If the sensor is indeed faulty, it should be replaced. This process typically involves unplugging the old sensor and installing a new one. It is important to refer to a certified mechanic or a professional Ford service to accurately diagnose and resolve the P0401 code, as they can identify any underlying issues with the EGR system and ensure the problem is resolved effectively.
Fuel Injector Cleaner: Should You Use It in Your Car?
You may want to see also
Frequently asked questions
The P0401 code stands for “Exhaust Gas Recirculation Flow Insufficient Detected". This code is generated when the PCM detects that the EGR flow rate is not within a predetermined range.
Common symptoms include rough idling, decreased fuel efficiency, engine hesitation, and the illumination of the Check Engine Light.
Possible causes include a faulty EGR valve, clogged EGR passages, damaged vacuum lines, or a malfunctioning EGR temperature sensor.
You can visually inspect the EGR valve and its components, check for vacuum leaks, clean EGR passages, test the EGR valve solenoid, and use a scan tool to monitor EGR system operation.
While bad fuel injectors are mentioned as a possible cause of the P0401 code in one source, the focus of most sources is on the EGR system, with no mention of fuel injectors.
