Regan Brown
Identifying a bad fuel pump fuse is crucial for diagnosing vehicle starting or performance issues, as a faulty fuse can prevent the fuel pump from operating correctly. Symptoms of a bad fuel pump fuse include the engine not starting, stalling, or running roughly, often accompanied by a lack of fuel pressure. To determine if the fuse is the culprit, locate the fuse box (usually in the engine bay or interior), consult the vehicle’s manual to identify the specific fuel pump fuse, and inspect it for visible signs of damage, such as a broken filament or discoloration. Using a multimeter to test for continuity is also recommended, as a blown fuse will show no electrical connection. If the fuse is bad, replacing it with one of the correct amperage may resolve the issue, though further inspection of the fuel pump and wiring is advised if problems persist.
| Characteristics | Values |
|---|---|
| Visual Inspection | Look for visible signs of damage, such as a broken or melted fuse. |
| Continuity Test | Use a multimeter to check for continuity; a bad fuse will show no continuity. |
| Power Supply Check | Test voltage at the fuse; no power indicates a blown fuse or wiring issue. |
| Fuel Pump Operation | Listen for the fuel pump humming sound when turning the ignition on; no sound may indicate a bad fuse. |
| Engine Performance | Symptoms like stalling, difficulty starting, or no start can suggest a bad fuel pump fuse. |
| Fuel Pressure Test | Low or no fuel pressure reading points to a potential fuse issue. |
| Fuse Rating | Ensure the fuse matches the correct amperage; an incorrect fuse can fail prematurely. |
| Corrosion or Dirt | Check for corrosion or dirt in the fuse slot, which can cause poor contact and fuse failure. |
| Fuse Box Diagram | Refer to the vehicle’s manual to locate the correct fuel pump fuse. |
| Replacement Test | Swap the fuse with a known good one of the same rating to confirm if it’s bad. |
Explore related products
What You'll Learn
Symptoms of a Bad Fuse
A vehicle's fuel pump fuse is a critical component, often overlooked until it fails. One of the most telling symptoms of a bad fuse is a sudden loss of power while driving, as if the engine is starving for fuel. This occurs because the fuse has blown, cutting off power to the fuel pump, which in turn stops the delivery of fuel to the engine. If you notice your vehicle sputtering or stalling, especially during acceleration or under load, it’s a strong indicator that the fuel pump fuse may be compromised. Always check the fuse first before assuming the pump itself is faulty, as fuses are far less expensive and easier to replace.
Another symptom to watch for is a complete failure to start the engine. When you turn the key and hear nothing or just a clicking sound, it’s possible the fuel pump fuse has failed, preventing the pump from priming the fuel system. To confirm, locate the fuse box (usually under the dashboard or in the engine bay) and inspect the fuel pump fuse. A blown fuse will often appear darkened, melted, or broken. If you’re unsure, swap it with a fuse of the same amperage from another circuit to test functionality. Always replace a blown fuse with one of the exact same rating to avoid electrical damage.
In some cases, a bad fuse may not cause a complete failure but instead lead to inconsistent performance. For instance, your vehicle might start fine when cold but struggle to start after it’s been running and warmed up. This can happen if the fuse is partially damaged, allowing intermittent power flow to the fuel pump. If you experience erratic starting behavior, particularly after the engine has reached operating temperature, inspect the fuse for subtle signs of damage, such as corrosion or a hairline crack. These issues can be harder to spot but are just as critical to address.
Lastly, modern vehicles often provide diagnostic clues through the check engine light or onboard computer systems. If the fuel pump fuse is bad, the engine control unit (ECU) may detect a lack of fuel pressure and trigger a warning light. While this symptom alone doesn’t confirm a bad fuse, it’s a valuable starting point for diagnosis. Use an OBD-II scanner to read error codes, which may point to fuel delivery issues. However, remember that a blown fuse won’t always trigger a code, so physical inspection remains essential. Combining both diagnostic methods increases your chances of accurately identifying the problem.
How Much Does It Cost to Change a Fuel Pump?
You may want to see also
Explore related products

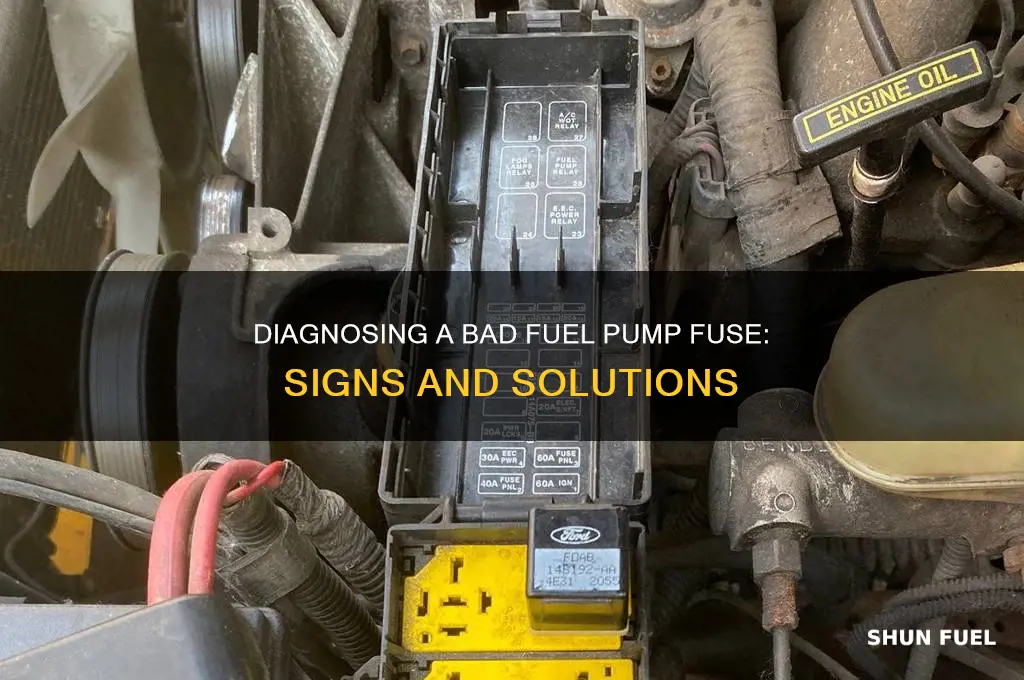

Locating the Fuel Pump Fuse
The fuel pump fuse is a critical component in your vehicle's fuel system, and its location can vary depending on the make and model of your car. To begin the process of determining if your fuel pump fuse is bad, you need to know where to find it. A common mistake is assuming that the fuse box is always under the hood, but in many modern vehicles, there are multiple fuse boxes, and the fuel pump fuse might be located inside the cabin, often near the driver's side footwell or under the steering column.
Analyzing the Fuse Box Layout
Consulting your vehicle's manual is the most reliable way to locate the fuel pump fuse. The manual typically includes a diagram of the fuse box layout, highlighting the position of each fuse, including the one for the fuel pump. If you don't have the manual, you can often find this information online by searching for your car's make, model, and year, followed by "fuse box diagram." Some automotive forums and websites specialize in providing this kind of information, complete with user-submitted photos and descriptions.
Instructive Steps to Locate the Fuse
Once you have identified the likely location of the fuse box, follow these steps to access the fuel pump fuse: (1) Ensure your vehicle is turned off and the keys are removed from the ignition to prevent electrical mishaps. (2) Locate the fuse box cover, which may require removing a panel or simply lifting a lid. (3) Refer to the diagram to find the specific fuse associated with the fuel pump. Fuses are typically labeled with numbers or symbols, so match the diagram to the physical layout. (4) Use a fuse puller or a pair of needle-nose pliers to carefully extract the fuse for inspection.
Comparative Approach to Fuse Identification
Different vehicles may use varying types of fuses, such as blade fuses, cartridge fuses, or micro fuses. Blade fuses, for example, are common in many cars and are color-coded by amperage rating. The fuel pump fuse is often a higher amperage fuse, typically ranging from 15 to 30 amps, depending on the vehicle. Comparing the fuse in question to others in the box can help you identify it, especially if the labeling is unclear or worn off. If you’re unsure, consult the vehicle manual or an online resource specific to your car model.
Practical Tips for Accessibility
In some cases, accessing the fuse box might require additional tools or maneuvering. For instance, fuse boxes located under the dashboard may necessitate removing a lower panel or using a flashlight for better visibility. If the fuse box is under the hood, ensure the engine is cool before proceeding. Keep a notebook or your phone handy to jot down observations or take photos of the fuse box layout for future reference. This can save time if you need to troubleshoot again or assist someone else with a similar issue.
Understanding Rotary Fuel Pumps: Function, Mechanism, and Operation Explained
You may want to see also
Explore related products
Testing the Fuse with a Multimeter
A multimeter is an indispensable tool for diagnosing electrical issues, including a potentially faulty fuel pump fuse. By measuring continuity, you can determine if the fuse is intact or broken. Set your multimeter to the continuity setting (often denoted by a diode symbol or a sound wave icon). Touch the probes to the fuse’s metal prongs; if the fuse is good, the multimeter will emit a beep or display a low resistance value (typically under 1 ohm). If there’s no beep or the reading is infinite (OL), the fuse is blown and needs replacement. This method is precise and eliminates guesswork, making it a go-to technique for professionals and DIY enthusiasts alike.
While testing with a multimeter is straightforward, there are nuances to consider. Always ensure the vehicle is turned off and the ignition is in the "off" position to avoid electrical interference. Remove the fuse from its slot before testing, as in-circuit testing can yield inaccurate results due to parallel pathways. If the fuse appears visually intact but fails the continuity test, it may have a hairline fracture or internal damage, which is common in older vehicles or those exposed to high temperatures. In such cases, replacing the fuse is the safest course of action, even if the issue seems minor.
Comparing the multimeter method to visual inspection highlights its superiority. A blown fuse may show visible signs like a broken filament or discoloration, but these indicators are not always present. For instance, low-quality fuses or those with subtle internal damage can appear normal to the naked eye. The multimeter test, however, provides definitive proof of the fuse’s condition, ensuring you don’t misdiagnose the problem. This reliability makes it a preferred method over relying solely on visual cues, especially when dealing with intermittent issues.
For those new to using a multimeter, practice makes perfect. Start by testing a fuse you know is good to familiarize yourself with the tool’s response. Gradually move to troubleshooting actual issues, and always cross-reference your findings with other symptoms, such as a non-starting engine or sputtering performance. Remember, a bad fuel pump fuse is just one potential culprit in a complex electrical system. Combining multimeter testing with other diagnostic steps, like checking the fuel pump relay or pressure, will help you pinpoint the root cause efficiently. With patience and precision, you’ll master this technique and save time and money on repairs.
Are Fuel Pumps Heavy? Exploring Their Weight and Practical Implications
You may want to see also
Explore related products
Common Causes of Fuse Failure
Fuses are designed to protect electrical circuits by interrupting excessive current flow, but they can fail due to several common causes. Understanding these causes is crucial for diagnosing and preventing fuel pump fuse issues. One primary reason for fuse failure is an overcurrent condition, where the electrical load exceeds the fuse’s rated amperage. This often occurs when the fuel pump motor draws more power than usual, such as during a startup or when the pump is clogged or malfunctioning. For instance, a fuel pump drawing 20 amps when the fuse is only rated for 15 amps will cause the fuse to blow almost immediately. Always check the fuse’s amperage rating and compare it to the pump’s specifications to ensure compatibility.
Another frequent cause of fuse failure is corrosion or poor connections in the fuse box or wiring harness. Over time, moisture, dirt, or oxidation can build up on the fuse terminals, increasing resistance and heat. This can lead to a weakened connection, causing the fuse to overheat and fail even under normal operating conditions. To prevent this, inspect the fuse box for signs of corrosion and clean the terminals with a wire brush or electrical contact cleaner. Applying a small amount of dielectric grease can also help maintain a stable connection and prevent future corrosion.
Manufacturing defects or low-quality fuses are less common but still significant causes of failure. Substandard fuses may have thinner or inconsistent fuse elements, making them more prone to blowing prematurely or failing to interrupt the circuit when needed. Always purchase fuses from reputable manufacturers and ensure they meet the necessary standards (e.g., SAE or ISO). If a fuse blows repeatedly without an apparent overcurrent issue, consider testing the circuit with a fuse from a trusted brand to rule out a defective component.
Lastly, short circuits in the wiring harness or fuel pump system can cause instantaneous fuse failure. A short occurs when a live wire comes into contact with ground or another conductor, creating a low-resistance path for current flow. This can happen due to damaged insulation, improper wiring, or even rodent damage. To diagnose a short circuit, use a multimeter to test for continuity between the fuse terminals and ground. If a short is detected, inspect the wiring harness for visible damage and repair or replace the affected section before installing a new fuse.
In summary, fuse failure in a fuel pump circuit can stem from overcurrent conditions, corrosion, manufacturing defects, or short circuits. By addressing these common causes through proper amperage matching, regular maintenance, quality component selection, and thorough diagnostics, you can minimize the risk of fuse-related issues and ensure reliable fuel pump operation.
How Fuel Pump Issues Can Drain Your Car Battery: Explained
You may want to see also
Explore related products
Replacing a Blown Fuel Pump Fuse
A blown fuel pump fuse can leave you stranded, but replacing it is often a straightforward fix. Before diving into the replacement process, it’s crucial to confirm the fuse is indeed the culprit. A bad fuel pump fuse typically manifests as a no-start condition, sputtering, or a complete loss of power to the fuel pump. Use a multimeter to test the fuse for continuity; a broken circuit indicates a blown fuse. Once confirmed, locate the fuse box, which is usually under the hood or near the driver’s side dashboard. Consult your vehicle’s manual to identify the specific fuse for the fuel pump.
Replacing the fuse requires precision and caution. Start by turning off the ignition and ensuring the vehicle is in a safe, well-ventilated area. Use a fuse puller or a pair of needle-nose pliers to carefully remove the blown fuse. Inspect the fuse for visible damage, such as a broken filament or discoloration. Insert a new fuse of the same amperage rating—typically 10 to 20 amps for fuel pumps—ensuring it clicks securely into place. Avoid using a fuse with a higher rating, as this can lead to electrical system damage.
While replacing the fuse is simple, it’s essential to address the root cause of the failure. A blown fuel pump fuse often results from an overloaded circuit, a short in the wiring, or a failing fuel pump. After replacement, monitor the vehicle for recurring issues. If the fuse blows again, inspect the fuel pump wiring harness for damage or corrosion. Persistent problems may require professional diagnosis to prevent further damage.
For DIY enthusiasts, keeping spare fuses in your vehicle’s emergency kit is a practical tip. Fuses are inexpensive and readily available at auto parts stores. Additionally, familiarize yourself with your vehicle’s fuse layout to save time during troubleshooting. While replacing a blown fuel pump fuse is a quick fix, it’s a symptom of a larger issue that shouldn’t be ignored. Addressing the underlying cause ensures your vehicle remains reliable and safe on the road.
Running an In-Tank Fuel Pump with a Carburetor Setup Guide
You may want to see also
Frequently asked questions
Check for signs like a no-start condition, loss of power, or a dead engine. Use a multimeter to test the fuse for continuity; no continuity indicates a bad fuse.
Symptoms include the engine not starting, stalling, or running roughly. You may also notice the fuel pump not making its usual humming sound when the key is turned.
Yes, sometimes a blown fuse will show visible signs like a broken or melted wire inside the fuse. However, a multimeter test is the most reliable method.
It’s typically found in the fuse box under the hood or inside the cabin. Refer to your vehicle’s manual for the exact location.
If the fuse is good, check the fuel pump relay, wiring, and the pump itself. A bad fuel pump or relay can cause similar symptoms to a blown fuse.
