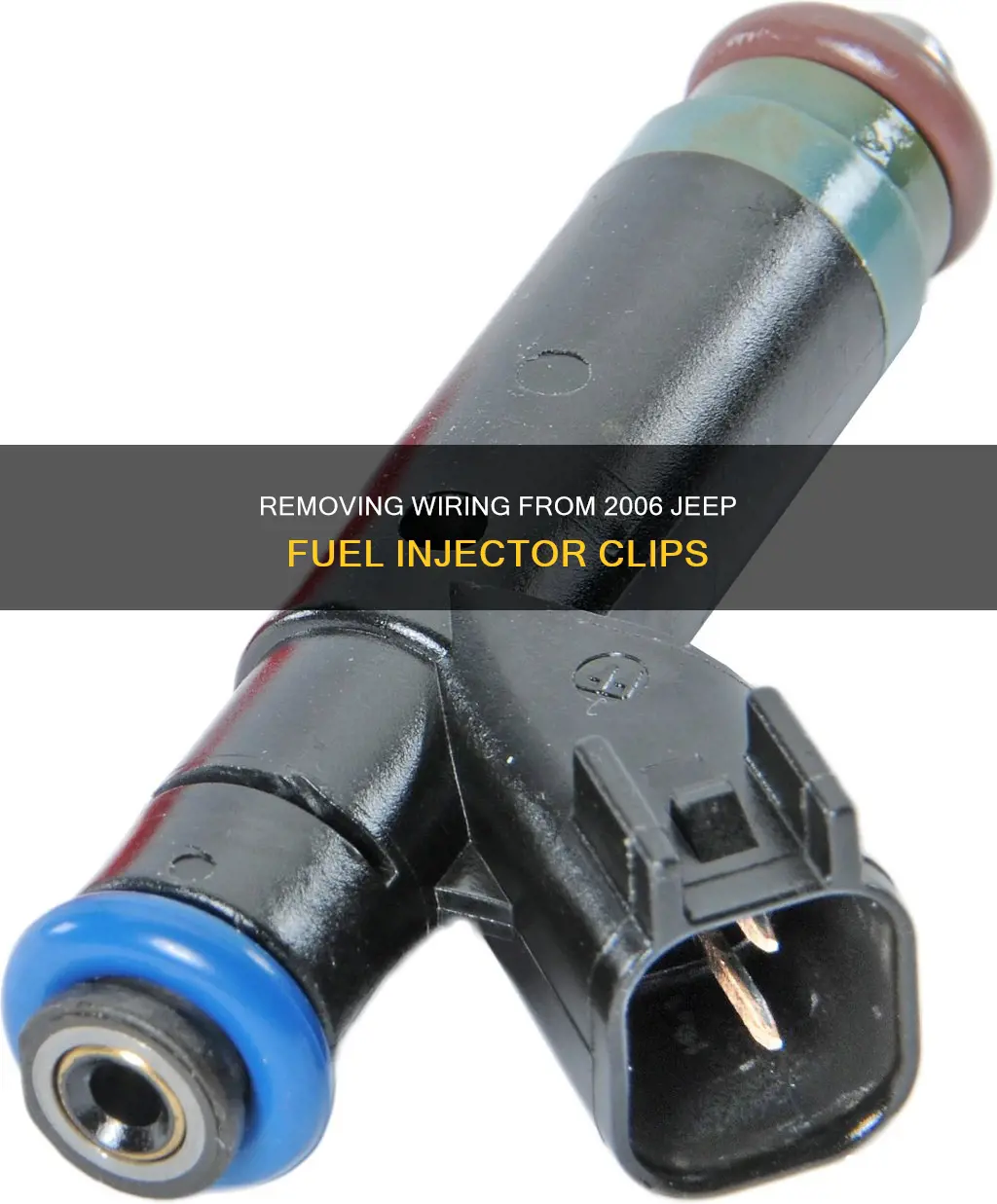

Removing the wiring from a 2006 Jeep's fuel injector clips can be a challenging task. While there are various methods to do this, some of the most common tools used include a flat-head screwdriver, a nylon pry tool, and even a soldering iron in some cases. It is important to note that the red slide or red tab is a locking device, and carefully sliding it away from the wire plug will unlock the clip holding the injector wire. Additionally, some Jeep models may require a standard procedure for fuel pressure release before attempting to remove the fuel injectors.
| Characteristics | Values |
|---|---|
| Vehicle | Jeep Wrangler TJ |
| Model Year | 2006 |
| Fuel Injector Rail | Equipped with a fuel pressure test port or not |
| Steps to Remove Fuel Injectors | 1. Remove fuel fill cap. 2. Remove fuel pump relay from Power Distribution Center (PDC). 3. Start and run the engine until it stalls. 4. Attempt to restart the engine until it no longer runs. 5. Turn the ignition key to the OFF position. 6. Unplug the connector from any fuel injector. 7. Attach one end of a jumper wire with alligator clips to either injector terminal. |
| Steps to Remove Fuel Injector Clips | 1. Remove the rail and the injectors. 2. Use a flat-head screwdriver to get under the red lock and wedge it between the lock and the connector body. 3. Pry against the sides, not the retaining clip. 4. Squeeze down with your finger in front of the clip and your thumb underneath to unlock and slide off. |
| Notes | The red slide is a locking device to prevent the injector wire from coming loose. |
Explore related products
What You'll Learn
Removing the fuel injector harness connector
Step 1: Prepare the Work Area
Before beginning, it is important to ensure that you have a clean and well-lit workspace. Place towels or rags around the engine bay to catch any falling parts and prevent them from getting lost in the engine compartment. Additionally, gather the necessary tools, such as a flat-head screwdriver, nylon pry tool, or a small reacher-mag to assist in reaching tight spaces.
Step 2: Locate the Fuel Injector Connector
Identify the fuel injector connector, which is typically located near the fuel injectors. Look for a small metal clip or a red locking tab on a black plastic plug. This locking tab is designed to secure the injector wire in place.
Step 3: Release the Locking Tab
Using a thin-tipped flat-head screwdriver, carefully pry under the red locking tab. Gently wedge the screwdriver between the tab and the connector body. You may need to apply upward force to pop the tab up and release it. Be cautious not to use excessive force, as these tabs can be fragile and prone to breaking.
Step 4: Disconnect the Wires
Once the locking tab is released, you can proceed to disconnect the wires from the fuel injector. Gently squeeze down with your finger in front of the connector and your thumb underneath, and slide the connector off. If the connector has been in place for a long time, it may require some wiggling and pulling to detach it completely.
Step 5: Handle the Clips with Care
Fuel injector clips are known to be tight and challenging to remove. If you encounter resistance, gently but firmly apply more force to pop them out. Be cautious when removing the clips, as they have a tendency to fly off and get lost. Consider using a magnet or a container to catch them if they do come loose suddenly.
Step 6: Alternative Methods
If you encounter difficulties with the above method, there are alternative approaches you can try. One suggestion is to remove the fuel rail and the injectors first, providing more space to work on the clips. Another method involves drilling a small hole into the top of the lock, twisting in a screw eye, and then pulling up to release the lock.
Remember to take your time and work carefully to avoid damaging any engine components. Always refer to a professional mechanic or a detailed video tutorial if you are unsure about any steps in the process.
Fuel Injector Cleaners: Spark Plug Fouling Culprits?
You may want to see also
Explore related products
Using a screwdriver to remove the wiring
To remove the wiring from a 2006 Jeep fuel injector, you can use a screwdriver to pry off the clips holding the wires in place. Here's a step-by-step guide on how to do it:
First, locate the red slide or red tab on the fuel injector. This is a locking device that ensures the injector wire stays in place. Gently slide the red lock away from the wire plug. Be careful not to use too much force, as these locks can be fragile and may break if too much force is applied.
Once the lock is slid out of the way, you can use a screwdriver to carefully pry the clip off the injector. It's recommended to use a small or thin-tipped flathead screwdriver for this task. Gently wedge the screwdriver between the red lock and the connector body and apply upward force to pop the clip up. You may need to wiggle and pull the clip a bit, especially if it has been on there for a while.
To prevent the clip from flying off and getting lost, it's a good idea to use a magnet or towel to catch it if it comes loose suddenly. You can also try to gently lift the clip upwards with the screwdriver, being careful not to break it. If the clip does break, you may need to purchase a replacement connector.
In some cases, you may need to remove the fuel rail and injectors before you can access the clips. This will give you more room to work and make it easier to remove the clips without breaking them.
Additionally, some people have found success with other tools, such as a nylon pry tool or a pick, but these may not be as effective as a flathead screwdriver.
Overall, removing the wiring from a 2006 Jeep fuel injector clips using a screwdriver can be a delicate process, but with patience and care, it can be done successfully.
Fuel Injector Cleaner and Octane Booster: Compatible or Not?
You may want to see also
Explore related products
Removing the valve covers
To remove the valve covers of a 2006 Jeep, you will first need to relieve the fuel system pressure. This can be done by removing the fuel fill cap and the fuel pump relay from the Power Distribution Center (PDC). Then, start and run the engine until it stalls and attempt to restart the engine until it no longer runs. This should slowly depressurize the fuel rail.
Next, you will need to disconnect the fuel injectors. There should be a small metal clip that goes in sideways and holds the injector wire in place. Carefully slide the red lock away from the wire plug about 1/8 inch and then unlock and unplug the wires from the injectors. You can use a flat-head screwdriver to pry and lift the red clip upwards, but be careful as it may break and fly out. Place towels around the area to catch the clip if it comes loose.
Alternatively, you can use a nylon pry tool to remove the red clips. If you are having trouble removing the clips, you can try to drill a small hole into the top of the lock, twist in a screw eye, and then pull up on it. Once the clips are removed, you can disconnect the injectors by removing the metal tab.
Please note that powering an injector for more than a few seconds can permanently damage it. Always refer to a professional mechanic's advice if you are unsure about any steps.
Fuel Injector Settings: Identifying the Right Setup
You may want to see also
Explore related products
Disconnecting the injectors
Step 1: Prepare the Work Area
Before beginning, ensure you have gathered the necessary tools, such as a flat-head screwdriver, nylon pry tool, or a small reacher-mag to prevent parts from flying across the room. Place towels around the engine bay to catch any falling parts.
Step 2: Release Fuel Pressure
Follow the standard procedure for fuel pressure release. Remove the fuel fill cap and the fuel pump relay from the Power Distribution Center (PDC). Run the engine until it stalls, and then attempt to restart it until it no longer runs. Finally, turn the ignition key to the "OFF" position. This step is crucial for safety.
Step 3: Locate the Red Locking Tab
Identify the red locking tab or red slide on the fuel injector. This locking device ensures that the injector wire remains securely in place.
Step 4: Unlock the Connector
Using a thin-tipped flat-head screwdriver, carefully wedge it under the red lock. Gently pry upwards to unlock the connector. You can also try sliding the red lock away from the wire plug about 1/8 inch to unlock it. Be cautious, as these red clips can be tight and may require significant upward force to release.
Step 5: Disconnect the Injector Wires
Once the connector is unlocked, carefully press on the thumb tab to unplug the wires from the injectors. You may need to wiggle and pull the connector to release it, especially if it has been on there for a while.
Step 6: Remove the Fuel Rail
If you are replacing a single injector, you may need to remove the fuel rail. Gently pry the clip off the injector with a small flat-head screwdriver. Be careful not to damage the clip, as they can be challenging to remove without breaking.
Step 7: Disconnect Individual Injectors
With the fuel rail removed, you can now disconnect the individual injectors by removing the metal tab on them. This process may require some force, as the injectors seat snugly in the intake ports.
Step 8: Clean and Inspect
Once the injectors are disconnected, clean the area and inspect the components for any damage or wear. Pay close attention to the O-rings and clips, as they may need to be replaced if damaged or worn out.
Remember to work carefully and patiently throughout the process. Fuel injectors and their connectors are delicate, and applying excessive force can lead to breakage. Always refer to a qualified mechanic or a detailed video tutorial if you are unsure about any steps.
Diagnosing Car Issues: Fuel Injector or Fuel Rail Clog?
You may want to see also
Explore related products
Releasing fuel system pressure
To remove the wiring from a 2006 Jeep's fuel injector clips, you must first release the fuel system pressure. Here is a step-by-step procedure:
- Remove the fuel fill cap.
- Locate the fuel filler tube, which contains a spring-loaded flap (door) below the fuel fill cap. This flap is used to seal the fuel tank if the cap is loose.
- Place a non-metallic object into the fuel filler tube and press on the flap to relieve any tank pressure.
- Remove the fuel pump relay from the Power Distribution Center (PDC). Refer to the label on the underside of the PDC cover to locate the relay.
- Start and run the engine until it stalls.
- Attempt to restart the engine until it will no longer run.
- Place a rag or towel below the fuel line quick-connect fitting at the fuel rail to catch any spilled fuel.
- Disconnect the quick-connect fitting at the fuel rail.
- Return the fuel pump relay to the PDC.
- Note that one or more Diagnostic Trouble Codes (DTCs) may have been stored in the PCM memory due to fuel pump relay removal. Use the DRB scan tool to erase these codes. Refer to Group 25, Emission Control System for more details.
Once the fuel system pressure has been released, you can proceed with removing the wiring from the fuel injector clips. This process can be challenging, and it is important to exercise caution to avoid damage or injury. Refer to other sources for detailed instructions on removing the wiring from the fuel injector clips of a 2006 Jeep.
