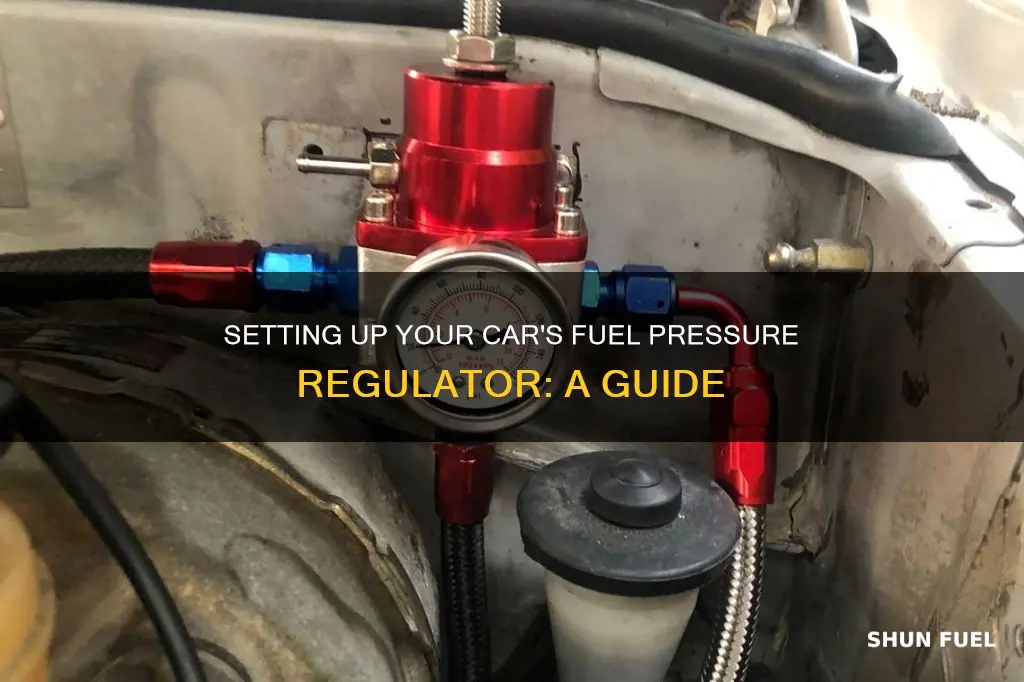

Setting up a fuel pressure regulator for your car is a simple process, but it's important to do it correctly to ensure optimal performance and safety. The fuel pressure regulator is a critical component of your car's fuel delivery system, and it needs to be matched to the type of system and fuel pump you're using. In this guide, we'll cover the key considerations for choosing and installing a fuel pressure regulator, including the different types available and the benefits of each style. We'll also provide step-by-step instructions on how to set up a fuel pressure regulator, including important safety checks like checking for blockages and leaks to ensure your car's engine is running smoothly.
Explore related products
What You'll Learn
Choosing the right fuel pressure regulator
Understand Your Fuel System
Firstly, you need to know your vehicle's fuel system type. Your car will either have a carburetor or an Electronic Fuel Injection (EFI) system. These systems mix air and fuel for the engine but operate differently. EFI systems deliver fuel more accurately and at higher pressures than carbureted systems. EFI systems are found in most modern vehicles and can be identified by a fuel injector for each cylinder near the engine's intake manifold. Carbureted systems, on the other hand, use a low-pressure fuel pump or an external regulator to reduce pressure.
Consider the Type of Regulator
There are different types of fuel pressure regulators available, each with its own advantages and considerations. Here are some common types:
- Bypass Regulator: This type of regulator bleeds off excess fuel pressure and returns it to the fuel tank, helping maintain stable pressure. It can react quickly to sudden fuel flow changes and prevent issues like pressure creep.
- Deadhead or Blocking Regulator: This regulator controls pressure differently, without a return line. When pressure exceeds the set amount, a valve restricts fuel flow, reducing the pressure after the regulator.
- Return-style Regulator: This regulator features a dedicated return line to the tank and is often recommended for EFI and high-pressure carb installations. It helps maintain fuel temperature within operating conditions.
Adjustable vs Fixed Pressure
Some fuel pressure regulators offer adjustable pressure settings, allowing you to customise the fuel pressure based on your vehicle's unique components and applications. Adjustable regulators are common in aftermarket products and can be fine-tuned for optimal engine performance. On the other hand, some regulators have fixed pressure settings, which may limit customisation.
Research Your Fuel Pump
It's important to research your fuel pump's specifications, including flow rate, maximum working pressure, and amperage draw. This information will help you choose a compatible fuel pressure regulator and ensure the system operates effectively.
Remember, choosing the wrong regulator or neglecting a faulty one can lead to decreased performance, higher fuel consumption, and fuel leaks. Always refer to the manufacturer's recommendations and consult experts if needed to make an informed decision when selecting a fuel pressure regulator.
Tips for Finding Fuel-Efficient Used Cars
You may want to see also
Explore related products
Installation and placement
When choosing the location for your fuel pressure regulator, you need to consider the specific requirements of your vehicle's fuel system. In some cases, the placement of the regulator may be determined by ease of installation, adjustment, and appearance. However, for high power applications, extra low fuel pressure systems, and high-g launches, it is recommended to mount the regulator as close to the fuel delivery destination as possible. This includes high power applications with a high difference in fuel flow rate between idle and full throttle, where placing the regulator closer will reduce pressure loss.
For "high-g" launches, such as in drag racing, the regulator should be placed close to the fuel destination to minimize fuel pressure reduction caused by g-forces. If the fuel line is positioned perpendicular to the direction of the launch, high-g forces will not affect fuel pressure. Additionally, for "lower power" gas or ethanol systems, the regulator can be placed at a greater distance from the fuel destination without significant pressure loss.
The type of regulator you choose is also important. Some regulators have a fixed pressure setting, while aftermarket regulators are often adjustable. Adjustable regulators allow you to set the fuel pressure based on your unique components and applications. Bypass-style regulators, for example, can help prevent issues such as fluctuating fuel pressure and pressure creep, as well as reducing fuel temperature and providing a more stable pressure curve.
Finally, when installing the regulator, make sure to follow the instructions provided by the manufacturer. Consult your FPR manual to identify the location of your FPR and which ports are fuel in and fuel out. Additionally, ensure that you have the correct fittings and adapters, and consider factors such as fuel resistance and amperage draw.
Alternative Fuel Sources: Past, Present, and Future of Cars
You may want to see also
Explore related products
$172.99 $185.95
Adjusting fuel pressure
First, it is important to understand the role of the fuel pressure regulator. The regulator ensures that the fuel pump maintains the correct fuel pressure, preventing issues such as vapor lock and pressure creep. The regulator also helps to regulate the increased volumes of fuel pumped by high-flow aftermarket fuel pumps.
Next, choose the correct location for your fuel pressure regulator. The placement of the regulator can impact fuel pressure, especially in high-power applications and high-G launches, such as drag racing. In these cases, mounting the regulator close to the fuel delivery destination is recommended to minimize pressure loss. For diesel systems, the placement of the regulator is less critical, and ease of installation, adjustment, and appearance can be prioritized.
Now, let's get into the specific steps for adjusting fuel pressure:
- Consult the manual: Refer to the fuel pressure regulator's manual to understand the specific adjustments and settings available for your regulator. This will ensure you make the correct adjustments.
- Base fuel pressure: Set the base fuel pressure to the recommended level for your vehicle. For example, a Nissan RB25 should have a base fuel pressure of around 43 psi or 3 Bar when the vacuum hose is disconnected.
- Reconnect the vacuum hose: If you have one, reconnect the vacuum hose and observe the fuel pressure drop. The vacuum hose affects fuel pressure, so ensure it is properly connected.
- Adjust the fuel pressure: Using the tools specified in your regulator's manual, adjust the fuel pressure to the desired level. This may involve loosening a lock nut and turning a hex key to raise or lower the pressure. With a gauge installed, you can monitor the pressure change in real time.
- Test and fine-tune: After making your adjustments, start the car and test drive it to ensure the fuel pressure regulator is working correctly. Fine-tune the adjustments as needed to optimize the fuel pressure for your vehicle's performance.
Remember, it is important to choose the correct fuel pressure regulator for your vehicle and fuel delivery system. Always refer to the manufacturer's instructions and take the necessary safety precautions when working on your car's fuel system.
Electric Cars: Hydrogen Fuel Cell Usage Explained
You may want to see also
Explore related products
Troubleshooting
Fluctuating Fuel Pressure and Rough Idle:
If your car experiences rough idling, especially when shifting into Drive or Reverse, and the RPMs fluctuate between 500-900, it could be a sign of a faulty fuel pressure regulator. In some cases, the engine may stall when RPMs drop below 500. Check for other symptoms such as the "Check Engine" light turning on or the car going into "limp mode". These issues could indicate a problem with the fuel pressure regulator, and you may need to consult a mechanic or a specialist for further diagnostics and repairs.
Overworking a Dead Head Regulator:
Dead head regulators are commonly used in carbureted engines. However, they may encounter problems such as fluctuating fuel pressure, pressure creep, or flooding the engine by overpowering the carb needle and seat. A possible solution is to switch to a bypass-style regulator, which can alleviate these issues by bleeding off excess fuel pressure and returning it to the fuel tank, resulting in more stable fuel pressure and quicker reactions to sudden fuel flow changes.
Adjusting Fuel Pressure:
If you've installed an aftermarket fuel pressure regulator, you may need to adjust the fuel pressure to suit larger injectors or engine modifications. Ensure that you have the correct information about your fuel pump, such as flow and maximum working pressure. You can then adjust the fuel pressure accordingly, usually by loosening the lock nut and turning the hex key to raise or lower the pressure. Refer to your vehicle's manual or seek advice from a qualified technician for specific instructions.
Mounting the Regulator:
The location of the fuel pressure regulator is crucial. In most cases, you can mount the regulator for ease of installation, adjustment, and appearance. However, for high power applications, extra low fuel pressure systems, and high-g launches, it is recommended to mount the regulator as close to the fuel delivery destination as possible to minimize pressure loss. Additionally, ensure that the regulator is at least 100mm away from any significant heat source to prevent heat-related issues.
Fuel Sensor Failure: Can It Immobilize Your Car?
You may want to see also
Explore related products
Advantages of bypass and deadhead style regulators
Bypass and deadhead style regulators are two types of fuel pressure regulators that can be installed in cars. While deadhead regulators outlet only 6 psi to the carbs, bypass regulators can react more quickly to sudden changes in engine load. This prevents pressure creep and inconsistent fuel pressure, which can lead to engine flooding and heat. Bypass regulators also keep the fuel cooler, increase the life of the fuel pump, and decrease noise.
Bypass regulators are also better at handling the increased fuel flow demands of high-output engines. They do this by bleeding off excess fuel pressure and returning it to the fuel tank via a return line. This helps to maintain a steady fuel pressure and prevents potential engine flooding and heat.
Deadhead regulators, on the other hand, can struggle to maintain steady fuel pressure when the fuel flow demands are high. This is because the pump continually builds pressure by recirculating the same fuel, which builds heat. This can lead to pressure creep, inconsistent fuel pressure, and potential engine flooding.
Overall, bypass regulators offer several advantages over deadhead regulators, including improved fuel pressure regulation, increased fuel pump life, and reduced noise. They are also better suited for high-output engines and can help prevent engine flooding and heat-related issues.
Fuel Leaks in Idling Cars: What You Need to Know
You may want to see also
Frequently asked questions
A fuel pressure regulator is a critical piece of equipment that should be matched to the type of fuel delivery system and the fuel pump that you are using or plan to use.
When choosing a fuel pressure regulator, it is important to take into consideration several factors, such as the fuel delivery system and the fuel pump that you are using. It is also important to choose the correct location for your fuel pressure regulator.
First, consult your FPR manual to identify the location for your FPR and which ports are fuel in/fuel out. Then, bolt the mounting bracket onto your bracket which is bolted to the engine. Finally, connect the vacuum hose from the manifold to the FPR.
Some common problems include fluctuating fuel pressure, pressure creep, and the possibility of overpowering the carbs needle and seat, which can flood your engine and wash the cylinder walls.
A bypass-style regulator can help alleviate issues such as pressure creep and fluctuating fuel pressure by bleeding off the excess fuel pressure and returning it to your fuel tank. This design can also react much quicker to sudden fuel flow changes.
