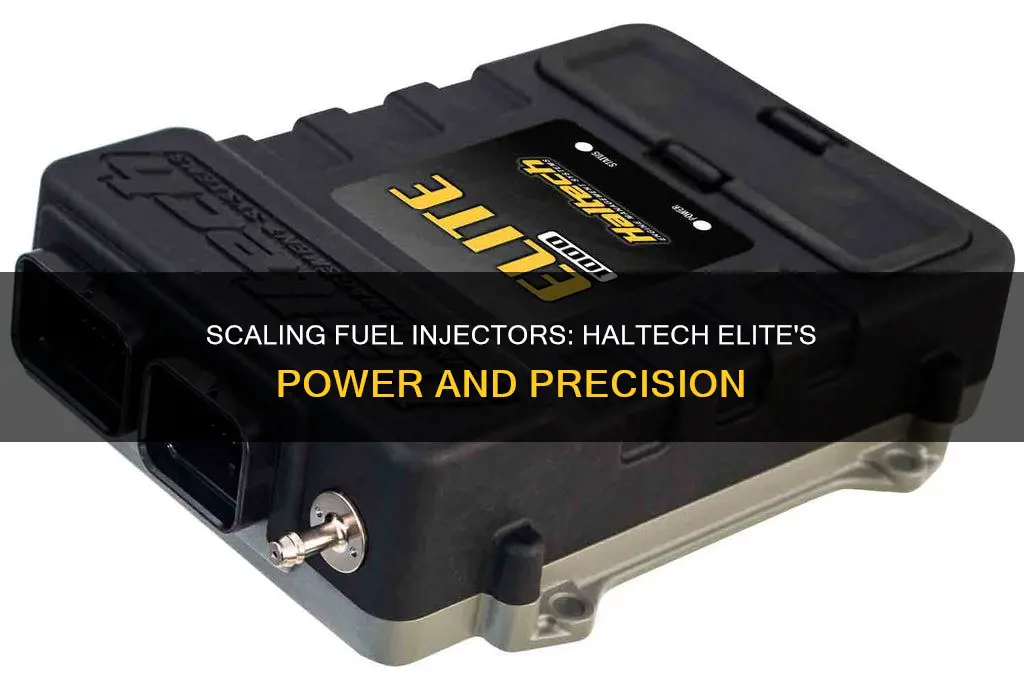

The Haltech Elite 2500 is a powerful ECU (engine control unit) that can be used to scale fuel injectors. While the Haltech Elite is a quality product, users have reported issues with injector resizing and flow rate. For example, one user with an R33 GT-R reported that their car would not start after resizing the injectors for the base map. Another user with a 350Z reported issues with ID's published data, requiring them to adjust the dead times and flow rates to achieve the desired results. To scale fuel injectors with the Haltech Elite, users must configure the deadtime and flow data relative to differential pressure, taking into account the injector flow rate and fuel pressure.
Explore related products
What You'll Learn
Injector flow rate
When scaling fuel injectors with the Haltech Elite, it is essential to have accurate data regarding the injector flow rate and pressure relationship. This information is typically provided by the injector supplier. Injector Dynamics, for instance, offers characterisation data that includes slope and offset vs pressure. If such information is unavailable, it is advisable to seek assistance from forums or opt for injectors with known characterisation data.
In the Haltech Elite, you can set up deadtime and flow data relative to differential pressure. This is particularly useful in returnless fuel systems to manage the constantly changing injector flow. By referencing the supplier's data, you can input the corresponding fuel pressure and dead times to ensure accurate scaling. It is worth noting that you may need to make adjustments to the values to avoid unrealistic VE numbers.
The process of scaling fuel injectors with the Haltech Elite also involves configuring the software appropriately. For instance, in the NSP software, the dead time data is presented in a 3D table format. Additionally, when setting up the fuel system, you may need to delete certain columns and input the correct values provided by the injector manufacturer. This ensures that the flow rate is configured correctly for the specific injectors being used.
Furthermore, when scaling fuel injectors, it is important to consider the cranking fuel. Adjustments to the cranking fuel may be necessary to ensure the engine starts and runs smoothly. This involves multiplying the cranking fuel value to scale it for the specific injector size, such as 1300cc injectors. By making these adjustments, you can ensure that the injectors receive the required amount of fuel during cranking or startup.
Fuel Injectors: Cost of AR Upgrades and Maintenance
You may want to see also
Explore related products
Injector resizing
In the context of using a Haltech Elite ECU, injector resizing can be achieved through the following steps:
Step 1: Understand the Injector Specifications
Before beginning the resizing process, it's crucial to gather the necessary information about your new fuel injectors. This includes the injector flow rate, dead times, and any other relevant data provided by the manufacturer. This information will guide your adjustments in the ECU.
Step 2: Access the Fuel System Setup
Using the Haltech Elite software, navigate to the fuel system setup section. Here, you will be able to input the specifications of your new fuel injectors and make the necessary adjustments.
Step 3: Configure Dead Times and Flow Rates
In the fuel system setup, you will find tables for dead times and flow rates. For dead times, ensure that the rows are set correctly, and you only have two columns: one for 43.5 PSI (3 BAR) and another for 58 PSI (4 BAR). Delete any unnecessary columns and input the values provided by the manufacturer. Similarly, for flow rates, you will only need two columns for 43.5 PSI and 58 PSI. Input the corresponding values from the manufacturer's data.
Step 4: Adjust Cranking Fuel
When upgrading to larger injectors, it is common to increase the cranking fuel to ensure proper starting and running of the engine. Multiply the cranking fuel value by a factor, such as 0.33, to scale it appropriately for the new injectors. This adjustment helps the engine receive the required amount of fuel during startup.
Step 5: Monitor and Fine-Tune
After making the necessary adjustments, start the engine and monitor its performance. Observe parameters such as the air-fuel ratio (AFR) to ensure that the engine is running within the desired range. Fine-tune the settings as needed to optimize performance and ensure the engine runs smoothly with the new injectors.
It is important to note that the specific steps and adjustments may vary depending on the vehicle, the injectors, and the particular Haltech Elite ECU being used. Always refer to the manufacturer's instructions and specifications, and consider seeking assistance from a professional or experienced tuner if you are new to the process.
Fixing a Faulty Fuel Injector: ECU Driver Diagnostics
You may want to see also
Explore related products
$137.58 $165
Base fuel pressure
The base fuel pressure is important because it changes how the fuel system needs to be set up in the PCM. There are two generic types of fuel system setups: returnless and return style. A returnless system does not return fuel to the tank, while a return style system will bleed excess fuel back to the tank through the regulator. Return style systems can maintain a constant effective fuel pressure, which can extend the range of fuel injectors and help them function at lower fuel demands.
The base fuel pressure can be adjusted to a lower value, but this may have implications for the rest of the system. For example, changing the base fuel pressure can affect the injector flow rate and may require re-tuning the car. Additionally, most aftermarket fuel pump PRVs open below or very near the base fuel pressure, which can cause issues when it exceeds the PRV pressure.
It is important to consider both the rail pressure and the effective pressure when working with fuel injectors. The rail pressure is the pressure inside the rail, while the effective pressure is the actual applied pressure for the injector and is the pressure differential across the injector. Effective pressure is what injector flow rate is based on.
Fuel Injectors in Chevy Blazers: 2000 S10 Edition
You may want to see also
Explore related products
Deadtime and flow data
The deadtime values are specific to each injector model and are provided by the manufacturer in the form of injector dynamics data. This data helps in creating deadtime maps that guide the injectors' "on-time" and "closing time." The "on-time" refers to the duration the solenoid needs to be energised to deliver the required amount of fuel at a specific rail pressure. The "closing time" is determined by the injector design and represents the time taken by the injector to shut off the nozzles after fuel delivery.
Flow data, on the other hand, pertains to the fuel flow rate through the injectors. The Haltech Elite allows users to map pressure versus various flow rates, which is particularly beneficial for returnless fuel systems where injector flow rates fluctuate with manifold pressure. By understanding the flow data, you can fine-tune the fuel delivery to match the engine's requirements.
When scaling fuel injectors, it is essential to consider both deadtime and flow data together. They play a crucial role in ensuring precise fuel injection, which is fundamental to achieving optimal engine performance and maintaining fuel efficiency. By calibrating these values, you can ensure that the injectors deliver the right amount of fuel at the right time, contributing to a seamless and efficient combustion process.
Cleaning Fuel Injectors: What Actually Works?
You may want to see also
Explore related products
Fuel pressure adjustment
When adjusting fuel pressure, it is essential to consider the impact on the flow rate. Any change in fuel pressure must be accompanied by a corresponding change in the flow rate number. The fuel pressure cell itself does not affect the tune, but it is important for engine protection. Haltech Elite allows you to map pressure versus various flows, which can be a useful feature for fine-tuning.
In some cases, the published data for injector flow rates may not align perfectly with the actual performance. It is not uncommon to encounter discrepancies that require adjustments to be made. For example, a user with a Haltech PS2000 and ID2000 injectors on a 2JZ engine had to input a higher value of 2200 or 2300 cc/min to achieve realistic VE numbers.
Additionally, when resizing injectors, it is crucial to modify the cranking fuel. For instance, a user with an R33 GT-R and Haltech Elite 2500 ECU experienced issues starting the car due to unmodified cranking fuel. By increasing the amount of fuel at cranking or startup, such as adding 25% or 50% more fuel, you can improve the chances of a successful startup.
To summarise, fuel pressure adjustment in Haltech Elite involves correctly setting the fuel pressure and flow rate, accounting for any non-linear flow areas, and ensuring that cranking fuel is appropriately modified. By following these steps and making any necessary adjustments, you can achieve a more efficient and reliable fuel injection system.
STP Fuel Injector Cleaner: Does It Work?
You may want to see also
Frequently asked questions
To scale fuel injectors with Haltech Elite, you need to set up your deadtime and flow data relative to differential pressure. You can also map pressure versus various flows with Haltech Elite.
The injector flow rate should be constant, with the same values in the whole table. The fuel pressure at the rail is constant due to the 1:1 regulator.
For the dead time on the Haltech, the rows are already set correctly. You will only need columns for 43.5 PSI and 58 PSI. Delete the standard 29.0 and 72.5 columns. The values from the left table go in the left column, and the right table values go in the right column against each voltage.
One issue could be that the car won't start at all. This could be due to not modifying the cranking fuel. Another issue could be high VE numbers at idle, which can be caused by incorrect injector sizing.
