Replacing an inline fuel filter is a straightforward process that can be done at home, saving you time and money. A fuel filter is an important component of your vehicle's fuel system, responsible for cleaning the fuel before it enters the engine. Over time, it can become clogged with debris, dirt, and grit, leading to poor engine performance and even breakdowns. To replace an inline fuel filter, you'll need to relieve the fuel pressure, remove the old filter, inspect it, install a new one, and prime the fuel system. This process typically takes 15 to 60 minutes and requires safety precautions, such as working in a well-ventilated area and wearing protective gear.
Characteristics of How to Replace an Inline Fuel Filter
| Characteristics | Values |
|---|---|
| Safety Precautions | Wear safety glasses, gloves, and protective clothing. Work in a well-ventilated area away from fire or sparks. Keep a fire extinguisher nearby. |
| Vehicle Preparation | Relieve fuel pressure by loosening the tank cap, depressing the valve core, or unplugging the fuel pump fuse. Shut off the fuel valve or clamp the fuel line. |
| Old Filter Removal | Loosen hose clamps, metal clips, or compression nuts using needle-nose pliers, screwdrivers, or line wrenches. Catch any dripping fuel with a dry cloth or drain pan. |
| Old Filter Inspection | Shake the filter over a clean cloth to remove fuel residue. Inspect for debris, grit, or a clogged mesh screen, pleated paper, or casing. |
| New Filter Installation | Ensure the directional arrow on the filter is facing the correct way, indicating the flow of fuel toward the engine. Tighten hose clamps or metal clips, being careful not to overtighten. |
| Repressurize the Fuel System | Reinstall the fuel pump fuse or relay. Turn the key to the "ON" position to reprime the fuel system. |
| Engine Start | Start the engine and check for any fuel leaks. Retighten clamps or hoses if necessary. |
Explore related products
What You'll Learn
Prepare the vehicle
Find a well-ventilated place to work, preferably in the shade and away from any fire risk. If you are working inside a garage, open the doors. Ensure you have a fire extinguisher to hand, and always wear eye protection.
Before you begin, relieve the pressure from the fuel supply line. Do this by loosening the tank cap and holding a cloth over the pressure test port while depressing the valve core. If you don't do this, pressurized gasoline will spray out when you remove the old inline filter.
If your vehicle has a fuel valve, shut it off. The fuel valve is usually located under the tank, where the fuel line is attached. If your vehicle does not have a fuel valve, carefully clamp the fuel line using a fuel line clamp. Be sure not to pinch the fuel line, as this could cause damage.
Now, locate the fuse or relay for your vehicle's fuel pump and unplug it. Try to start the vehicle. If you have disconnected the correct circuit, the engine will turn over but not start. It may also start and run for a few seconds before dying. Shut off the engine and let it cool if it has been running.
Replacing Fuel Tube in 2010 Ford Escape: Step-by-Step Guide
You may want to see also
Explore related products
Remove the old fuel filter
Before removing the old fuel filter, ensure you are in a well-ventilated area, away from any flames or sparks. Wear safety goggles and gloves, and have a fire extinguisher nearby. It is also important to relieve the pressure from the fuel supply line. Do this by loosening the tank cap and holding a cloth over the pressure test port while depressing the valve core. If your car has a fuel valve, shut it off. It is usually located under the tank, where the fuel line is attached. If your car does not have a fuel valve, use a fuel line clamp to clamp the fuel line.
Now, you can begin to remove the old fuel filter. It is usually mounted using hose clamps or metal clips. Hold the filter with a rag and use needle-nose pliers or a screwdriver to remove it. Be careful when removing the filter, and wipe up any gasoline spills around the fuel line and filter.
Once the filter is removed, you can inspect it for damage. Shake the old filter over a clean rag to remove any remaining fuel, and wipe away any residue from the outside. Check the residual fuel for debris and grit, which could be from a dirty fuel tank, an old or rusting tank, or an old, clogged fuel line. After removing all the residual fuel, look inside the filter. Check how dirty the pleated paper or mesh screen is.
After inspecting the old fuel filter, you can install the new inline fuel filter. Ensure that you install it in the correct direction, as indicated by the directional arrow on the side of the filter.
Replacing Your Boat's Fuel Sending Unit: A Step-by-Step Guide
You may want to see also
Explore related products
Inspect the old fuel filter
Inspecting the old fuel filter is an important step in the replacement process. It can provide valuable information about the condition of the fuel system and the engine. Here is a step-by-step guide on how to inspect the old inline fuel filter:
Step 1: Prepare the Work Area
Before beginning any work on the fuel filter, it is crucial to prioritise safety. Ensure you are working in a well-ventilated area, away from any sources of fire or sparks. Have a fire extinguisher nearby in case of emergencies. Wear safety gear, such as eye protection, gloves, and long sleeves to protect your skin from any fuel spills.
Step 2: Remove and Drain the Old Fuel Filter
Place a clean rag underneath the fuel filter to catch any spills. Remove the filter using the appropriate tools, such as needle-nose pliers or screwdrivers. Be cautious, as the filter may still contain fuel. After removal, shake the filter over the rag to remove any remaining fuel inside.
Step 3: External Inspection
Wipe away any residue or debris from the exterior of the filter. Check for any signs of damage or wear, such as cracks or leaks. Inspect the fuel line and the surrounding components for any signs of fuel leaks or contamination.
Step 4: Internal Inspection
Inspect the residual fuel that came out of the filter. Look for the presence of debris, grit, or other foreign bodies. These could indicate issues with dirty fuel, an old or rusting fuel tank, or a clogged fuel line. After removing all the residual fuel, look inside the filter through one end. Check the condition of the pleated paper or mesh screen. If it appears heavily soiled or clogged, this could be the cause of power loss and difficult acceleration.
Step 5: Optional – Further Testing
While the visual inspection of the old fuel filter is essential, there are also other tests that can be performed to assess its condition. One simple test is the blow test. Clean the inlet of the fuel filter and gently blow into it. If the filter is blocked, you will not be able to blow into it, and if it is severely clogged, it will be difficult.
Additionally, more advanced testing methods, such as flow testing, filtration efficiency testing, pressure testing, and durability testing, can be performed by professionals to evaluate the performance and quality of the fuel filter. These tests simulate different operating conditions and help ensure that the filter can effectively remove impurities, maintain adequate fuel flow, and withstand varying pressures and environmental conditions.
Upgrading Performance: Gy6 Carburetor to Fuel Injection
You may want to see also
Explore related products
Install the new inline fuel filter
Now that you've relieved the pressure from the fuel supply line and removed and inspected the old fuel filter, it's time to install the new inline fuel filter.

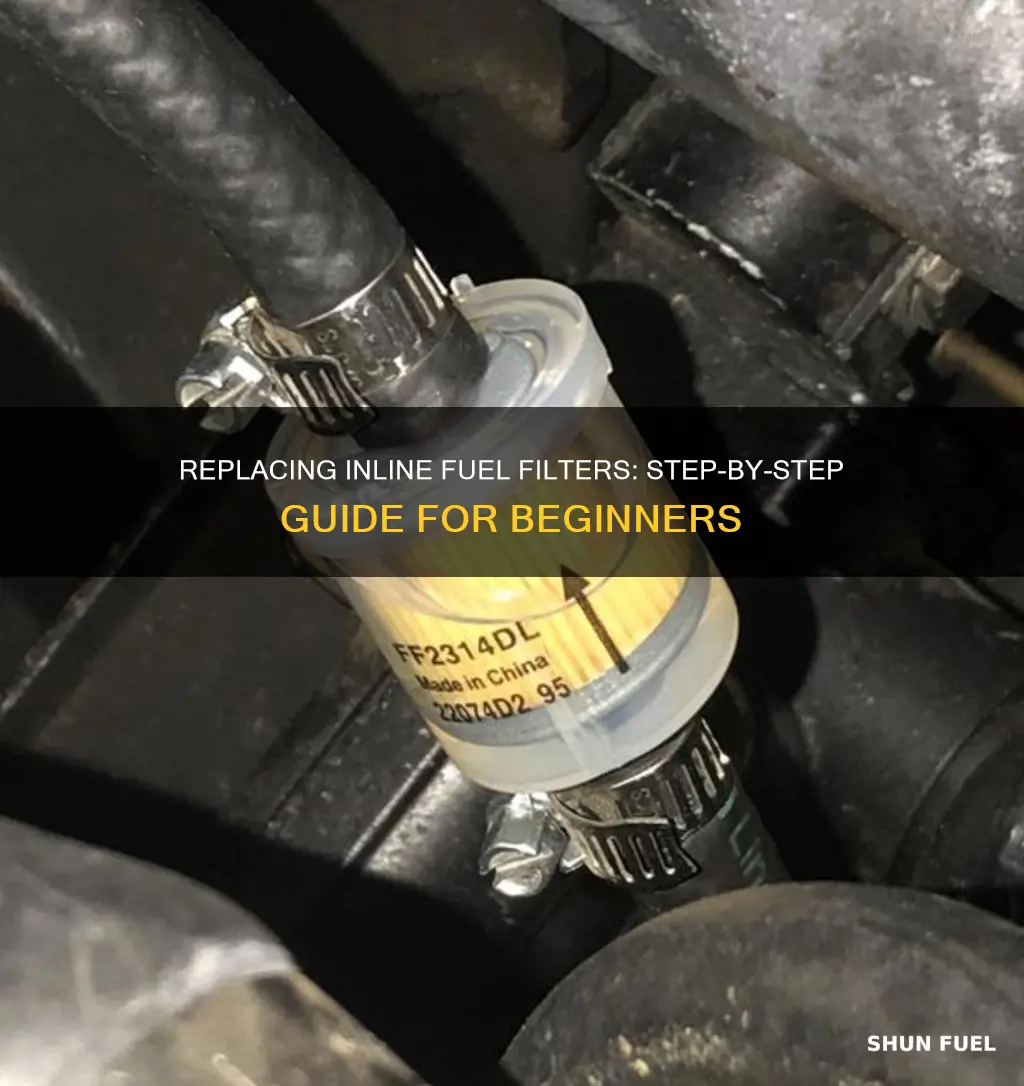

First, check the new filter for a directional arrow. This arrow indicates the direction in which the fuel will flow. Install the new filter accordingly, with the arrow pointing toward the engine. If there is no directional arrow, the larger hole is usually the one from the fuel tank, and the smaller one goes towards the engine.
Next, tighten the hose clamps or metal clips to secure the new filter in place. Be careful not to overtighten, as this may cause the fuel filter fittings to crack.
Once the new filter is securely in place, you can move on to the next step, which is priming the fuel system.
It is important to note that safety should always come first when performing any maintenance on your vehicle. Make sure to wear safety goggles and gloves, have a fire extinguisher on hand, and work in a well-ventilated area away from any potential sources of flames or sparks.
Replacing Fuel Sender in a 2009 Ford Expedition: Step-by-Step Guide
You may want to see also
Explore related products
Prime the fuel system
To prime the fuel system, you must remove any remaining air inside the injection system. This is done by ensuring that there is enough fuel in the tank and then clearing the air from the fuel line.
First, disconnect the battery. Then, locate the primer, which could be a pump or a bulb. It will be located near the fuel filter, on the fuel injector pump, along the fuel lines, or on the fuel filter cap.
If you have a hand-operated pump, you will need to work against the pressure and pump the fuel along the system until all the trapped air escapes. If you have a priming bulb, press it to draw fuel through the system. Be patient and allow the bulb to expand before pressing it again.
If you have a primer bulb, you can skip this step and move on to the next one. If you have a Mercury FourStroke outboard, the onboard electric fuel pump will prime the fuel system for you. Simply turn the key to the "run" position and wait. You'll hear a beep, followed by the sound of the fuel pump running.
Once you have located the primer, the next step is to open the bleed screw. The bleed screw is a small valve that allows trapped air to exit the system, ensuring that only fuel runs through the lines. It is typically located near the fuel filter, close to the injector pump, or at the high points of the fuel lines.
Have a container and a rag ready, as opening the screw will release air pockets and possibly some fuel. Once the flow becomes steady and consistent without any bubbles, you can close the screw.
Finally, reconnect the battery and start the engine. Turn on the ignition to pressurize the fuel. The engine may not start right away, as it can take a few seconds for the fuel to fill the system.
Replacing Fuel Sensors in Your 2008 Hyundai Santa Fe
You may want to see also
Frequently asked questions
Find a well-ventilated place, preferably under a shade and away from fire. If you're working inside a garage, open the doors. Have a fire extinguisher ready, and wear eye protection. Relieve pressure from the fuel supply line by loosening the tank cap and holding a cloth over the pressure test port and depressing the valve core. If your car has a fuel valve, shut it off. If not, clamp the fuel line using a fuel line clamp.
Filters are usually mounted using hose clamps or metal clips. Hold the filter using a rag and use needle-nose pliers or a screwdriver to remove it. Carefully remove the filter and wipe any fuel spills.
The direction in which the fuel will flow is marked with a directional arrow on the side of the filter. Install it accordingly. Tighten the hose clamps or metal clips, being careful not to overtighten and crack the fuel filter fittings.
