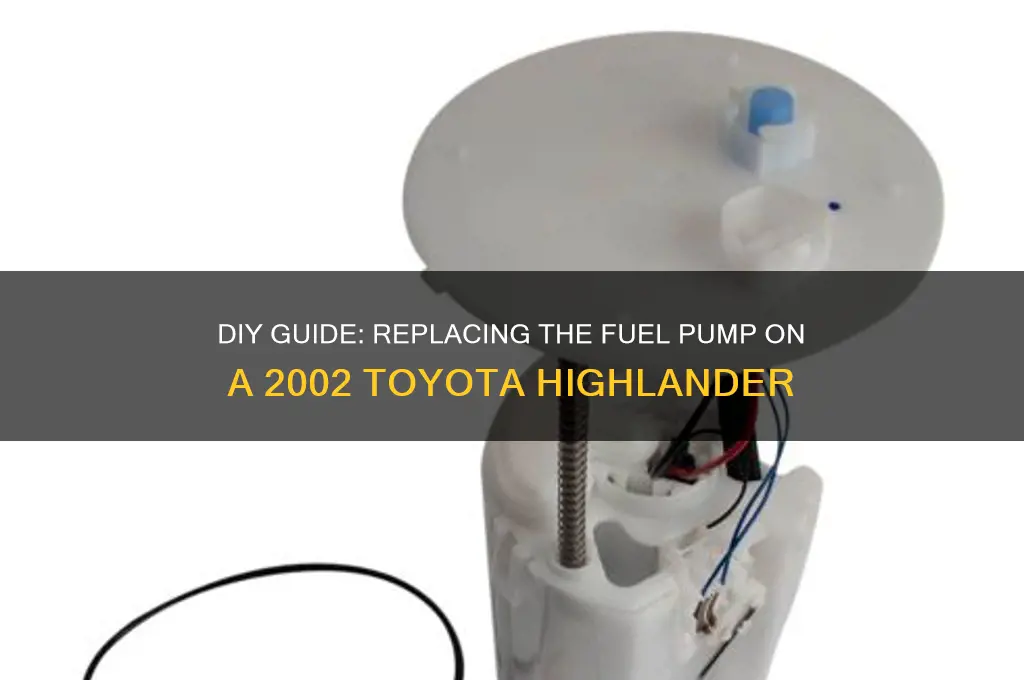

Replacing the fuel pump on a 2002 Toyota Highlander is a task that requires careful preparation and attention to detail. The fuel pump is a critical component of the vehicle's fuel system, responsible for delivering fuel from the tank to the engine. Over time, wear and tear can cause the fuel pump to fail, leading to symptoms such as difficulty starting the engine, stalling, or reduced performance. To replace the fuel pump, you’ll need to safely disconnect the battery, relieve fuel system pressure, remove the fuel tank, and carefully detach the old pump before installing the new one. This process involves working with fuel lines and electrical connections, so it’s essential to follow safety precautions and consult the vehicle’s service manual for specific instructions. With the right tools and a methodical approach, this repair can be accomplished successfully, restoring your Highlander’s fuel system to optimal functionality.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 Toyota Highlander |
| Fuel Pump Location | Inside the fuel tank (access through the rear seat or under the vehicle) |
| Tools Required | Socket set, wrenches, screwdriver, fuel line disconnect tool, jack stands |
| Safety Precautions | Relieve fuel pressure, disconnect battery, work in well-ventilated area |
| Steps to Replace | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove rear seat or access panel 4. Disconnect fuel lines and electrical connectors 5. Lower and remove fuel tank 6. Remove old fuel pump 7. Install new fuel pump 8. Reinstall fuel tank and reconnect components 9. Test for leaks and functionality |
| Estimated Time | 2-4 hours (depending on experience) |
| Difficulty Level | Intermediate to Advanced |
| Common Issues | Fuel tank rust, difficult access, fuel line leaks |
| Replacement Part | OEM or compatible fuel pump module |
| Cost of Parts | $150-$300 (varies by brand and quality) |
| Labor Cost (if professional) | $200-$400 (depending on location and shop rates) |
| Symptoms of Failing Fuel Pump | Engine sputtering, difficulty starting, loss of power, no start condition |
| Maintenance Tip | Regularly check fuel filter and pump for wear |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, safety gear, fuel line disconnect tool
- Locate Fuel Pump: Access through rear seat or fuel tank, disconnect battery, relieve fuel pressure
- Remove Fuel Tank: Support tank, disconnect lines, lower carefully, remove retaining straps and bolts
- Replace Fuel Pump: Remove old pump, install new one, ensure proper sealing, reconnect electrical and fuel lines
- Reinstall and Test: Secure tank, reconnect battery, check for leaks, start engine, verify operation
Gather Tools and Materials: Socket set, wrenches, screwdriver, new fuel pump, safety gear, fuel line disconnect tool
Before diving into the fuel pump replacement on your 2002 Toyota Highlander, it’s critical to assemble the right tools and materials. A socket set, wrenches, and a screwdriver are your foundational toolkit for removing bolts and fasteners securely. The socket set should include metric sizes, as Toyota vehicles typically use these measurements. A 10mm and 12mm socket will likely be your most-used tools during this process. Pair these with a ratchet and extension bar for hard-to-reach areas, ensuring you don’t strip any bolts.
Equally important is the fuel line disconnect tool, specifically designed to release the fuel lines without damaging them or causing leaks. Attempting this step without the proper tool can lead to fuel spills or system damage, turning a straightforward repair into a hazardous situation. Always handle fuel lines with care, as residual pressure can cause fuel to spray unexpectedly.
Safety gear is non-negotiable. Fuel is highly flammable, and working on the fuel system requires precautions. Wear nitrile gloves to protect your skin from fuel exposure and safety goggles to shield your eyes from potential splashes. A fire extinguisher should be within arm’s reach, though working in a well-ventilated area reduces the risk of ignition. Avoid open flames or sparks, and ensure your vehicle is on a level surface with the engine off and cooled down.
The new fuel pump is the centerpiece of this repair, and selecting the correct part is crucial. Verify compatibility with your 2002 Highlander’s make, model, and engine type. Aftermarket pumps are often more affordable than OEM parts, but ensure they meet quality standards to avoid premature failure. Inspect the new pump for damage before installation, as defects can cause immediate issues once in place.
Finally, organize your workspace efficiently. Lay out all tools and materials within easy reach to streamline the process. A magnetic parts tray can keep bolts and small components from rolling away, saving time and frustration. By preparing meticulously, you’ll transform a complex task into a manageable DIY project, saving hundreds in labor costs while gaining confidence in your automotive skills.
Carter 6626 Fuel Pumps: A History of Manufacturing and Durability
You may want to see also
Explore related products
Locate Fuel Pump: Access through rear seat or fuel tank, disconnect battery, relieve fuel pressure
The fuel pump in a 2002 Toyota Highlander is nestled within the fuel tank, a design choice that enhances safety and efficiency but complicates replacement. Locating it requires a strategic approach, as direct access isn’t as straightforward as popping the hood. Two primary methods exist: accessing the fuel pump through the rear seat or directly through the fuel tank. The rear seat method is less invasive, making it the preferred choice for DIY enthusiasts, while the fuel tank method is more direct but involves additional steps and precautions.
Before diving into either method, safety must take precedence. Start by disconnecting the battery to eliminate any risk of electrical shock or accidental ignition. This simple step is often overlooked but is critical in preventing hazards during the process. Next, relieve the fuel pressure in the system to avoid spills or accidents. This can be done by locating the fuel pressure relief valve, typically found near the fuel rail, and depressing it with a suitable tool while the engine is running. Once the engine stalls, the pressure is relieved, and you can proceed safely.
Accessing the fuel pump through the rear seat involves removing the rear seat cushion to expose the access panel. This method is cleaner and avoids the need to drop the fuel tank. Begin by folding down the rear seats and removing the retaining bolts or clips holding the seat cushion in place. Lift the cushion to reveal the access panel, which is secured by a few screws. Remove the panel to expose the fuel pump assembly. This approach is ideal for those who want to minimize the complexity of the task while still achieving professional results.
Alternatively, accessing the fuel pump through the fuel tank requires more effort but may be necessary if the rear seat method isn’t feasible. Start by draining the fuel tank to reduce weight and spillage risks. Then, safely raise the vehicle and secure it on stands to access the tank from underneath. Disconnect the fuel lines and electrical connectors, being mindful of their positions for reassembly. Lower the tank and remove the retaining ring to access the fuel pump. While this method is more labor-intensive, it provides a clear view of the entire assembly, which can be beneficial for diagnosing additional issues.
Regardless of the method chosen, precision and patience are key. Each step, from disconnecting the battery to relieving fuel pressure, serves a critical safety or functional purpose. By following these guidelines, you can confidently locate and access the fuel pump in your 2002 Toyota Highlander, setting the stage for a successful replacement. Always prioritize safety and take your time to ensure each step is completed accurately, as shortcuts in this process can lead to costly mistakes or hazards.
How Rocket Fuel Pumps Are Powered: A Deep Dive
You may want to see also
Explore related products
Remove Fuel Tank: Support tank, disconnect lines, lower carefully, remove retaining straps and bolts
Removing the fuel tank is a critical step in replacing the fuel pump on a 2002 Toyota Highlander, requiring precision and safety precautions. Begin by ensuring the vehicle is on a level surface and the fuel tank is as empty as possible to minimize weight and risk of spillage. Use a jack or a secure stand to support the tank from beneath, distributing the weight evenly to prevent accidental drops. This initial support is crucial, as the tank can be heavier than expected, especially if residual fuel remains.
Next, disconnect the fuel lines carefully, starting with the vapor and fuel hoses. Use a line disconnect tool to avoid damaging the quick-connect fittings, which are prone to cracking if forced. Label each line with tape or markers to ensure correct reinstallation, as misconnecting lines can lead to system malfunctions. Once disconnected, plug or cap the lines to prevent fuel spillage and debris entry, maintaining a clean and safe workspace.
Lowering the tank requires a controlled approach. Gradually release the supporting jack or stand, guiding the tank downward with steady hands or an assistant’s help. Avoid abrupt movements that could strain the retaining straps or damage surrounding components. Position a drain pan or absorbent material beneath the tank to catch any residual fuel, adhering to environmental and safety regulations.
Finally, remove the retaining straps and bolts securing the tank to the vehicle. Use the appropriate socket or wrench to loosen the bolts systematically, starting with those farthest from the tank’s center of gravity. Inspect the straps for wear or corrosion, replacing them if necessary to ensure future tank stability. With the straps and bolts removed, carefully slide the tank out from its mounting position, completing the removal process. This methodical approach minimizes risks and sets the stage for a successful fuel pump replacement.
Is a Fuel Pump Part of the Powertrain? Explained
You may want to see also
Explore related products
Replace Fuel Pump: Remove old pump, install new one, ensure proper sealing, reconnect electrical and fuel lines
The fuel pump in a 2002 Toyota Highlander is a critical component, and replacing it requires precision and attention to detail. Begin by safely raising the vehicle and removing the fuel tank to access the pump assembly. This step is crucial, as it ensures you can work on the pump without the risk of fuel spillage or electrical hazards. Once the tank is lowered, carefully disconnect the electrical connector and fuel lines from the old pump, taking note of their positions for reassembly.
Installing the new fuel pump involves more than just swapping parts. Ensure the replacement pump is compatible with your Highlander’s model and year, as variations can exist. Position the new pump into the tank, securing it with the provided locking ring or mechanism. Proper alignment is key—misalignment can lead to leaks or improper function. Use a torque wrench to tighten the locking ring to the manufacturer’s specifications, typically around 20-30 ft-lbs, to avoid over-tightening or under-tightening.
Sealing is a critical aspect often overlooked. Apply a thin, even layer of fuel-resistant sealant to the pump flange before installation, if recommended by the manufacturer. This prevents fuel leaks and ensures longevity. Inspect the tank gasket for wear or damage; replace it if necessary to maintain a secure seal. After installation, perform a dry fit to check for proper seating and alignment before finalizing the assembly.
Reconnecting the electrical and fuel lines is the final step, but it demands careful execution. Reattach the electrical connector, ensuring it clicks securely into place. Reconnect the fuel lines, using new clamps if the old ones are worn. Double-check all connections for tightness and proper orientation. Before reinstalling the fuel tank, perform a pressure test to verify there are no leaks. This meticulous approach ensures the new fuel pump operates efficiently and safely, restoring your Highlander’s performance.
John Deere STX 38 Fuel Pump: Does It Exist?
You may want to see also
Explore related products
Reinstall and Test: Secure tank, reconnect battery, check for leaks, start engine, verify operation
With the fuel pump assembly replaced, the final steps are critical to ensure your 2002 Toyota Highlander runs smoothly and safely. Reinstallation and testing are not just about putting everything back together; they’re about confirming that the repair was done correctly and that no new issues have been introduced. Start by carefully securing the fuel tank in place, ensuring all mounting bolts are tightened to the manufacturer’s torque specifications—typically 20-25 ft-lbs for this model. Loose bolts can lead to vibrations or, worse, a detached tank, so precision here is non-negotiable.
Next, reconnect the battery, but pause before turning the ignition. This is your last opportunity to inspect for fuel leaks before the engine starts. With the key in the "ON" position but the engine off, listen for the fuel pump priming cycle—a brief hum that confirms the pump is operational. Then, visually inspect all fuel lines and connections for signs of leakage. Even a small drip can escalate into a fire hazard, so use a rag to wipe down the area and check again. If everything appears dry, proceed to start the engine.
Starting the engine is a moment of truth. If the vehicle cranks but doesn’t start immediately, don’t panic—this could be residual air in the fuel lines. Give it a few seconds, and the engine should catch. Once running, let it idle for a minute to stabilize fuel pressure. Then, take the Highlander for a short test drive, paying attention to performance cues: Does the engine hesitate under acceleration? Are there unusual noises from the fuel tank area? These symptoms could indicate an improperly installed pump or a faulty component.
Verification doesn’t end with a successful start. Use a fuel pressure gauge to check that the pump is delivering the correct pressure, typically 40-60 PSI for this model. Low pressure could mean a clogged filter or a failing pump, while high pressure might indicate a faulty regulator. Additionally, monitor the fuel gauge for erratic behavior, which could signal an issue with the pump’s sending unit. By systematically checking these parameters, you ensure the repair is complete and the vehicle is road-ready.
Finally, treat this phase as a diagnostic opportunity. If everything checks out, you’ve successfully replaced the fuel pump. If not, revisit each step methodically—loose connections, incorrect torque, or overlooked leaks are common culprits. Remember, a rushed reinstallation can undo hours of careful work, so patience and attention to detail are your best tools. With the tank secured, battery reconnected, and operation verified, your 2002 Highlander is ready to hit the road again, reliably and safely.
Exploring the Diverse Types of Fuel Injection Pumps in Engines
You may want to see also
Frequently asked questions
The fuel pump is located inside the fuel tank, which is situated beneath the rear passenger seat area.
You’ll need a jack and jack stands, wrenches, screwdrivers, a fuel line disconnect tool, a new fuel pump module, and a new fuel filter (if applicable).
Yes, it’s recommended to drain as much fuel as possible from the tank to avoid spills and make the process safer and easier.
First, relieve the fuel system pressure, then remove the rear seat to access the fuel pump access panel. Lower the tank using a jack, disconnect the fuel lines and electrical connectors, and remove the pump assembly.
Replacing the fuel pump is a moderately difficult task that requires mechanical knowledge and tools. If you’re confident in your skills, you can do it yourself, but hiring a professional is recommended if you’re unsure.
