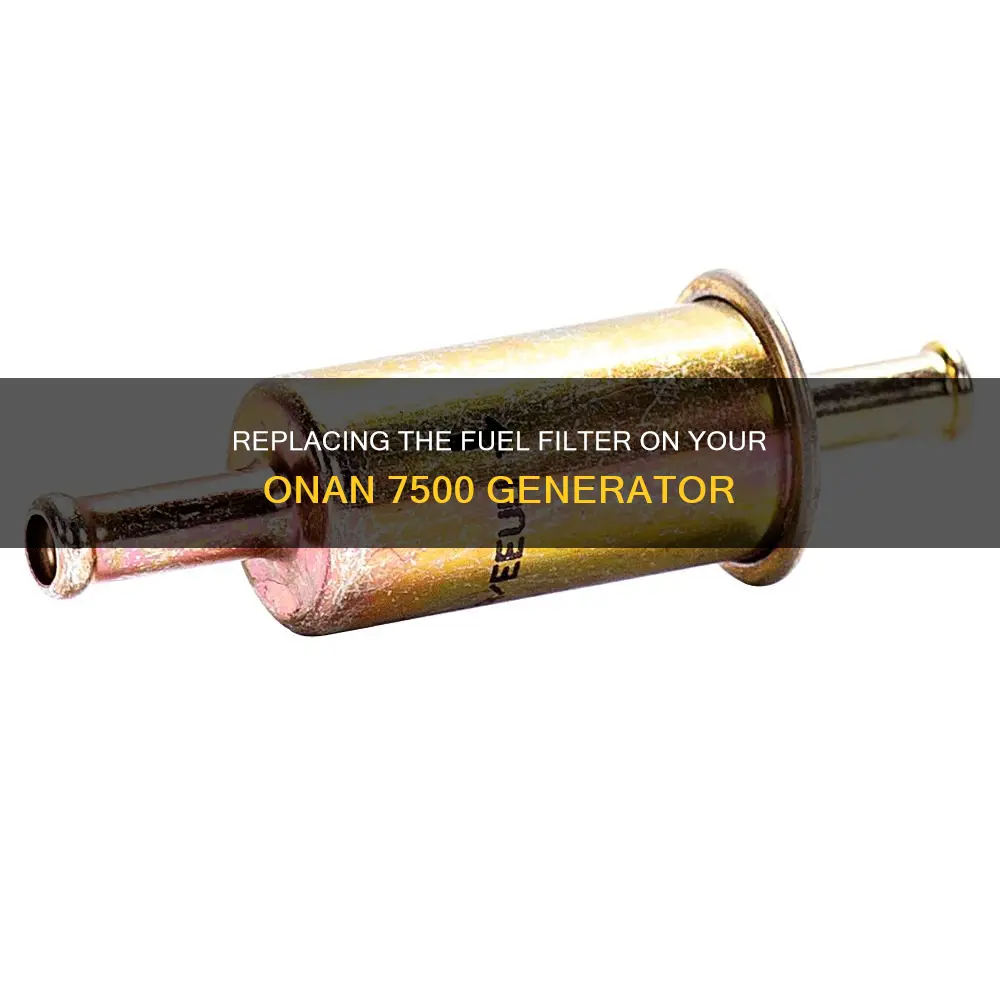

Onan 7500 Generator: A Step-By-Step Guide To Replacing The Fuel Filter

Replacing the fuel filter on an Onan 7500 generator is a straightforward process that can be accomplished with basic tools and a bit of mechanical know-how. This guide will walk you through the steps to ensure your generator runs smoothly and efficiently. By following these instructions, you can extend the life of your generator and maintain its performance.

Preparation: Gather tools, safety gear, and a clean workspace

Before you begin the process of replacing the fuel filter on your Onan 7500 generator, it's crucial to prepare the necessary tools, safety equipment, and a suitable workspace. This preparation will ensure a smooth and efficient repair process.

Gather the Tools and Equipment:

Start by collecting all the required tools and equipment. For this task, you will need a new fuel filter, which can be purchased from an authorized Onan dealer or a hardware store. Additionally, you'll require a wrench or a socket set to loosen and tighten the fuel filter mounting nuts. A pair of gloves and safety goggles are essential for protecting your hands and eyes from any potential fuel spills or debris. Consider using a funnel to facilitate the filter replacement process.

Safety Gear:

Personal protective equipment is vital to ensure your safety during the repair. Wear gloves to prevent skin contact with fuel, which can be harmful, and safety goggles to shield your eyes from any flying particles or fuel splashes. It's also a good practice to wear old clothing that you don't mind getting dirty or stained.

Clean and Organize Your Workspace:

Choose a well-lit and spacious area for your work. Clean the surface where you will be working to create a clutter-free environment. Ensure you have enough room to move around comfortably and access all sides of the generator. Organize your tools and equipment on a flat surface near the generator to have them readily available during the replacement process. This organized setup will make the task more efficient and less time-consuming.

By following these preparation steps, you'll be well-equipped to handle the fuel filter replacement, ensuring a safe and successful repair for your Onan 7500 generator. Remember, a well-prepared workspace and the right tools can make a significant difference in the overall efficiency of your project.

Locate Filter: Identify the fuel filter's location under the engine

To begin the process of replacing the fuel filter on your Onan 7500 generator, you'll need to locate the fuel filter itself. This filter is typically positioned under the engine, and its exact location can vary depending on the model year and specific Onan generator you own. Here's a step-by-step guide to help you identify the filter's location:

Start by consulting the owner's manual or the online resources specific to your Onan 7500 model. These sources will provide detailed diagrams and instructions tailored to your generator. Look for illustrations or descriptions that highlight the fuel system, as this will give you a clear idea of where the filter is situated. If you can't find the manual, consider searching for a video tutorial or a forum discussion where users have shared their experiences with locating the filter.

Under the engine compartment, locate the fuel tank. The fuel filter is usually connected to the fuel line that runs from the tank to the engine. It might be attached to the side or bottom of the tank, or it could be positioned near the engine's intake manifold. Carefully inspect the fuel lines and look for any signs of damage or wear. The filter might be a separate component or integrated into the fuel pump assembly.

If you're having trouble identifying the exact spot, consider the following clues. The filter is often a cylindrical or rectangular component with a mounting bracket or a few screws holding it in place. It may have a visible label or marking indicating its purpose. Sometimes, the filter is located close to the engine's air intake system, so keep an eye out for any connections or attachments near that area.

Remember, the key is to be thorough in your inspection. Take your time to examine the engine and fuel system, as the filter's location can vary based on the generator's design. If you're unsure, don't hesitate to consult a professional or seek further guidance from Onan's customer support.

Drain Fuel: Release pressure and drain old fuel to prevent spills

Before you begin the process of replacing the fuel filter on your Onan 7500 generator, it is crucial to drain the fuel system to prevent any spills or mess. This step is essential to ensure a clean and safe working environment. Here's a detailed guide on how to drain the fuel:

First, locate the fuel tank and identify the drain valve. This valve is typically found at the bottom of the tank and is designed to release fuel from the system. It might be a small screw or a dedicated drain port. Ensure you have a suitable container to catch the drained fuel, as it will contain old and potentially dirty fuel.

Next, release the pressure from the fuel system. This is a critical step to avoid any fuel spraying out when you open the tank. Turn off the generator and allow it to cool down if it has been running. Locate the fuel line that connects the tank to the engine. You can use a fuel gauge or a pressure gauge to check the pressure. If the pressure is high, you may need to wait a few minutes for it to drop. Alternatively, you can release the pressure by slightly opening the fuel line with a wrench, allowing the fuel to drain into the container.

Once the pressure is released, open the drain valve on the fuel tank. This will allow the old fuel to drain out. Keep the container positioned below the valve to collect the fuel. Be prepared for the fuel to flow rapidly, so have the container ready. If you're using a small container, consider placing it on a tarp or a spill-proof surface to catch any potential spills.

After the fuel has been drained, it's a good practice to run the generator for a few minutes to ensure that the new fuel filter is fully operational. This step helps to clear any remaining old fuel from the system. Keep an eye on the drain container to ensure it doesn't overflow, and dispose of the used fuel responsibly.

Remember, proper fuel drainage is a vital part of the maintenance process to keep your Onan 7500 generator in optimal condition. It ensures a clean fuel system, reduces the risk of spills, and makes the filter replacement process much safer and more efficient.

Remove Old Filter: Carefully disconnect and unscrew the old filter

To begin the process of replacing the fuel filter on your Onan 7500 generator, you'll need to carefully remove the old filter. Start by locating the fuel filter, which is typically found along the fuel line, often near the engine. It is usually a cylindrical or rectangular plastic or metal component. Once you've identified the filter, use a fuel filter removal tool or a pair of channel locks to grip the filter securely. This tool will help you twist and turn the filter without damaging the surrounding components.

Gently but firmly twist the filter counterclockwise to loosen it from the fuel line. Be cautious as you don't want to force it, as this can lead to damage. If the filter is stuck, you may need to apply some gentle prying with the tool to release it. Take note of the orientation of the filter and the fuel line to ensure proper installation of the new filter.

As you remove the old filter, inspect it for any signs of contamination or damage. You might find that the filter has accumulated dirt, debris, or even small clogs over time. This is a good opportunity to clean the fuel line as well, ensuring that no contaminants are left behind.

Once the old filter is completely removed, you'll have a clear view of the fuel line. Make sure there are no kinks or bends in the line that could cause issues during the replacement process. With the old filter out of the way, you're now ready to proceed to the next step of installing the new fuel filter.

Install New Filter: Tighten the new filter securely, following manufacturer instructions

To replace the fuel filter on your Onan 7500 generator, you'll need to start by accessing the filter. This is typically located near the fuel tank, and you may need to remove some panels or access doors to get to it. Once you've located the filter, you can proceed with the replacement.

The first step is to remove the old filter. This usually involves unscrewing or unclipping it from its mounting bracket. Be careful not to spill any fuel that may have accumulated around the filter. You might want to place a rag or some paper towels under the filter to catch any drips.

Now, it's time to install the new filter. Take the new filter and align it with the mounting bracket. Ensure that the filter is oriented correctly, as some filters have specific directions for installation. Tighten the filter securely by hand, following the manufacturer's instructions for the correct torque. Over-tightening can damage the filter or the mounting bracket, so be careful and use a wrench if necessary, but only after checking the manufacturer's guidelines.

Once the new filter is in place and tightly secured, you can reattach any panels or access doors that you removed earlier. Make sure everything is properly aligned and secured. Before starting the generator, it's a good idea to check for any fuel leaks around the filter area.

Remember, if you're unsure about any step or encounter any issues, it's best to consult the Onan 7500's user manual or seek professional assistance. Properly replacing the fuel filter will ensure your generator operates efficiently and reliably.
