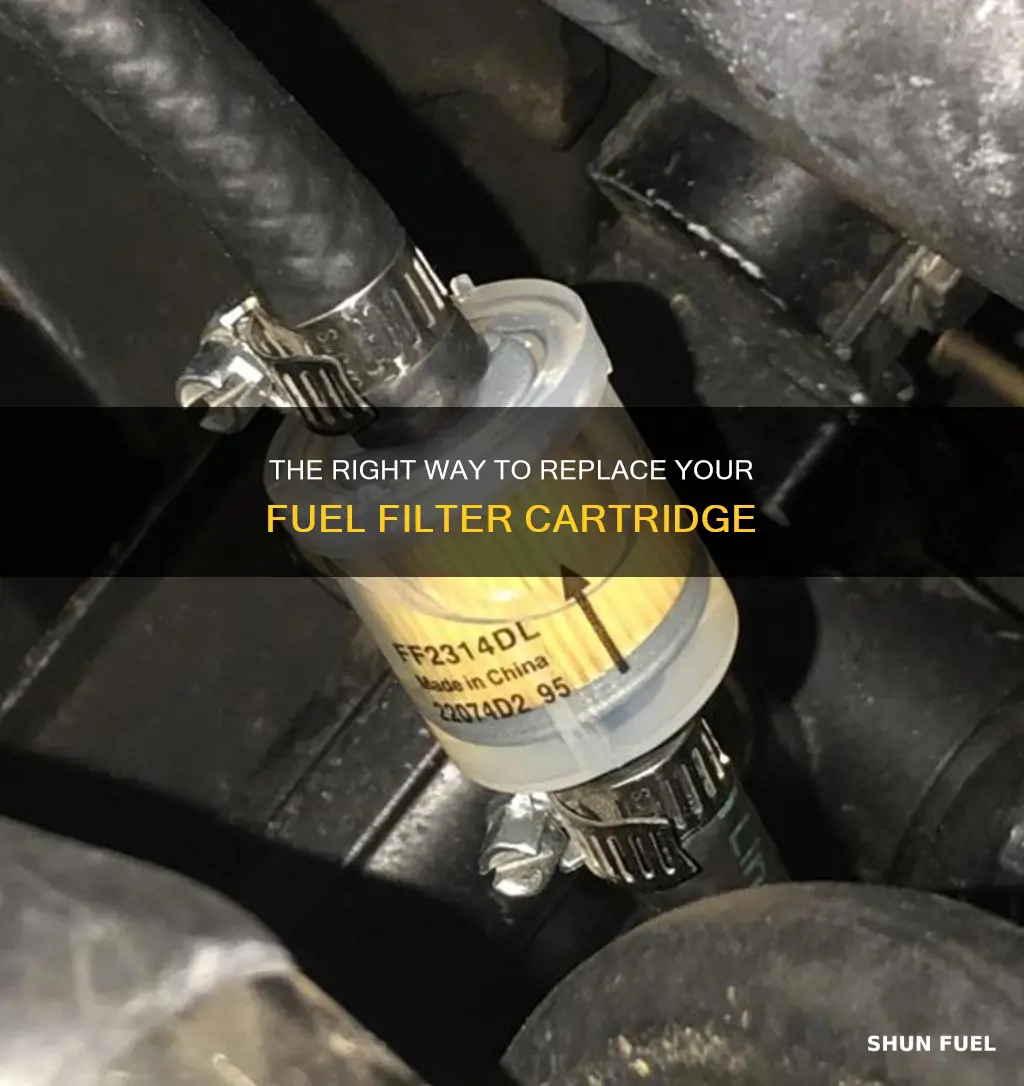

Replacing a fuel filter cartridge is a standard maintenance procedure for vehicles. It is a relatively simple task that can be performed with minimal tools and knowledge, although the procedure may vary depending on the vehicle. Fuel filters are designed to catch dirt and dust particles, preventing contaminants from entering the fuel injectors and engine. Over time, they become clogged and need to be replaced to ensure optimal engine performance. This guide will cover the steps to replace a fuel filter cartridge, including locating the filter, disconnecting and reconnecting fuel lines, and checking for leaks.
Explore related products
What You'll Learn
Locate the fuel filter
Locating the fuel filter is the first step to replacing it. The fuel filter is usually located inside the fuel tank, underneath the vehicle, or in the engine compartment.
If your vehicle is older, it likely has an external fuel filter that requires routine service. Newer cars, on the other hand, may not have a replaceable filter cartridge. Instead, the filter is part of the fuel pump module located inside the fuel tank.
Refer to your vehicle's service manual or owner's manual to determine the specific location of the fuel filter. The owner's manual will also specify the manufacturer's recommended maintenance schedule for replacing the fuel filter.
Once you've located the fuel filter, the next step is to relieve the pressure in the fuel system. This is done by locating and removing the fuel pump fuse or relay in the fuse box. Then, start the engine and let it run until it stalls, depressurizing the fuel system.
Now that you've located the fuel filter and relieved the pressure in the fuel system, you can proceed to the next steps of replacing the fuel filter.
Overfilling Your Gas Tank: Fuel Filter Flooding Risk
You may want to see also
Explore related products
Disconnect the battery
To replace a fuel filter cartridge, one of the first and most important steps is to disconnect the battery. This is a critical safety precaution as it helps prevent any potential sparks that could ignite flammable vapours or fluids. Here is a detailed guide on how to safely disconnect the battery when replacing a fuel filter cartridge:
Locate the Battery: The first step is to find the battery in your vehicle. It is usually located in the engine bay, but the exact position can vary depending on the car model. Refer to your owner's manual if you're unsure.
Prepare the Work Area: Before proceeding, ensure that you are wearing protective gear, such as gloves and eye protection. Clear any tools or objects that may cause accidental contact with the battery terminals.
Loosen the Negative Cable: Identify the negative battery cable, which is usually black or marked with a "-" symbol. It is connected to the negative terminal of the battery. Use an appropriate wrench or socket to loosen the nut or bolt securing this cable. Do not allow the wrench or any tool to touch both terminals simultaneously, as this could cause a short circuit.
Disconnect the Negative Cable: Once the nut or bolt is loosened, carefully remove it and set it aside. Gently lift the cable away from the battery terminal, ensuring that it does not touch any metal parts of the vehicle. You may cover the terminal with a piece of tape or a cable cap to provide extra protection.
Secure the Cable: Place the disconnected negative cable in a safe location away from the battery and any metal components. Ensure that it cannot accidentally fall back onto the battery terminal.
Double-Check for Safety: Before proceeding with the fuel filter replacement, double-check that the negative cable is securely disconnected and cannot make contact with the battery terminal.
Remember, it is crucial to exercise caution when working with a car battery. Always follow the specific instructions provided in your vehicle's manual, as procedures may vary slightly depending on the car make and model.
Fuel Filter Presence in 2003 Chevy Cavaliers
You may want to see also
Explore related products
Remove the clips holding the fuel filter
Before removing the clips that hold the fuel filter in place, there are a few important steps to take. Firstly, locate your vehicle's fuse box and relieve the pressure in the fuel system by running the vehicle without the fuel pump functioning for a short time. Next, ensure the vehicle is turned off, then disconnect the battery by removing the cable from the negative terminal. You may need to use a hand or socket wrench to loosen the nut holding the cable.
Now, locate the fuel filter. Most fuel filters are held in place by two plastic clips, which can be found on either side of the cylindrical fuel filter. These clips are made of thin plastic and tend to break easily, so it is recommended to purchase replacement clips along with your new fuel filter. To remove the clips, use a flat-head screwdriver to pop them out of the holes they are in. If you are able to remove them without breaking, they may be reused.
With the clips removed, slide the fuel lines away from the filter and towards a bowl or bucket to catch any spilled gasoline. Wear eye protection and gloves during this step to protect yourself from fuel splatter. You should also avoid allowing any gas to pour out onto the ground.
Finally, slide the fuel filter out of its bracket. The fuel filter is typically held in place by a metal bracket that wraps around its outer housing. It is now ready to be replaced with a new fuel filter. Remember to regularly replace your fuel filter to keep your vehicle running smoothly and protect the engine from damage caused by contaminants in the fuel.
Fuel Filter in Toyota Yaris: 2008 Model Maintenance
You may want to see also
Explore related products
Remove and replace fuel lines
It is important to note that the fuel systems in diesel cars are more complex, and the fuel lines are highly pressurised, so it is recommended to seek professional help for diesel car fuel filter replacements. Modern car engines are made up of many delicate, high-spec parts and have a low tolerance for contamination.
Now, to remove and replace the fuel lines, follow these steps:
Firstly, make sure the vehicle is turned off. Disconnect the battery by removing the cable from the negative terminal. This will prevent the engine from being started accidentally while you work. You will need a hand or socket wrench to loosen the nut holding the cable onto the negative terminal, but you do not need to remove the nut completely.
Next, locate the fuel filter. Refer to your vehicle's service manual to determine its location. Once located, remove the clips holding the fuel filter in place. Most fuel filters are secured by two plastic clips on either side, which can be removed using a flat-head screwdriver. With the clips removed, gently slide the fuel lines away from the filter, being careful to tip the fuel lines toward a bowl or bucket to catch any spilled gasoline.
At this point, you can install the new fuel lines. Place the new hose clamps over the new fuel line, ensuring that the hardware will face you when the line is in place for easy tightening. Then, install the new fuel line onto the fuel pump, fuel line, or carburetor. Tighten the new hose clamps securely, but be careful not to over-tighten, as this can cause leaks.
Finally, reconnect the negative terminal on your car's battery and pressurize the fuel system by returning the fuel pump fuse to the fuse box. Start the engine and let it run for a few minutes, checking for any leaks around the fuel lines. If no leaks are present, your job is complete.
Filtering Cooking Oil for Fuel: DIY Guide
You may want to see also
Explore related products
Check for leaks
After replacing a fuel filter cartridge, it is important to check for leaks. Here is a step-by-step guide on how to do this:
Step 1: Reconnect the Fuel Lines
First, reconnect the fuel lines to the new fuel filter cartridge. Ensure that the clips holding the fuel filter in place are secure.
Step 2: Start the Vehicle
Once the fuel lines are reconnected, start the vehicle and let it run for a few minutes.
Step 3: Inspect for Leaks
During this time, carefully inspect the area around the fuel filter and fuel lines for any signs of leaks. Look for any gasoline that may be leaking out between connections or onto other components. Use your senses as well; a strong smell of raw fuel may indicate a leak.
Step 4: Take the Vehicle for a Drive
If no leaks are apparent during the initial inspection, take the vehicle for a short drive. Drive for approximately 20 minutes, hitting high rpm in low gear.
Step 5: Re-inspect for Leaks
After the drive, turn off the vehicle and re-inspect the fuel filter and fuel lines for any signs of leaks.
It is important to note that diesel engines have more complex fuel systems with higher pressure levels. If you are working on a diesel vehicle, it is recommended to seek professional assistance to ensure safety and proper replacement.
Additionally, always refer to the vehicle's owner's manual or a reputable repair guide for specific instructions and safety precautions related to your particular make and model.
Fuel Filter Installation: Boat Motor Maintenance
You may want to see also
Frequently asked questions
It is recommended that you replace your fuel filter cartridge every two to three years or 30,000 miles, whichever comes first. However, this may vary depending on the make and model of your car, so be sure to check your owner's manual or Haynes guidebook.
If your car is not running smoothly, especially if it's idling roughly, hesitating, or having difficulty starting, this could be a sign that your fuel filter cartridge is clogged and needs replacing.
The fuel filter cartridge is usually located between the fuel tank and the injectors. In some models, the filter is accessible via the bonnet. In other vehicles, it can only be accessed from underneath. You can consult your car owner's manual or Haynes manual to help you locate the filter.
The tools needed to replace a fuel filter cartridge will vary depending on the type of car you have. In general, you will need a jack and jack stands to access the undercarriage, a garden hose, safety glasses, a drain pan, a flat-head screwdriver, a wrench, and possibly a fuel line disconnect tool.
The process for replacing a fuel filter cartridge involves first locating and unplugging the fuse or relay for the fuel pump, then trying to start the vehicle. Once the engine is shut off, locate and remove the fuel filter, disconnecting the fuel lines and any retaining clips. Install the new fuel filter by reconnecting the fuel lines and retaining clips, then reinstalling the fuel pump fuse or relay. Finally, start the vehicle and check for leaks.
