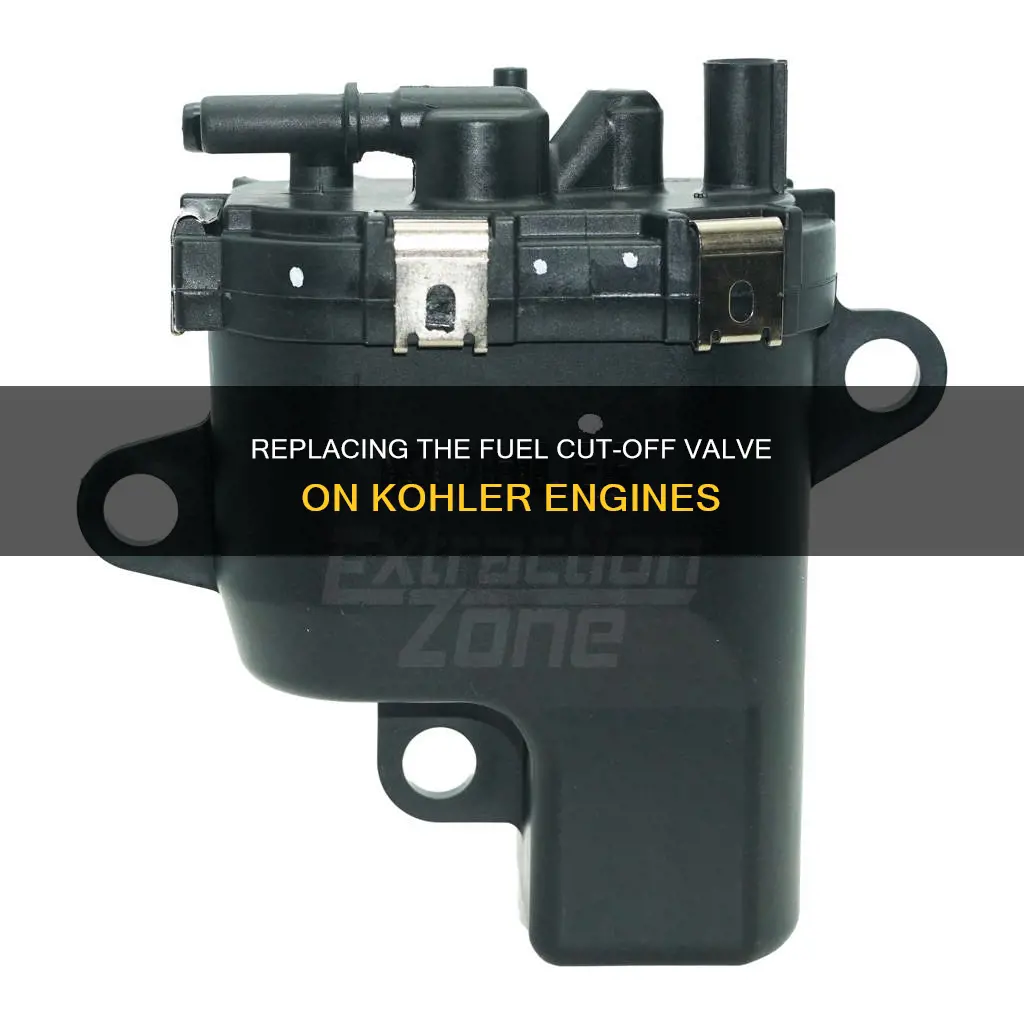

Kohler Engine Fuel Cut-Off: A Step-By-Step Guide To Replacement

Replacing the fuel cutoff on a Kohler engine can seem daunting, but with the right tools and a systematic approach, it's a manageable task. This guide will walk you through the process, ensuring you understand the importance of this component and how to replace it safely and effectively. Whether you're a homeowner maintaining your equipment or a professional technician, knowing how to handle this replacement is crucial for keeping your Kohler engine running smoothly. Let's explore the steps involved in replacing the fuel cutoff, ensuring your engine operates efficiently and reliably.

Identify the Problem: Check for symptoms like stalling or performance issues to confirm the fuel cut-off issue

When dealing with a Kohler engine, identifying the specific issue can be crucial to ensuring an effective repair. One common problem that can arise is a faulty fuel cut-off mechanism, which can lead to a range of symptoms that may confuse even experienced mechanics. The fuel cut-off is a safety feature designed to shut off fuel supply to the engine when it detects an issue, such as excessive carbon monoxide or a malfunction. However, this mechanism can sometimes malfunction itself, leading to unintended consequences.

The first step in identifying a fuel cut-off problem is to observe the engine's behavior. One of the most common symptoms is stalling. If the engine stalls frequently, especially during operation or when starting, it could indicate a fuel cut-off issue. Stalling can occur when the fuel cut-off fails to release fuel, causing the engine to starve for fuel and shut down. Additionally, look for performance issues such as reduced power output, rough idling, or difficulty starting the engine. These symptoms often arise when the fuel cut-off is not functioning correctly, leading to an imbalance in the fuel-air mixture.

Another way to confirm the issue is by paying attention to any error codes or warning lights on the engine's dashboard. Modern Kohler engines often have sophisticated diagnostic systems that can detect and display various issues, including problems with the fuel cut-off. If the engine is equipped with such a system, it can provide valuable insights into the nature of the problem. For instance, a warning light indicating a 'fuel system malfunction' could be a sign of a faulty fuel cut-off.

In some cases, the problem might be more apparent. For example, if you notice a distinct 'clicking' or 'clanging' sound when the engine is running, it could indicate a fuel cut-off issue. This sound may be caused by the fuel cut-off mechanism failing to engage or disengage properly, leading to an unstable fuel supply. Furthermore, if the engine has been modified or altered in any way, it could potentially interfere with the proper functioning of the fuel cut-off, leading to the observed symptoms.

If you suspect a fuel cut-off issue, it is essential to address it promptly. Ignoring the problem could lead to further complications, such as engine damage or reduced performance. Once the issue is confirmed, you can proceed with the necessary repairs or replacements to restore the engine's functionality. Remember, proper diagnosis is key to successful engine maintenance.

Locate the Fuel Cut-Off Solenoid: Find the solenoid, often near the fuel tank, using the engine manual

To begin the process of replacing the fuel cut-off solenoid on a Kohler engine, you'll need to locate this crucial component. The solenoid is typically positioned near the fuel tank, and its exact location can be found in the engine manual. This manual is an essential resource, providing detailed diagrams and instructions specific to your engine model.

Start by consulting the manual to identify the solenoid's position. It is often a small, coil-shaped component, and its placement can vary depending on the engine design. Kohler engines may have the solenoid mounted on the side or top of the fuel tank, or it could be integrated into the fuel pump assembly.

Once you've identified the solenoid's location, carefully inspect the area. Ensure that there are no obstructions or debris that might interfere with the replacement process. If the solenoid is easily accessible, you can proceed with the removal. However, if it is well-hidden or requires removal of other components, take your time and follow the manual's step-by-step guidance.

When removing the solenoid, be mindful of any electrical connections. There may be wires or harnesses connected to it, so take note of their positions and disconnect them carefully. Keep track of any screws or fasteners that secure the solenoid in place to ensure proper reinstallation.

With the solenoid now accessible, you can proceed with the replacement process, which may involve cleaning or replacing the solenoid itself, depending on the cause of the issue. Always refer to the Kohler engine manual for specific instructions tailored to your engine model.

Test the Solenoid: Use a multimeter to check for continuity and ensure it's functioning properly

Testing the solenoid on a Kohler engine is a crucial step in diagnosing and potentially resolving fuel cutoff issues. Here's a detailed guide on how to test it using a multimeter:

Understanding the Solenoid's Role: Before you begin, remember that the solenoid is responsible for controlling the flow of fuel to the engine. It acts as an electrical switch, opening and closing based on signals from the engine control module (ECM). When the solenoid malfunctions, it can lead to fuel cutoff problems, preventing the engine from starting or causing erratic performance.

Gathering the Tools: You'll need a multimeter, preferably one with both ohmmeter and continuity test functions. A set of screwdrivers and safety gear, including gloves and eye protection, is also essential.

Safety First: Ensure the engine is completely cooled down before proceeding. Working on a hot engine can be dangerous. Additionally, disconnect the battery to avoid any accidental electrical discharges while testing.

Locate the Solenoid: Access the solenoid, which is typically located near the fuel tank or along the fuel line. It might be secured with brackets or clips, so be prepared to remove them.

Testing for Continuity:

• Set your multimeter to the ohmmeter function.
• Touch the multimeter probes to the solenoid's power and ground terminals.
• A healthy solenoid should show very low resistance (close to zero ohms) when the key is turned to the "on" position. This indicates a complete circuit.
• If the resistance is significantly high or infinite, the solenoid is likely faulty and may need replacement.

Checking for Open Circuits:

• Set the multimeter to the continuity test function.
• Touch one probe to the solenoid's power terminal and the other to its ground terminal.
• With the key in the "on" position, you should hear a beep or see a low resistance reading, confirming a good connection.
• If there's no beep or a high resistance reading, it suggests an open circuit, which could be due to a broken wire, loose connection, or a faulty solenoid.

Further Diagnostics: If the solenoid tests indicate a problem, you might want to inspect the wiring harness for any signs of damage or corrosion. Also, check the ECM for error codes that could provide insights into the issue.

Remember, this process requires patience and a methodical approach. If you're unsure about any step, consult a qualified mechanic or refer to Kohler's engine manual for specific instructions tailored to your engine model.

Replace the Solenoid: Carefully remove the old solenoid and install a new one, following manufacturer instructions

To replace the solenoid on a Kohler engine, you'll need to follow a series of steps to ensure a proper repair. Start by disconnecting the fuel line from the engine. This is a crucial step to prevent any fuel from spilling or causing damage during the process. Locate the solenoid, which is typically found near the fuel tank or along the fuel lines. It is a small, cylindrical component with electrical connections. Carefully remove the old solenoid by unscrewing or unclipping any retaining fasteners. Take note of the wiring connections and how the solenoid is positioned relative to the engine.

Once the old solenoid is removed, you'll have access to the internal components of the engine. Inspect the area for any signs of damage or corrosion. Ensure that the new solenoid you purchase is compatible with your Kohler engine model. Follow the manufacturer's instructions for the specific solenoid you are installing. Typically, you'll need to align the new solenoid with the engine's mounting points and secure it using the appropriate fasteners. Reattach the fuel line to the new solenoid, ensuring a tight and secure connection.

When reconnecting the electrical wiring, double-check that all connections are clean and free of corrosion. Use electrical tape or connectors to ensure a reliable bond. After completing the installation, test the engine to ensure that the fuel cutoff function is working correctly. Start the engine and observe for any unusual noises or behavior. If the engine starts and runs smoothly, you've successfully replaced the solenoid. However, if issues persist, it may indicate a need for further troubleshooting or additional component replacement.

Remember, working on engines can be complex, and it's essential to exercise caution throughout the process. If you're unsure about any step, consult the Kohler engine manual or seek assistance from a qualified mechanic to ensure a safe and successful repair. Properly replacing the solenoid will help restore the engine's functionality and ensure reliable operation.

Test and Adjust: Start the engine, check for proper operation, and fine-tune as needed

Once you've replaced the fuel cutoff valve on your Kohler engine, it's crucial to test and adjust the system to ensure it functions correctly. This process involves starting the engine, monitoring its performance, and making any necessary fine-tunings. Here's a step-by-step guide to help you through this phase:

Starting the Engine: Begin by starting the engine using the appropriate starting method for your Kohler model. If it's a manual start, pull the starter cord a few times to ensure it engages the engine. For electric start models, turn the key to the 'on' position and listen for the engine to turn over. If the engine doesn't start immediately, check the fuel supply and ensure there is adequate fuel in the tank.

Checking for Proper Operation: After the engine starts, let it run for a few minutes to warm up. Pay close attention to the following:

• Engine Speed: The engine should run smoothly and at a steady speed. Any erratic behavior or stalling indicates potential issues.
• Noise Level: A well-maintained engine should run quietly. Excessive noise, such as knocking or roaring, could suggest improper installation or alignment of components.
• Exhaust Smoke: Check the exhaust for any signs of excessive smoke. If the engine is burning fuel inefficiently, it might indicate a problem with the fuel cutoff or other engine components.
• Fuel Consumption: Monitor the fuel gauge to ensure the engine is consuming fuel at a reasonable rate. An excessive fuel leak or a malfunctioning fuel cutoff could lead to rapid fuel depletion.

Fine-Tuning and Adjustments:

• Fuel Cutoff Test: After the engine has been running for a while, turn off the fuel supply manually and observe if the engine stalls or continues to run. If it continues to run, the fuel cutoff might not be functioning as intended. Adjust the fuel cutoff valve's position or tighten any loose connections to ensure it seals properly.
• Air-Fuel Ratio: Use a fuel-air ratio meter to check the engine's air-fuel mixture. If the ratio is off, it may affect the engine's performance and fuel efficiency. Adjust the carburetor settings or the fuel cutoff's position to optimize the mixture.
• Engine Timing: Check the engine's timing to ensure it is set correctly. Proper timing ensures efficient combustion and optimal performance. Adjust the timing as per the Kohler engine manual if necessary.
• Vibration and Stability: Ensure the engine is securely mounted and that there is no excessive vibration. Vibration can lead to premature wear and potential damage. Tighten any loose mounts or adjust the engine's position if needed.

Remember, during this testing phase, it's essential to have a basic understanding of engine mechanics or consult the Kohler engine manual for specific model instructions. Fine-tuning the fuel cutoff and other engine components will ensure your Kohler engine operates efficiently and reliably.
