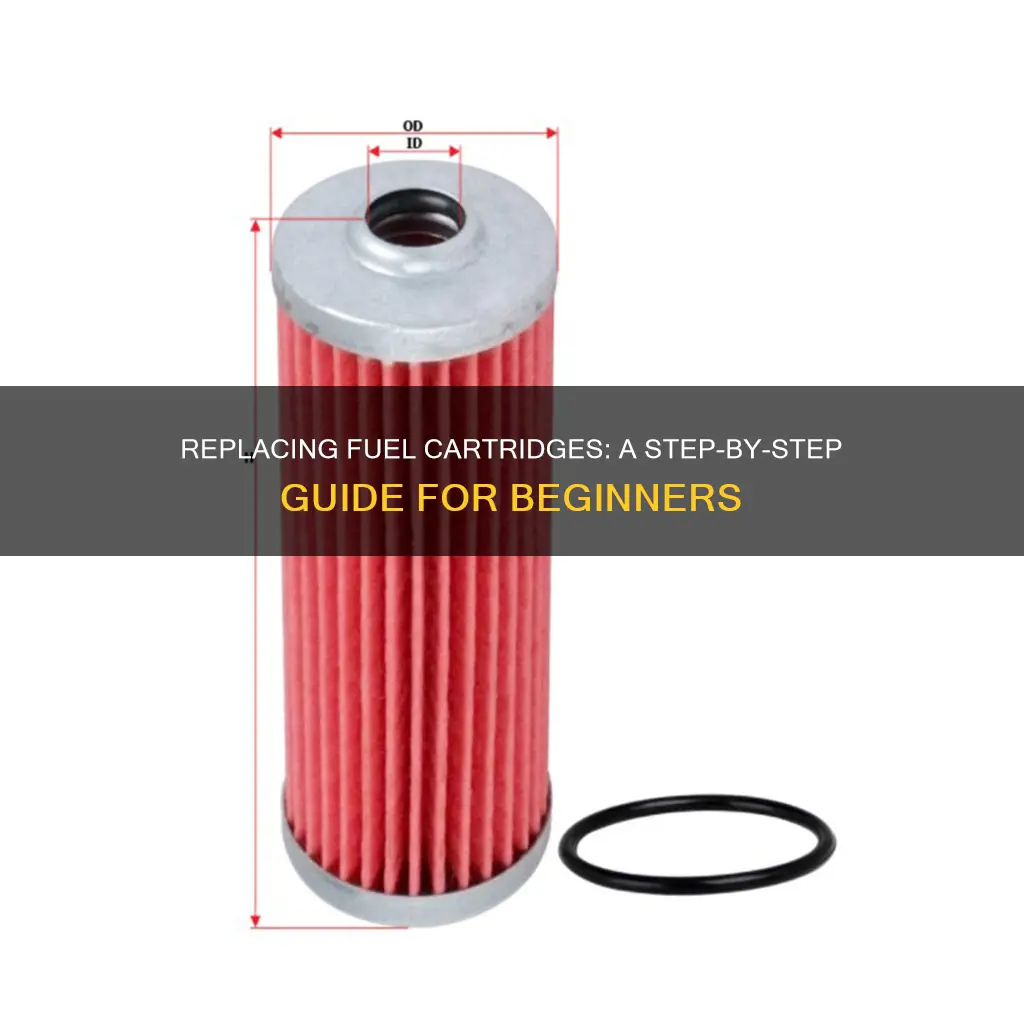

Replacing Fuel Cartridges: A Step-By-Step Guide For Beginners

Replacing a fuel cartridge is a straightforward process, but it's important to do it correctly to avoid any issues. The fuel filter is designed to capture foreign particles and prevent them from damaging the fuel system. Over time, the filter can become clogged with dirt, dust, and even water, leading to engine problems. To replace the cartridge, first depressurize the fuel system and disconnect the battery. Then, locate the fuel filter and clean the surrounding hoses or metal lines. Loosen the clamps, fittings, or bolts, and remove the old cartridge. Check that the new cartridge is identical and install it in the correct direction. Reattach the fuel lines and reconnect the battery. Finally, check for any fuel leaks once the system is pressurized.

Check for contamination

Checking for contamination in your fuel tank is a crucial step in maintaining the health of your engine and fuel system. Here are some detailed steps and guidelines to help you check for contamination:

Visual Inspection:

Start by visually inspecting the fuel for any signs of contamination. Look for debris floating on top of the fuel, dark or hazy coloration, or sludge forming on top or stuck to the sides of the fuel tank. These could indicate the presence of particulates or microorganisms in the fuel.

Water Contamination:

Water contamination is a common issue in fuel tanks. Use a simple water test kit to check the level of water in the fuel. The industry standard allows for no more than 30 parts per million of water in the fuel. Water provides an ideal environment for microbial growth, so it is important to address this issue promptly.

Particulate Contamination:

Particulate contamination can include rust, dust, pollen, and other airborne contaminants that enter the fuel tank when it is open or improperly sealed. Most particulates will be visible and will either float or settle at the bottom of the tank. If you suspect particulate contamination but cannot see any signs, consider using chemical analysis to detect smaller particles.

Microbial Contamination:

Microorganisms such as yeast, fungi, and bacteria can contaminate fuel, especially when it is stored for prolonged periods. Microbial contamination can lead to clogged filters, corrosion of fuel tanks and injectors, and reduced engine performance. To detect microbial contamination, use specialised fuel test kits such as FUELSTAT®, which can identify all dangerous microbes in aviation fuel.

Other Fuel Contamination:

In rare cases, your fuel may be tainted with other petroleum products, such as gasoline. This usually occurs due to a breach in protocols and can result in fuel that falls outside acceptable standards. If you suspect this type of contamination, send a sample to a laboratory for analysis and consult with fuel experts on the necessary corrective actions.

Remember, regular testing of fuel samples is essential to prevent costly consequences and ensure the optimal performance of your engine and fuel system.

Drain water from the filter

Draining water from the filter is a simple task that can prevent costly mechanical repairs. Diesel fuel absorbs water more readily than gasoline or petroleum, causing corrosion in the fuel delivery system. To drain the water, first position a container under the small drain plug or tap (called a petcock) at the bottom of the fuel filter or the collection chamber of the fuel separator.

Loosen the plug or tap, and the fuel and water should begin to flow out. If it doesn't, you may need to release the vent valve at the top of the filter housing by unscrewing it with a screwdriver. Alternatively, you can carefully unscrew the uppermost fuel pipe union connected to the filter casing. Once the fluid is draining, let it flow until only clean, pure diesel fuel is coming out. Then, tighten the plug or tap, and retighten the vent valve or fuel pipe. Finally, check the water that has drained out. If there is a large amount, you may want to consider obtaining diesel fuel from a different source.

It's important to drain water from the fuel filter regularly, especially before the engine starts to misfire, to prevent engine damage from the buildup of dirt and water in the fuel. This task helps to move clean fuel through the supply line, keeping your engine running smoothly.

Additionally, if you notice any water or contaminants in the bowl of your Fuel Water Separator, be sure to drain it. Simply loosen the black tap at the bottom of the clear bowl and drain until it's empty.

Remove the old cartridge

To remove the old fuel cartridge, first depressurise the fuel system. This can be done by removing a fuse, disconnecting the pump, or another method of disconnection. Check your Haynes manual for the specific instructions for your vehicle.

Next, turn the key and try to start the car to remove any residual fuel, then disconnect the negative cable from your battery. Raise the car with a floor jack and support it on jack stands. Locate the fuel filter and clean the hoses or metal lines on either side of the filter. Loosen the clamps, fittings, or banjo bolts. Have rags on hand to soak up any fuel that may leak.

Now, you can remove the old cartridge. Check your Haynes manual to see if your car has a retaining ring at the top of the filter. If so, twist the ring 90 degrees anti-clockwise and lower it. Pull the filter directly down until it is removed from the filter head. Drain the fuel from the filter and unscrew the bowl from the bottom of the old filter.

Install the new cartridge

Now that you have removed the old fuel cartridge, it's time to install the new one.

First, check that the new cartridge is identical to the old one. This is important, as installing the wrong type of cartridge can cause damage to your engine. Once you have confirmed that the new cartridge is the correct type, you can proceed with the installation.

If you drained the fuel bowl, you will need to screw the bowl onto the new filter. Then, fit the new filter to the filter head, aligning the filter logo with the bleed screw on the filter head. Push the filter directly upwards and refit the filter retaining ring. Twist the ring 90 degrees clockwise to secure it in place.

Next, bleed the fuel system and start the engine. This will help to remove any air bubbles from the system and ensure that the new cartridge is functioning properly.

Finally, check for any fuel leaks. It is important to ensure that all connections are tight and secure to prevent leaks, which can be a fire hazard.

Bleed the fuel system

Bleeding the fuel system is an important step in the process of replacing a fuel cartridge. Here is a detailed guide on how to do it effectively:

Step 1: Prepare the necessary tools and materials

Before you begin, ensure you have all the required tools and materials within reach. This includes a wrench or socket set, a bleeder screw key or wrench, and clean rags or towels to catch any fuel spills.

Step 2: Locate the fuel system components

Familiarize yourself with the engine and identify the key components of its fuel system, such as the fuel tank, fuel lines, fuel filter, and fuel injectors. Review the engine's fuel system layout and connections.

Step 3: Prepare the fuel system for bleeding

Locate the fuel filter and determine if it has a built-in bleeder screw. If it does, position a clean rag or towel beneath the bleeder screw to catch any spilled fuel, then use the wrench or bleeder screw key to slowly loosen the screw in a counterclockwise direction. If your fuel filter lacks a bleeder screw, you may need to loosen the filter slightly to allow air to escape.

Step 4: Bleed the fuel system

Allow the mixture of air and fuel to bleed from the loose screw. Continue this process until only fuel, without any air bubbles, flows from the screw. Once this is achieved, tighten the bleeder screw securely.

Step 5: Bleed the fuel injectors (if necessary)

If your fuel filter does not have a bleeder screw, or if you suspect that air remains in the system, you may need to bleed the fuel injectors. Loosen the fuel line connection using a wrench or socket set, then crank the engine for a few seconds to allow air to escape, being cautious of any fuel spills. Tighten the fuel line connection once you observe a steady fuel flow without any air bubbles.

Repeat this process for each cylinder and fuel injector, starting with the cylinder closest to the fuel pump and working your way to the one farthest away.

Step 6: Check for remaining air

After bleeding the fuel system, attempt to start the engine. If it starts, let it idle for a few minutes while checking for any signs of rough idle or reduced power. Inspect the fuel system components for any fuel leaks or damage.

If the engine refuses to start or exhibits signs of air remaining in the fuel system, return to Step 4 or Step 5 and repeat the bleeding process at the fuel filter or fuel injectors.

Step 7: Clean-up and maintenance

Dispose of any spilled fuel safely and properly, and ensure you clean up your work area. Return your tools to their proper storage locations.

Note: It is important to identify how air entered the fuel system in the first place, so it does not re-enter after the bleeding process. Additionally, consider replacing the fuel filter if it is old or close to the end of its service life. Always exercise caution and adhere to safety guidelines throughout this process.
