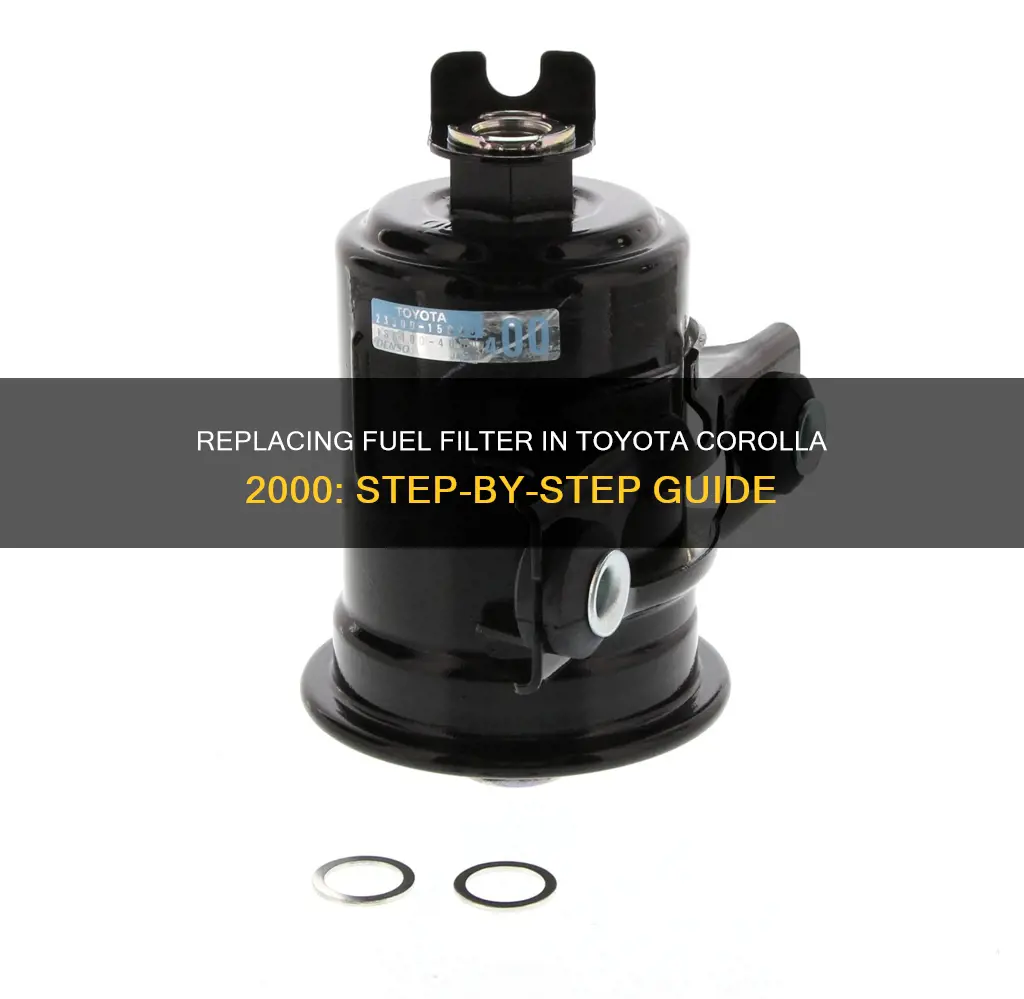

Replacing The Fuel Filter In Your Toyota Corolla: Step-By-Step Guide

The 2000 Toyota Corolla fuel filter is located beneath the driver's side of the engine chassis, inside a small canister. The fuel filter needs to be replaced every 30,000 miles or two years for optimal performance. To replace the fuel filter, you will need to put an oil drain pan or bowl underneath it to catch any leaking fuel, then use a fuel filter removal tool to remove and replace the filter.

The fuel filter is located beneath the driver's side of the engine chassis

To replace the fuel filter on a 2000 Toyota Corolla, you'll first need to locate it. The fuel filter is located beneath the driver's side of the engine chassis. Specifically, it is under the hood, on the driver's side, on the lower firewall, mounted below the brake master cylinder.

Once you've located the fuel filter, you can begin the process of replacing it. Here's a step-by-step guide to help you through the replacement:

• Disconnect the IAT sensor connector.
• Loosen the air cleaner hose clamp bolt.
• Disconnect the four air cleaner cap clips.
• Disconnect the air cleaner hose from the throttle body and remove the air cleaner cap and hose.
• Disconnect the two EVAP hoses from the charcoal canister.
• Remove the charcoal canister from its bracket.
• Disconnect the fuel inlet hose and pipe. Place a suitable container or shop towel under the fuel filter to catch any spills.
• Follow the fuel line from the tank forward to the engine. The fuel filter is located along this line.
• Remove the old fuel filter and install the new one in its place. Make sure to have a drip pan and a piece of cork or rag to stop up both ends of the line to prevent fuel spills.
• Reattach the fuel inlet hose and pipe.
• Reconnect the EVAP hoses and secure the charcoal canister.
• Reconnect the air cleaner hose to the throttle body and secure the air cleaner cap and hose.

Please note that working on fuel-related components can be dangerous, so it is essential to take the necessary precautions. Do not smoke or work near an open flame during the replacement process. If you get fuel on your skin, wash it off with soap and water immediately. If you spill fuel on your clothes, remove them as soon as possible to prevent skin irritation or blistering.

The fuel filter is encased in a small canister

The fuel filter in a 2000 Toyota Corolla is encased in a small canister. To access the fuel filter, you will need to get underneath the car, on the driver's side of the engine chassis. Before you begin, ensure the engine is off and use an oil drain pan or bowl to catch any fuel that may leak out.

Once you are safely underneath the car, locate the canister and carefully remove the fuel filter. You will need a fuel filter removal tool to do this. Be cautious, as the fuel filter will contain fuel, and it is important to avoid spills. Place the fuel filter in the oil drain pan or bowl to catch any leaks.

Now that the fuel filter is removed, you can inspect it for any signs of clogging or damage. Use the fuel filter removal tool to take it apart. Pour out any fuel and check its colour. If the fuel is rusty or discoloured, this could indicate a clogged filter or a rusted component within the filter. Additionally, if the fuel is dirty, it may be a sign that the fuel in the tank is contaminated.

If the fuel filter has a top cap, remove it and inspect the paper filter inside. If it appears dirty, it is likely time to replace the fuel filter.

Perform a fuel pressure test

To perform a fuel pressure test on your 2000 Toyota Corolla, you will need to follow these steps:

• Park your car on a level surface and put on safety goggles and gloves to protect yourself from any fuel spray.
• Locate the fuel pressure test port. This is usually found on the fuel rail, near the engine.
• Attach a suitable fuel pressure gauge to the test port. Ensure that the connection is secure.
• Start the engine and let it idle for a few minutes.
• Observe the fuel pressure gauge and compare the reading to the manufacturer's specifications. The fuel pressure for a 2001 Toyota Corolla is typically between 30 and 35 psi.
• If the pressure is not within the specified range, there may be an issue with the fuel pressure regulator or fuel pump, and they should be inspected.
• Turn off the engine and remove the pressure gauge.
• Replace the fuel pressure test port cap.

It is important to note that working with fuel can be dangerous, so it is recommended to have a fire extinguisher nearby when performing this test. Additionally, make sure to consult your vehicle's manual for specific instructions and safety precautions.

Check for a fuel leak

When checking for a fuel leak in your 2000 Toyota Corolla, there are a few things to keep in mind. Firstly, understand that the fuel filter is always positioned between the fuel tank and the engine. In most vehicles, the fuel filter is located inside the top of the fuel tank, where it connects with the fuel line. Now, to check for a fuel leak, you should look out for the following signs:

• If your car has been sitting idle for a few days and requires a lot of cranking to start, it could be a sign of a fuel filter leak.
• If the engine starts and then suddenly dies, this could indicate that the fuel filter is allowing air to enter.
• If your car is parked on an incline and the engine won't start unless manually primed, this could be due to a leaking fuel filter assembly.
• Check the O-ring seals at the top and bottom of the filter, as these are common places for fuel filter assemblies to leak. Ensure that the O-rings are seated correctly and haven't been damaged during installation.
• Inspect the Water in Fuel Sensor, as this plastic component can crack, especially as it gets older, allowing air to enter.
• Examine the filter head for any signs of leaks. The filter head contains small seals that can dry out and crack over time, leading to leaks.

Remember, a fuel leak is a serious issue that can cause a fire or explosion, so it's important to address it promptly if you notice any of the above signs.

Check the fuel filter

To check the fuel filter on a 2000 Toyota Corolla, you must first locate it. The fuel filter is always going to be found between the fuel tank and the engine. For most vehicles, the fuel filter is located inside the top of the fuel tank, where it connects with the fuel line. However, on some cars, it might be elsewhere along the fuel line. On a 2000 Toyota Corolla, the fuel filter is located beneath the driver's side of the engine chassis, and it is encased in a small canister.

Once you have located the fuel filter, you can check it by performing a fuel pressure test or giving the fuel filter a visual inspection.

Fuel Pressure Test

Before performing a fuel pressure test, ensure that there is gas in the gas tank and that the fuel pump is working. Remove the gas cap and turn on the ignition. Listen for the fuel pump at the fuel fill opening. There should be a whirring/humming noise. If there is no noise, the fuel pump is either broken or not getting power, and you cannot perform a fuel pressure test.

To perform the test:

• Ensure the engine is off and cold.
• Find and remove the Schrader valve cap on the fuel rail. It may be hidden under a fuel rail cover or the engine cover.
• Find the appropriate fuel pressure tester fitting. Attach it to the tester, then thread it into the Schrader valve.
• Turn the ignition to "on" but do not start the engine.
• Check the psi reading on the fuel pressure tester gauge and watch for a psi drop, which indicates a leak in the system. If the reading remains the same after 5-10 minutes, the fuel system has adequate pressure.
• Start the engine and let it idle. Watch the psi reading to see if it remains steady.
• Once the engine is warmed up, give it a slow rev. The pressure should rise with the RPM. If it doesn't, the fuel filter is either clogged or there is a leak in the system.

Visual Inspection

• Ensure the engine is off.
• Put an oil drain pan or a bowl underneath the fuel filter to catch any fuel that leaks out.
• Remove the fuel filter using a fuel filter removal tool.
• Take the fuel filter apart with the fuel filter removal tool.
• Pour the fuel out of the filter and into the oil pan or bowl. Observe the colour of the fuel.
• If the fuel is a rusty colour (brownish, orangeish), the fuel is dirty, which could mean the fuel filter is clogged, a component within the fuel filter is rusted, or the fuel was bad to begin with.
• If no fuel comes out of the filter, there is a clog in the line somewhere.
• If your fuel filter has a top cap, remove it and take out the paper filter. See if it's dirty enough to warrant replacing.
