Replacing A Fuel Pump: Yamaha Zuma Guide

If your Yamaha Zuma is experiencing fuel pump problems, you may need to replace the pump. This is a complex process that can take up to 3 hours for a novice, but it is possible to do it yourself. You will need to source a replacement pump that fits your Zuma model and year. You can find these online or at an auto parts store. Before beginning the replacement, ensure you have the correct tools and safety equipment, and refer to a detailed guide for your specific Zuma model.

Diagnosing fuel pump issues

• Engine Dies Immediately After Starting: If your engine starts briefly and then dies, it could be due to a lack of fuel pressure caused by a faulty fuel pump. This usually indicates that the pump is unable to provide enough fuel to keep the engine running.
• Hesitation During Acceleration: If your scooter hesitates or struggles to accelerate smoothly, it could be an early sign of a failing fuel pump. A weak fuel pump may not be able to deliver the required fuel pressure for smooth acceleration.
• Engine Dies While Driving: If your engine suddenly stops while you are driving, it could be due to a fuel pump issue. Pay attention to any long crank or hesitancy during startup, as these could be clues pointing towards a fuel pump problem.
• Unusual Noises from the Fuel Pump: All modern fuel pumps will make a soft humming noise. If you notice any unusual noises, such as clicking, knocking, or grinding sounds, it could indicate a failing fuel pump.
• Vehicle Failing to Start: If your scooter won't start at all, a dead fuel pump could be the culprit. Check if the electrics are working, and if they are, then the fuel pump may be at fault.
• Check Fuel Supply Lines: Disconnect one of the rubber fuel supply lines in the engine bay and observe if pressurized fuel comes out. If there is no pressurized fuel, it could indicate a problem with the fuel pump.
• Use a Multimeter: Gain access to the fuel pump by removing the necessary panels. Use a multimeter to probe the wiring connection and check if the fuel pump is receiving electric power and the correct signal.
• Consult a Mechanic: If you are unsure or uncomfortable performing these diagnostics, it is best to consult a professional mechanic. They will have the experience and tools to accurately diagnose and resolve any fuel pump issues.

Remember to consult a professional if you are unsure about any repair procedures. Working on fuel systems can be dangerous, so always prioritize your safety.

Removing the old fuel pump

To remove the old fuel pump from your Yamaha Zuma, you will need to set aside a few hours and gather the necessary tools and safety equipment. Here is a step-by-step guide to help you through the process:

Step 1: Prepare the Scooter

Park your Yamaha Zuma on a flat, level surface and engage the parking brake. Ensure the engine is cool before you begin working. Wear safety goggles and gloves to protect yourself from any fuel spills or debris.

Step 2: Locate the Fuel Pump

The fuel pump on the Yamaha Zuma is located inside the fuel tank. You will need to remove the seat and any side panels or covers that provide access to the fuel tank. Refer to your owner's manual if you are unsure about the exact location and procedure.

Step 3: Drain the Fuel Tank

Before proceeding, it is essential to drain the fuel tank to avoid spills and reduce the risk of fire. Use a syphon pump or a similar tool to carefully drain the fuel into an approved container. Do not smoke or have any open flames nearby during this process.

Step 4: Disconnect the Fuel Lines and Electrical Connections

Once the tank is empty, carefully disconnect the fuel lines and electrical connections leading to the fuel pump. Label each line to ensure proper reconnection when installing the new fuel pump.

Step 5: Remove the Fuel Pump Assembly

The fuel pump is typically secured inside the fuel tank with screws or bolts. Use the appropriate tools to carefully remove these fasteners, making sure not to drop them into the tank. Gently lift out the old fuel pump assembly.

Step 6: Clean the Fuel Tank

With the old fuel pump removed, take the opportunity to clean the inside of the fuel tank. Use a soft cloth or a fuel tank cleaning brush to remove any debris, rust, or residue. Ensure the tank is completely dry before installing the new fuel pump.

By following these steps, you will be able to successfully remove the old fuel pump from your Yamaha Zuma, preparing you for the next step of installing a new fuel pump. Remember to work carefully and refer to your scooter's service manual for specific details pertaining to your model.

Installing the new fuel pump

To install the new fuel pump on your Yamaha Zuma, follow these steps:

Firstly, ensure you have the correct replacement fuel pump for your Zuma model and production year. The fuel pump should be an exact match to the original, with the correct part number. You can refer to online resources or consult a Yamaha dealer to ensure you have the right part.

Next, prepare the Zuma for the installation. Park the scooter on a flat, level surface, and ensure it is switched off, with the engine and fuel supply disconnected. You may need to refer to your Zuma's user manual for specific instructions on how to access the fuel pump. Once you have located the fuel pump, carefully disconnect it from the fuel lines and any electrical connections, taking note of the routing and orientation of these components for reassembly.

Now, you can install the new fuel pump. Start by checking that the new pump is not damaged and that all necessary components, such as the tank gasket, are included. Refer to the old pump to ensure the correct orientation of the new pump and its components. Carefully connect the new fuel pump to the fuel lines and electrical connections, ensuring that all components are securely attached and routed correctly.

Finally, reassemble the Zuma, following the user manual's instructions. Once the scooter is reassembled, reconnect the fuel supply and switch on the engine. Check for any signs of fuel leaks and ensure that the new pump is functioning correctly. Test the Zuma by taking it for a short ride, paying attention to the engine's performance and any unusual behaviour.

If you encounter any issues during the installation or testing, consult a qualified mechanic or Yamaha dealer for assistance.

Testing the new fuel pump

Check the Fuel Pump Operation:

Before starting the engine, it is essential to verify that the new fuel pump is operational. Locate the fuel pump and ensure it is securely connected to the fuel lines and electrical connectors. Turn the ignition key to the "On" position without starting the engine. You should be able to hear the fuel pump priming, creating a low humming noise for a few seconds. If you don't hear this sound, there may be an issue with the pump's power supply or wiring.

Inspect for Leaks:

With the ignition still in the "On" position, carefully inspect the fuel pump and its connections for any signs of fuel leaks. Ensure that the rubber gasket or O-ring is correctly seated and intact. Even a small leak can be hazardous and impact the pump's performance, so address any leaks before proceeding.

Start the Engine:

Now, start the engine and let it run for a few minutes. Pay attention to how the engine sounds and feels. A properly functioning fuel pump should result in a smooth-running engine with good acceleration and no unusual noises. If the engine struggles to start or runs unevenly, there may be an issue with fuel delivery or another component.

Road Test:

Once the initial checks are complete, take the Yamaha Zuma for a road test. Drive it at different speeds and pay attention to the engine's performance. A properly functioning fuel pump should deliver consistent fuel flow, resulting in smooth acceleration and throttle response. If you experience hesitation, stalling, or loss of power, it could indicate a problem with the fuel pump or another component in the fuel system.

Monitor Fuel Pressure:

If possible, connect a fuel pressure gauge to the fuel rail and monitor the fuel pressure while the engine is running. The fuel pressure should be within the specifications provided by Yamaha. Low fuel pressure could indicate a faulty fuel pump or a blockage in the fuel system.

Observe Long-Term Performance:

Finally, observe the long-term performance of the Yamaha Zuma over the next few days or weeks. Ensure that the scooter starts reliably and that the engine maintains its smooth operation. If you notice any changes in performance or fuel efficiency, it may indicate an issue with the fuel pump or another component.

Remember, safety should always be a priority when working with fuel systems. Ensure the area is well-ventilated, and avoid any open flames or sparks. If you are uncomfortable with any of the procedures, it is best to consult a qualified mechanic.

Yamaha Zuma fuel pump specifications

Yamaha Zuma fuel pumps are available for 50cc and 125cc models. The fuel pump for the 125cc model is compatible with the Yamaha Zuma 125 2009-2015. The pump is a direct replacement for the factory fuel pump and offers the same performance as the original. It has an operating pressure of 15-50 PSI, a flow rate of 50 litres per hour at 3.0Bar/13.5V, and a voltage of 12V minimum. The part number is 30M-49.

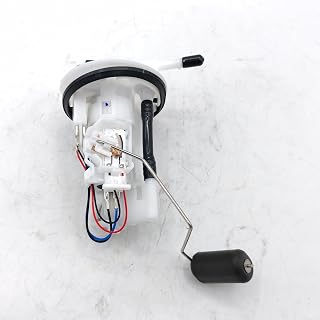

The fuel pump for the 50cc model is compatible with the Yamaha Zuma 50 2009-2013. The pump is a direct replacement for the original equipment and offers the same performance. The part number is 5S9-E3907-10-00.
