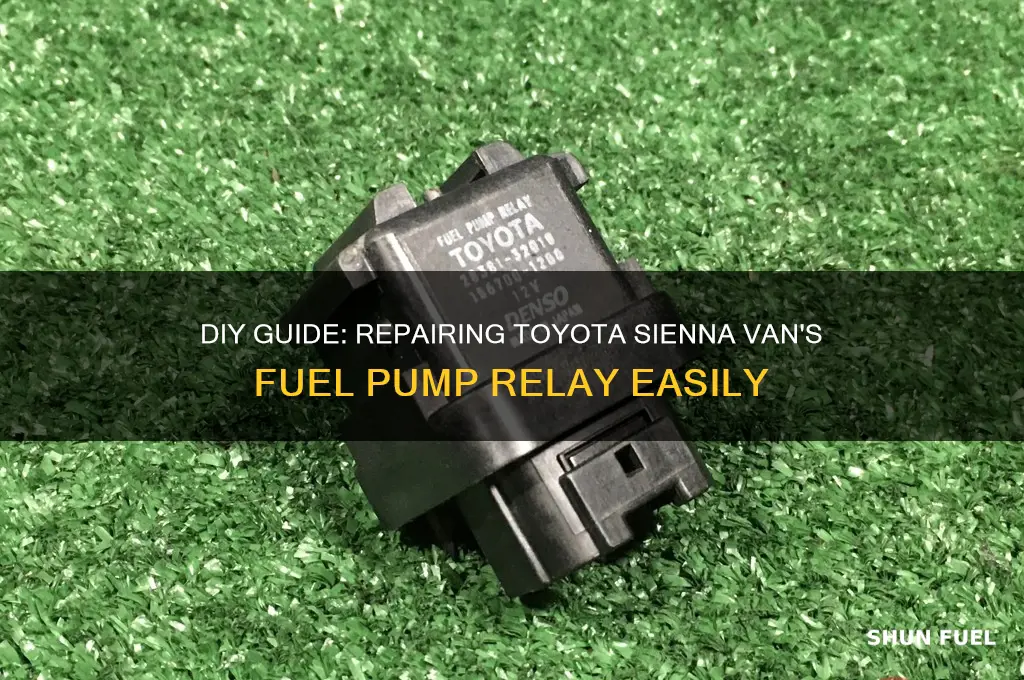

Repairing a fuel pump relay in a Toyota Sienna van can be a cost-effective solution to address issues such as engine stalling, difficulty starting, or a complete loss of power. The fuel pump relay is a critical component that controls the flow of electricity to the fuel pump, ensuring the engine receives the necessary fuel for operation. To begin the repair, locate the relay, typically found in the fuse box under the hood or near the driver’s side dashboard. After identifying the correct relay, test it using a multimeter to check for continuity and proper functioning. If the relay is faulty, replace it with a compatible part, ensuring it matches the specifications of your Toyota Sienna. Always disconnect the battery before working on electrical components to avoid accidents. Following these steps can restore proper fuel delivery and improve the vehicle’s performance.
| Characteristics | Values |
|---|---|
| Vehicle Model | Toyota Sienna Van |
| Component to Repair | Fuel Pump Relay |
| Common Symptoms of Failure | Engine not starting, stalling, or difficulty starting |
| Location of Relay | Typically found in the fuse box under the hood or near the battery |
| Tools Required | Multimeter, screwdriver, pliers |
| Steps to Repair | 1. Locate the relay in the fuse box. 2. Remove the relay using pliers. 3. Test the relay with a multimeter. 4. Replace if faulty. 5. Reinstall the new relay. |
| Relay Testing Procedure | Check for continuity across the relay pins using a multimeter. |
| Replacement Part | OEM or compatible fuel pump relay for Toyota Sienna |
| Cost of Replacement Relay | $10 - $30 (varies by brand and retailer) |
| Difficulty Level | Moderate (basic automotive knowledge required) |
| Safety Precautions | Disconnect the battery before working on electrical components. |
| Additional Tips | Check the fuse box diagram in the owner’s manual for relay location. |
| Related Components to Inspect | Fuel pump fuse, wiring harness, and fuel pump itself |
| Estimated Repair Time | 30 minutes to 1 hour |
| DIY vs Professional Repair | Can be done DIY, but consult a mechanic if unsure. |
Explore related products
What You'll Learn
- Identify Relay Location: Locate the fuel pump relay in the fuse box under the hood
- Test Relay Functionality: Use a multimeter to check for continuity and proper operation
- Replace Faulty Relay: Swap the old relay with a compatible Toyota replacement part
- Inspect Wiring Connections: Check for loose, corroded, or damaged wires connected to the relay
- Reset ECU After Repair: Clear error codes using an OBD-II scanner post-repair
Identify Relay Location: Locate the fuel pump relay in the fuse box under the hood
The fuel pump relay in a Toyota Sienna van is a critical component, ensuring the fuel pump operates efficiently. To begin any repair or inspection, you must first locate this relay, which is housed in the fuse box under the hood. This fuse box, often referred to as the engine bay fuse box or the under-hood fuse box, is a central hub for various electrical components, making it a logical starting point for your troubleshooting journey.
Locating the Fuse Box: Pop the hood of your Toyota Sienna and secure it in the raised position. The fuse box is typically located near the battery, which is situated on the driver's side in most Sienna models. Look for a rectangular, black plastic box with a removable lid. This is your fuse box, and it contains an array of fuses and relays, including the fuel pump relay. The exact location may vary slightly depending on the year and model of your Sienna, but it generally follows this pattern.
Identifying the Fuel Pump Relay: Once you've located the fuse box, it's time to identify the fuel pump relay. Open the fuse box lid, and you'll be greeted by a diagram or a label indicating the position of each fuse and relay. The fuel pump relay is usually labeled as "FUEL PUMP" or "F/P." It is often a larger relay compared to others in the box, with four or five pins. If the diagram is faded or unclear, consult your Toyota Sienna's owner's manual for a detailed fuse box layout. This step is crucial, as misidentifying the relay can lead to unnecessary complications.
Practical Tips for Relay Location: For a more efficient process, consider taking a picture of the fuse box diagram with your phone for easy reference. If you're working in low-light conditions, use a flashlight to illuminate the area, ensuring you don't mistake one relay for another. It's also beneficial to clean the fuse box area if it's dirty, as debris can make it challenging to read labels and access components. Remember, the fuel pump relay is a vital part of your vehicle's fuel system, so accurate identification is key to a successful repair or inspection.
In summary, locating the fuel pump relay in your Toyota Sienna's fuse box is a straightforward process that requires attention to detail. By following these steps, you'll be well-equipped to identify the relay, setting the stage for further diagnostics or repairs. This initial step is fundamental, ensuring that your efforts are directed at the correct component, thereby saving time and preventing potential errors.
Signs Your Fuel Pump is Failing: How to Spot the Warning Signals
You may want to see also
Explore related products
Test Relay Functionality: Use a multimeter to check for continuity and proper operation
A faulty fuel pump relay can leave your Toyota Sienna stranded, but before replacing it, test its functionality to confirm the issue. A multimeter is your diagnostic ally here, allowing you to check for continuity and proper operation, pinpointing whether the relay is indeed the culprit.
Steps to Test Relay Functionality:
- Locate the Relay: Consult your Toyota Sienna’s manual to find the fuel pump relay, typically housed in the fuse box under the hood or near the driver’s side dashboard.
- Remove the Relay: Pull the relay straight out of its socket. Inspect it for visible damage, such as burnt pins or melted plastic, but don’t rely solely on visual cues.
- Set Up the Multimeter: Switch your multimeter to the continuity or resistance setting (usually denoted by a diode symbol or Ω). Ensure the test leads are connected to the appropriate ports.
- Test for Continuity: Identify the relay’s control circuit pins (usually labeled 85 and 86) and power pins (typically 30 and 87). Touch the multimeter probes to these pins. A functional relay should show continuity (a beep or low resistance reading) between the correct pins when activated.
- Simulate Operation: Apply power to the control circuit pins (85 and 86) using a jumper wire or a 12V source. Re-test continuity between the power pins (30 and 87). If the relay is working, continuity should switch on, indicating proper operation.
Cautions:
- Always disconnect the battery before testing to avoid electrical hazards.
- Double-check pin numbers against your relay’s diagram, as configurations vary by model.
- Avoid forcing the multimeter probes onto the pins to prevent damage.
Bypassing Kia Sportage Fuel Pump Relay: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Replace Faulty Relay: Swap the old relay with a compatible Toyota replacement part
A faulty fuel pump relay can leave your Toyota Sienna stranded, but replacing it is a straightforward task that can save you a trip to the mechanic. The relay acts as a switch, controlling power to the fuel pump, and when it fails, your engine may struggle to start or stall unexpectedly. Identifying the issue early and swapping the old relay with a compatible Toyota replacement part is crucial to restoring your vehicle’s reliability.
Begin by locating the fuel pump relay, typically found in the fuse box under the hood or near the driver’s side dashboard. Consult your Toyota Sienna’s manual for the exact location, as it varies by model year. Once identified, carefully remove the relay by pulling it straight out of its slot. Inspect the old relay for signs of damage, such as burnt pins or melted plastic, which confirm the need for replacement.
When selecting a replacement relay, ensure it is a genuine Toyota part or a high-quality equivalent designed for your specific model. Compatibility is key, as using the wrong relay can lead to electrical issues or further damage. Most Toyota Sienna models use a standard 5-pin relay, but double-check the pin configuration and amperage rating to match the original.
To install the new relay, align it with the slot and push it firmly into place until it clicks securely. Test the connection by turning the ignition key to the "on" position and listening for the fuel pump to prime. If the engine starts smoothly, the replacement was successful. For added assurance, take the vehicle for a short drive to confirm consistent performance.
Replacing a faulty fuel pump relay is a cost-effective solution that requires minimal tools and time. By choosing a compatible Toyota replacement part and following these steps, you can restore your Sienna’s fuel system functionality and avoid potential breakdowns. Always prioritize safety by working with the ignition off and consulting a professional if you’re unsure about any step.
How Long Does It Take to Replace a Fuel Pump?
You may want to see also
Explore related products
Inspect Wiring Connections: Check for loose, corroded, or damaged wires connected to the relay
Loose, corroded, or damaged wiring connections are a common culprit behind fuel pump relay failures in Toyota Sienna vans. Before condemning the relay itself, a thorough inspection of these connections is essential. Start by locating the fuel pump relay, typically found in the fuse box under the hood. Consult your Sienna’s manual for the exact location, as it can vary by model year. Once identified, carefully remove the relay to access the wiring harness.
Begin by visually inspecting the wires for any signs of damage, such as fraying, cracking, or exposed copper. Even minor damage can lead to intermittent electrical issues. Next, check for corrosion, which often appears as a greenish or whitish residue around the terminals. Corrosion disrupts the flow of electricity, causing the relay to malfunction. Use a flashlight to examine the connections closely, as corrosion can be subtle.
To address loose connections, gently tug on each wire to ensure it’s securely seated in the relay terminal. If a wire pulls out easily, reinsert it firmly and consider using dielectric grease to improve conductivity and prevent future corrosion. For corroded terminals, use a wire brush or fine-grit sandpaper to clean the affected areas. Be meticulous but gentle to avoid further damage. After cleaning, apply an anti-corrosion spray or grease to protect the connections.
If damaged wires are found, they must be repaired or replaced. For minor damage, electrical tape can provide a temporary fix, but splicing in a new section of wire is the more reliable solution. Ensure the repair is insulated properly to prevent short circuits. When reassembling, double-check that all connections are tight and secure before reinstalling the relay.
This step-by-step approach not only resolves immediate issues but also prevents future problems by ensuring the relay operates in optimal conditions. Ignoring wiring connections can lead to recurring failures, so take the time to inspect and address them thoroughly. By doing so, you’ll save time and money while keeping your Toyota Sienna’s fuel system running smoothly.
Resetting Your Mustang's Fuel Pump Shut Off Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Reset ECU After Repair: Clear error codes using an OBD-II scanner post-repair
After repairing the fuel pump relay in your Toyota Sienna van, it's crucial to reset the Engine Control Unit (ECU) to ensure optimal performance and clear any lingering error codes. The ECU is the brain of your vehicle, and it stores diagnostic trouble codes (DTCs) that can trigger warning lights or affect engine operation. Clearing these codes post-repair is essential to verify that the issue has been resolved and to prevent unnecessary alerts.
To reset the ECU and clear error codes, you’ll need an OBD-II scanner, a standard tool for diagnosing and resetting vehicle systems. Begin by locating the OBD-II port, typically found under the dashboard on the driver’s side. Connect the scanner to the port and turn the ignition to the "ON" position without starting the engine. Follow the scanner’s instructions to access the "Clear Codes" or "Erase Codes" function. This process will delete stored DTCs and reset the ECU’s adaptive memory, allowing it to relearn driving patterns and optimize performance.
While clearing codes is straightforward, it’s important to exercise caution. Simply erasing codes without addressing the underlying issue can lead to recurring problems. Ensure the repair is complete before resetting the ECU. Additionally, some scanners may require specific steps or compatibility checks, so consult the user manual for your OBD-II tool. For Toyota Sienna models, particularly those from 2004 to 2010, this process is especially relevant due to common fuel pump relay issues in these years.
A practical tip is to drive the vehicle for at least 10–15 miles after clearing the codes. This allows the ECU to recalibrate and ensures that no new codes appear. If the check engine light reappears, revisit the repair or consult a professional mechanic. Resetting the ECU is not just a technical step—it’s a critical part of post-repair diagnostics, ensuring your Toyota Sienna operates smoothly and efficiently.
Upgrading Your Vehicle: A Step-by-Step Guide to Installing an Aftermarket Fuel Pump Electronic
You may want to see also
Frequently asked questions
Symptoms include difficulty starting the engine, stalling, loss of power, or the engine not starting at all. You may also notice the fuel pump not priming when the key is turned to the "ON" position.
The fuel pump relay is typically located in the fuse box under the hood. Refer to your owner’s manual for the exact location, as it may vary by model year.
Yes, you can test it using a multimeter. Check for continuity across the relay’s terminals when activated. If there’s no continuity, the relay may be faulty. Alternatively, swap it with a relay of the same type (e.g., A/C relay) to see if the issue resolves.
You’ll need a new fuel pump relay (specific to your Toyota Sienna model), a multimeter for testing, and basic hand tools like pliers or a relay puller to remove the old relay.
Locate the relay in the fuse box, use a relay puller or pliers to carefully remove it, and insert the new relay in the same position. Ensure it clicks into place securely. Test the vehicle afterward to confirm the repair.
