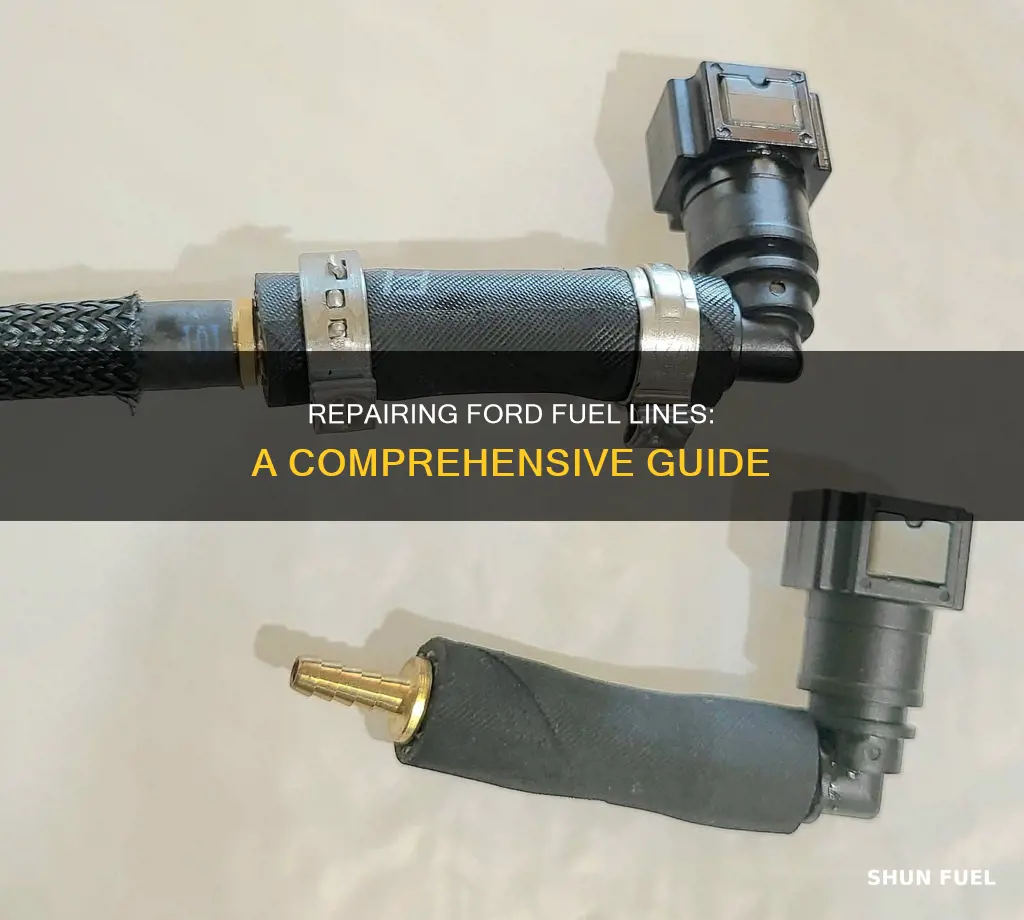

The fuel line in a Ford vehicle is a charged line that delivers fuel from the tank through a filter and into the engine. Fuel line problems can easily cripple your car, leaving you stranded. Leaking fuel is dangerous and can compromise your engine's performance. If your fuel line is old, worn, or cracked, consider replacing it as soon as possible. In this article, we will discuss the steps to repair a Ford fuel line and the tools required for the job.
How to repair a Ford fuel line
| Characteristics | Values |
|---|---|
| When to repair | When the fuel line is old, worn, or cracked |
| Tools required | New Motorcraft FG-1083 Fuel Filter, Midget Pipe cutter, Fuel Hose, Hose clamps, Flat Head Screw Driver, 13mm ratchet with extension, Lubricant, Bucket/Pail, Safety Goggles/Nitrile Gloves, Shop rags |
| Step 1 | Disconnect the fuel filter on the blue clip end. Some fuel will likely spray out, so ensure most of the fuel is drained out of the lines |
| Step 2 | Remove the bolt that holds the fuel rail bracket onto the transmission |
| Step 3 | Get your Midget pipe cutter and begin cutting right after the bend |
| Step 4 | Prepare your 3/8", 2' Fuel-Injected Fuel Rated hose with the 3 Fuel-Injected Hose clamps that fit 3/8" ID - 5/16" ID hoses |
| Step 5 | Slip the hose onto the fuel rail and use your screwdriver to tighten the clamps |
| Step 6 | Route the hose away from the catalytic converter and exhaust pipes |
| Step 7 | Slip the other end of the hose onto the fuel filter and tighten the hose clamp |
| Step 8 | Check for any leaks by cycling the ignition from "Off" to "Run" and carefully inspecting the hose connections |
| Additional tips | Ensure your vehicle is cooled off, wear eye protection and hand protection, and work in a well-ventilated area |
| Parts | Repair kits are available at NAPA, Pep Boys, and AutoZone |
