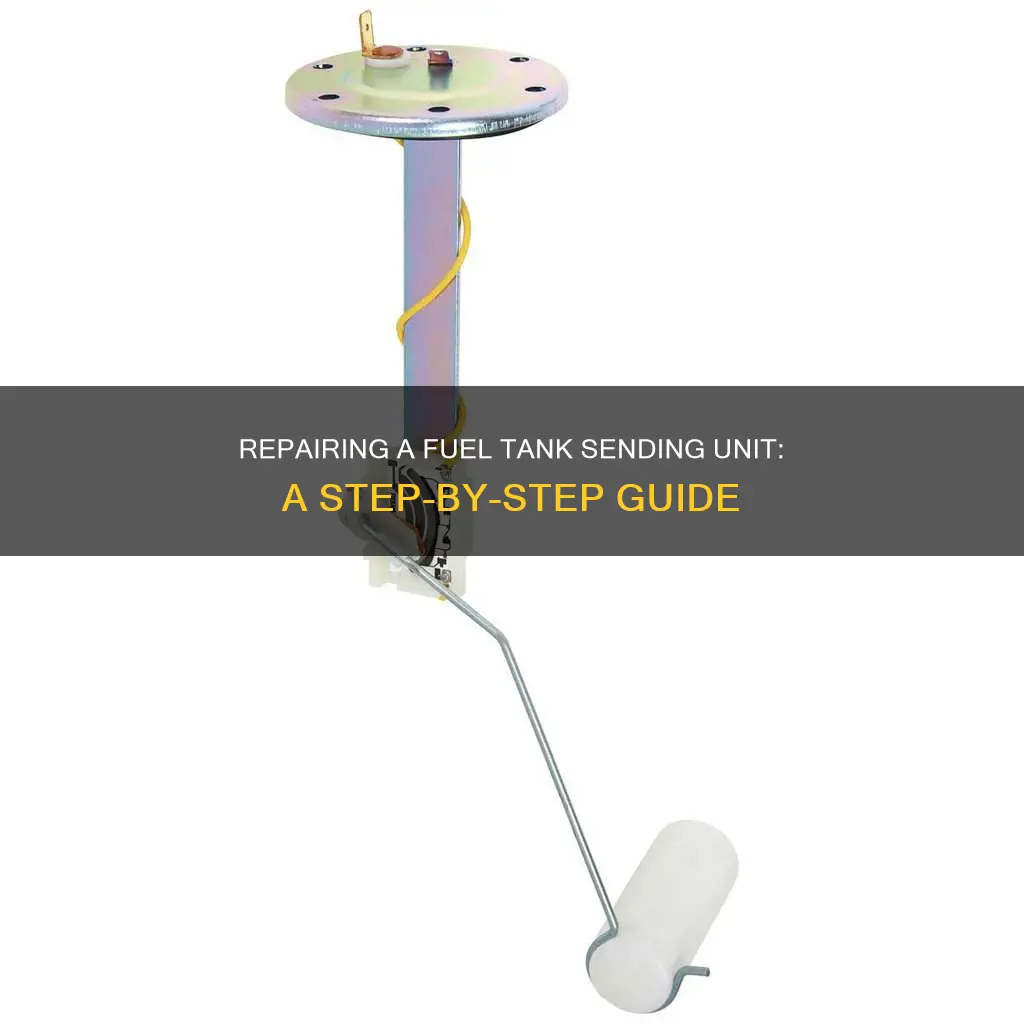

A fuel sending unit is designed to last the lifetime of a vehicle, but its components can sometimes fail. A faulty sender unit or fuel gauge can cause erratic readings, such as a fuel gauge that reads full or empty all the time. Before attempting any repairs, it is important to inspect and test the unit to streamline the repair process. This includes checking for error codes, cleaning the tank, and testing the unit's resistance performance using a multimeter. If repairs are required, it is important to note that gasoline is highly flammable, so repairs should be done outside with the vehicle's windows rolled down to ensure safety.
Characteristics and Values
| Characteristics | Values |
|---|---|
| Fuel sending unit issues | Readings at one end of the scale, erratic needle movement, gauge reading full or empty |
| Fuel sending unit failures | Caused by bad fuel, aggressive fuels, or additives in the tank |
| Fuel sending unit repair | Check engine light, use OBD-II scanner, check connections and grounds, clean the tank |
| Fuel sending unit replacement | Remove fuel or drop the tank, clean the area, disconnect fuel lines and electrical connections, release tank pressure |
| Fuel sending unit cost | Around $145, $221 for a Delphi unit with a pump |
| Fuel sending unit testing | Use a multimeter, check resistance performance, swing the float arm, compare old and new units |
| Fuel sending unit installation | Reverse of removal, plug in the sender, ensure gasket is aligned |
Explore related products
What You'll Learn
- Check for common issues like a faulty sender unit or fuel gauge
- Prepare the fuel tank by releasing pressure and disconnecting fuel lines
- Remove the fuel sending unit by unscrewing, unbolting, or twisting
- Check the resistance performance using a multimeter
- Replace the unit, ensuring proper alignment and installation
Check for common issues like a faulty sender unit or fuel gauge
A faulty sender unit or fuel gauge can cause erratic readings on your fuel gauge. The gauge may suddenly change its position or give inaccurate readings. For example, it may show half a tank one minute, and a full tank the next. Alternatively, the gauge may get stuck on full or empty.
If your fuel gauge is behaving erratically, there are some initial checks you can perform to diagnose the issue. Firstly, check if the check engine light is illuminated on your dashboard. If it is, use an OBD-II scanner to read the trouble codes through the vehicle's OBD port. These codes can indicate electrical faults, so be sure to check all connections and grounds in the circuit.
You can also check the voltage of the fuel gauge wire with a multimeter set to 20V DC. The fuel gauge should be receiving 12 volts. If not, check all wires for any signs of damage, as a corroded wire or loose connection could be the issue.
If the wire looks intact, move on to inspecting the fuel sending unit itself. Check the top of the unit for any damage, corrosion, or seating issues. If the top of the unit is dirty, clean the connectors to improve conductivity. Ensure there is a good ground connection as well.
If the issue persists, you may need to remove the fuel sending unit from the tank to further manipulate the float arm while measuring resistance. Before doing so, make sure the area is clean, dry, and free of corrosion to prevent debris from falling into the fuel tank. Refer to your vehicle's repair manual for the proper steps to remove the unit.
