Katerina Swanson

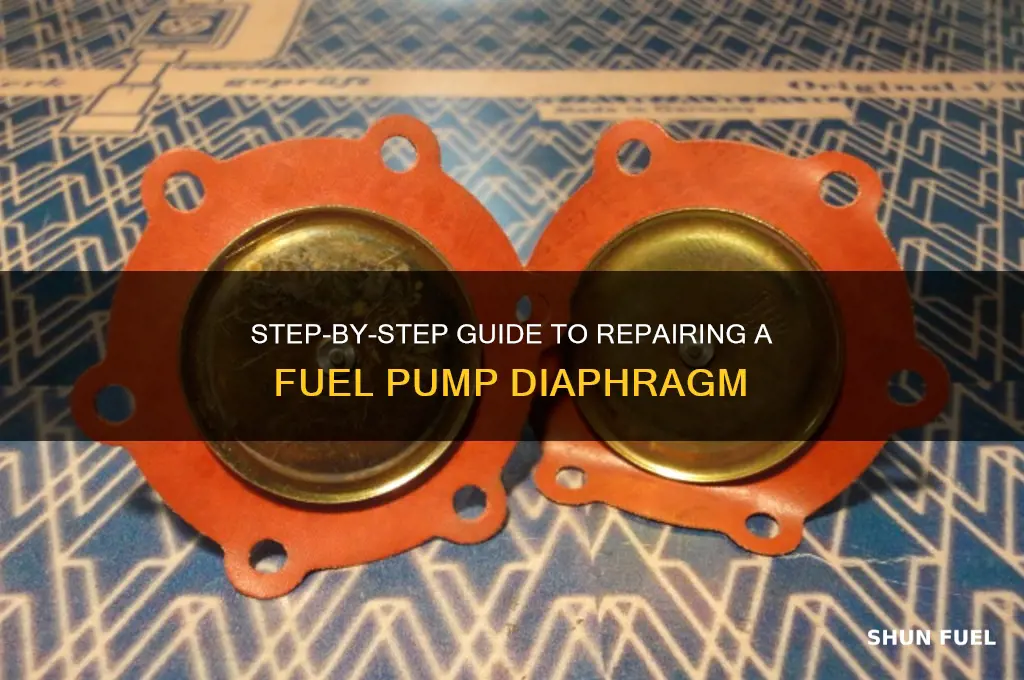

Repairing a fuel pump diaphragm is a critical task for maintaining the efficiency and reliability of older carbureted engines, as a damaged or worn diaphragm can lead to fuel delivery issues, engine stalling, or poor performance. The process typically involves disassembling the fuel pump, inspecting the diaphragm for cracks, tears, or hardening, and replacing it with a new one if necessary. Additionally, cleaning the pump housing, ensuring proper alignment of components, and reassembling the unit with care are essential steps to restore functionality. Familiarity with the specific fuel pump model and having the right tools, such as a gasket scraper and new diaphragm kit, are key to a successful repair. This task requires attention to detail and a methodical approach to avoid further damage and ensure the fuel pump operates smoothly.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, pliers, wrench, new diaphragm kit, cleaning solvent, gasket sealant |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, relieve fuel pressure |
| Steps to Repair | 1. Locate and remove the fuel pump, 2. Disassemble the pump, 3. Replace the diaphragm, 4. Reassemble and reinstall the pump |
| Diaphragm Inspection | Check for cracks, tears, or deformities in the diaphragm |
| Cleaning Process | Use a suitable solvent to clean the pump housing and components |
| Replacement Parts | New diaphragm, gaskets, and seals (if necessary) |
| Reassembly Tips | Ensure proper alignment of components, apply gasket sealant as needed |
| Testing Procedure | Reconnect the fuel lines and battery, start the engine to test pump operation |
| Common Issues | Leaking fuel, engine stalling, reduced fuel pressure |
| Compatibility | Repair process varies by fuel pump model; consult the manual for specifics |
| Estimated Time | 1-2 hours depending on experience and pump complexity |
| Cost of Repair | $20-$50 for a diaphragm kit (varies by vehicle and brand) |
| Professional Help | Recommended if unsure about the process or if issues persist after repair |
Explore related products
What You'll Learn
- Identify Diaphragm Damage: Inspect for cracks, tears, or deformities in the diaphragm material
- Gather Repair Tools: Assemble pliers, screwdrivers, and replacement diaphragm kit
- Disassemble Fuel Pump: Remove housing screws and carefully separate pump components
- Replace Diaphragm: Install new diaphragm, ensuring proper alignment and sealing
- Reassemble and Test: Reattach housing, secure screws, and test pump functionality
Identify Diaphragm Damage: Inspect for cracks, tears, or deformities in the diaphragm material
The fuel pump diaphragm is a critical component in carbureted engines, responsible for drawing fuel from the tank and delivering it to the carburetor. Over time, this thin, flexible membrane can succumb to wear and tear, leading to reduced engine performance or even failure. Identifying diaphragm damage early is crucial for timely repairs, and a thorough inspection for cracks, tears, or deformities is the first step in this process.
Visual Inspection Techniques: Begin by removing the fuel pump from the engine, ensuring the vehicle is on a level surface and the fuel system is depressurized. Disassemble the pump according to the manufacturer’s instructions, exposing the diaphragm for examination. Hold the diaphragm up to a bright light source, such as a work lamp or natural sunlight, to detect hairline cracks or thinning areas that might otherwise go unnoticed. Run your fingers gently over the surface to feel for irregularities, as some deformities may not be immediately visible. Pay close attention to the edges and areas near mounting points, where stress is highest.
Common Damage Patterns: Cracks often appear as radial lines extending from the center or edges, while tears may manifest as jagged edges or holes. Deformities can include warping, hardening, or a loss of flexibility, typically caused by exposure to heat, fuel additives, or age. For example, ethanol-blended fuels can accelerate material degradation in older diaphragms not designed for such formulations. If the diaphragm feels brittle or fails to return to its original shape when bent, it’s likely compromised.
Diagnostic Tools and Tips: While visual and tactile inspections are primary methods, additional tools can aid in assessment. A magnifying glass or jeweler’s loupe can help identify microscopic cracks, while a simple flexibility test—gently bending the diaphragm and observing its rebound—can reveal material fatigue. For diaphragms with multiple layers, separate each layer carefully to inspect for delamination or hidden damage. Always compare the suspect diaphragm to a known good example or manufacturer specifications if available.
Preventive Measures and Takeaway: Regular inspection intervals, such as during routine carburetor maintenance or every 10,000 miles, can catch issues before they escalate. Store replacement diaphragms in a cool, dry place away from direct sunlight and chemicals to preserve their integrity. While minor surface imperfections may not require immediate replacement, any significant crack, tear, or deformity warrants a new diaphragm to ensure reliable fuel delivery. Early detection not only prevents engine misfires or stalling but also avoids potential damage to other fuel system components.
Does a 15HP Evinrude Outboard Motor Include a Fuel Pump?
You may want to see also
Explore related products
Gather Repair Tools: Assemble pliers, screwdrivers, and replacement diaphragm kit
Before diving into the repair of a fuel pump diaphragm, it's essential to gather the necessary tools to ensure a smooth and efficient process. The first step is to assemble a set of pliers, which will be crucial for gripping and manipulating small components, such as clamps or hoses, during the disassembly and reassembly stages. Needle-nose pliers, in particular, are ideal for reaching tight spaces and providing a firm grip on delicate parts.
In addition to pliers, a variety of screwdrivers is required to remove the screws securing the fuel pump housing. A standard flat-head and Phillips-head screwdriver set, ranging from small to medium sizes, should suffice for most fuel pump models. It's crucial to select the correct screwdriver size to avoid stripping the screw heads, which can complicate the repair process. Moreover, consider using a magnetic screwdriver to minimize the risk of losing screws in the engine bay, a common frustration among DIY mechanics.
The centerpiece of your tool assembly is the replacement diaphragm kit, which typically includes a new diaphragm, gaskets, and O-rings. When selecting a kit, ensure compatibility with your specific fuel pump model and engine type. Refer to the vehicle's manual or consult a trusted mechanic to confirm the correct kit. A mismatched diaphragm can lead to poor fuel delivery, reduced engine performance, or even damage to the fuel system.
As you gather these tools, take a moment to inspect them for wear or damage. Dull pliers or worn-out screwdriver tips can hinder your progress and potentially cause harm to the fuel pump components. If any tools are found to be in poor condition, replace them before starting the repair. Additionally, consider laying out your tools in a organized manner, such as on a clean workbench or a magnetic tool tray, to streamline the repair process and minimize the risk of misplacing essential items.
A practical tip for this stage is to create a checklist of the required tools and parts, ensuring nothing is overlooked. This simple precaution can save time and prevent the frustration of realizing a critical tool is missing midway through the repair. By meticulously gathering and inspecting your pliers, screwdrivers, and replacement diaphragm kit, you'll be well-prepared to tackle the fuel pump diaphragm repair with confidence and precision.
Do All Fuel Pumps Contain Internal Pumps? A Detailed Explanation
You may want to see also
Explore related products
Disassemble Fuel Pump: Remove housing screws and carefully separate pump components
The first step in repairing a fuel pump diaphragm is gaining access to the internal components, a process that demands precision and care. Begin by locating the housing screws that secure the pump’s outer casing. These screws are typically found along the perimeter of the pump and may vary in number and size depending on the model. Use the appropriate screwdriver or tool to avoid stripping the screw heads, as this can complicate reassembly. Once the screws are removed, set them aside in a labeled container or magnetic tray to prevent loss and ensure organized reassembly.
Separating the pump components requires a delicate touch to avoid damaging internal parts. Place the pump on a clean, flat surface and gently pry the housing apart using a non-marring tool, such as a plastic pry bar or a flathead screwdriver wrapped in tape. Apply even pressure and work your way around the housing to release any clips or seals holding it together. Be mindful of any gaskets or O-rings, as these are often reusable and should not be torn or pinched. If the housing feels stuck, inspect for hidden fasteners or inspect the manual for model-specific disassembly tips.
As you separate the housing, observe the arrangement of internal components, particularly the diaphragm and its associated parts. Take note of the diaphragm’s orientation, the position of the lever arm, and the condition of the valves. This visual inspection can reveal signs of wear, such as cracks, warping, or debris buildup, which may necessitate replacement or cleaning. Documenting this layout with photos or sketches can serve as a reference during reassembly, ensuring components are returned to their correct positions.
Caution is paramount during disassembly, as fuel pump components are often under spring tension or contain residual fuel. Relieve any pressure in the system before beginning, and work in a well-ventilated area away from open flames or sparks. If the diaphragm or valves are damaged, avoid forcing them apart, as this can exacerbate the issue. Instead, consider using a specialized tool or consulting a professional if resistance is encountered. Proper disassembly not only facilitates repair but also preserves the integrity of the pump for reliable operation post-repair.
Finally, once the housing is separated and components are accessible, assess the diaphragm for repair or replacement. Common issues include hardening, perforations, or detachment from the mounting plate. If the diaphragm is salvageable, clean it with a solvent suitable for rubber or synthetic materials, ensuring no residue remains. For irreparable damage, source a compatible replacement diaphragm, ensuring it matches the original in material, thickness, and dimensions. This meticulous approach to disassembly and inspection sets the stage for a successful repair, restoring the fuel pump’s functionality and efficiency.
Are Fuel Pump Fuses Still Essential in Modern Vehicles?
You may want to see also
Explore related products
Replace Diaphragm: Install new diaphragm, ensuring proper alignment and sealing
A worn or damaged diaphragm is a common culprit behind fuel pump failure, leading to engine performance issues. Replacing the diaphragm is a critical step in restoring your fuel pump's functionality. This process demands precision and attention to detail to ensure optimal performance and prevent future leaks.
Here's a breakdown of the replacement process, focusing on achieving proper alignment and sealing:
Preparation is Key: Before installation, thoroughly clean the fuel pump housing and mating surfaces. Any debris or residue can compromise the seal, leading to fuel leaks. Use a clean, lint-free cloth and a suitable solvent recommended for your fuel type. Inspect the new diaphragm for any defects or imperfections. Even a small tear or crack can render it ineffective.
Ensure you have the correct replacement diaphragm for your specific fuel pump model. Using an incompatible diaphragm will result in improper fit and function.
Alignment for Efficiency: Position the new diaphragm carefully onto the pump housing, aligning the mounting holes precisely. Misalignment can cause uneven wear and tear, reducing the diaphragm's lifespan and pump efficiency. Some diaphragms feature alignment marks or notches. Utilize these markings to ensure correct orientation. Refer to your fuel pump's service manual for specific instructions regarding your model.
Gently press the diaphragm into place, avoiding excessive force that could damage the delicate material.
- Sealing the Deal: Secure the diaphragm with the designated retaining screws or bolts, tightening them evenly and progressively in a crisscross pattern. Over-tightening can warp the diaphragm or damage the housing, while under-tightening can lead to leaks. Consult your service manual for the recommended torque specifications. Apply a thin layer of fuel-resistant sealant around the diaphragm's perimeter if recommended by the manufacturer. This extra precaution enhances the seal and prevents fuel seepage.
- Post-Installation Checks: After installation, reassemble the fuel pump according to the manufacturer's instructions. Before starting the engine, inspect for any signs of fuel leakage around the diaphragm. If leaks are detected, disassemble the pump and recheck the alignment and sealing. Conduct a thorough test run of the engine, monitoring for any unusual noises or performance issues. If problems persist, consult a qualified mechanic for further diagnosis.
Remember, replacing a fuel pump diaphragm requires patience and meticulousness. By following these steps and paying close attention to alignment and sealing, you can effectively restore your fuel pump's functionality and ensure reliable engine operation.
Removing a Fuel Pump from a 1966 Corvette: Step-by-Step Guide
You may want to see also
Explore related products
Reassemble and Test: Reattach housing, secure screws, and test pump functionality
With the fuel pump diaphragm repaired, the final steps are critical to ensuring the pump operates reliably. Reattaching the housing and securing the screws must be done methodically to avoid misalignment or damage. Begin by aligning the housing carefully, ensuring all tabs and grooves match perfectly with the pump body. Apply even pressure as you lower the housing into place, avoiding any forced movements that could warp the components. Once aligned, secure the screws in a diagonal pattern, tightening them incrementally to maintain uniform pressure across the housing. Over-tightening can strip threads or deform the housing, while under-tightening risks leaks or detachment under vibration.
Testing the pump’s functionality is the ultimate proof of a successful repair. Before starting the engine, prime the fuel system by cycling the ignition switch to the "on" position for 2-3 seconds, then off for 5 seconds, repeating this process 3-4 times. This ensures fuel reaches the pump and eliminates air pockets. With the system primed, start the engine and listen for unusual noises, such as whining or grinding, which could indicate improper reassembly. Monitor fuel pressure using a gauge; it should stabilize within the manufacturer’s specified range (typically 30-60 PSI for carbureted engines, 40-70 PSI for fuel-injected systems).
A comparative analysis of pre- and post-repair performance can highlight the effectiveness of the reassembly. Note the engine’s idle quality, throttle response, and overall drivability. If the pump was previously failing, improvements in these areas confirm a successful repair. However, if issues persist, recheck the housing alignment, screw tightness, and diaphragm seating. Even minor discrepancies can lead to reduced pump efficiency or recurrent failure.
For long-term reliability, consider applying a thread-locking compound to the screws during reassembly, especially in high-vibration environments. This prevents screws from loosening over time. Additionally, inspect the housing gasket for wear or damage before reinstallation; replacing it if necessary ensures a tight seal. Finally, document the repair process, including torque specifications and any adjustments made, to streamline future maintenance. A well-executed reassembly and thorough testing not only restore functionality but also extend the pump’s service life, saving time and resources in the long run.
Understanding the Mechanics of a 2-Cycle Fuel Pump Operation
You may want to see also
Frequently asked questions
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel pressure, and a whining noise from the fuel tank. Inspect the diaphragm for cracks, tears, or hardening.
First, relieve fuel system pressure and disconnect the battery. Remove the fuel pump assembly, disassemble it carefully, and extract the diaphragm. Follow the manufacturer’s instructions for your specific model.
Minor cracks or tears may be temporarily repaired with a fuel-resistant adhesive, but it’s highly recommended to replace the diaphragm with a new one for reliability and safety.
Work in a well-ventilated area, avoid open flames or sparks, and use non-sparking tools. Ensure the fuel system is depressurized, and wear safety gear like gloves and goggles.
