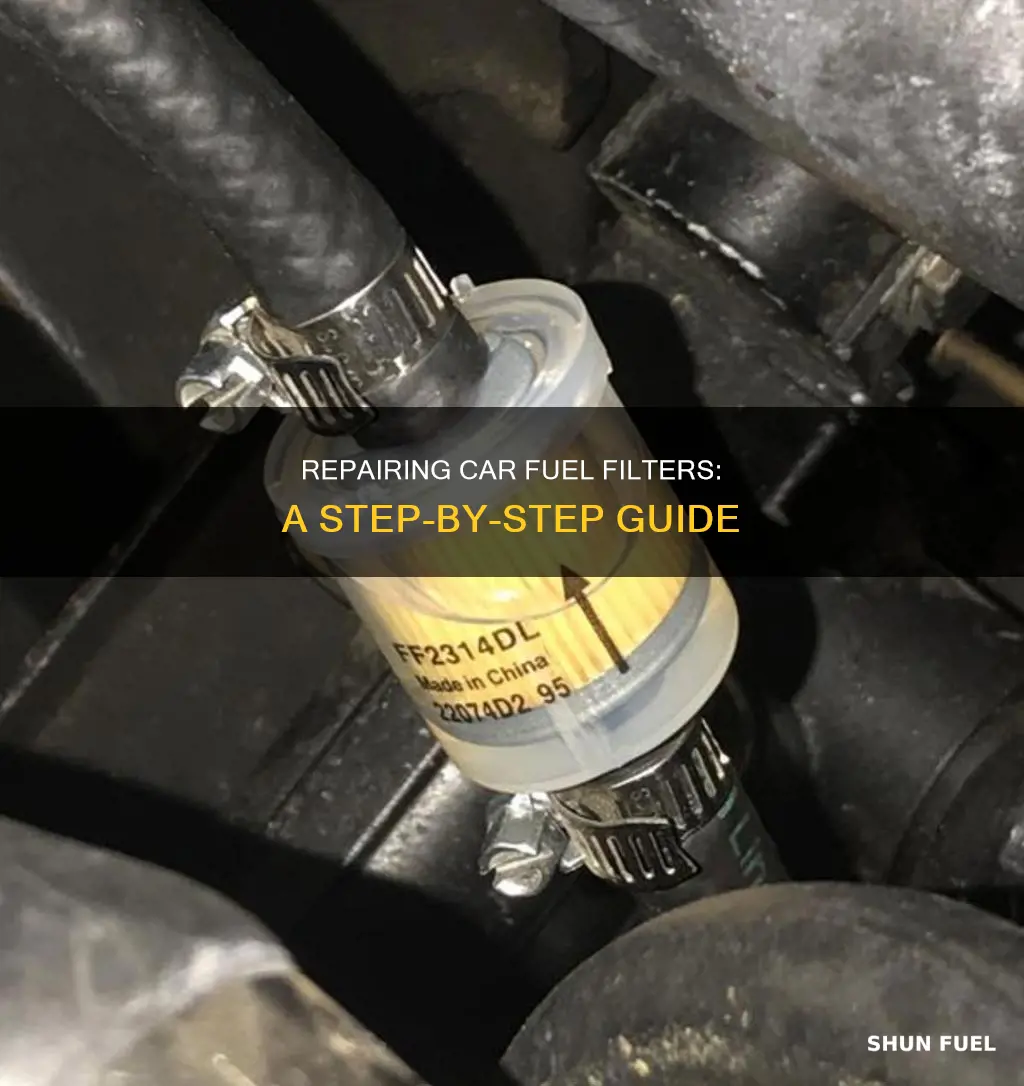

A car's fuel filter is designed to keep dirt, dust, and other contaminants out of the engine. Over time, the filter can get clogged, leading to poor performance, stalling, or even engine failure. Replacing a fuel filter is a relatively easy DIY task that can save you time and money. This article will provide a step-by-step guide on how to repair or replace a car fuel filter, including locating the filter, relieving fuel system pressure, and installing a new filter. It is important to note that the process may vary depending on the vehicle model, so it is always recommended to refer to the owner's manual for specific instructions.
How to Repair a Car Fuel Filter
| Characteristics | Values |
|---|---|
| When to repair | When the car is not running smoothly, especially if it's idling roughly, hesitating, or having difficulty starting. |
| Fuel filter location | There are two common locations: along the fuel line on the bottom of the car, or in the engine bay on the line that leads to the fuel rail. |
| Tools required | A jack, jack stands, wheel chocks, a fire extinguisher, a screwdriver, a hose-separation tool, a fuel pressure gauge, a garden hose, a drain pan, rags, a quick-release tool, a new fuel filter. |
| Steps | 1. Consult the vehicle's service manual. 2. Raise and support the vehicle. 3. Set the parking brake and chock the wheels. 4. Relieve the fuel system pressure. 5. Disconnect the fuel tube fittings from the filter. 6. Loosen the clamp and remove the filter. 7. Install the new fuel filter, ensuring the arrow points in the correct direction. 8. Reattach clips and secure the clamp. 9. Reinstall the fuel pump relay fuse and reconnect the battery. 10. Lower the vehicle. 11. Turn the ignition to accessory mode, then off, then back to accessory mode. 12. Check for leaks and start the engine. |
Explore related products
$6.08 $8.99
What You'll Learn
Locating the fuel filter
The most common location for modern vehicles is along the fuel line on the bottom of the car, just past the fuel pump. If the fuel filter is located on the underside of your vehicle, you will need to jack up the car to access it safely. Place a jack underneath one of the designated jack points, then either pump or twist the handle to raise the vehicle. Once the vehicle is jacked up, place jack stands beneath it before working underneath.
In some vehicles, the fuel filter is located in the engine bay on the line that leads to the fuel rail. You may need to access the fuel filter from inside the cabin of some vehicles. Some vehicles will have their fuel pump and thus their filter in the back of the vehicle, which means you’ll need to go into the trunk to access it.
If you have a newer car, it may not have a serviceable fuel filter. Instead, the filter is part of the fuel pump module located in the fuel tank and should last the life of the vehicle. Older cars, on the other hand, typically have an external fuel filter that requires routine service.
Fuel Pump Failure: Can You Still Drive Your Car?
You may want to see also
Explore related products
Disconnecting the fuel lines
First, it is important to locate the fuel filter. The fuel filter is typically positioned between the fuel pump and the fuel injectors, and there are two common locations where fuel filters are mounted in vehicles. In modern vehicles, the fuel filter is often found along the fuel line on the bottom of the car, just past the fuel pump. In some cars, it may be located in the engine bay on the line leading to the fuel rail. Refer to your vehicle's service or repair manual to determine the exact location. Once located, if the fuel filter is on the underside of the vehicle, you will need to jack up the car to access it safely.
Next, before disconnecting the fuel lines, it is essential to relieve the fuel system pressure. This can be done by removing the fuel pump fuse or relay and then running the vehicle until it dies due to a lack of fuel. Ensure the engine is off during this process. Alternatively, a fuel pressure gauge can be attached to the test port on the fuel rail to vent fuel into a catch pan. Always refer to the repair manual or a repair database to determine the correct pressure relief method for your specific vehicle.
Now, you can proceed to disconnect the fuel lines from the fuel filter. Place a drain pan to catch any fuel left in the line or the filter when you detach them, and have some rags handy as well. Some vehicles may leak continuously until everything is reattached, so be prepared for this possibility. If your model has clips, you may need a quick-release tool or a screwdriver to detach the fuel filter from the line. Be cautious not to kink plastic fuel lines during this process.
Carefully disconnect the fuel tube fittings from the filter, then loosen the clamp and remove the filter. Be aware that a small amount of fuel may squirt out of the lines when you disconnect the filter. Take the necessary precautions, as fuel is flammable and can be hazardous if it comes into contact with your eyes or skin.
Finally, once the fuel filter is successfully removed, you can prepare to install the new fuel filter. Ensure you have the correct type of fuel filter for your vehicle, and always follow the manufacturer's recommendations and specific requirements for your car.
Cleaning Car Fuel Injectors: DIY Guide and Tips
You may want to see also
Explore related products
Removing the old filter
Before removing the old filter, it is important to take the necessary safety precautions as you will be working with flammable materials. Wear safety equipment and keep a fire extinguisher nearby.
The first step is to locate the fuel filter. There are two common locations fuel filters are mounted in vehicles: along the fuel line on the bottom of the car, just past the fuel pump, or in the engine bay on the line that leads to the fuel rail. Some vehicles may place the fuel filter in a different location, so refer to your service manual to find out. Jack up the car if necessary. If the filter is located on the underside of your vehicle, you will need to jack up the car to access it.
Once you have located the filter, the next step is to disconnect the fuel tube fittings from the filter. Be careful not to kink plastic fuel lines as you detach the filter. Your model may have clips that require a quick-release tool or screwdriver to detach from the line. Push the release buttons on either side that are holding it in. Loosen the clamp and remove the filter.
Unclamp or unbolt the old fuel filter from its mounting bracket and carefully remove it from the vehicle. Place a drain pan to catch any fuel left in the line or the filter when you detach them. It is also a good idea to have some rags handy.
Fuel Formula: F1's Secret Sauce for Success?
You may want to see also
Explore related products
Installing the new filter
Installing a new fuel filter is a relatively easy DIY task, but it can be messy and you are working with flammable materials, so take the necessary precautions.
First, locate the fuel filter. There are two common locations fuel filters are mounted in vehicles: along the fuel line on the bottom of the car, just past the fuel pump, or in the engine bay on the line that leads to the fuel rail. Some vehicles may place the fuel filter in a different location, so refer to your service manual to find out for sure. Jack up the car if necessary. If the filter is located on the underside of your vehicle, you will need to jack up the car to access it.
Once you’ve located the filter, push the release buttons on either side that are holding it in place. Your model may have clips that require a quick-release tool or screwdriver to detach from the line. Be careful not to kink plastic fuel lines as you detach the filter. Disconnect the fuel tube fittings from the filter, then loosen the clamp and remove the filter.
Place the new fuel filter in the mounting bracket, making sure the flow direction arrow aligns with the direction of fuel flow. Secure the filter using the original clamp or bolt. Reconnect the fuel lines, ensuring they are tightly secured. Apply thread sealant if required for your specific vehicle.
Reinstall the fuel pump relay fuse. Reattach the negative terminal. Lower the vehicle, if needed.
Fuel Capacity Secrets of F1 Cars Revealed
You may want to see also
Explore related products
![HiSport Fuel Injector 101 Micron Baskets Filter [6mm x 3mm x12mm] Universal Repair Seal Kits [20 Pcs]](https://m.media-amazon.com/images/I/61cmuoRfZuS._AC_UL320_.jpg)
Reattaching the fuel lines
Before beginning the process of reattaching the fuel lines, it is essential to locate the fuel filter. Refer to your vehicle's service or repair manual to determine its exact location, as it may vary depending on the vehicle's make and model. The fuel filter is typically positioned between the fuel pump and the fuel injectors, and it can be found either along the fuel line on the bottom of the car or in the engine bay. If the fuel filter is located on the underside of your vehicle, you will need to jack up the car to access it safely.
Once you have located the fuel filter and completed any necessary repairs or replacements, you can begin the process of reattaching the fuel lines. Ensure that the fuel lines are securely connected to the nozzles of the fuel filter. Be cautious not to kink the plastic fuel lines during this process. You may need to apply thread sealant to ensure a tight connection, depending on your vehicle's specific requirements.
After the fuel lines are securely attached, you can proceed with reinstalling the fuel pump relay fuse. This step is crucial to restoring fuel system pressure. Refer to your vehicle's manual for specific instructions on reinstalling the fuel pump relay fuse, as the process may vary slightly depending on your car's make and model.
Before lowering the vehicle, ensure that all tools and equipment are cleared away and that the jack stands are completely out of the way. Lowering the vehicle onto the jack stands can cause damage, so it is crucial to take the necessary precautions. Once the vehicle is safely on the ground, reconnect the battery to complete the project.
Finally, turn the ignition to the accessory position, not to the "on" position. Repeat this step once more to bring pressure to the filter and system. Check for any leaks under the car and around the new fuel filter. If no leaks are detected, start the engine. It is normal to experience a rough idle initially, but be sure to check for leaks again after the engine has been running. If everything appears to be in order, take a test drive to ensure that the repairs were successful.
Digital Fuel Gauges: Accurate or Deceitful?
You may want to see also
Frequently asked questions
For most vehicles, the fuel filter should be replaced every two years or 24,000 miles. However, maintenance schedules vary depending on the vehicle, so it's always a good idea to check your owner's manual for the manufacturer's recommended filter replacement intervals.
If your car's engine is sputtering, stalling, hesitating, or having difficulty starting, then the culprit might be your fuel filter. A clogged fuel filter can cause poor acceleration and stalling, and may even prevent your car from starting.
There are two common locations where fuel filters are mounted in vehicles. The most common location for modern vehicles is along the fuel line on the bottom of the car, just past the fuel pump. In some vehicles, the fuel filter is located in the engine bay on the line that leads to the fuel rail. Refer to your vehicle's service manual to determine the exact location.
The tools needed to replace a fuel filter will vary depending on the type of car you have. However, some common tools you may need include a jack and jack stands, a screwdriver, a hose-separation tool, a fire extinguisher, and safety equipment.
Here are the general steps to replace a car fuel filter:
- Relieve the fuel system pressure by removing the fuel pump fuse or relay and running the engine until it stalls.
- Locate and remove the old fuel filter.
- Install the new fuel filter, ensuring the flow direction arrow aligns with the fuel flow direction.
- Reattach the fuel lines, clips, and clamps.
- Reinstall the fuel pump relay fuse and reconnect the battery.
- Lower the vehicle if it was raised.
- Turn the ignition to accessory mode to bring pressure to the filter and system.
- Check for leaks and start the engine. Expect a rough idle at first.
