Regan Brown

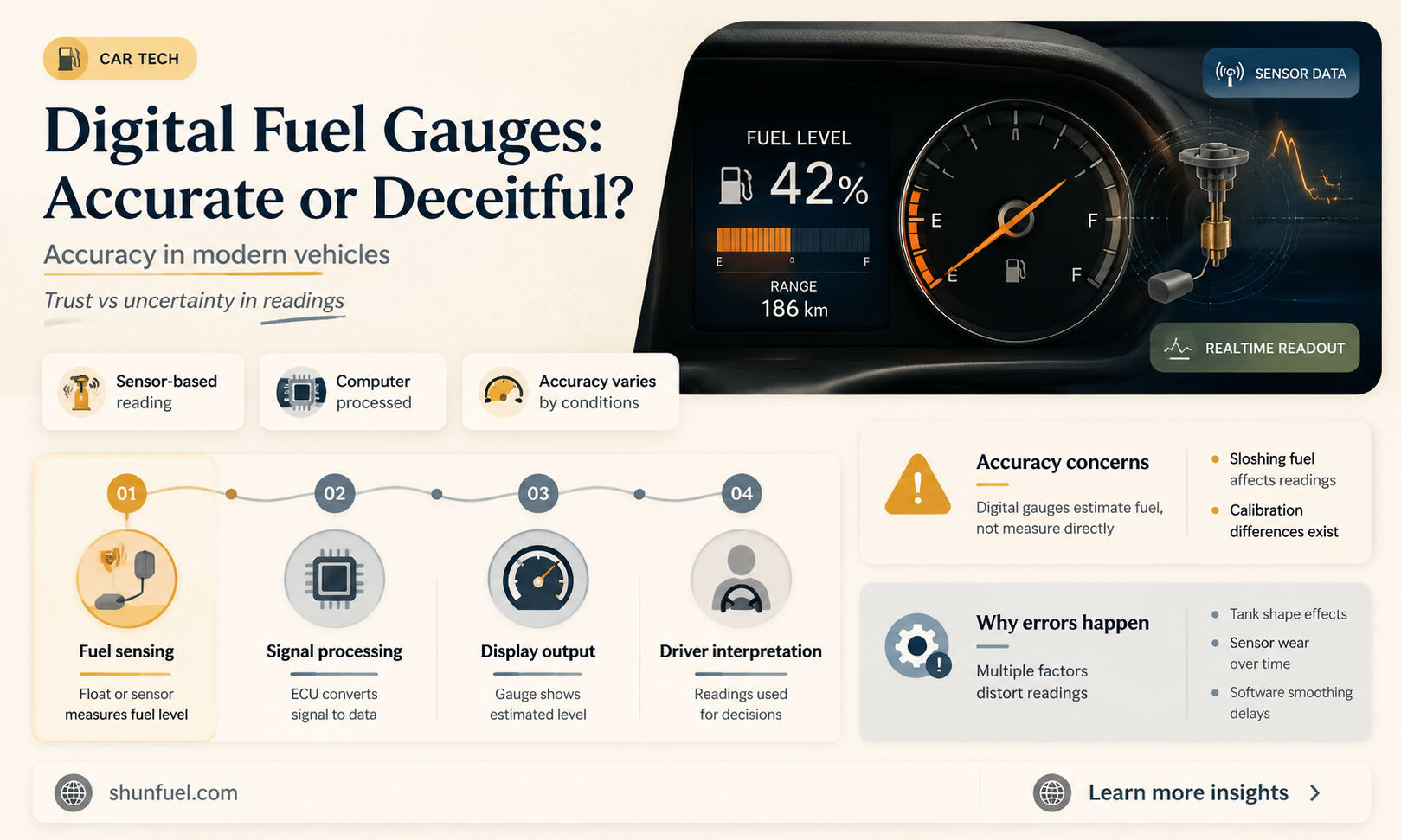

Digital fuel gauges in cars are designed to give drivers a sense of efficiency and control. However, their accuracy is questionable, and many drivers have expressed concerns about their reliability. The issue is not unique to digital gauges, as their analogue counterparts also provide only an approximation of the remaining fuel. This is due to the way the gauges are designed and calibrated, which results in a non-linear relationship between the fuel volume and the gauge reading. Various factors, such as driving habits, weather conditions, and the shape of the fuel tank, can influence the accuracy of these readings. While the technology exists to create more precise gauges, customer preferences and psychological factors have led to the current design, which provides a false sense of security to drivers.
| Characteristics | Values |
|---|---|
| Accuracy of digital fuel gauge | Digital fuel gauges are not always accurate. |
| Factors affecting accuracy | Shape of the fuel tank, driving habits, speed, acceleration, and distance. |
| Recommendations | AAA recommends filling up when the tank reaches the one-quarter mark to prevent running out of gas. |
| Alternative methods | Using the trip meter as a fuel guide, focusing on the fuel gauge instead of the estimated range, and using weight sensors to measure volume. |
| Safety considerations | Running a modern car completely out of gas can cause problems from tank sediments being picked up. |
| Fuel gauge design | The initial depletion is designed to be slower, giving a false sense of better efficiency. |
| Fuel level sensors | Magnetoresistance type fuel level sensors are highly accurate and address fire and explosion hazards. |
Explore related products
What You'll Learn
Fuel gauge design
Fuel gauges are designed to inform the user of the remaining capacity of a battery or fuel tank. The design of a fuel gauge varies depending on the algorithm used and the type of battery chemistry.
Automotive Fuel Gauges
In automobiles, the fuel gauge consists of two parts: the sending unit and the indicator unit. The sending unit uses a float connected to a potentiometer, which is typically a printed ink design in modern automobiles. As the fuel in the tank is consumed, the float drops and slides a moving contact along the resistor, increasing its resistance. This, in turn, causes the indicator unit to measure and display the amount of electric current flowing through the sending unit. When the tank is full, the maximum current flows, and the needle points to "F" to indicate a full tank. As the fuel level decreases, the current and the needle position also decrease.
Aircraft Fuel Gauges
Aircraft fuel gauge design differs from that of automobiles. Large transport aircraft often use a different design principle, employing a number of low-voltage tubular capacitor probes where the fuel becomes the dielectric. By measuring different values of capacitance at various fuel levels, the system can determine the amount of fuel present. This system can be more than 99% accurate and allows for the identification and elimination of faulty probes from fuel calculations.
Fuel Gauges for Custom Battery Packs
Fuel gauges for custom battery packs can be designed using different options, depending on the algorithm employed. One common method is Voltage Lookup, which involves determining the state of charge (SoC) using battery voltage and comparing it to an internal lookup table. Another approach is Coulomb Counting, which measures the energy flowing in and out of the battery and is often used for high-powered devices like laptops and medical equipment.
Factors Affecting Fuel Gauge Accuracy
It is important to note that fuel gauges provide approximations rather than precise measurements. The nonlinear behaviour of fuel gauges is due to the shape of the fuel tank, resulting in non-linear changes in fuel level with respect to fuel volume. This means that the top quarter of the gauge may last longer than the bottom quarter, giving drivers the perception of better efficiency in the first half of the tank and catching them off guard in the second half. Additionally, factors such as driving style, weather conditions, and the presence of ethanol in the fuel can influence the accuracy of the estimated range displayed on digital fuel gauges.
The Truth About Tesla's Hydrogen Fuel Cell Cars
You may want to see also
Explore related products
Driving habits and fuel economy
Driving habits have a significant impact on fuel economy, and making some adjustments to your driving behaviour can help improve fuel efficiency and save money. Here are some essential tips to consider:
Aggressive Driving
Aggressive driving behaviours, such as speeding, rapid acceleration, and abrupt braking, can negatively affect fuel economy. Analysis by the Massachusetts Institute of Technology shows that aggressive driving can lower fuel efficiency by 15%-30% at highway speeds and 10%-40% in stop-and-go traffic. Adopting a smoother and more efficient driving style can help improve fuel economy and reduce vehicle emissions.
Idling
Leaving your car idling, such as when running errands or waiting, wastes more fuel than you may think. Turning off your engine when parked can save fuel and money. Modern hybrids save fuel by automatically shutting off at stoplights, and this practice can be adopted by all drivers when safe to do so.
Speed Management
Observing speed limits and maintaining a sensible speed can significantly improve fuel economy. While each vehicle has its optimal fuel-efficient speed, fuel mileage typically decreases rapidly above 50 mph. Hauling cargo on your roof also increases wind resistance, lowering fuel efficiency. Removing external cargo containers when not in use and keeping your vehicle free of unnecessary weight can help improve mileage.
Fuel-Efficient Techniques
Adopting fuel-efficient driving techniques can make a noticeable difference in fuel consumption. These include proper gear shifting, smooth acceleration, and maintaining proper tyre inflation. Properly inflated tyres can improve fuel economy and increase safety on the road. Additionally, using the manufacturer's recommended grade of motor oil can further enhance fuel efficiency.
Carpooling
Carpooling is an excellent way to save fuel and reduce environmental impact. It allows you to share driving responsibilities and take advantage of carpool lanes, making your commute more efficient and cost-effective.
By combining these driving habits with other fuel management strategies, such as regular vehicle maintenance and fuel conservation programs, you can further enhance fuel economy and contribute to a more sustainable future.
Understanding Your Car's Fuel Gauge: A Simple Guide
You may want to see also
Explore related products
Electrical faults
A car's fuel gauge consists of two parts: the sending unit and the indicator unit. The sending unit uses a float connected to a potentiometer, which is typically a printed ink design in modern automobiles. As the tank empties, the float drops, and the indicator unit measures and displays the amount of electric current flowing through the sending unit.
To diagnose electrical issues with a fuel gauge, you can perform a self-test by turning the headlights on and off several times while pressing a button or turning the ignition. During this test, the fuel gauge should sweep through different locations. If it doesn't, there could be a problem with the fuel gauge or the instrument cluster. You can also check the fuse and replace it if necessary. However, if the fuse continues to fail, it could indicate a larger electrical system problem.
In newer cars, the instrument cluster is an integrated piece of equipment. If it fails, the gas gauge could malfunction as well, and repairing it can be expensive. The fuel gauge relies on the circuit and sender for information, and a failure in any of these parts can cause incorrect readings. The majority of fuel gauges are grounded to the vehicle's electrical system, but in older models, they may be grounded to the frame or body.
It is important to note that digital gauges may not be as accurate as analog gauges. Digital gauges use calculations based on the sending unit input, and their displays usually have self-contained voltage regulators in the fuel gauge control module.
Draining Fuel from Your Car: A Step-by-Step Guide
You may want to see also
Explore related products
Magnetoresistance fuel level sensors
Fuel gauges in cars are designed to give a false sense of efficiency by depleting slower in the first half and faster in the second half. This means that when the gauge shows 50% of fuel left, you actually have much less than that. This is due to the non-linearity of the fuel gauge, which arises because the sender unit of the fuel gauge has an old-fashioned float that floats on the top of the fuel surface and sends signals about fuel levels. The float can only measure the liquid surface level, and the fuel level does not change linearly with the fuel volume.
Hall-based fuel level sensor ICs are another type of magnetic fuel level sensor that provides high reliability and accurate fuel level sensing for automotive applications. Allegro offers a range of Hall sensors suitable for different FLS systems, and all the sensors use a simple diametric magnet. Allegro's sensors can also be programmed to achieve a linear output signal, even with asymmetric fuel tank shapes.
Factors Behind Rising Car Fuel Consumption
You may want to see also
Explore related products
Fuel gauge accuracy in different cars
Fuel gauge accuracy can vary across different cars. While some sources claim that fuel gauges are designed to initially deplete slower, giving a false sense of better efficiency, others claim that they are approximations and not graded linearly or accurate down to the last litre or fraction of a litre. The accuracy of a fuel gauge can be impacted by driving style, conditions, and habits, which can also affect fuel economy. For example, smaller cars weighed down by heavy cargo will experience a greater reduction in fuel economy compared to larger models designed to carry more weight. Additionally, the use of air conditioning can impact fuel economy, as the engine power required to operate the air conditioning compressor can affect fuel consumption more than having the windows open, even at highway speeds.
The design of the fuel gauge itself can also impact its accuracy. Most automotive fuel gauges use resistors that are located inside the fuel tank, which can pose a fire and explosion risk. Alcohol-based fuel mixtures can increase the corrosion rate at the potentiometer, as alcohol is capable of carrying an electric current. An alternative design uses magnetoresistance-type fuel level sensors, which are highly accurate and completely separate the electronics from the fuel, eliminating the risk of fire and explosion. This type of sensor is suitable for all fuel or fluid combinations, including LPG and LNG.
In addition to the fuel gauge, some vehicles also have a "low fuel" light, which is calibrated to turn on when there is a certain amount of fuel left in the tank. This light is typically more accurate than the fuel gauge, as it uses a pair of fixed metal plates or rods to measure the fuel level electrically, rather than a float that operates a variable resistor.
While the accuracy of fuel gauges can vary, it is important to note that they are still useful tools for understanding how different driving styles and conditions can impact fuel efficiency. By resetting the trip data after filling up the tank and observing how the fuel economy display changes, drivers can gain insights into how their specific habits influence their fuel economy.
Fuel Efficiency: Maximizing Your Car's Performance and Economy
You may want to see also
Frequently asked questions
Digital fuel gauges are accurate in determining the level of fuel in the tank, but not the actual volume. This is because the gauge reads the level of fuel, which is not always calibrated to a full tank, but rather a rated capacity.
The inaccuracy of digital fuel gauges is caused by the shape of the fuel tank. Most gas gauges work using a floating sending unit, which rests on top of the fuel and sends a signal to the gauge indicating the level. The problem is that if the fuel tank is not a perfect rectangular shape, the upper portion of the tank may hold more fuel than the bottom, causing the float to sink slower at the top as fuel is consumed.
Fuel gauges are designed to deplete slower in the first half of the tank and faster in the second half. This gives drivers a false sense of better efficiency.
The gauges are approximations and are not graded linearly or accurate down to the last litre or fraction of it. The top quarter of the gauge typically lasts a lot longer than the bottom quarter.
