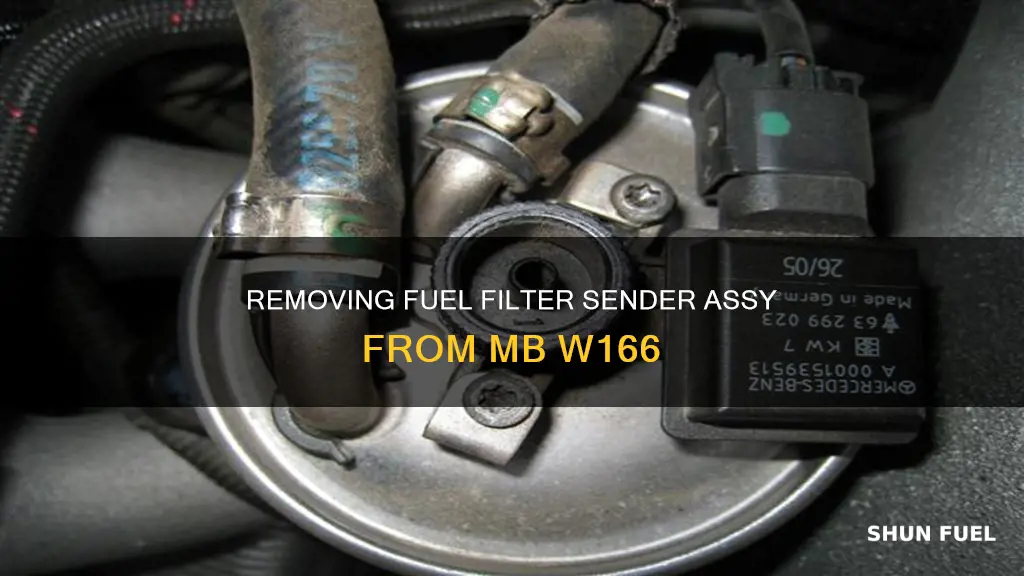

The fuel filter sender assembly in a car is typically located under the rear seat or the rear driver's side tire. To remove it, one must first jack up the car, remove the rear driver's side tire and wheel well access panel, and then locate the fuel filter. Next, one must carefully remove the fuel filter by disconnecting the fuel lines and ensuring that no fuel is spilled. Finally, a new fuel filter can be installed by connecting the fuel lines and securing the locking ring.
Explore related products
What You'll Learn
Removing the rear seats
To remove the fuel filter sender assembly in a Mercedes-Benz ML-Class W166, you will first need to remove the rear seats. Here is a step-by-step guide on how to do this:
- Start by locating the rear seats in your vehicle. They are usually attached to the floor with bolts or screws. You may need to remove any trim panels or covers that are hiding the attachment points.
- Gather the necessary tools, such as a socket wrench or screwdriver, to remove the bolts or screws holding the seats in place.
- Carefully remove the bolts or screws and set them aside in a safe place so they do not get lost.
- Gently lift and remove the rear seats from the vehicle. Place them somewhere safe and out of the way.
- Once the rear seats are removed, you will need to pull up the carpet to access the fuel pump and filter. The fuel pump is located on the right side, and the fuel filter is on the left side.
It is important to note that some sources suggest that it may not be necessary to completely remove the rear seats. Instead, you may be able to flip up the back seats and fold back the carpet to access the fuel pump and filter. Always refer to your vehicle's specific instructions and consult a professional if you are unsure.
Cleaning Echo Blower PB-265LN Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Locating the fuel pump
To locate the fuel pump in the MB W166, you will need to remove the rear seats and pull up the carpet. The fuel pump is located on the right side, and the fuel filter is on the left side.
Some sources suggest that it is necessary to dismount and remove the fuel tank to change the fuel pump. However, others claim that it can be accessed from under the rear passenger seat, without removing the seat itself. There is a YouTube video that demonstrates how to access the pump by removing the bottom of the seats in the second row and pulling up the carpet/panel.
It is important to note that the fuel filter is not on the engine or the front of the vehicle, but rather inside the tank, lined with the fuel pump. This is different from older models of the W166, where the fuel filter was located on the front of the engine.
One person who replaced their fuel pump noted that the tank was the hardest part of the process and that it was not like the older model they had worked on before. They also mentioned that their car started jerking and dying while driving, which may be a sign that the fuel pump is not functioning properly.
Fuel Filter Maintenance: Full Tank Necessary?
You may want to see also
Explore related products
Replacing the fuel lines
To replace the fuel lines of the fuel filter sender assembly in a MB W166, you will first need to access the fuel pump and filter. This requires removing the rear seats and pulling up the carpet. The fuel pump is on the right side and the fuel filter is on the left side. Be cautious as there will be some fuel inside the pump reservoir, and tilting the pump more than 45 degrees may cause a spill.
Once you have accessed the fuel pump and filter, you can begin replacing the fuel lines. First, ensure that you have purchased the correct fuel lines for your specific model. If the last 6 digits of your VIN number are less than 265965, you will need an upgraded filter and fuel lines. You can buy replacement copper (Kunifer) lines from your local auto parts store.
When installing the new fuel lines, pay close attention to the alignment. The smaller fuel return line should plug into the fuel pump easily. However, the fuel feed line may require more force to plug in. Ensure that the alignment of the pump is correct, as a wrong alignment may prevent the fuel sensor floating arm from lifting completely when the tank is full, causing the fuel gauge to never show a full tank.
Additionally, check that the rubber gasket has a tight fit between the pump and the tank to prevent leaks. Put the locking ring over the pump and turn it clockwise for at least 360 degrees (one full turn). If you have the specific MB tool, the specification is 65Nm.
Cleaning Fuel Customs Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Installing the new pump
To install the new pump, carefully insert it, being mindful that there is still fuel inside the pump reservoir. Check the alignment of the fuel lines and ensure they are the same as the original setup. It is important to ensure the correct alignment of the pump, otherwise, the fuel sensor floating arm may not lift completely when the tank is full, and the fuel gauge will never show a full tank.
Make sure that the rubber gasket has a tight fit between the pump and the tank, as a loose fit may cause a leak when the tank is full. Put the locking ring over the pump and mark its initial position with a pen, then turn the locking ring clockwise for at least 360 degrees (one full turn). If you have the specific MB tool to remove and install the locking ring, the specification is 65Nm.
The fuel pump is located on the right side, underneath the rear seats. To access it, you will need to remove the rear seats and pull up the carpet. You may also need to jack up the truck and remove the rear driver's side tire and wheel well access panel.
Tiguan Fuel Filter: Does It Exist?
You may want to see also
Explore related products
Checking alignment
To check the alignment of the fuel filter sender assembly in your MB W166, you must first locate the fuel filter. It is situated under the rear seat, on the left side.
To access the fuel filter, you will need to remove the rear seats and pull up the carpet. Once you have located the fuel filter, you can begin checking its alignment.
First, visually inspect the fuel filter and its surrounding components for any signs of damage or misalignment. Ensure that the fuel filter is securely attached to the fuel pump assembly and that there is no damage to the fuel lines or connections.
Next, check the fuel filter for any signs of leaks or corrosion. If there are any leaks present, this could indicate a misalignment or damage to the sealing gasket or fuel lines. A leak may also be caused by a faulty fuel filter, so it is important to inspect the condition of the filter itself.
Finally, refer to the manufacturer's specifications for the MB W166 fuel filter sender assembly. This will provide you with the correct alignment measurements and guidelines. Compare these specifications to your visual observations to identify any discrepancies or misalignments.
By carefully following these steps, you can accurately check the alignment of the fuel filter sender assembly in your MB W166 and identify any issues that may require adjustment or repair.
Fuel Filter Facts: Prime Performance for Your Engine
You may want to see also
Frequently asked questions
You will need to remove the rear seats and pull up the carpet to access the fuel pump and filter. The fuel pump is on the right side, and the fuel filter is on the left side.
Yes, you will need to jack up the car, remove the rear driver's side tire, and wheel well access panel to replace the fuel filter.
There is some fuel inside the pump reservoir, so be careful not to tilt the pump more than 45 degrees to avoid a fuel spill. Do not drop anything inside the tank.
Carefully insert the new fuel pump, ensuring the alignment of the fuel lines matches the original. Check that the rubber gasket has a tight fit between the pump and the tank to prevent leaks.
Place the locking ring over the pump and turn it clockwise for at least 360 degrees (one full turn). If you have the MB tool, the specification is 65Nm.
