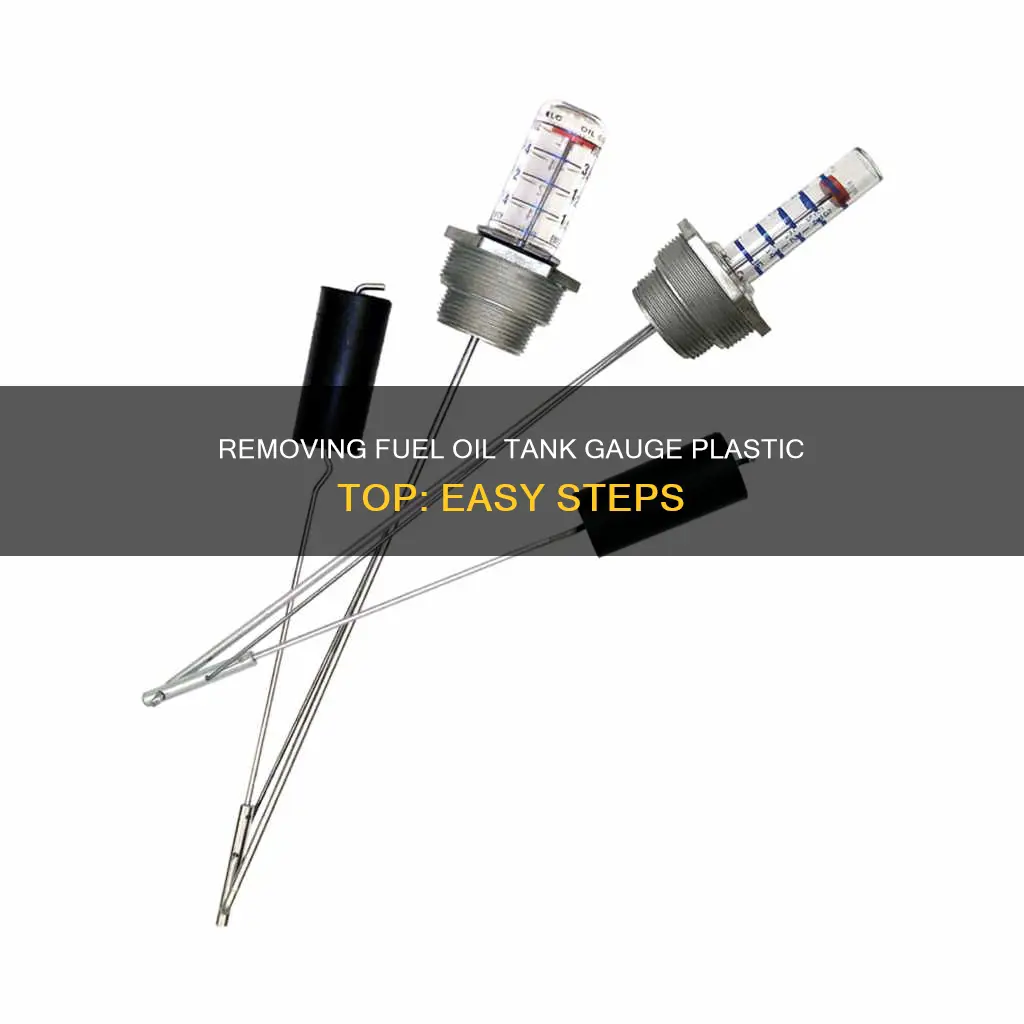

Removing the plastic top of a fuel oil tank gauge is a relatively simple process, but it requires careful handling to avoid damaging the protective cover. Before attempting any removal or replacement, it is essential to understand the basic mechanism of a float gauge. In simple terms, a float gauge consists of a floating piece (float) that sits atop the oil and moves down as the oil level lowers. This float is connected to a hinged arm, with a plastic disc at the other end that moves up and down, providing an indication of the oil level. To remove the plastic top, start by loosening the assembly slightly and then removing the plastic vial by hand to access the disc. With the vial removed, use a pipe wrench to loosen the assembly further, being careful not to turn it more than half a turn to prevent the float from hitting the tank's interior wall. With these steps, you can safely remove the plastic top of the fuel oil tank gauge.
Characteristics and Values Table for Removing Plastic Top of Fuel Oil Tank Gauge
| Characteristics | Values |
|---|---|
| Tools Required | Rubber gloves, penetrating oil, pipe wrench, wire, paper towels, garbage bag, etc. |
| Steps | 1. Remove the plastic vial by hand to expose the disc. 2. Position the pipe wrench on the metal fitting. 3. Loosen the fitting slightly. 4. Use a flashlight to find the end of the float gauge arm. 5. Pull the float gauge arm out of the tank. 6. Remove the gauge from the gauge pipe. 7. Clean the fitting on the top of the tank. 8. Insert a new gauge. |
| Common Issues | Sludge buildup, bent metal in the arm, rotation of the assembly, float getting stuck, etc. |
| Testing the Gauge | 1. Manually remove the outer case. 2. Press the floating marker downward. 3. If it pops back up, the gauge is working correctly. |
| Reading the Gauge | The float indicates the amount of fuel left in the tank. The float moves down as the fuel level lowers. |
Explore related products
$64.2 $71.01
What You'll Learn
Remove the plastic vial by hand
Removing the plastic vial by hand is a crucial step in the process of replacing a fuel oil tank gauge. This step grants access to the internal components of the gauge, allowing for further adjustments or replacements to be made. Here is a detailed guide on how to remove the plastic vial by hand:
Locate the Plastic Vial:
The plastic vial is part of the oil tank gauge assembly, which is usually located on the top of the tank. It houses the coloured disc or float that moves up and down to indicate the oil level in the tank. The vial itself is typically made of clear plastic or glass and is round with markings similar to a measuring cup.
Prepare for Removal:
Before attempting to remove the plastic vial, it is essential to have a basic understanding of how the float gauge works. The float gauge consists of a floating piece ("the float") attached to a long, thin metal rod or arm. The arm has a hinge that moves up and down with the float, depending on the oil level in the tank. The coloured disc at the top of the metal arm sits inside the plastic vial, providing a visual indication of the oil level.
Remove the Plastic Vial:
To remove the plastic vial, follow these steps:
- Gently Grip the Vial: Use your hand to gently grip the plastic vial. Be careful not to apply excessive force to avoid damaging the vial or any surrounding components.
- Slowly Pull or Twist: Depending on the specific mechanism of your oil tank gauge, you may need to slowly pull or twist the plastic vial. If it is a pull-out mechanism, gently pull the vial straight up or towards yourself with a steady motion. If it is a twist-off mechanism, turn the vial counterclockwise, being careful not to force it if it doesn't easily twist.
- Expose the Internal Disc: As you remove the plastic vial, you will expose the coloured disc or float inside. This disc is attached to the metal arm and moves in conjunction with the float to indicate the oil level.
- Set Aside Safely: Once removed, set the plastic vial aside in a safe place. It is important to keep the removed components organised and away from potential hazards, such as open flames or sharp objects, to avoid accidental damage or injury.
By following these steps, you will successfully remove the plastic vial by hand, granting access to the internal components of the fuel oil tank gauge for further maintenance or replacement. Remember to wear appropriate protective gear, such as rubber gloves, and have a basic understanding of the gauge's mechanism before proceeding with any repairs or replacements.
Repairing a Leaking Plastic Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Loosen the metal fitting
To loosen the metal fitting, you will need a pipe wrench. Before you start, remove the plastic vial by hand to expose the disc. Position the pipe wrench on the metal fitting that threads into the tank. Use both hands and loosen the fitting only slightly. Do not loosen it more than half a turn because the float will hit the inside wall of the tank. If you cannot loosen the fitting easily, you can soak it in a penetrating oil such as Liquid Wrench for several hours or a couple of days.
Now that the fitting is loose, you will need to use two hands to continue. If you have someone helping you, this would be ideal. Once you have loosened the fitting completely, you can remove the float gauge's assembly. This next step is messy, so make sure you have a garbage bag and paper towels ready! Allow the float to settle back into the tank by releasing the disc. Slowly pull up the assembly out of the tank and the float will go back down into the tank. This will enable you to take out the assembly from the tank. Immediately place the gauge and assembly into the garbage bag for disposal. Use the paper towels to wipe up any oil that spills out.
Easy Guide: Installing Huskava Fuel Tank Grommet Kit
You may want to see also
Explore related products
Pull up on the gauge to loosen the fitting
To remove the plastic top of a fuel oil tank gauge, you must first understand how a float gauge works. A float gauge has a floating piece (the 'float') made of cork or plastic that sits atop the oil. This float is attached to a hinged arm, with a plastic disc at the other end of the arm. The disc moves up and down with the float, indicating the oil level in the tank. The disc is housed behind a plastic vial that can be removed by hand.
To remove the plastic top, you must first loosen the gauge assembly. Remove the plastic vial by hand to expose the disc. Then, position a pipe wrench on the metal fitting that threads into the tank. Use both hands and loosen the fitting slightly—do not loosen it more than half a turn, as the float will hit the inside wall of the tank. If the fitting is difficult to loosen, you can soak it in a penetrating oil such as Liquid Wrench for several hours or a couple of days.
Now, pull up on the disc to lift the float out of the oil. Once the disc is up, you can continue unscrewing the float gauge fitting from the tank. Pulling up on the gauge will help to loosen the fitting. Once the fitting is completely loose, you can remove the float assembly. This step can be messy, so have a garbage bag and paper towels ready. Allow the float to settle back into the tank by releasing the disc. Slowly pull up on the assembly, and the float will move back down into the tank. This will allow you to remove the assembly from the tank. Use paper towels to catch any dripping oil and place the assembly in the garbage bag immediately.
To install a new float gauge, simply reverse these steps. First, clean the fitting on the tank and apply pipe dope to the threads of the new float gauge assembly. Use a marker on the fitting to indicate the direction in which the arm should fall. Then, insert the new gauge into the tank and tighten the fitting until it lines up with the marked direction.
How Space Shuttle Fuel Tanks Are Recovered
You may want to see also
Explore related products
Remove the float gauge assembly
Removing the float gauge assembly is a simple process, but it requires careful attention to detail. Here is a step-by-step guide to help you through the process:
First, you need to understand the basic components of a float gauge. The float gauge assembly consists of a floating piece, or a 'float', that sits atop the oil. This float is either made of cork or plastic and is attached to a hinged arm. At the opposite end of the hinged arm is a plastic disc housed inside a plastic vial, which can be removed by hand. This disc moves up and down with the float, providing an indication of the oil level in the tank.
Now, to begin the removal process, you must first remove the plastic vial by hand. This will expose the disc inside. Be careful not to apply too much force, as you do not want to damage any components. Once the disc is exposed, you can then position a pipe wrench on the metal fitting that threads into the tank. Use both hands to very slightly loosen the fitting. It is important not to loosen it by more than half a turn, as the float could hit the inside wall of the tank. If the fitting is difficult to loosen, you may need to soak it in a penetrating oil, such as Liquid Wrench, for several hours or even a couple of days.
With the fitting loosened, you can now continue to manipulate the arm inside the tank. Keep the plastic vial removed so that you can access the disc and move the arm freely. Use the pipe wrench to continue loosening the assembly. This step may be easier with two people. Once the fitting is completely loosened, you are ready to remove the float gauge assembly. This next part can be messy, so have a garbage bag and paper towels ready. Allow the float to settle back into the tank by releasing the disc. As the float settles, slowly pull up on the assembly to remove it from the tank. Place the assembly into the garbage bag immediately, and use the paper towels to wipe up any spilled oil.
And that's it! You have now successfully removed the float gauge assembly. Remember to exercise caution and patience throughout the process, and always be prepared for any mess that may occur.
Did Apollo's Fuel Tank Create a Lunar Ding?
You may want to see also
Explore related products
Dispose of the old gauge and assembly
Once you have removed the plastic top of the fuel oil tank gauge, you can dispose of the old gauge and assembly. This process can be messy, so it is important to be prepared. Have a garbage bag and paper towels ready to minimise any mess.
After removing the plastic vial and exposing the disc, you can begin to remove the gauge assembly. Use a pipe wrench to loosen the assembly. With the fitting loose, you can then use your hands to continue loosening and removing the assembly. If you have an extra pair of hands to help, this would be ideal.
Once the assembly is loose, slowly pull up the gauge assembly out of the tank. The float will then back down into the tank, allowing you to take the assembly out. Place the gauge and assembly into the garbage bag for disposal. Use paper towels to wipe up any oil that spills out.
It is important to note that you should not loosen the fitting more than half a turn, as the float will hit the inside wall of the tank. If the fitting is difficult to loosen, you can soak it in a penetrating oil, such as Liquid Wrench, for several hours or a couple of days.
Understanding the Function of Fuel Tank Pressure Sensors
You may want to see also
Frequently asked questions
First, remove the plastic vial by hand to expose the disc. Then, position the pipe wrench on the metal fitting that threads into the tank and loosen the fitting slightly. Now that the fitting is loose, you will need to use two hands to continue.
You will need a pipe wrench, rubber gloves, and penetrating oil (e.g. Liquid Wrench).
The plastic top, or vial, houses a disc that moves up and down with the float, providing a rough indication of the oil level in the fuel oil tank.
Over time, the assembly of the gauge can rotate, causing the float to become stuck on the side of the tank wall. When this happens, you will need to replace the gauge.
If the plastic vial is difficult to remove or if the float becomes stuck and does not return to its original position when pressed downward, it may be time to replace the gauge.
