Removing the screen in a semi fuel tank is a complex process that requires careful attention to detail. It is important to note that the procedure may vary slightly depending on the specific make and model of the semi fuel tank. Generally, the first step is to remove the fuel hose and plug the valve, followed by unscrewing the fuel pickup tube and removing it from the tank. Some mechanics also recommend using a Racor fuel filter to catch any debris that may be present in the tank. Next, the screen can be removed, either by pulling it out gently or by accessing it from the inside of the tank. It is important to note that some screens may be fused to the assembly, making removal more challenging. Finally, it is crucial to ensure that there are no air leaks after the job is completed and to reinstall the fuel hose properly to prevent spills.

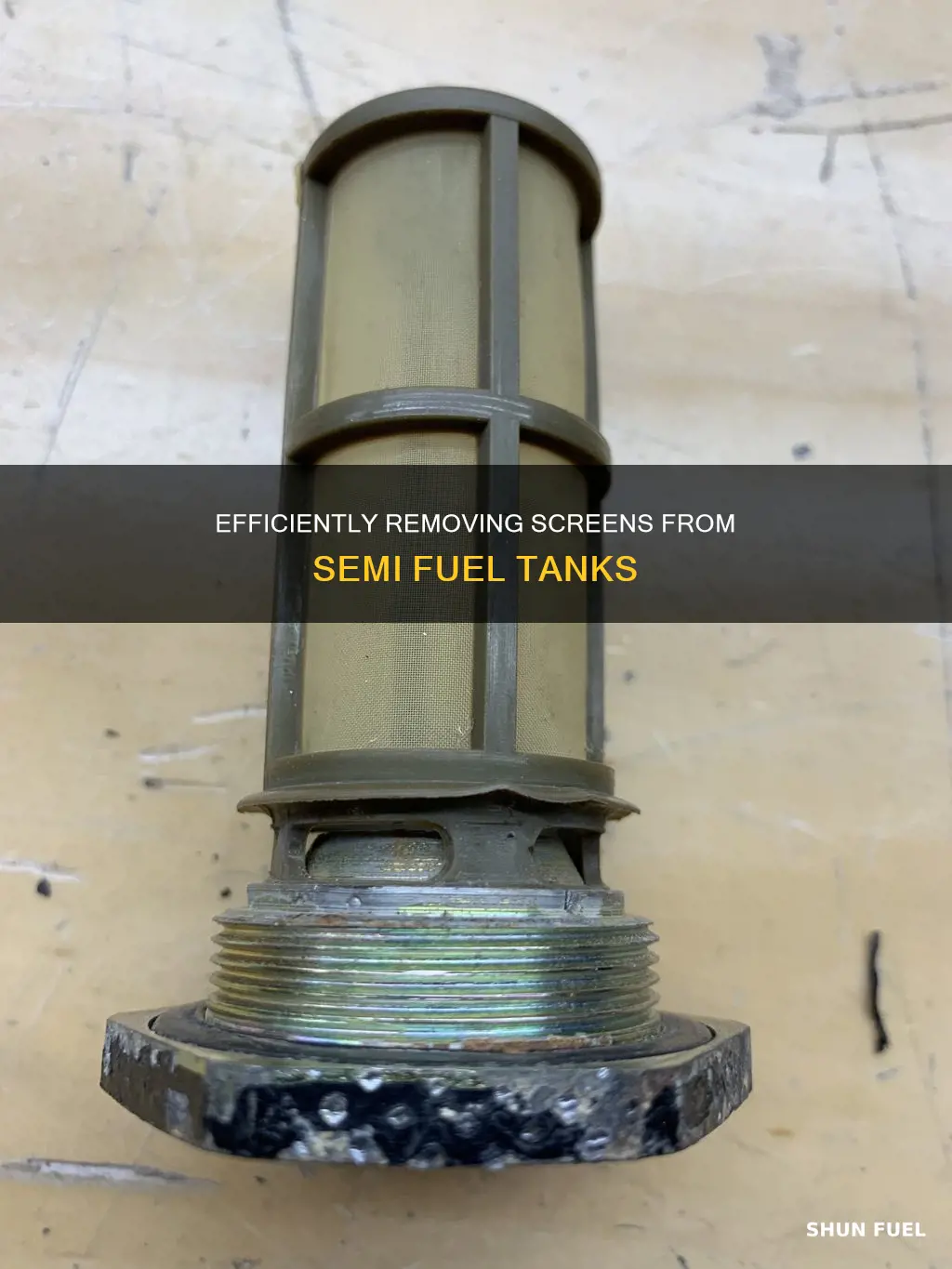

How to Remove Screen in Semi Fuel Tank
| Characteristics | Values |
|---|---|
| Fuel pickup removal | Remove the pick-up tube from the tank, then remove the screen attached to the bottom of the tube |
| Fuel hose removal | Disconnect the rubber hose between the fill-up spot and the tank, then siphon the fuel |
| Fuel tank cleaning | Drain the tank, add a little gas to rinse, and use a tool to break up and remove any remaining debris |
| Fuel screen installation | Insert the screen into the fuel tank inlet nipple of the sediment bowl, ensuring a tight fit to prevent movement |
| Fuel screen removal | Use fingers or a tool to lift the screen out of its metal holder; if stuck, try gently pulling or pushing it out |
| Fuel filter screen removal | Dealerships may offer removal services, or you can attempt to remove it with a tool, but it may be challenging |
Explore related products
What You'll Learn
Removing the pickup tube
First, you will need to disconnect the fuel line hose. This will provide access to the pickup tube assembly. Make sure you have a good amount of clearance to work with. Depending on your setup, you might need to remove the valve handle to create more space.
Next, identify the fuel shut-off valve and turn it counter-clockwise to unscrew it from the tank. You may need to use a wrench to hold the square block still while turning the valve. Be cautious when applying force, especially if the fittings are corroded, as you don't want to break anything.
Once the valve is removed, you should have access to the hose clamps. Remove the fuel hose from the valve. There may be two hose clamps, depending on your setup. It is important to have a plug handy to seal off the hose and prevent any fuel discharge.
Now, you can focus on the pickup tube itself. The fitting will be tight, so you will need to apply a good amount of force to loosen it. Use a properly sized wrench to hold the large nut that sits flush to the tank's top surface. This will prevent it from moving while you work on loosening the pickup tube fitting. You may need to apply some lubrication to the threads to help loosen it further.
Finally, once the fitting is loose, continue to work on it until it comes out completely. The tube should then pull out of the tank. Be cautious when handling the tube, as it may have sharp edges or debris on it.
It is always recommended to have a professional mechanic perform such tasks if you are unsure about any part of the process. They will have the necessary tools and experience to ensure the job is done safely and correctly.
Draining the Ram 3500 Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Removing the fuel hose
Before beginning, it is important to ensure that the tank is empty and that any remaining fuel is drained or blown out of the hose to minimize spills. This can be done by unhooking the hose from the Racor and opening the valve with the hose end elevated.
The next step is to locate the hose clamps that secure the fuel hose in place. Depending on the specific setup of your fuel system, there may be one or two hose clamps. If there are two clamps, both will need to be removed to detach the hose completely. Turn the valve counter-clockwise to access the hose clamps more easily. If there is insufficient clearance to turn the assembly while connected to the hose, try accessing it from the cockpit side.
Once the hose clamps are accessible, use the appropriate tool to loosen and remove them. This may require a specialized tool, depending on the type of hose clamps used. With the hose clamps removed, the fuel hose should be free to detach from the valve. Gently pull on the hose to remove it from the valve. If the hose is stubborn or stuck, do not force it, as this could damage the hose or the valve. Instead, try wiggling the hose gently or using a gentle tapping motion with a soft mallet to loosen it.
In some cases, the fuel hose may be connected to a fuel pickup tube or a fuel screen. If this is the case, it is important to take extra care when removing the hose to avoid damaging these components. Gently twist and wiggle the hose to loosen it from the surrounding parts. If the fuel screen is stuck to the hose, it may need to be carefully removed or detached before proceeding.
After the fuel hose has been successfully removed, it is important to plug or cap the open ends to prevent fuel discharge and spills. Use appropriate fittings or caps to securely seal the hose ends. Additionally, have a plug or a seal ready to close off the valve opening to prevent fuel leakage.
By following these steps, you can safely and effectively remove the fuel hose from your semi fuel tank, allowing you to access and service the fuel screen or other components as needed. Remember to work carefully and patiently, especially when dealing with stubborn hoses or fittings, to avoid any damage to your fuel system.
The Cost of Filling Up Your Tank in the US
You may want to see also
Explore related products
Cleaning the tank
Cleaning a fuel tank can be a daunting and labor-intensive task. However, with the right tools and knowledge, it can be a straightforward and efficient process. Here is a detailed guide to help you through the process of cleaning your semi fuel tank:
Prepare the Tank: Start by draining the fuel tank completely. This is a crucial first step as it makes the cleaning process safer and more accessible. Once empty, use a flashlight to inspect the tank for any debris, holes, cracks, or damage. Use a baster or a vacuum to remove any loose debris and, if there is visible damage, consult a specialist or replace the tank with the manufacturer's recommended parts.
Choose a Cleaning Method: There are two main approaches to cleaning a fuel tank: removing the tank or cleaning it in place. Removing the tank can be a complex and time-consuming process, requiring significant labour and potentially causing disruptions to operations. Alternatively, cleaning the tank without removal is a more innovative, cost-effective, and time-saving approach. This method has gained popularity due to its streamlined process and reduced downtime.
Clean the Tank Without Removal: To clean your fuel tank without removing it, you will need a high-quality fuel tank cleaner and some fuel stabilizers. Choose a cleaner that can effectively break down and remove built-up deposits, sludge, and contaminants without damaging the tank. Fuel stabilizers are also important as they help prevent the formation of varnish and gum. Additionally, ensure you have a sturdy fuel line clamp to prevent fuel leakage during the cleaning process.
Final Steps: Once you have cleaned the tank, it is important to inspect the fuel filter for any debris or deposits. If needed, replace the fuel line and filter using the manufacturer's recommended parts. Reattach the fuel tank, fastening it securely with cap screws. This process will help ensure your fuel tank is clean and well-maintained, improving the performance and longevity of your engine.
Remember, always refer to your specific engine's manual for detailed instructions and safety precautions. The steps outlined above provide a general guide, and variations may exist depending on your vehicle's make and model.
Fuel Tank Capacity of GMC Sierra 2500HD
You may want to see also
Explore related products
Using a pressure washer to blast loose debris
Using a pressure washer is an effective way to blast loose debris from a semi-fuel tank screen. This method can help dislodge any built-up gunk, sediment, or rust inside the tank. Here are some detailed steps and instructions for using a pressure washer for this purpose:
Firstly, it is important to prepare the pressure washer for use. Check the oil and fuel levels, ensuring they are adequate but not overfilled. If your pressure washer has a fuel stabilizer feature, make sure to use it to prevent engine corrosion and maintain fuel freshness. Additionally, check the spark plug for any damage. If the electrodes appear burned or pitted, replace the spark plug.
Next, you'll want to set up the pressure washer correctly. Ensure the water inlet screen, located where you connect the garden hose, is clean and free of debris. If your pressure washer has an inline screen in the wand extension, inspect and clean it as well. Secure all connections, including those to the hose, spray gun, and wand extension. Test the spray gun trigger and trigger lock, and replace the spray gun if necessary.
Now, you are ready to begin the cleaning process. Turn on the pressure washer and adjust the settings to a suitable pressure and water flow rate for your specific application. Point the spray gun into the semi-fuel tank and activate it, allowing the pressurized water to blast away any loose debris, sediment, or rust particles. It may be helpful to angle the spray in different directions to effectively target all areas of the tank and screen.
For heavily soiled tanks, you might consider using additional cleaning agents. Some people recommend using hot water and a detergent like Dawn soap or Super Clean detergent to aid in breaking down the debris. You can also find specific products like "Marine Clean" and metal prep solutions to tackle rust and prepare the tank for lining.
Finally, once you have completed the cleaning process, remember to properly maintain your pressure washer for future use. Always clean off any remaining debris from the machine and store it according to the manufacturer's instructions, especially if you plan on keeping it for an extended period without use.
The Rising Cost of Filling Your Gas Tank
You may want to see also
Explore related products
Removing the fuel screen from a motorcycle gas tank
First, it is crucial to secure the motorcycle in a stable and immobile position. This can be achieved by using a kickstand on solid ground, placing it on a lift, or using wheel stands. Ensure the motorcycle is firmly held and will not tip over during the process. Next, remove the fuel from the tank. This step is important for safety reasons and will make the process easier. You can run the motorcycle until the fuel is depleted, or you can siphon the fuel out using an appropriate method, such as draining it into a container.
Once the tank is empty, locate and disconnect the main fuse for safety purposes. Refer to the service manual to find the fuse box's exact location. Now, it's time to remove the fairings and any tank straps that may be present. Fairings are the exterior body panels of the motorcycle, and tank straps are used for functional or aesthetic purposes. Removing these components will provide better access to the fuel tank and its connections.
The next step is to disconnect the fuel pump and clear the gas lines. The fuel lines are pressurized, so it is important to relieve the pressure before proceeding. Unplug the connector for the fuel pump, which may be located under the seat, tank, or on the sides. Then, turn on the motorcycle and hold the start button for a few seconds.
With the fuel pump unplugged, locate and disconnect the fuel line that links to the tank. This is typically done using a quick-connect hose fitting. Be cautious when handling the fuel line, as some motorcycles may have a vacuum petcock, which should be left on unless it is defective. Additionally, disconnect any vent or overflow tubes connected to the tank.
Now, you are ready to remove the fuel tank bolts. Most tanks will have bolts at both the front and rear, but refer to your service manual for the exact locations. Leave the tank in place for now, as you may need to access connections beneath it. If you haven't already, remove any attachments or consoles that could keep the tank tied to the motorcycle.
Finally, with all the connections cleared, carefully lift and remove the fuel tank. Be cautious, as there may be additional connections specific to your motorcycle model that need to be addressed. With the fuel tank removed, you can now access the fuel screen for cleaning, replacement, or any other necessary maintenance. Remember to exercise patience and caution throughout the process, and always refer to your service manual for model-specific instructions.
Creating a Fuel Tank Breather: DIY Guide
You may want to see also
Frequently asked questions
The process of removing a fuel tank screen depends on the type of vehicle. For motorcycles, the fuel screen should come out with the fuel petcock. If it remains stuck, gently pull it out. For tractors, first, remove the filter bowl and let the tank drain completely. Then, add a little gas to rinse out any remaining residue. Finally, install the fuel screen in the outlet.
A fuel tank screen is a filter that prevents residue from entering the fuel line.
If you are experiencing issues with fuel flow to the carburettor, it may be due to a clogged fuel tank screen.
To clean a fuel tank screen, you must first drain the tank. Then, rinse the screen with a small amount of gas to remove any remaining residue.
One common issue with fuel tank screens is that they can become clogged with residue, leading to fuel flow problems. Additionally, some screens may not fit tightly in the fuel tank, which can cause them to become dislodged.
