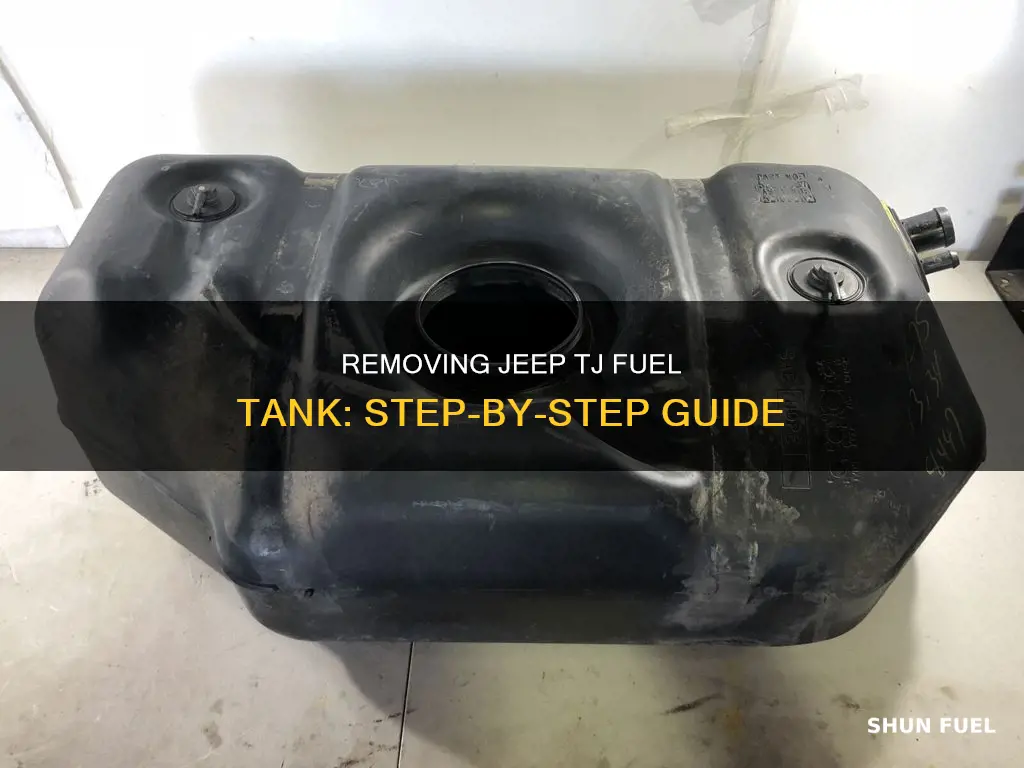

Removing the fuel tank from a Jeep Wrangler TJ is a complex process that requires careful preparation and execution. It is important to note that the fuel tank removal process may vary slightly depending on the make, model, and year of the Jeep Wrangler TJ. Before beginning, it is crucial to gather the necessary tools and ensure a spacious and well-lit work area. The process typically involves removing the skid plate, disconnecting fuel lines, vent lines, and electrical connectors, and carefully lowering the fuel tank. It is recommended to siphon the fuel beforehand to make the task safer and more manageable. Additionally, it is important to be cautious when dealing with rusted parts and to take appropriate measures to prevent fuel leakage.
Explore related products
What You'll Learn
Disconnect the fuel supply line
Disconnecting the fuel supply line is a crucial step in removing the fuel tank from a Jeep Wrangler TJ. Here is a detailed guide on how to do this safely and effectively:
First, it is important to relieve the pressure in the fuel system. This can be done by disconnecting the relay located in a black box under the hood of the Jeep. There may be a cheat sheet inside the box that shows which relay to disconnect. Pull out the fuel pump relay and place it in the box under the hood for easy access later. Attempt to start the Jeep to ensure the fuel pump relay has been successfully disconnected; the vehicle should start quickly and then lose pressure and die.
Next, locate the fuel lines underneath the Jeep. These lines are typically held together by simple push connectors. Look for the lines that lead to the fuel tank and push them apart by finding and pressing the push button on the connector. This button is often almost flush with the rest of the connector but will usually be a different colour. Pushing the button will release the connector, allowing you to pull the fuel line apart from it. Repeat this step for all fuel lines connected to the fuel tank.
When disconnecting the fuel supply line, it is important to be cautious. There are usually two fuel lines connected to the tank, and gas may leak out when they are disconnected. It is recommended to have a rag handy to catch any leaking gas and to avoid having your head directly under the fitting to prevent gas from getting into your eyes.
For some Jeep Wrangler models, there may be additional steps or variations to disconnecting the fuel supply line. For example, for a 2006 Jeep Wrangler X, there may be a blue tab and a black tab/fuel line. To disconnect the line, squeeze the blue tab and, while continuing to squeeze, pull the black tab/fuel line forward and then pull back.
By carefully following these steps, you can safely disconnect the fuel supply line when removing the fuel tank from a Jeep Wrangler TJ.
