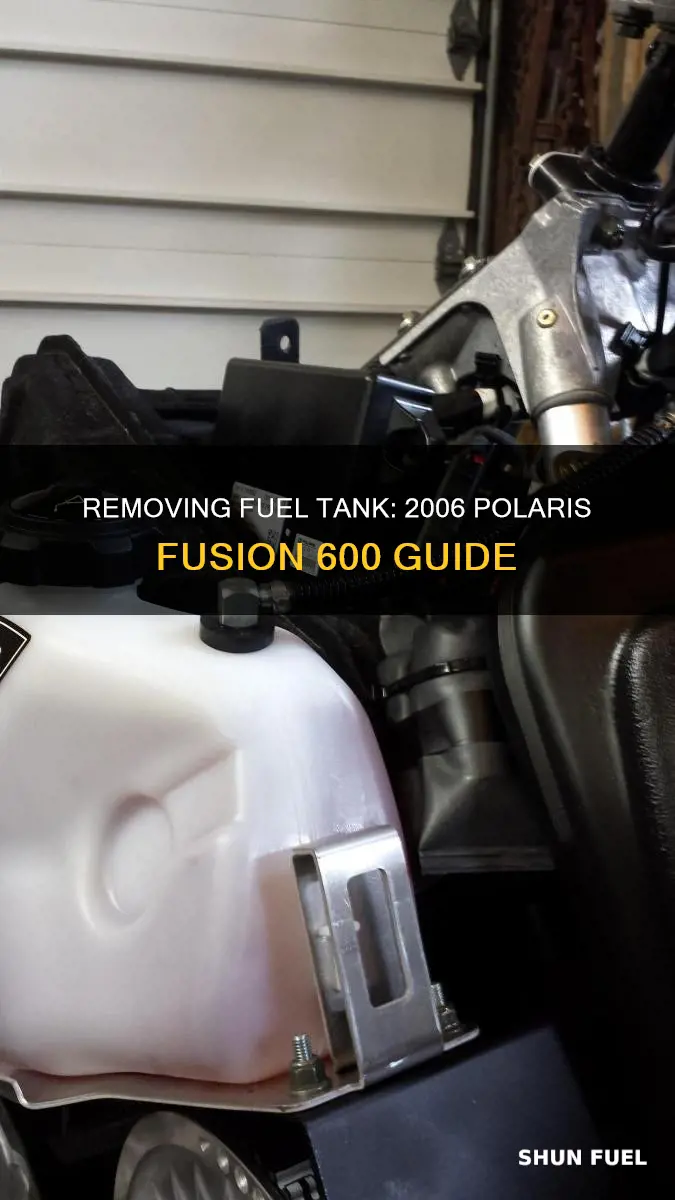

The fuel tank of a 2006 Polaris Fusion 600 can be removed by first allowing the engine and exhaust to cool down completely. Then, the fuel line at the fuel rail can be disconnected, followed by removing the seat and detaching the fuel vent line at the rear of the tank. For models with an EVAP system, the EVAP vent line, located above the EVAP canister on the right side of the fuel tank, should also be removed. Next, the fuel tank fastener can be removed, and the rear of the tank can be lifted and pulled rearward to complete the removal process. It is important to note that Polaris had issued a safety recall for certain 2006 Fusion models due to potential cracks in the fuel tank filler neck, which could lead to fuel leakage and potential fire hazards.
Explore related products
What You'll Learn
Disconnect the fuel line at the fuel rail
To disconnect the fuel line at the fuel rail of a 2006 Polaris Fusion 600, follow these steps:
Firstly, ensure the engine and exhaust are completely cooled down before beginning any work. Protect the fuel tank finish by removing the console; unscrew the fastener at the back of the console, then lift the rear of the console to clear the fuel cap. Push forward to release the front mount from the keyway, then lift the console up and out, away from the fuel tank.
Now, to disconnect the fuel line at the fuel rail:
- Remove the seat.
- At the rear of the tank, disconnect the fuel vent line.
- If your model is equipped with an EVAP system, remove the EVAP vent line located above the EVAP canister on the right-hand side of the fuel tank.
- Disconnect the fuel line at the fuel rail by hand. Do not use any tools as these may damage the connection.
Once the fuel line is disconnected, continue with the fuel tank removal process by removing the fuel tank fastener, then lifting the rear of the tank upward and pulling it rearward to remove. Place the fuel tank in a secure location with a drain pan to catch any fuel that may leak or drip from the disconnected hoses or fittings.
Draining John Deere 8100's Fuel Tank Sump: Step-by-Step Guide
You may want to see also
Explore related products
Remove the seat
To remove the seat of your 2006 Polaris Fusion 600, start by allowing the engine and exhaust to cool completely. This is an important safety precaution before beginning any work on your vehicle.
Next, you will need to disconnect the fuel line at the fuel rail. This will involve carefully releasing the fuel line from the fuel rail, ensuring that you do not spill any fuel. It is recommended to place a drain pan underneath to catch any fuel that may leak or drip during this process.
Once the fuel line is disconnected, you can proceed to remove the seat. The seat is typically secured with bolts or fasteners, so you will need to remove these using the appropriate tools. Be sure to keep track of the removed bolts or fasteners and safely set them aside.
After all, the necessary bolts or fasteners have been removed, carefully lift and remove the seat. Set it aside in a safe place, ensuring that it is properly supported and protected from any potential damage.
With the seat removed, you will now have access to the fuel tank and other components underneath. Remember to refer to the vehicle's service manual or seek professional guidance if you plan to perform any further maintenance or repairs.
Reinstalling the seat will involve carefully placing it back into its original position and securely fastening all the bolts or fasteners. Ensure that all connections are secure before operating your 2006 Polaris Fusion 600 again.
Understanding the Working of an RC Fuel Tank
You may want to see also
Explore related products
Disconnect the fuel vent line at the rear of the tank
Before disconnecting the fuel vent line, it is important to follow the previous steps outlined in the Polaris manual for removing the fuel tank. Firstly, allow the engine and exhaust to cool completely before disconnecting the fuel line or removing the tank. Protect the fuel tank finish when removing, storing, and installing the tank. Remove the console by unscrewing the fastener at the back of the console. With the fastener removed, lift the rear of the console enough to clear the fuel cap and push forward to release the front mount from the keyway. Lift the console up and out, away from the fuel tank, to complete removal.
Now, to disconnect the fuel vent line at the rear of the tank, it is important to proceed with caution. Ensure that you do not use any tools other than your fingers to disconnect the quick connection, as tools can cause damage. Disconnect the fuel line at the fuel rail and remove the seat. Then, at the rear of the tank, disconnect the fuel vent line. If your model is equipped with an EVAP system, remove the EVAP vent line located above the EVAP canister on the right-hand side of the fuel tank.
The next step is to remove the fuel tank fastener. After that, lift the rear of the tank upward and pull it rearward to remove it completely. Place the fuel tank in a secure location with a drain pan to catch any fuel that may leak or drip from the disconnected hoses or fittings. It is important to be cautious and careful throughout the entire process to avoid any potential hazards.
Cleaning Your Motorcycle Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Unplug the electrical connector from the fuel pump
To remove the fuel tank from a 2006 Polaris Fusion 600, you must first allow the engine and exhaust to cool completely before disconnecting the fuel line or removing the tank. Once this is done, follow these steps:
- Remove the console by unscrewing the fastener at the back of the console.
- With the fastener removed, lift the rear of the console enough to clear the fuel cap and push forward to release the front mount from the keyway. Lift the console up and out, away from the fuel tank, to complete removal.
- Do not use anything other than your fingers to remove the quick connection. The use of tools can damage the connection. Remove the fuel quick connect.
- Unplug the electrical connector from the fuel pump.
- Unplug the electrical connector from the fuel cap, and remove the electrical harness.
- Remove the left-hand v-cover by removing its fasteners.
It is important to note that, when removing the fuel tank, you should only use your fingers to remove the quick connection. Using tools can damage the connection.
Firstly, locate the electrical connector. It is usually attached to the fuel pump, which is typically located near the fuel tank or the engine. The connector may be secured with a clip or a lock to prevent accidental unplugging. Gently release this securing mechanism before attempting to unplug the connector. Ensure that the engine is turned off and that there is no risk of the fuel pump activating while you are working. This will help prevent any accidental fuel discharge or spraying. Once located, grasp the connector firmly but gently. Some connectors may have a release latch or button that needs to be depressed to unplug the connector. If present, gently press this latch or button while pulling the connector away from the fuel pump. If there is no release mechanism, carefully wiggle the connector back and forth while gently pulling it away from the fuel pump until it comes unplugged. Be cautious not to pull too forcefully, as this could damage the connector or the fuel pump.
Evapo-Rust in Fuel Tanks: Effective or Not?
You may want to see also
Explore related products
Remove the left-hand v-cover
To remove the left-hand v-cover of a 2006 Polaris Fusion 600, follow these steps:
Firstly, ensure the engine and exhaust are completely cooled down. This is an important safety precaution before beginning any work on your vehicle. Once cooled, locate the left-hand v-cover and identify its fasteners. Using the appropriate tool, proceed to remove these fasteners. Be cautious not to misplace any of the small parts during this process.
With the fasteners removed, gently lift and, if necessary, slightly wiggle the left-hand v-cover to detach it from its housing. Take care not to apply excessive force, as this component may be fitted snugly. Once removed, set the left-hand v-cover aside in a secure location, keeping it separate from the rest of the vehicle's components to avoid confusion during reassembly.
It is important to note that, according to Polaris, only your fingers should be used to remove the quick connections associated with the left-hand v-cover. Using tools on these connections may result in damage.
Additionally, for your safety, it is recommended to wear appropriate protective gear, such as gloves and eye protection, during this process to shield your hands and eyes from any potential hazards.
By carefully following these steps, you will successfully remove the left-hand v-cover of your 2006 Polaris Fusion 600, allowing you to access other components for repair, maintenance, or replacement.
